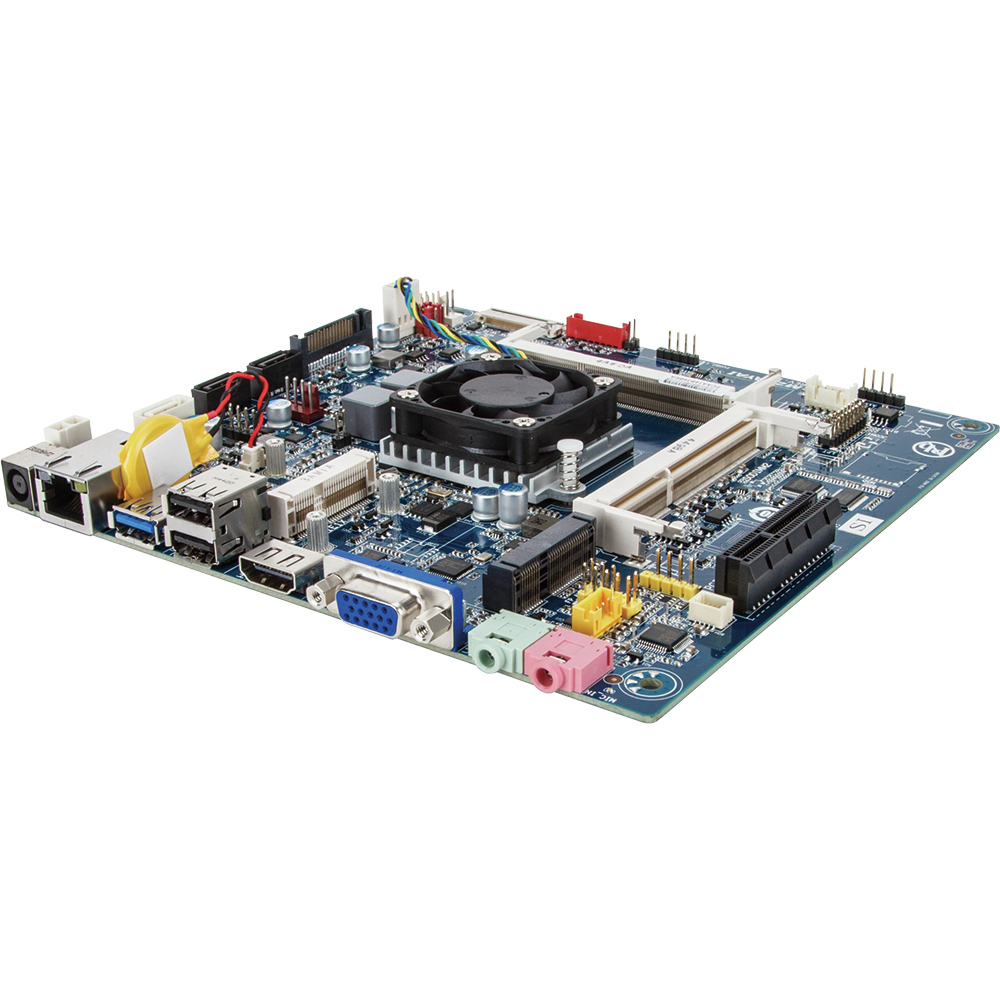

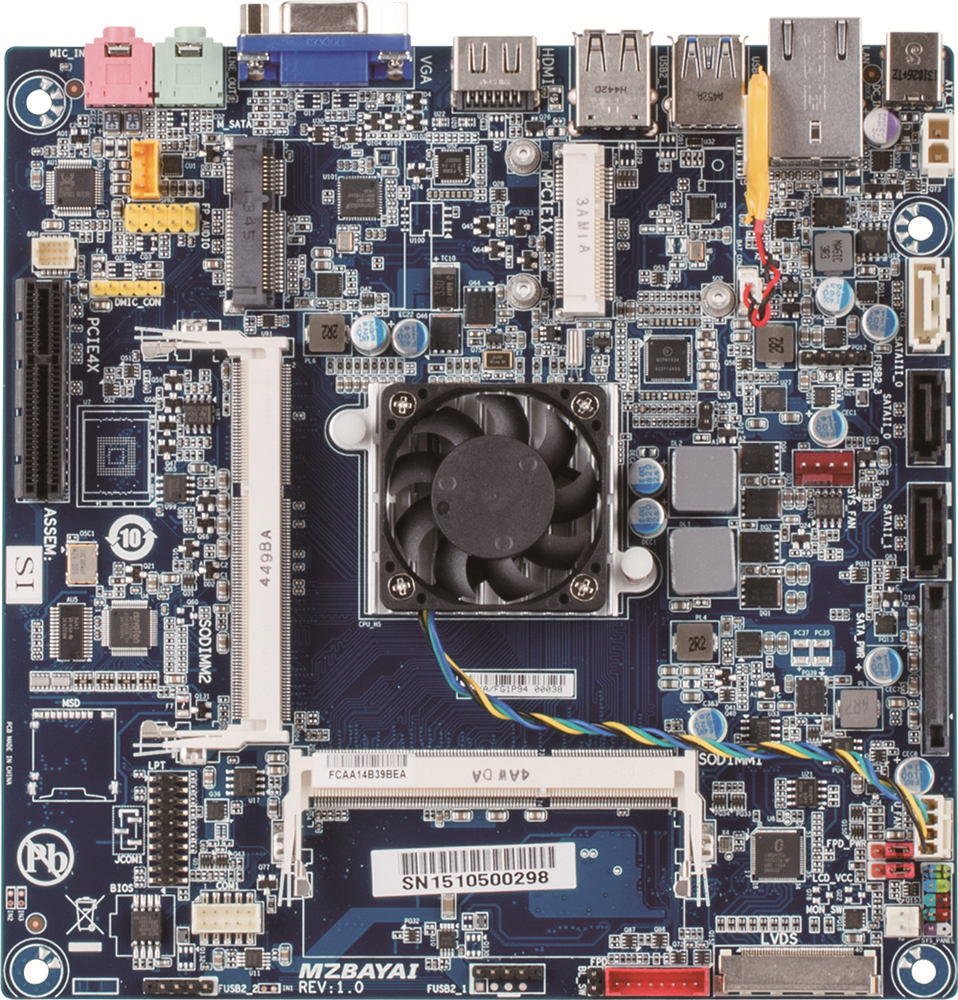

GIGABYTE MZBAYAI BGA 1170 Thin Mini ITX
Model MZBAYAIPart no. 9MZBAYAINR-SI
78 specifications
- ProcessorJ1900
- Processor manufacturerIntel
- Supported memory typesDDR3L-SDRAM
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor
- J1900
- Processor manufacturer
- Intel
- Supported memory types
- DDR3L-SDRAM
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MZBAYAI
- Part number
- 9MZBAYAINR-SI
- Also known as
- GIGABYTE MZBAYAI BGA 1170 Thin Mini ITX
Specifications
78 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1170 |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
| Processor model | J1900 |
| Processor cores | 4 |
| Processor thermal power (max) | 10 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3L-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1333 MHz |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 2560 x 1600 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 2 |
| Number of SATA connectors | 3 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | No |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |

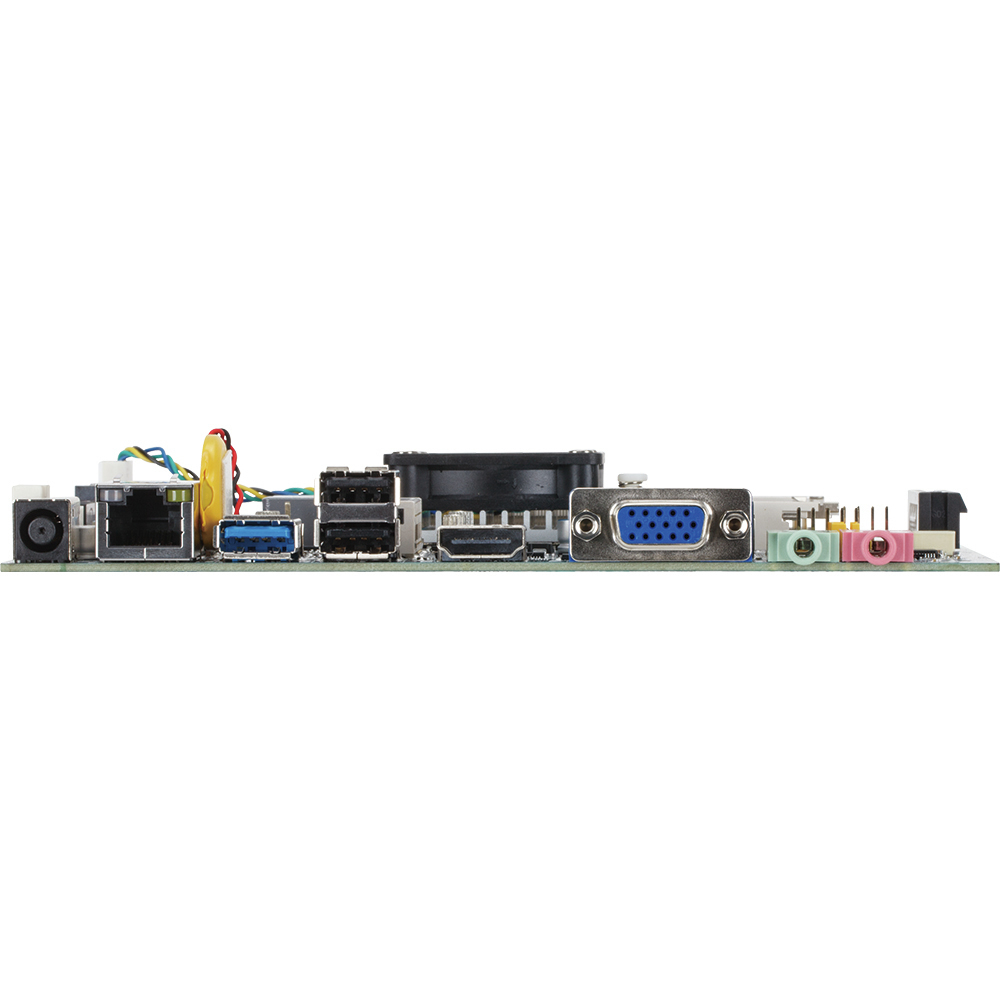

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
| Near Field Communication (NFC) | No |
Features
| Specification | Value |
|---|---|
| Component for | Mini PC |
| Motherboard form factor | Thin Mini ITX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Active |
| Power source type | ATX, DC |
| DC input voltage | 12 V |
| Windows operating systems supported | Windows 7, Windows 8, Windows 8.1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 2.x) slots | 1 |
| Mini PCI Express slot (half-length) | 1 |
| PCI slots | 0 |
| Number of M.2 (M) slots | 0 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 550 mm |
| Package depth | 451 mm |
| Package height | 251 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 1 |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| LVDS connector | Yes |
| Processor family | Intel® Celeron® |
| Processor frequency | 2 GHz |
