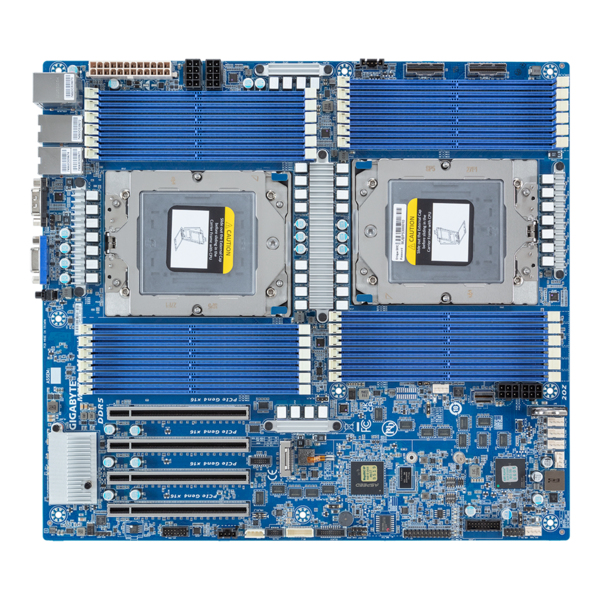

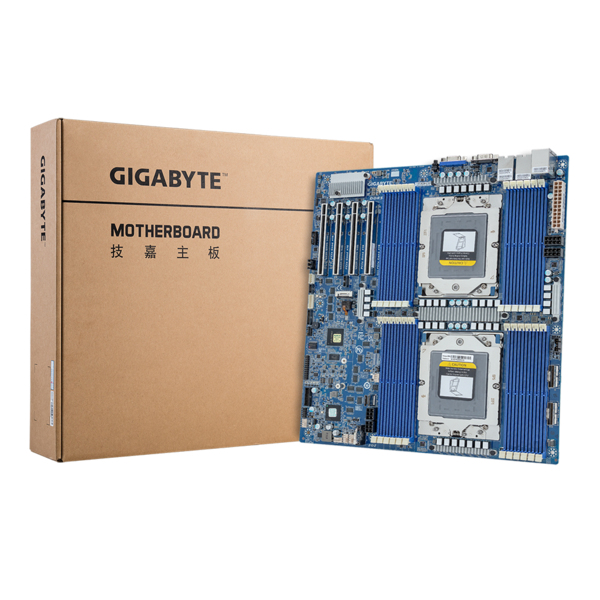

GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX
Model MZ73-LM1EAN 4719331851323
49 specifications
- ColourBlue
- Processor manufacturerAMD
- Supported memory typesDDR5-SDRAM
- Supported storage drive interfacesM.2, SlimSAS
- On-board graphics card modelAspeed AST2600
- USB 2.0 connectors0
Overview
- Colour
- Blue
- Processor manufacturer
- AMD
- Supported memory types
- DDR5-SDRAM
- Supported storage drive interfaces
- M.2, SlimSAS
- On-board graphics card model
- Aspeed AST2600
- USB 2.0 connectors
- 0
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MZ73-LM1
- Part number
- MZ73-LM1
- EAN / UPC
- 4719331851323
- Also known as
- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX
Specifications
49 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket SP5 |
| Compatible processor series | AMD EPYC 9004 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 24 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 4800 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SlimSAS |
| Number of storage drives supported | 4 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 0 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| TPM connector | Yes |

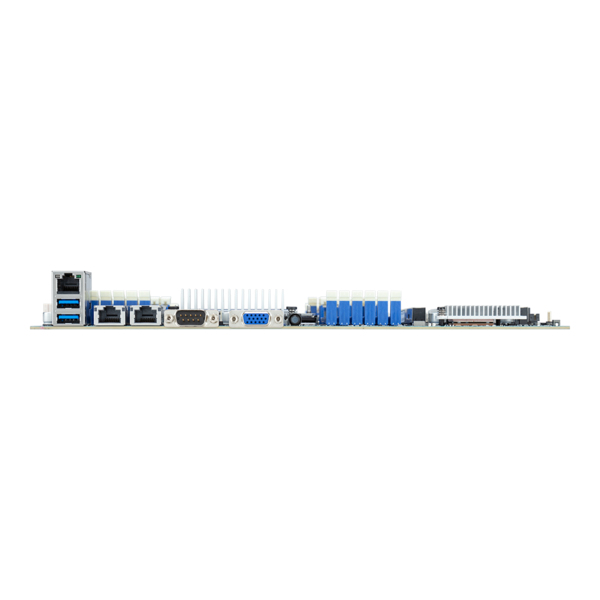

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom BCM57416 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Product colour | Blue |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 4 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 10 - 40 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 335.2 mm |
Compare GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX

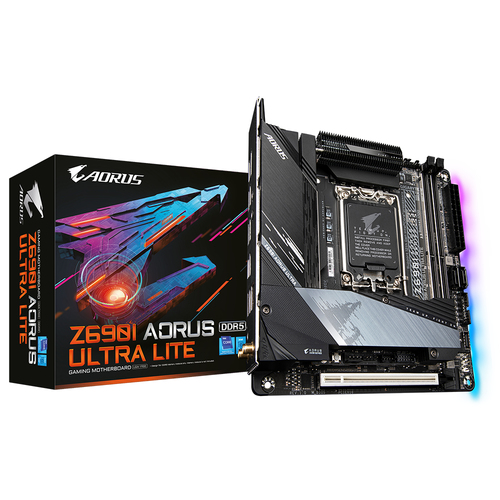

Compare any products- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX vsGIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0)Compare specs
- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX vsGIGABYTE A520M DS3H V2Compare specs
- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX vsGIGABYTE A620M GAMING X AXCompare specs
- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX vsGIGABYTE H610M S2H V2Compare specs
- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX vsASUS PRIME A620M-KCompare specs
- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX vsASUS TUF GAMING B650M-E WIFICompare specs
- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX vsMSI PRO B760-P WIFICompare specs

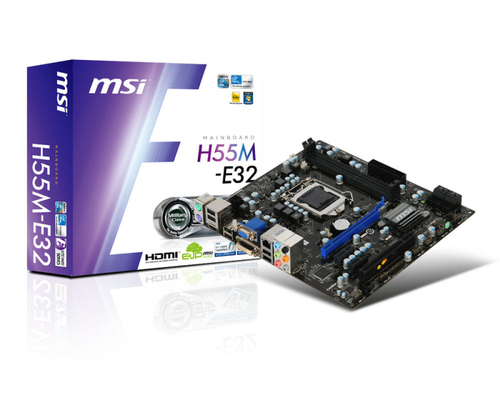

- GIGABYTE MZ73-LM1 motherboard Socket SP5 Extended ATX vsMSI H55M-E32 motherboard Intel® H55 LGA 1156 (Socket H) micro ATXCompare specs
