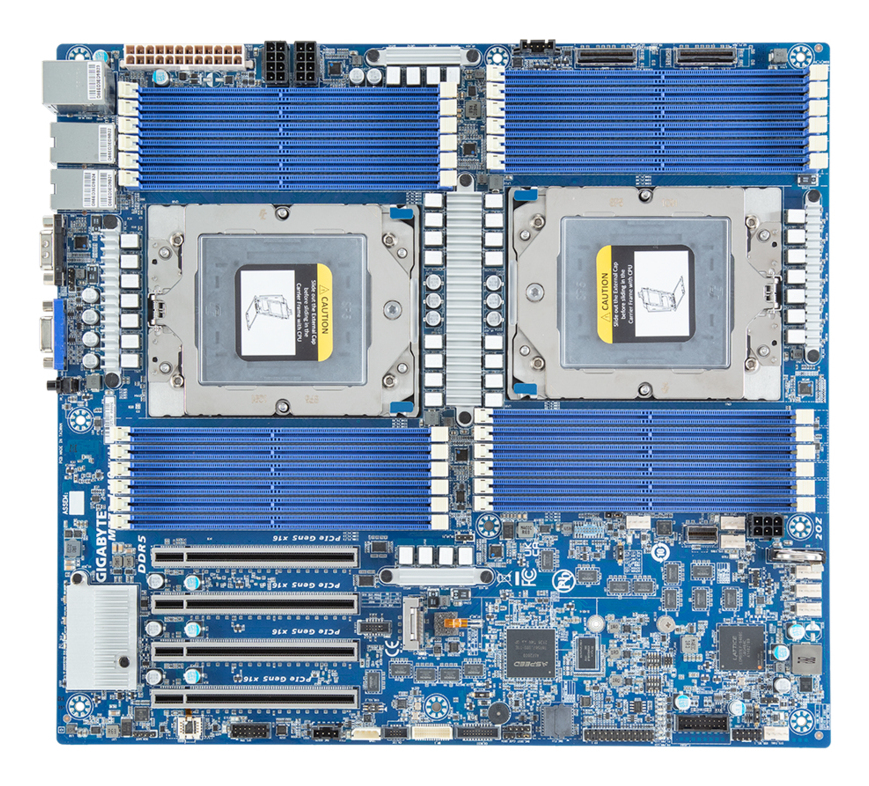

MZ73-LM0 Socket SP5 Extended ATX
Model MZ73-LM0Part no. 9MZ73LM0MR-000EAN 4719331849887
41 specifications
- Processor manufacturerAMD
- Supported memory typesDDR5-SDRAM
- Supported storage drive interfacesM.2, SlimSAS
- On-board graphics cardYes
- Number of SATA connectors1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR5-SDRAM
- Supported storage drive interfaces
- M.2, SlimSAS
- On-board graphics card
- Yes
- Number of SATA connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MZ73-LM0
- Part number
- 9MZ73LM0MR-000
- EAN / UPC
- 4719331849887
- Also known as
- GIGABYTE MZ73-LM0 Socket SP5 Extended ATX
Specifications
41 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket SP5 |
| Compatible processor series | AMD EPYC 9004 |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 24 |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 4800 MHz |
| Maximum internal memory | 256 GB |
| Maximum RDIMM memory | 96 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SlimSAS |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

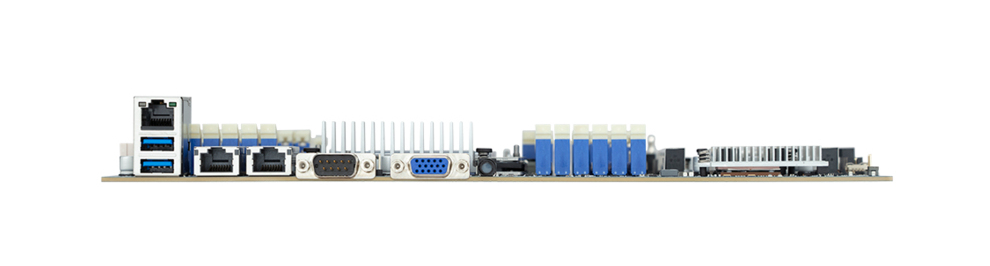

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Broadcom 57416 |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 4 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 335.2 mm |
