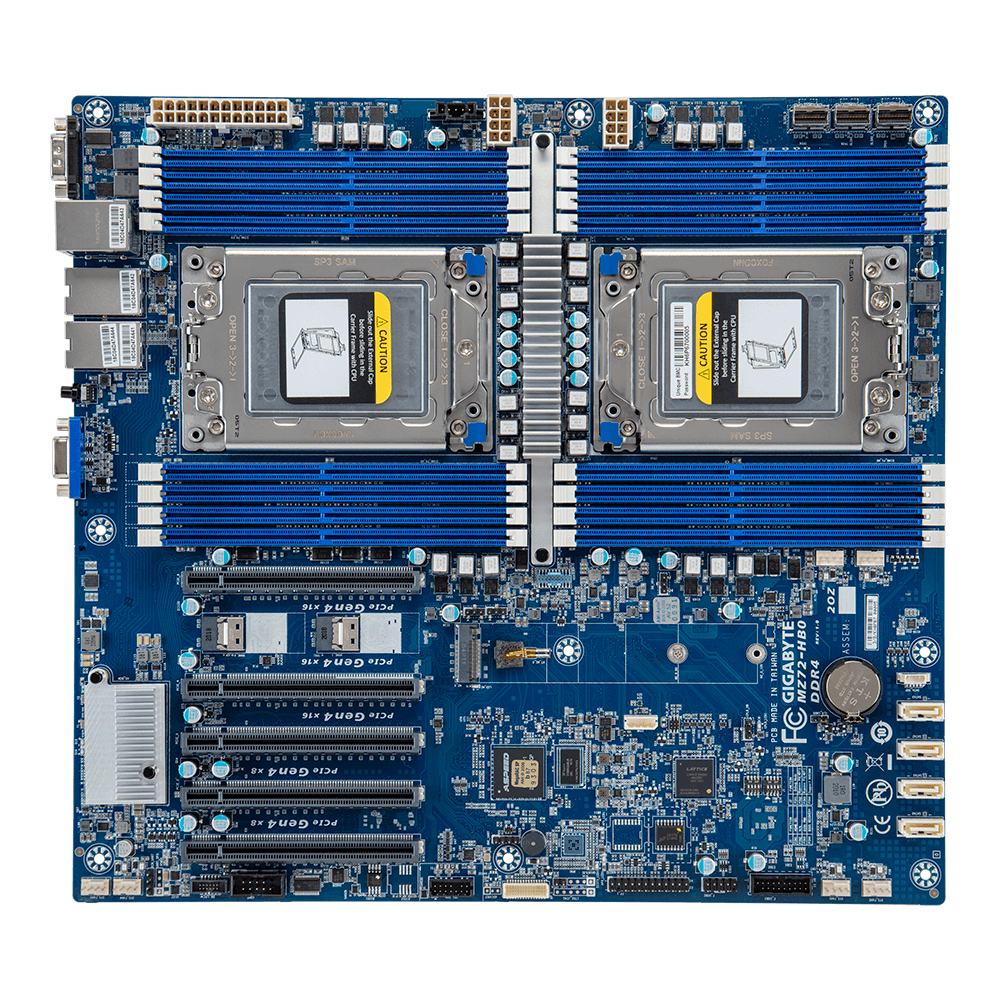

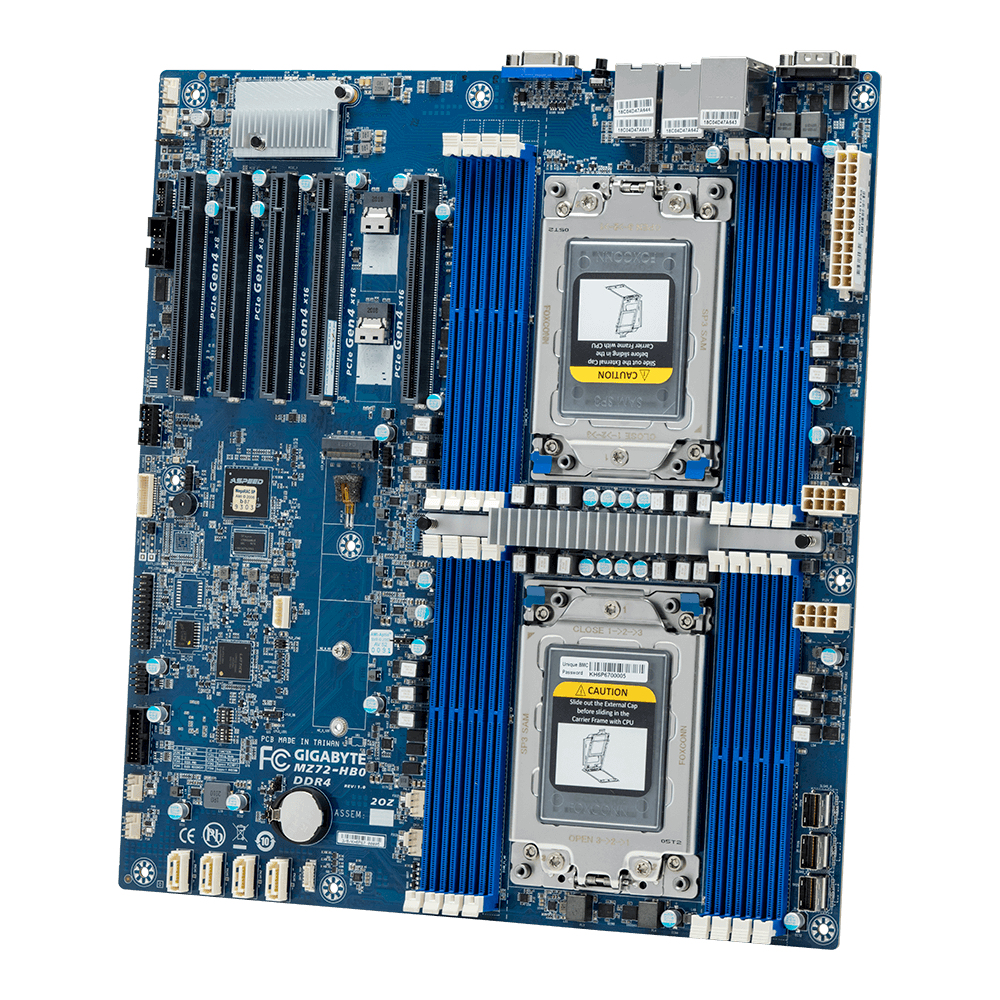

MZ72-HB0 motherboard System on Chip Socket SP3 Extended ATX
Model MZ72-HB0EAN 889523024782
40 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 0
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MZ72-HB0
- Part numbers
- MZ72-HB0, MZ72-HB0 REV 3.0
- EAN / UPC
- 889523024782, 4719331809751
- Also known as
- GIGABYTE MZ72-HB0 motherboard System on Chip Socket SP3 Extended ATX
Specifications
40 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket SP3 |
| Compatible processor series | AMD EPYC |
| Processor number of cores supported | 64 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 2933,3300 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

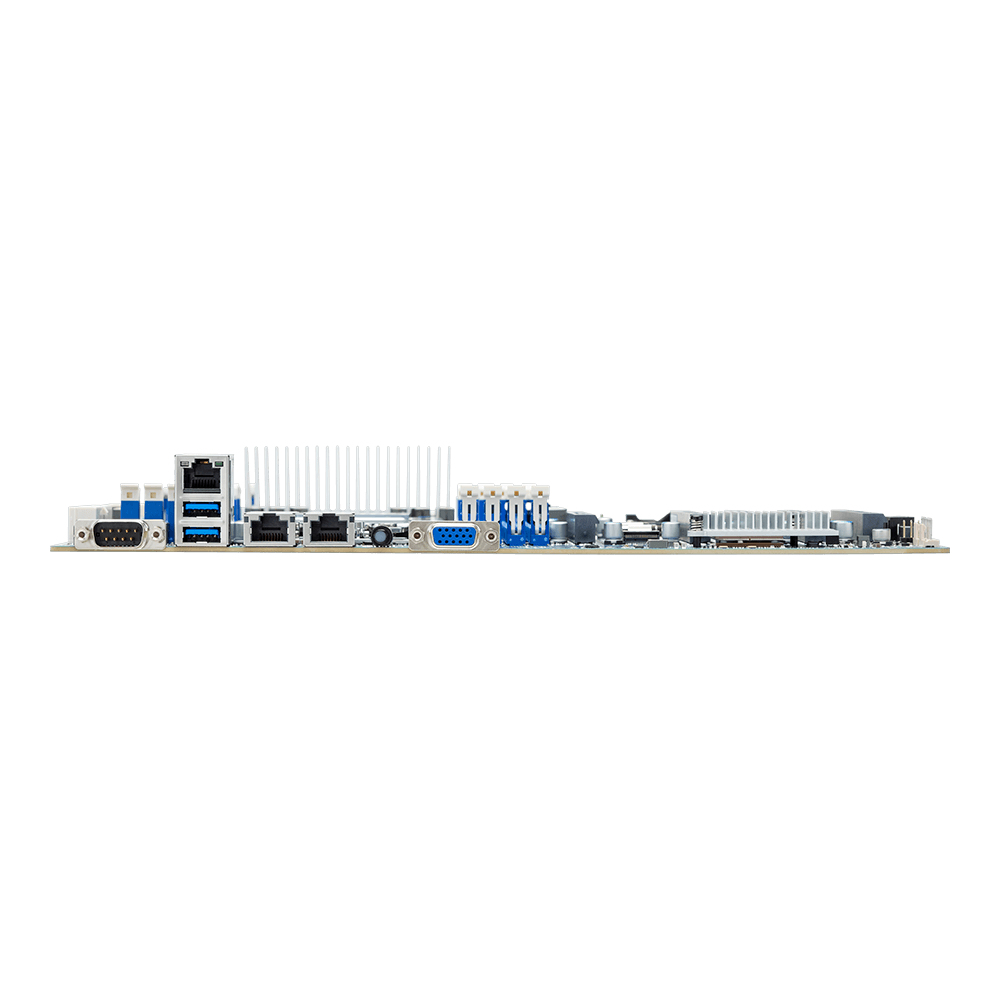

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset | System on Chip |
| Compatible operating systems | Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) Red Hat Enterprise Linux 8.0 ( x64) SUSE Linux Enterprise Server 12 SP4 ( x64) SUSE Linux Enterprise Server 15 SP1 ( x64) Ubuntu 16.04.6 LTS (x64) Ubuntu 18.04.3 LTS (x64) Ubuntu 20.04 LTS (x64) VMware ESXi 6.5 EP15 VMware E |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 5 |
| Number of M.2 (M) slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
