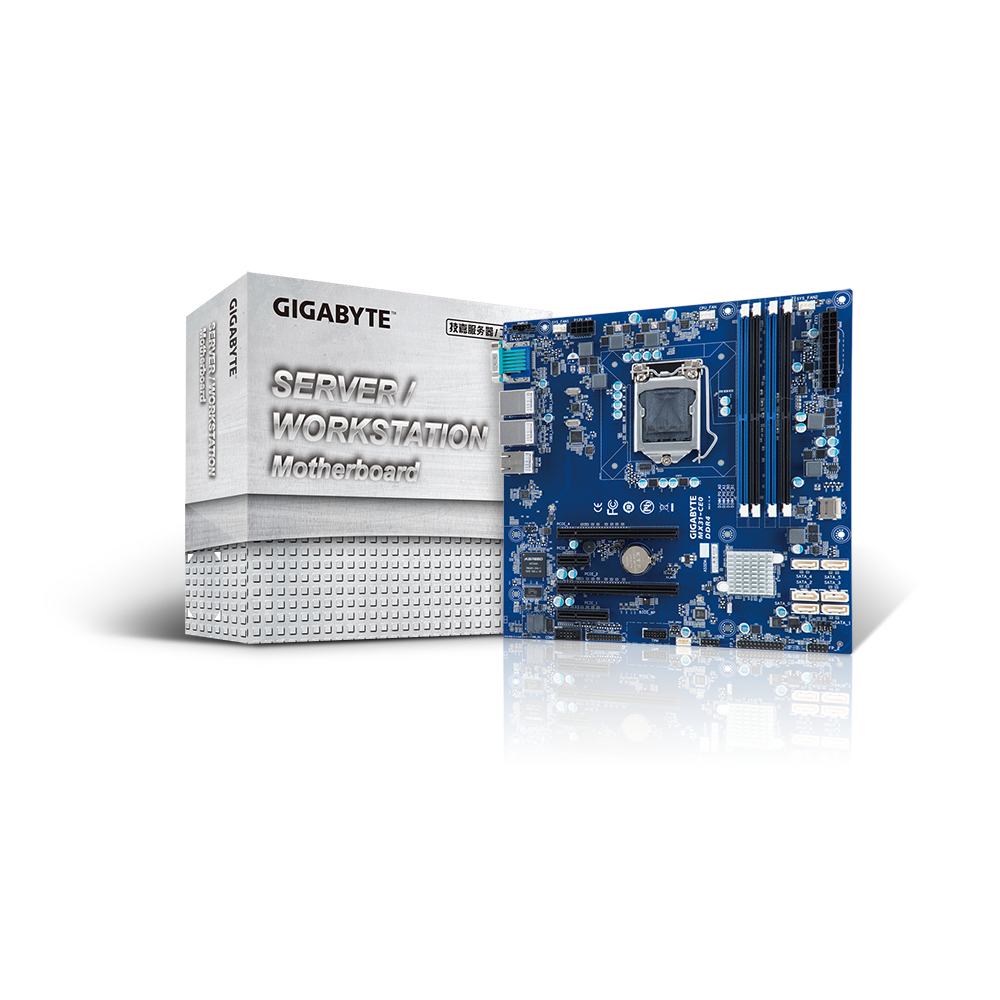

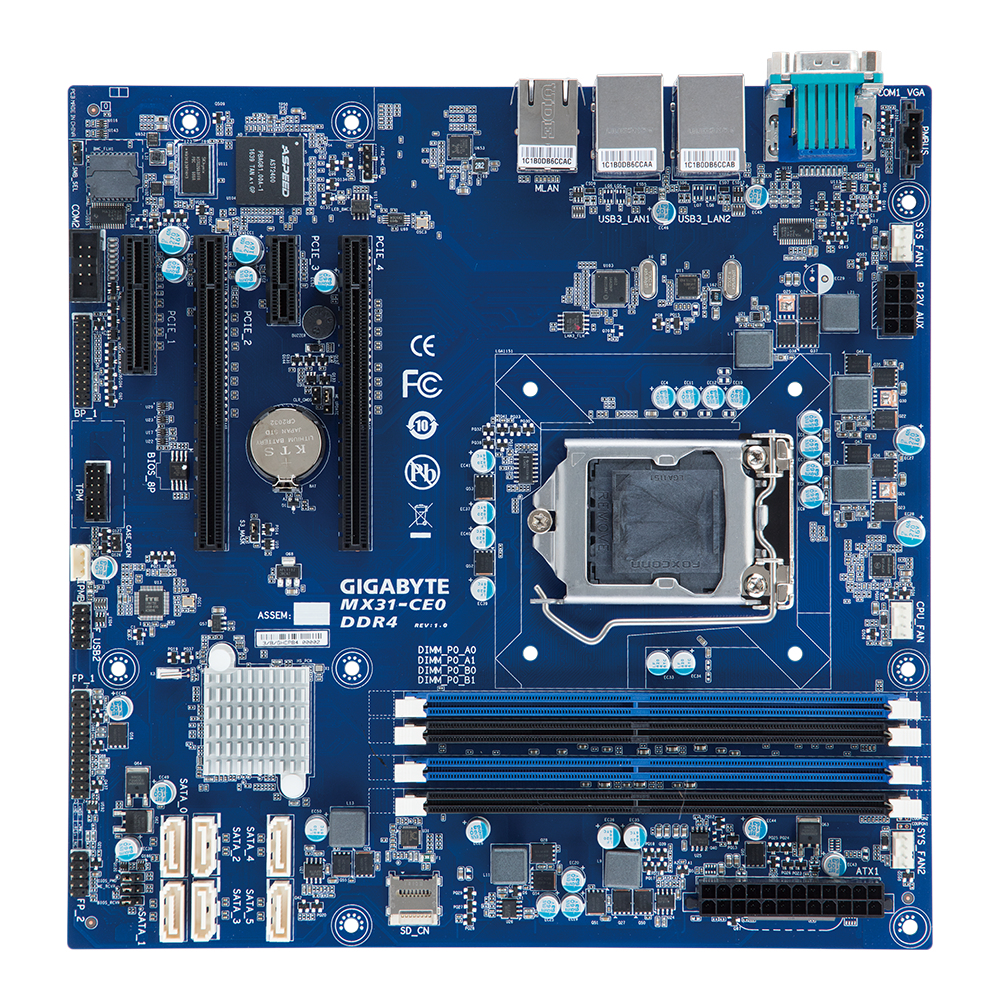

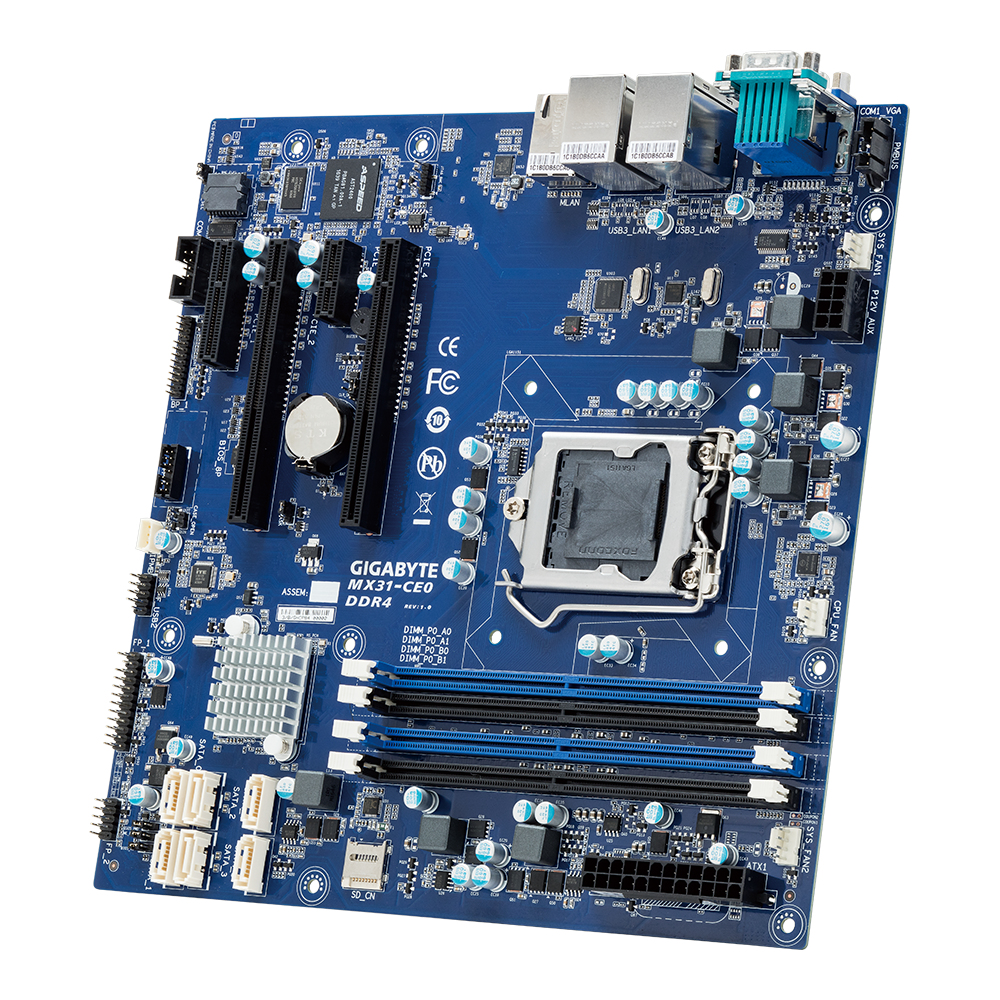

GIGABYTE MX31-CE0 Intel® C232 LGA 1151 (Socket H4) micro ATX

Model MX31-CE0Part no. 9MX31CE0MR-00EAN 4719331801472

66 specifications

Processor manufacturerIntel
Supported memory typesDDR4-SDRAM
Supported storage drive interfacesSATA III
On-board graphics card modelAspeed AST2400
USB 2.0 connectors1
USB 2.0 ports quantity0

See all specifications

Overview

Processor manufacturer: Intel
Supported memory types: DDR4-SDRAM
Supported storage drive interfaces: SATA III
On-board graphics card model: Aspeed AST2400
USB 2.0 connectors: 1
USB 2.0 ports quantity: 0

Brand: GIGABYTE
Category: Motherboard
Model: MX31-CE0
Part number: 9MX31CE0MR-00
EAN / UPC: 4719331801472
Also known as: GIGABYTE MX31-CE0 Intel® C232 LGA 1151 (Socket H4) micro ATX

Specifications

66 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®
Intel Xeon series	E3-1200

Memory

Specification	Value
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage	1.2 V
Supported memory clock speeds	2133,2400 MHz
Maximum internal memory	64 GB

Storage controllers

Specification	Value
Supported storage drive interfaces	SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card model	Aspeed AST2400

Internal I/O

Specification	Value
USB 2.0 connectors	1
Number of SATA III connectors	6
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Integrated SAS ports	0
Serial port headers	1
TPM connector	Yes

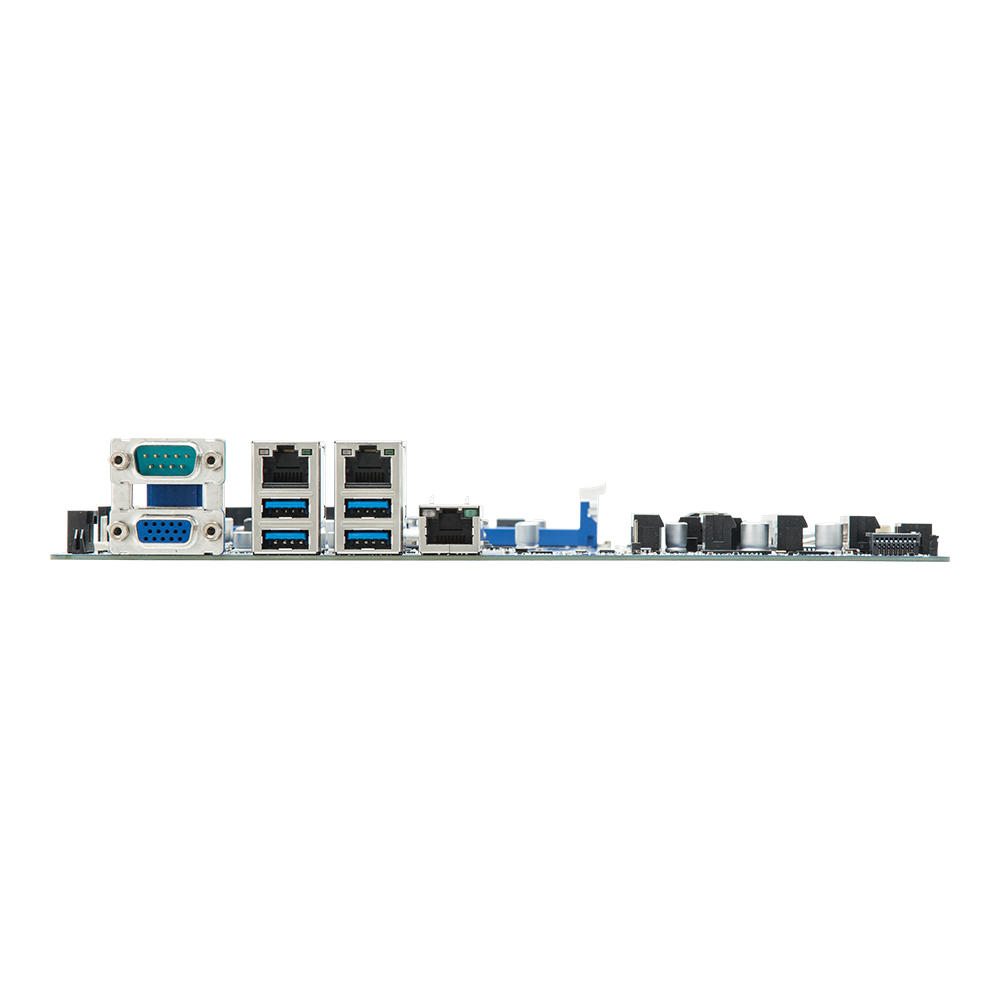

Rear panel I/O ports

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	3
PS/2 ports quantity	0
VGA (D-Sub) ports quantity	1
Serial ports quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
LAN controller	Intel I210, Intel I219LM
Wi-Fi	No
Wi-Fi standards	Not supported

Features

Specification	Value
Component for	Server
Motherboard form factor	micro ATX
Motherboard chipset	Intel® C232

Expansion slots

Specification	Value
PCI Express x1 (Gen 3.x) slots	1
PCI Express x8 (Gen 2.x) slots	0
PCI Express x8 (Gen 3.x) slots	0
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 (Gen 3.x) slots	2
PCI slots	0
PCI-X slots	0
Number of M.2 (M) slots	0

BIOS

Specification	Value
BIOS type	TEst A
Clear CMOS button	Yes

Processor special features

Specification	Value
Trusted Platform Module (TPM)	Yes

Operational conditions

Specification	Value
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	20 - 95%

Packaging data

Specification	Value
Package width	321 mm
Package depth	308.5 mm
Package height	78.5 mm

Logistics data

Specification	Value
Harmonized System (HS) code	84733020

Weight & dimensions

Specification	Value
Width	244 mm
Depth	244 mm

Packaging content

Specification	Value
Cables included	SATA

Other features

Specification	Value
PCI Express x4 (Gen 3.x) slots	1
Number of DIMM slots	4
Number of processors supported	1
PCI Express slots quantity	0
Quick installation guide	Yes
