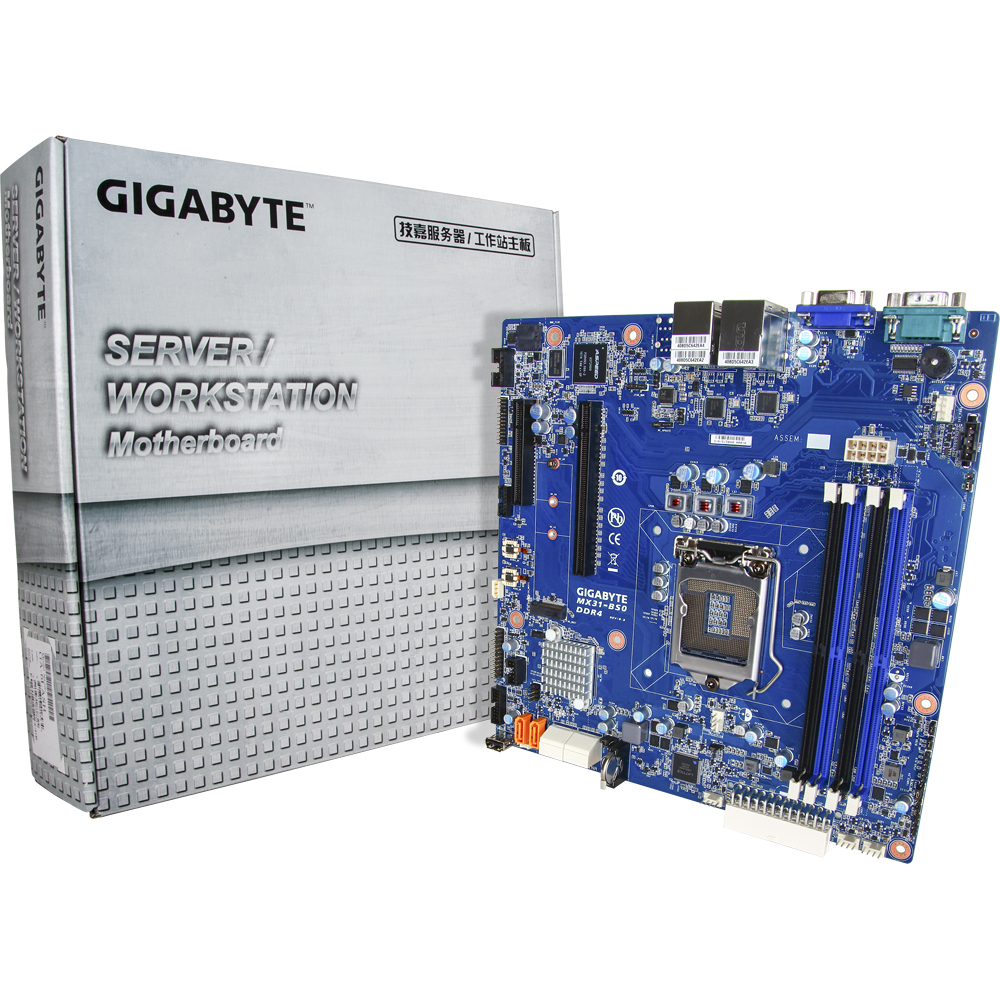

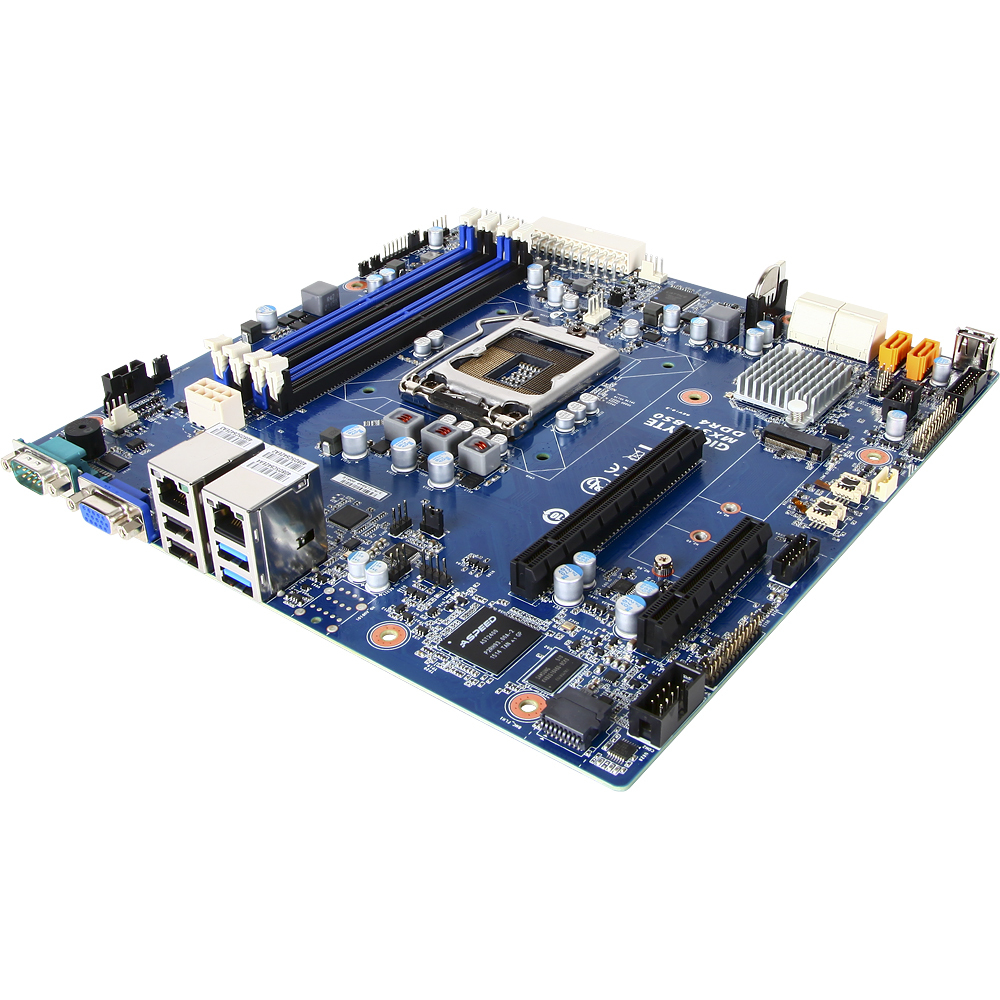

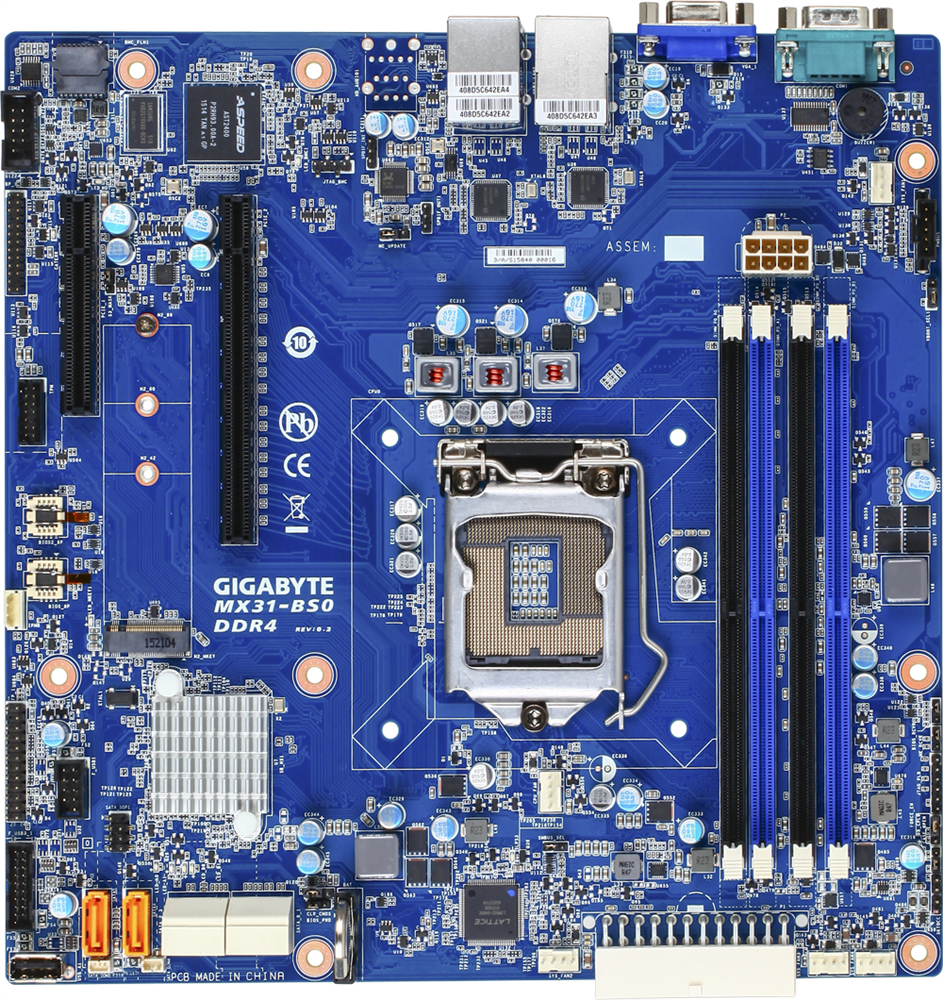

GIGABYTE MX31-BS0 (rev. 1.1)
Model MX31-BS0 (rev. 1.1)Part no. MX31-BS0EAN 813567022442
44 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Discrete graphics supportYes
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MX31-BS0 (rev. 1.1)
- Part number
- MX31-BS0
- EAN / UPC
- 813567022442
- Also known as
- GIGABYTE MX31-BS0 (rev. 1.1) Intel® C232 LGA 1151 (Socket H4) micro ATX
Specifications
44 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Intel Xeon series | E3-1200 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 1866,2133 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics support | Yes |
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

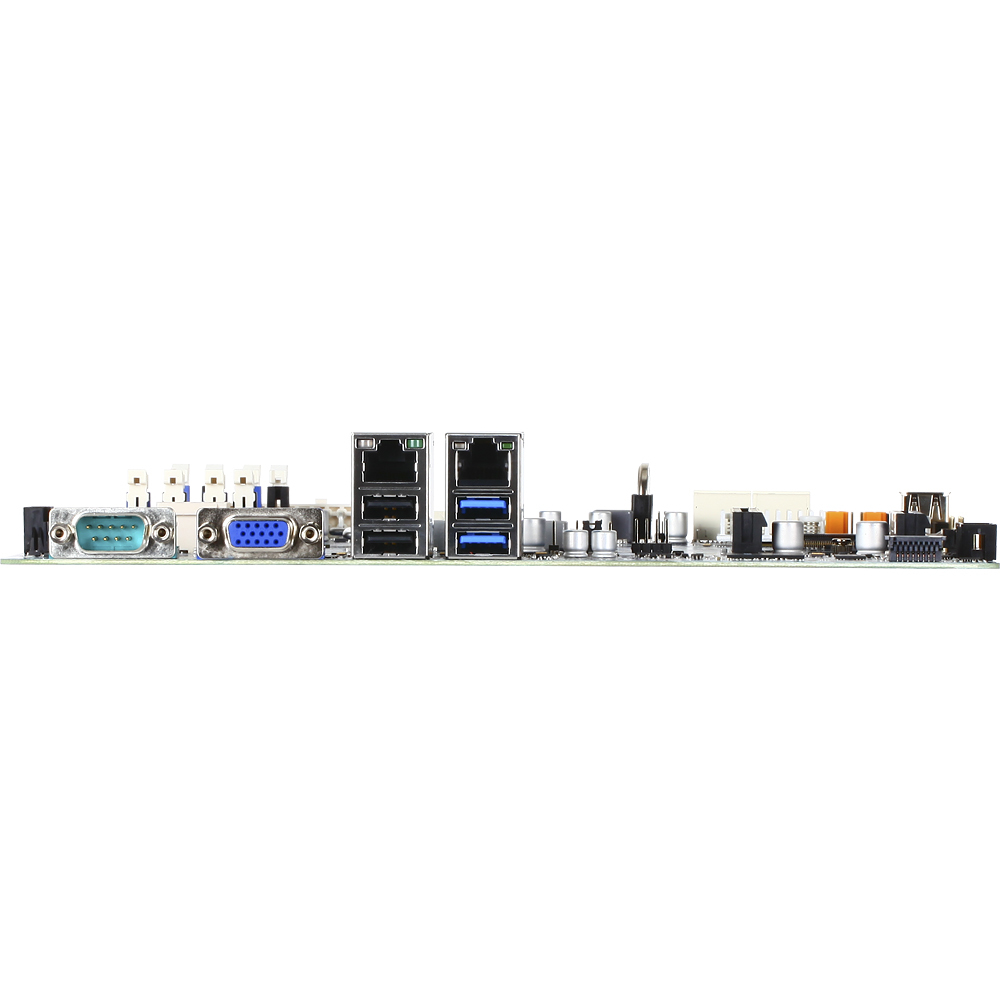

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel I210 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® C232 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 321 mm |
| Package depth | 308.5 mm |
| Package height | 78.5 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Supported UDIMM module capacity | 16GB |
| Number of DIMM slots | 4 |
| Quick installation guide | Yes |
What people say
Reviews & ratings
GIGABYTE MX31-BS0 (rev. 1.1)
No reviews yet
Be the first to tell others how GIGABYTE MX31-BS0 (rev. 1.1) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE MX31-BS0 (rev. 1.1)

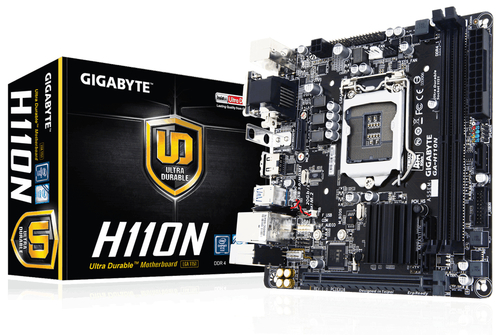

All motherboard comparisons- GIGABYTE MX31-BS0 (rev. 1.1) vsGIGABYTE GA-H110N motherboard Intel® H110 mini ITXCompare specs

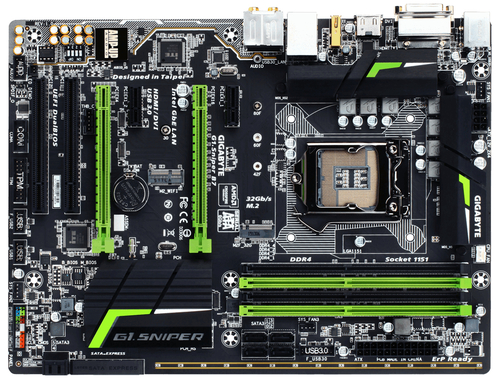

- GIGABYTE MX31-BS0 (rev. 1.1) vsGIGABYTE G1.Sniper B7 (rev. 1.0)Compare specs
