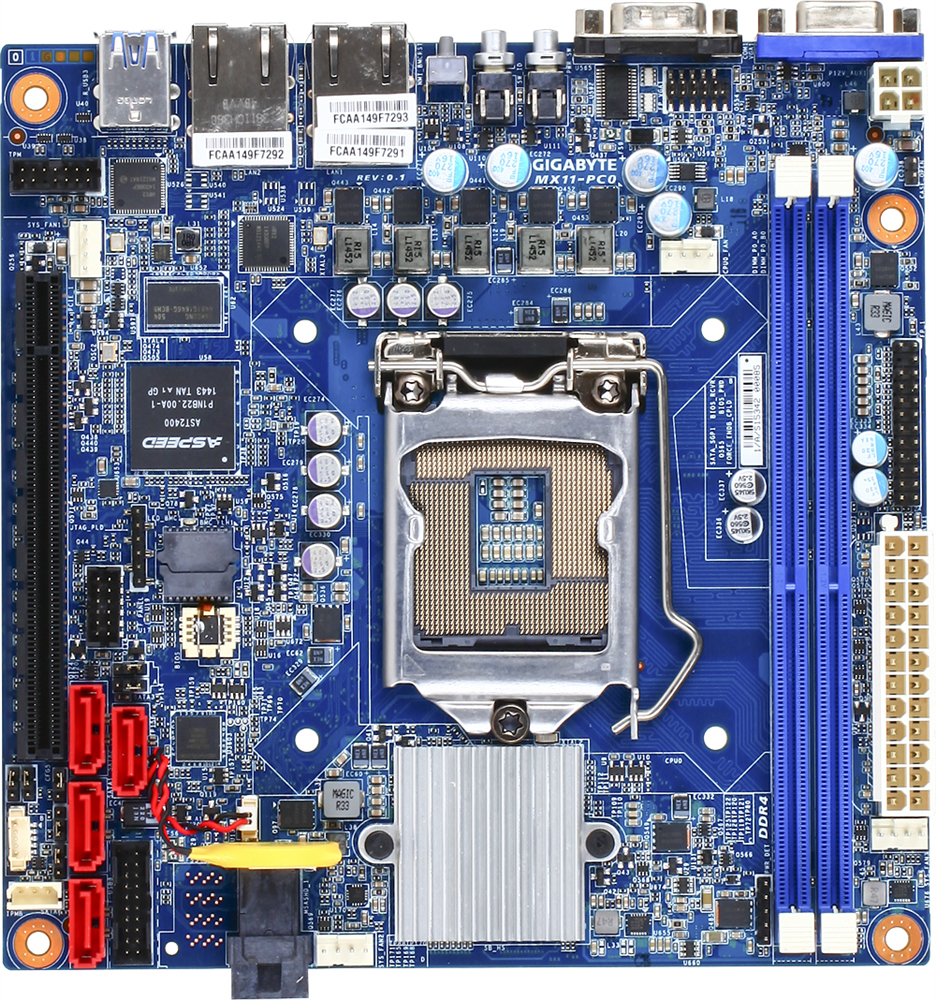

GIGABYTE MX11-PC0 (rev. 1.0)
Model MX11-PC0 (rev. 1.0)Part no. MX11-PC0EAN 813567022831
40 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Discrete graphics supportYes
- USB 2.0 connectors0
- Component forServer
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 0
- Component for
- Server
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MX11-PC0 (rev. 1.0)
- Part numbers
- MX11-PC0, 9MX11PC0MR-00
- EAN / UPC
- 813567022831, 4719331846350
- Also known as
- GIGABYTE MX11-PC0 (rev. 1.0) Intel® C232 LGA 1151 (Socket H4) Mini-ITX
Specifications
40 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Intel Xeon series | E3-1200 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |
| Integrated SAS ports | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel I210 |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Mini-ITX |
| Motherboard chipset | Intel® C232 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 233 mm |
| Package depth | 214 mm |
| Package height | 62 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Supported UDIMM module capacity | 16GB |
| Number of DIMM slots | 2 |
| Number of processors supported | 4 |
