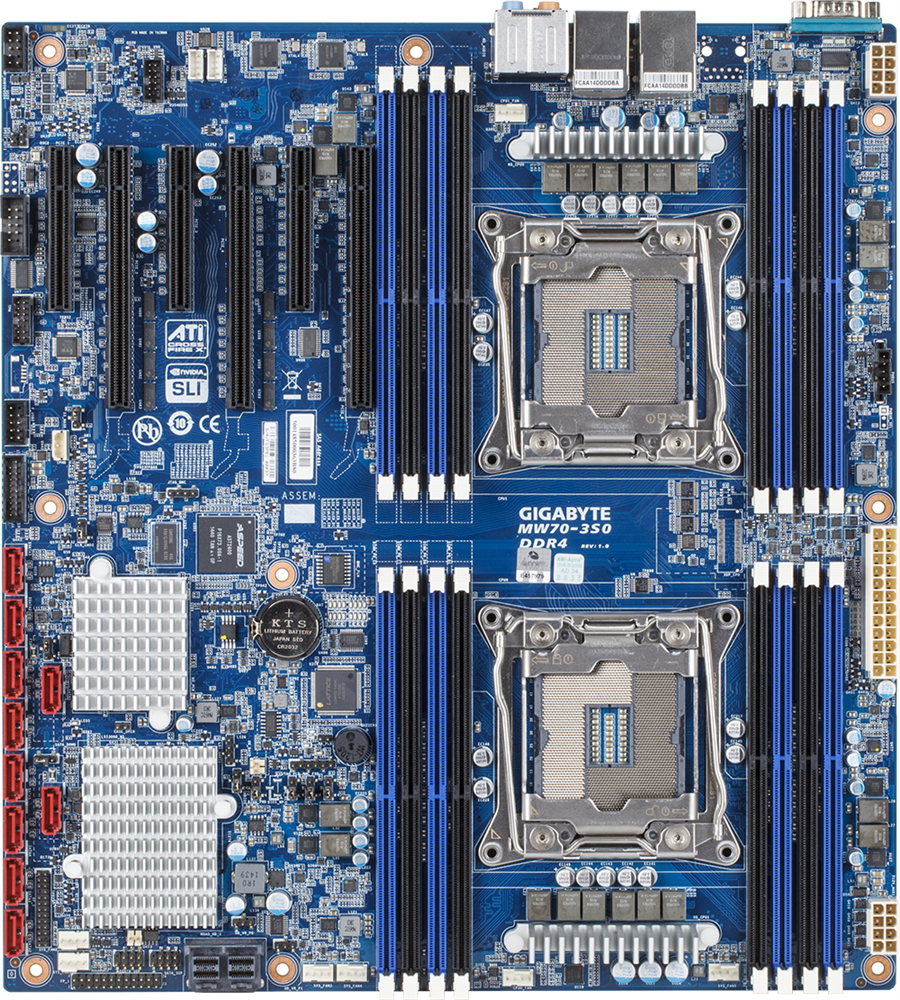

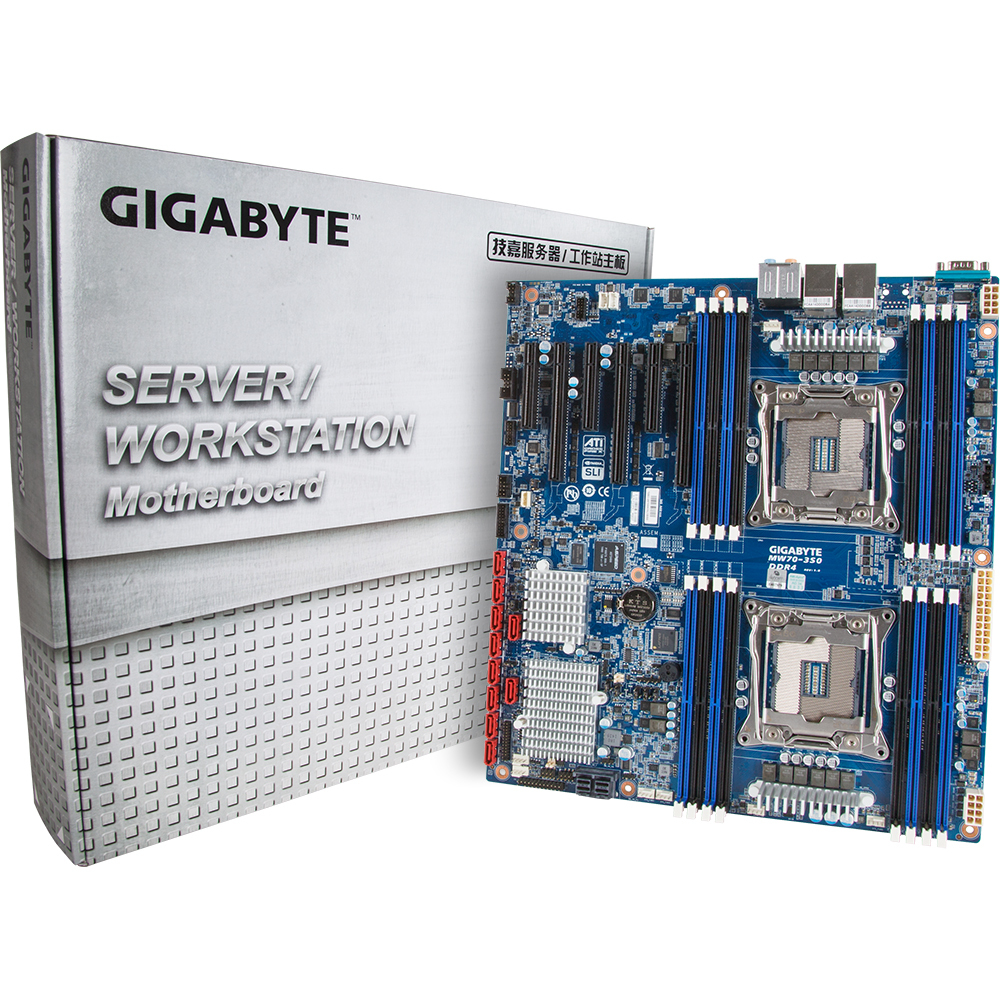

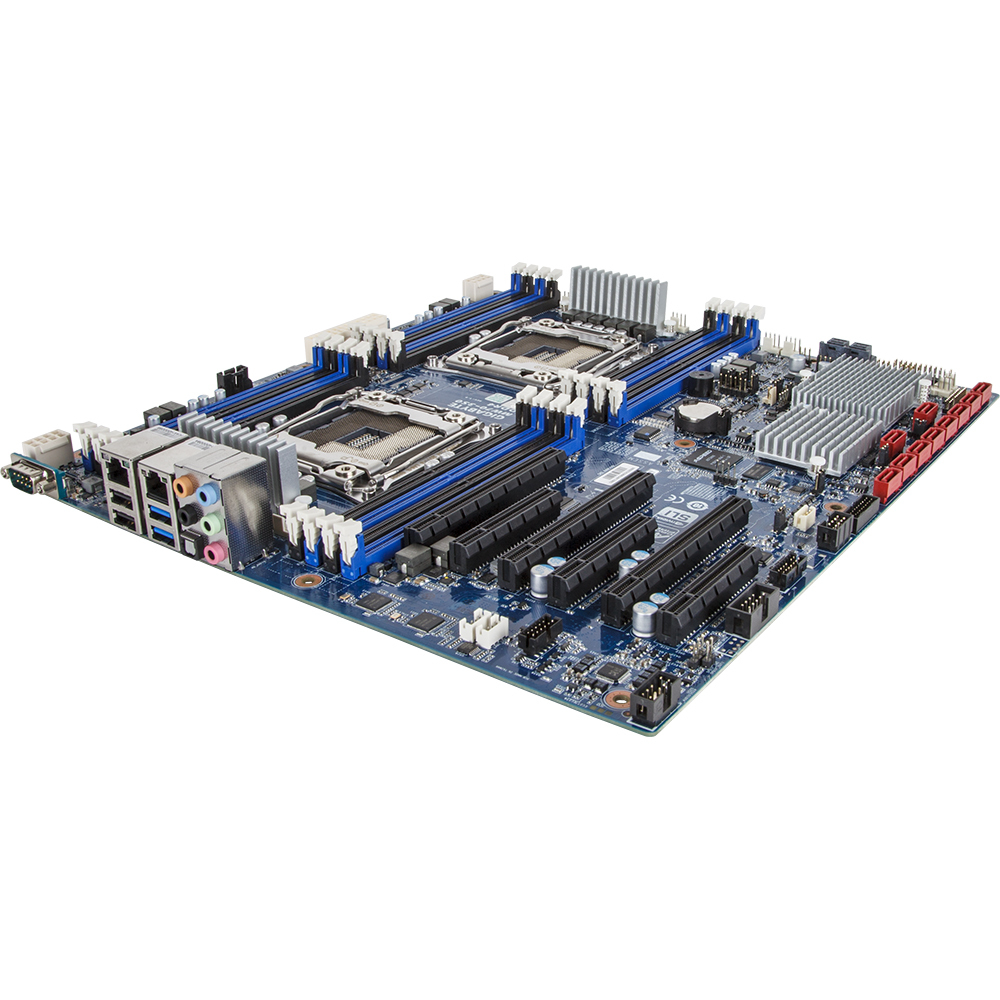

GIGABYTE MW70-3S0 Intel® C612 LGA 2011-v3 Extended ATX
Model MW70-3S0Part no. 9MW703S0MR-00EAN 813567021483
78 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSerial Attached SCSI (SAS)
- Discrete graphics supportYes
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- Serial Attached SCSI (SAS)
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MW70-3S0
- Part number
- 9MW703S0MR-00
- EAN / UPC
- 813567021483, 4719331812256, 5054444199139
- Also known as
- GIGABYTE MW70-3S0 Intel® C612 LGA 2011-v3 Extended ATX
Specifications
78 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | E5-2600 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 1600,1866,2133,2400 MHz |
| Maximum internal memory | 64 GB |
| Maximum RDIMM memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| RAID support | Yes |
| RAID levels | 0, 1, 1E, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, CrossFireX, SLI |
| Discrete graphics support | Yes |
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Integrated SAS ports | 2 |
| Serial port headers | 1 |
| TPM connector | Yes |

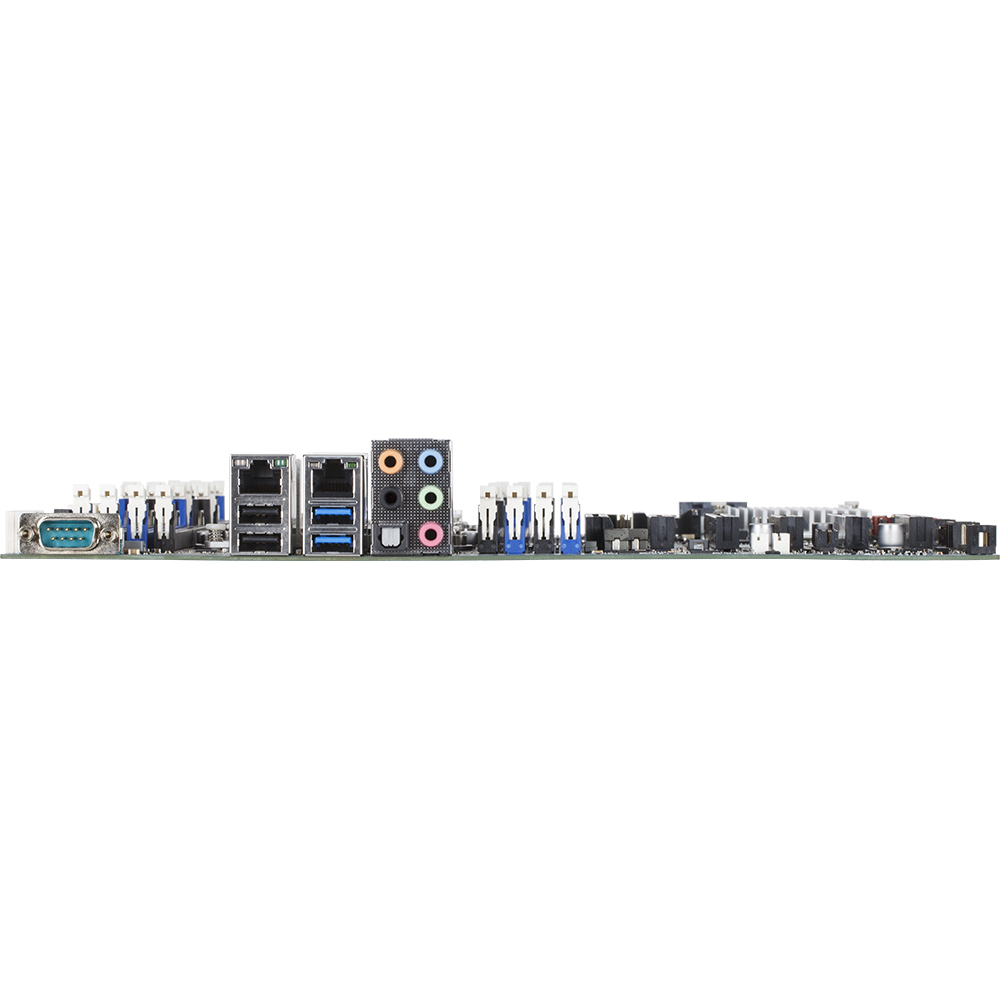

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset | Intel® C612 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI slots | 0 |
| PCI-X slots | 0 |
| Number of M.2 (M) slots | 0 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 473 mm |
| Package depth | 600 mm |
| Package height | 495 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Other features
| Specification | Value |
|---|---|
| DVI port | No |
| Maximum LRDIMM memory | 64 GB |
| Disk on Module (DOM) power connector | Yes |
| Audio output | Yes |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
| PCI Express slots quantity | 0 |
Technical details
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
