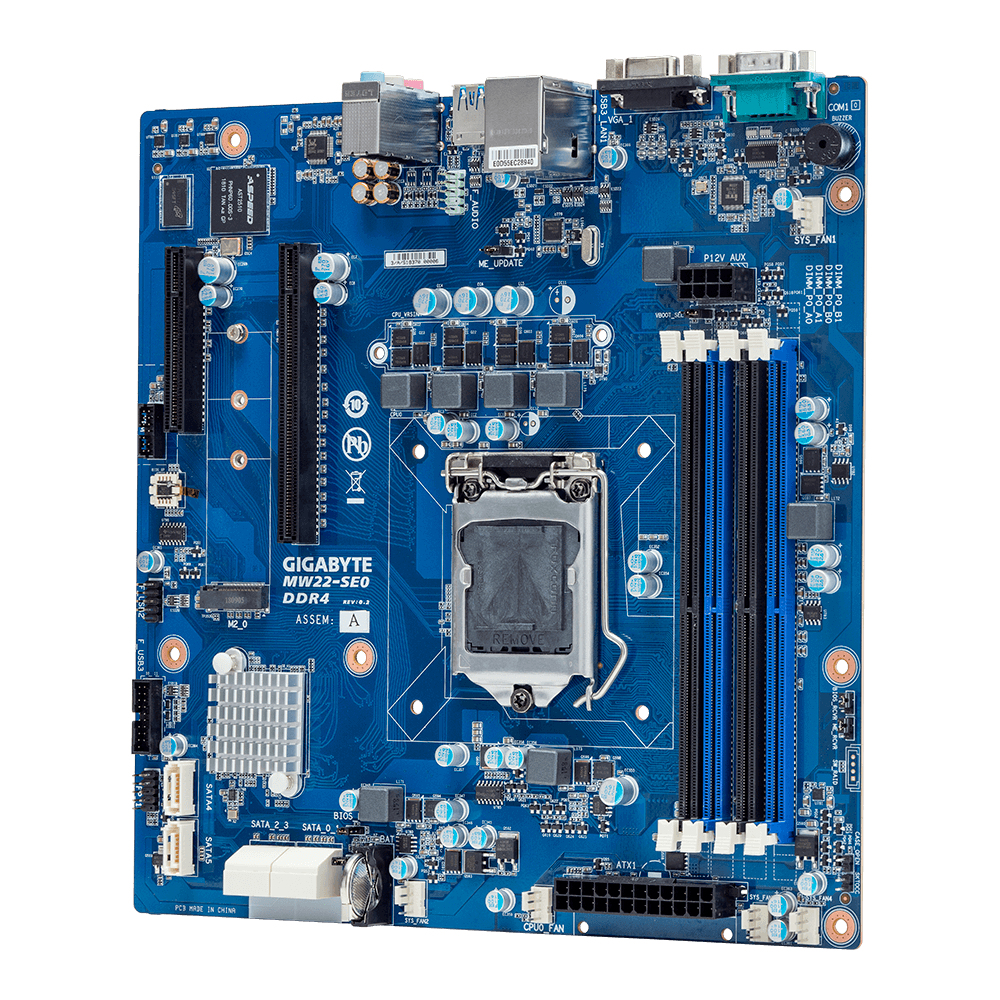

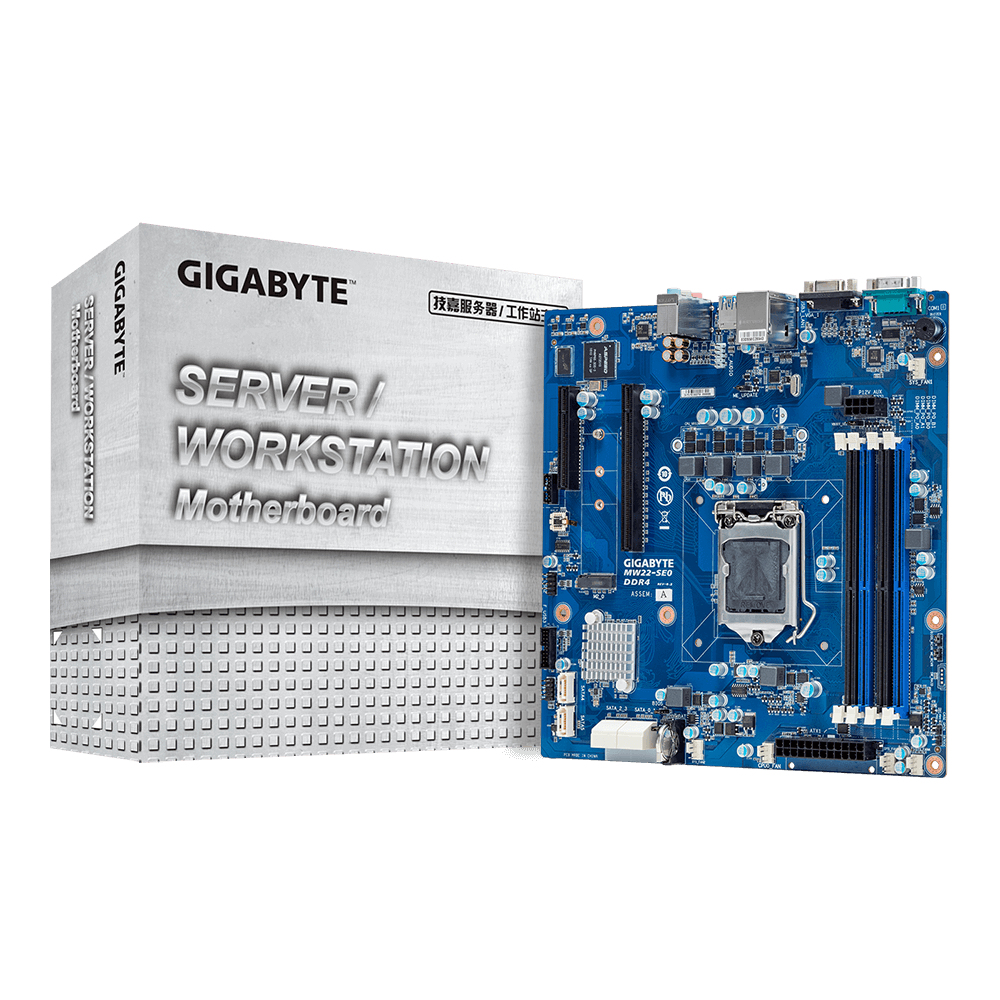

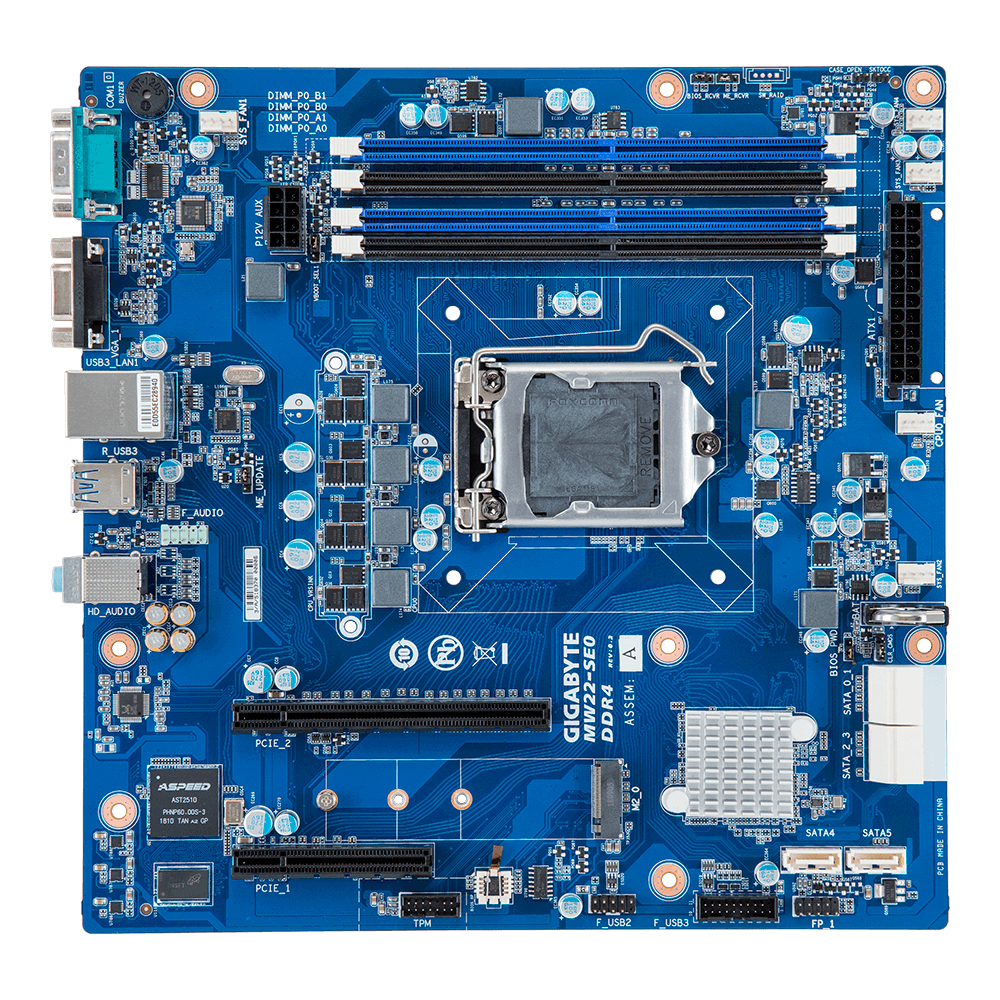

MW22-SE0 Intel C242 LGA 1151 (Socket H4) micro ATX
Model MW22-SE0Part no. 9MW22SE0MR-00EAN 4719331804503
51 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors1
- USB 2.0 ports quantity0
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 0
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MW22-SE0
- Part number
- 9MW22SE0MR-00
- EAN / UPC
- 4719331804503
- Also known as
- GIGABYTE MW22-SE0 Intel C242 LGA 1151 (Socket H4) micro ATX
Specifications
51 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon® |
| Intel Xeon series | E-2100 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2400,2666 MHz |
| Maximum internal memory | 62 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 3 |
| TPM connector | Yes |

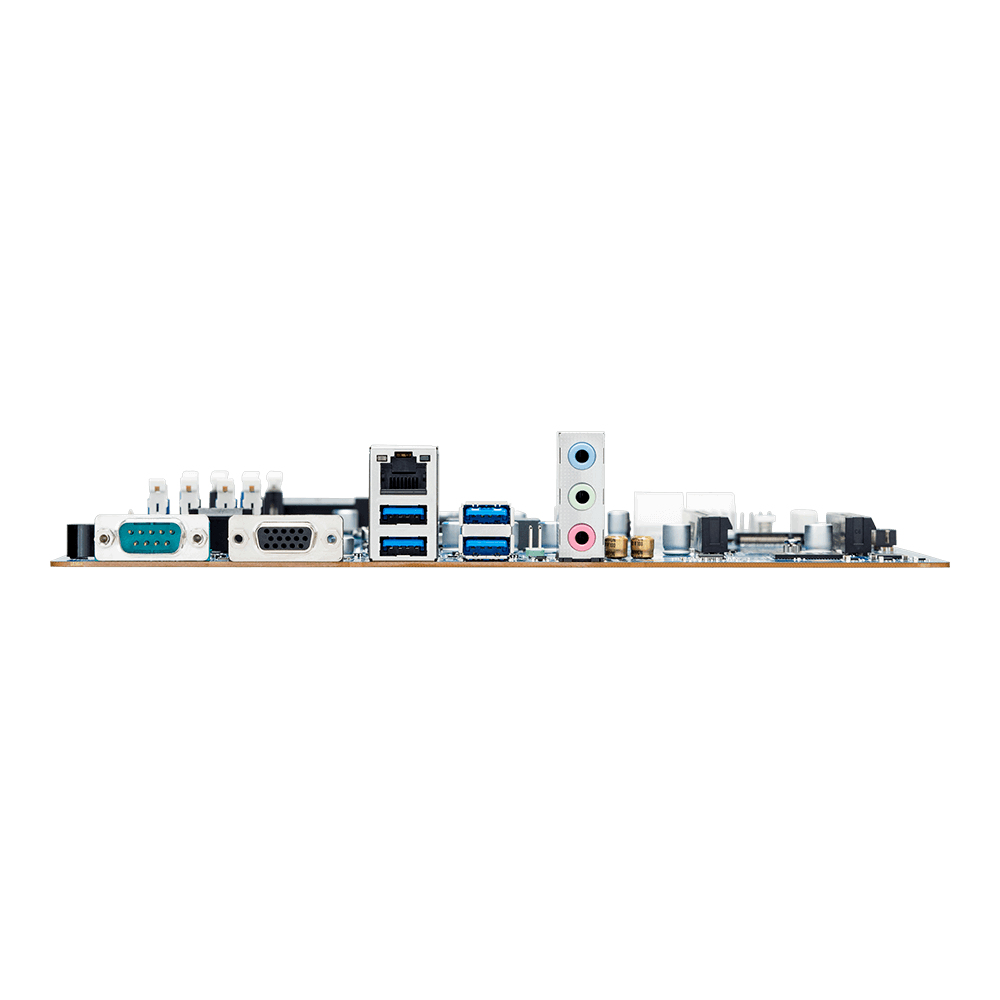

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel PHY I219LM |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel C242 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 308.5 mm |
| Depth | 321 mm |
| Height | 78.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Serial |
Other features
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 dual x8/x8 mode | Yes |
| Audio output | Yes |
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
