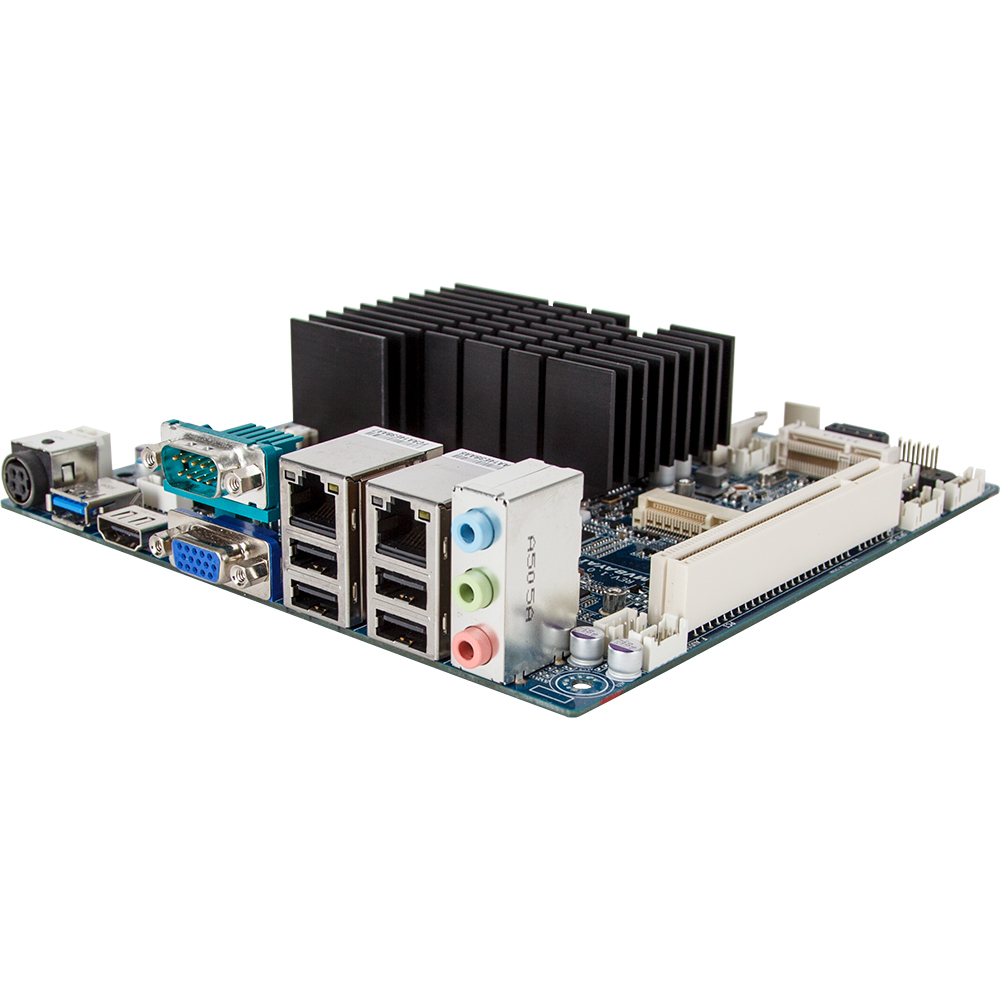

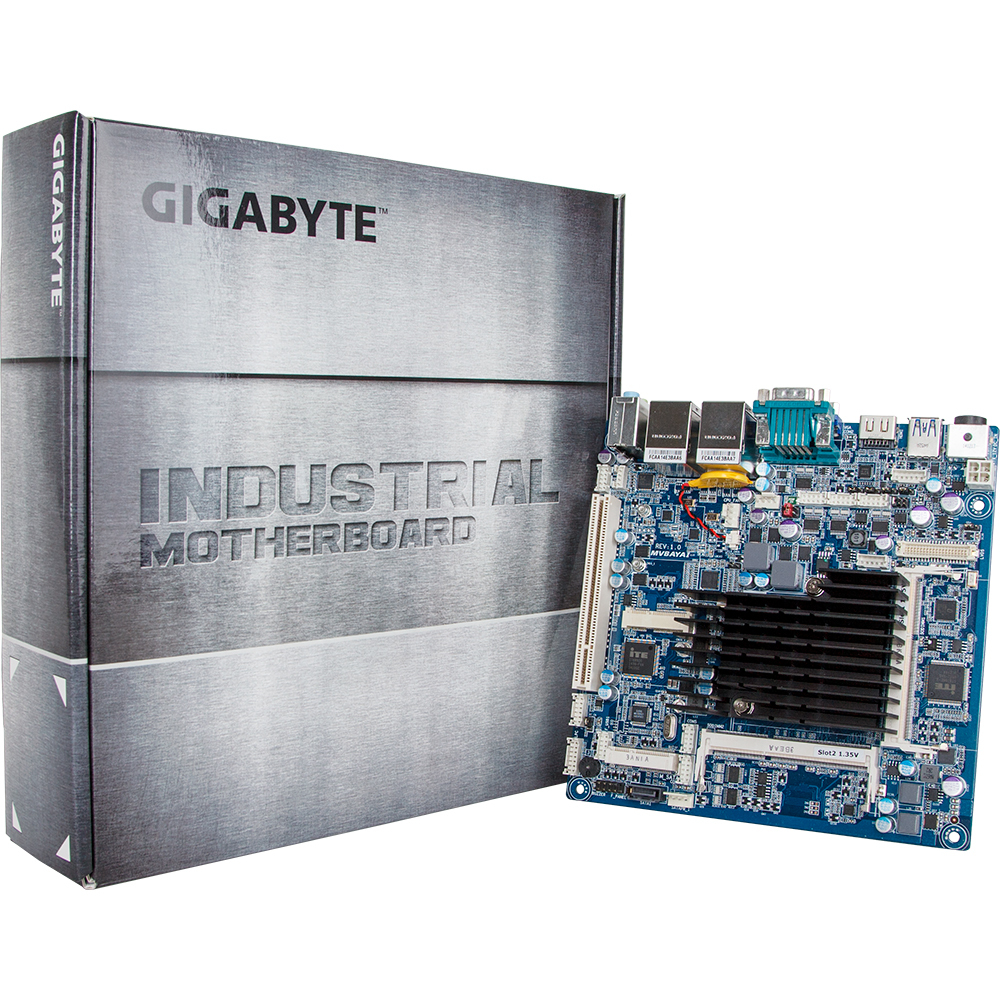

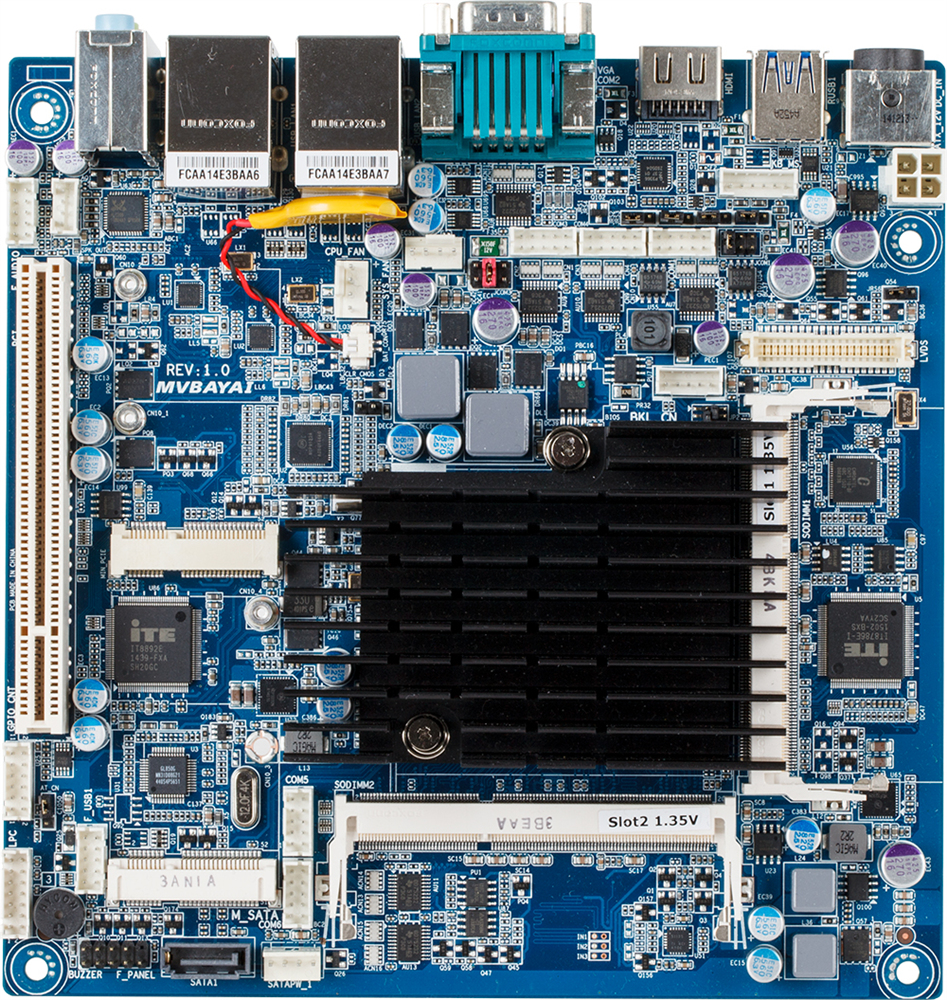

GIGABYTE MVBAYAI Fanless

GIGABYTE MVBAYAI Fanless

Model MVBAYAI FanlessPart no. 9MVBAYAINS-00

87 specifications
  • ProcessorJ1900
  • Processor manufacturerIntel
  • Supported memory typesDDR3L-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors1
See all specifications

Overview

Processor
J1900
Processor manufacturer
Intel
Supported memory types
DDR3L-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
1
Brand
GIGABYTE
Category
Motherboard
Model
MVBAYAI Fanless
Part number
9MVBAYAINS-00
Also known as
GIGABYTE MVBAYAI Fanless BGA 1170 mini ATX

Specifications

87 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketBGA 1170
Compatible processor seriesIntel® Celeron®
Maximum number of SMP processors1
Processor system buses supported1333 MHz
Processor modelJ1900
Processor cores4
Processor thermal power (max)10 W

Memory

Supported memory typesDDR3L-SDRAM
Number of memory slots2
Memory slots typeSO-DIMM
Memory channelsDual-channel
Memory voltage1.35 V
Supported memory clock speeds1333 MHz
Maximum internal memory8 GB
Supported memory module capacities4GB

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution2560 x 1600 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors0
Number of SATA II connectors1
Number of SATA connectors1
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)No
CPU fan connectorYes
Number of chassis fan connectors1
Number of COM connectors5
TPM connectorNo

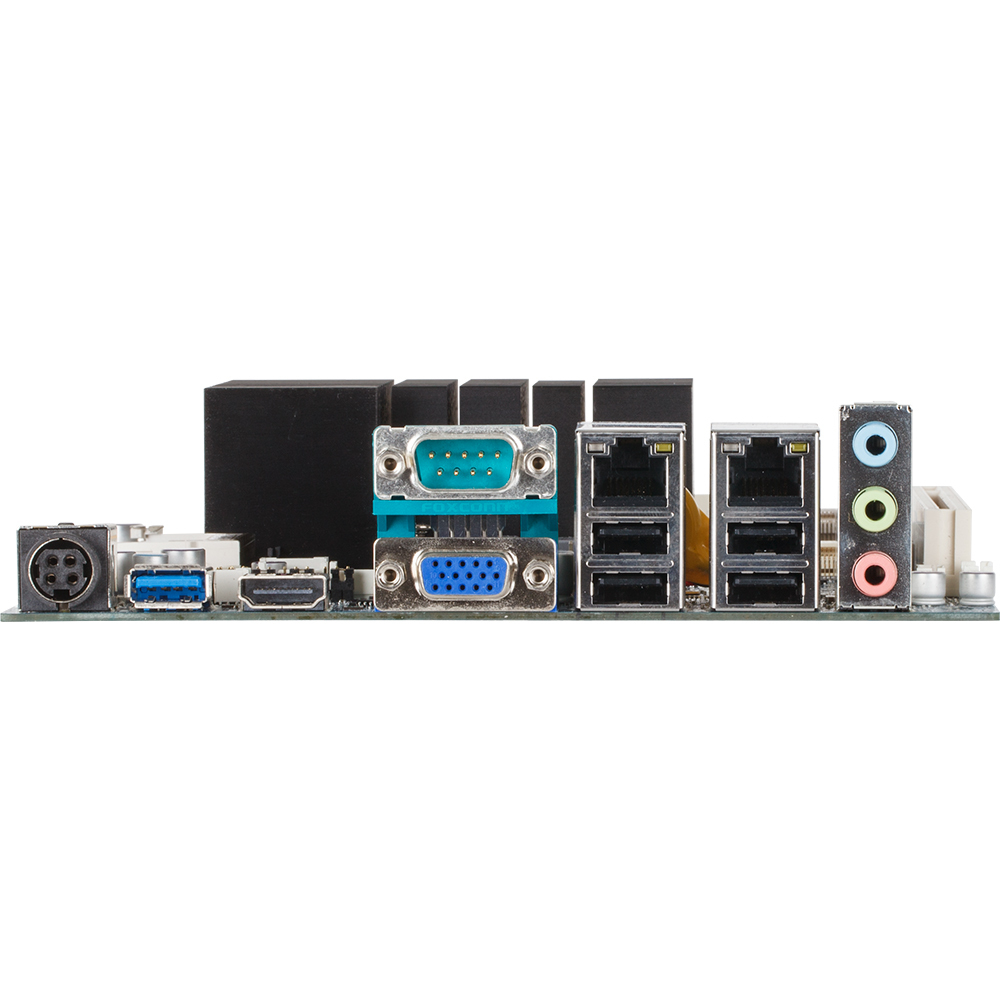

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Thunderbolt ports quantity0
Serial ports quantity1
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G
Wi-FiNo
Wi-Fi standardsNot supported
BluetoothNo
Near Field Communication (NFC)No

Features

Component forMini PC
Motherboard form factormini ATX
Audio chipRealtek ALC269
Cooling typePassive
Power source typeATX, DC
DC input voltage12 V
Windows operating systems supportedWindows 8, Windows 8.1

Expansion slots

PCI Express x1 slots0
PCI Express x4 slots0
PCI Express x8 slots0
PCI Express x8 (Gen 1.x) slots0
PCI Express x16 slots0
Mini PCI Express slots1
PCI slots1
PCI-X slots0

Weight & dimensions

Width170 mm
Depth170 mm

Other features

mSATA ports quantity1
S/PDIF in connectorNo
PCI Express x16 (Gen 1.x) slots0
AGP x4 slots0
AGP x8 slots0
Internal FireWire ports quantity0
Processor familyIntel® Celeron®
Processor frequency2 GHz
Number of M.2 (E) slots0
