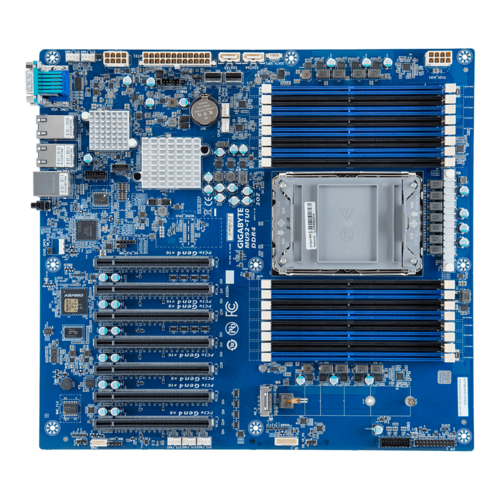

MU92-TU1 Intel® C621 Extended ATX
Model MU92-TU1Part no. MU92-TU1 (REV. 1.X)EAN 4719331823658
42 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- RAID supportYes
- Number of SATA connectors2
- Component forPC
- PCI Express x16 slots7
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- RAID support
- Yes
- Number of SATA connectors
- 2
- Component for
- PC
- PCI Express x16 slots
- 7
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MU92-TU1
- Part numbers
- MU92-TU1 (REV. 1.X), 9MU92TU1MR-00
- EAN / UPC
- 4719331823658
- Also known as
- GIGABYTE MU92-TU1 Intel® C621 Extended ATX
Specifications
42 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® E3 Family |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 16 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| Maximum RDIMM memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| Maximum resolution | 1920 x 1080 pixels |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 2 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Integrated SAS ports | 2 |
| TPM connector | Yes |

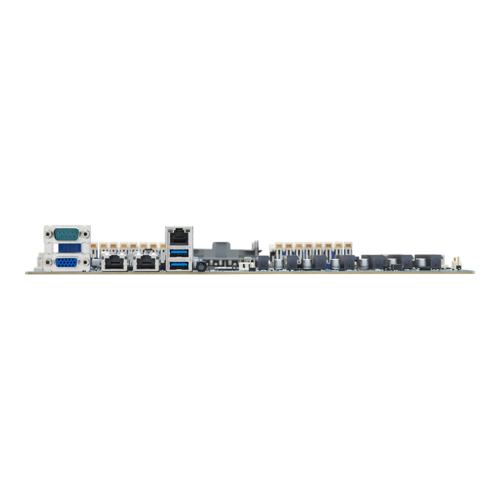

Rear panel I/O ports
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C621 |
| Compatible operating systems | Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 8.2 ( x64) or later Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 20.04.1 LTS (x64) or later |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 7 |
| Number of M.2 (M) slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 600 mm |
| Package depth | 473 mm |
| Package height | 495 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
