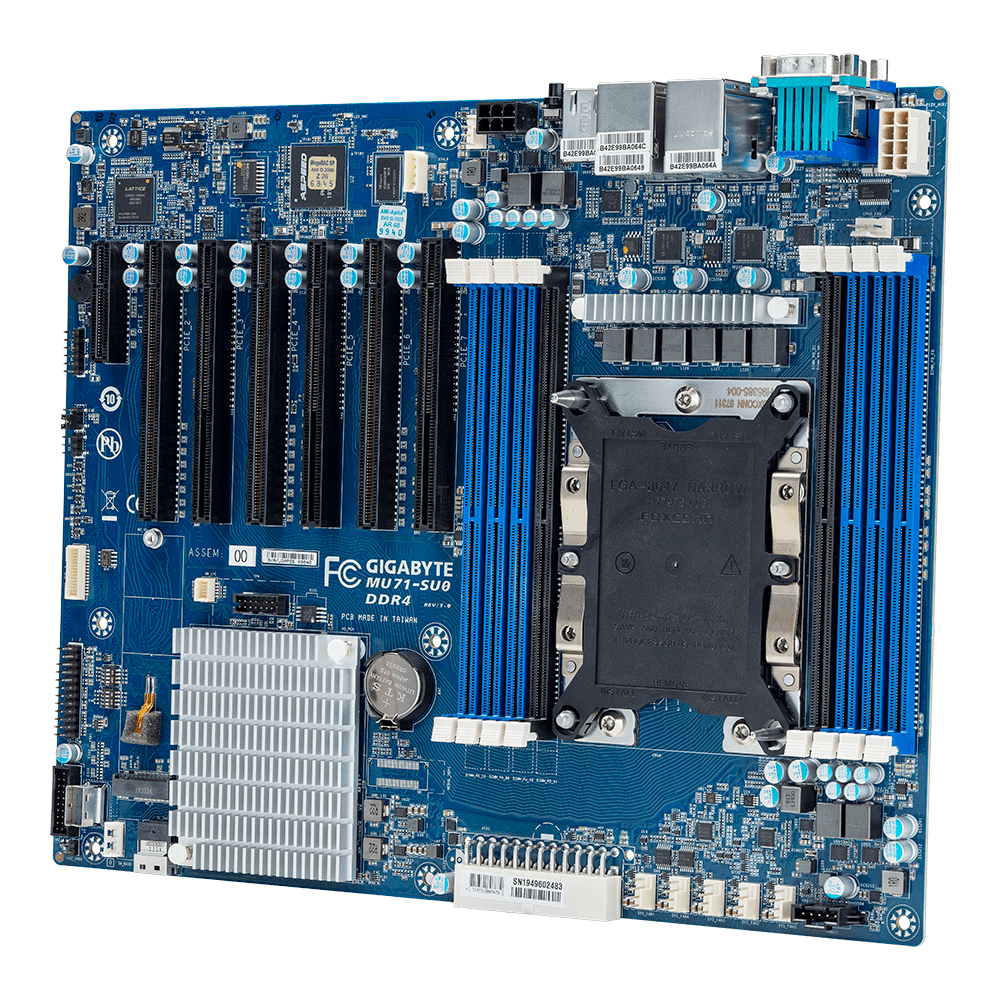

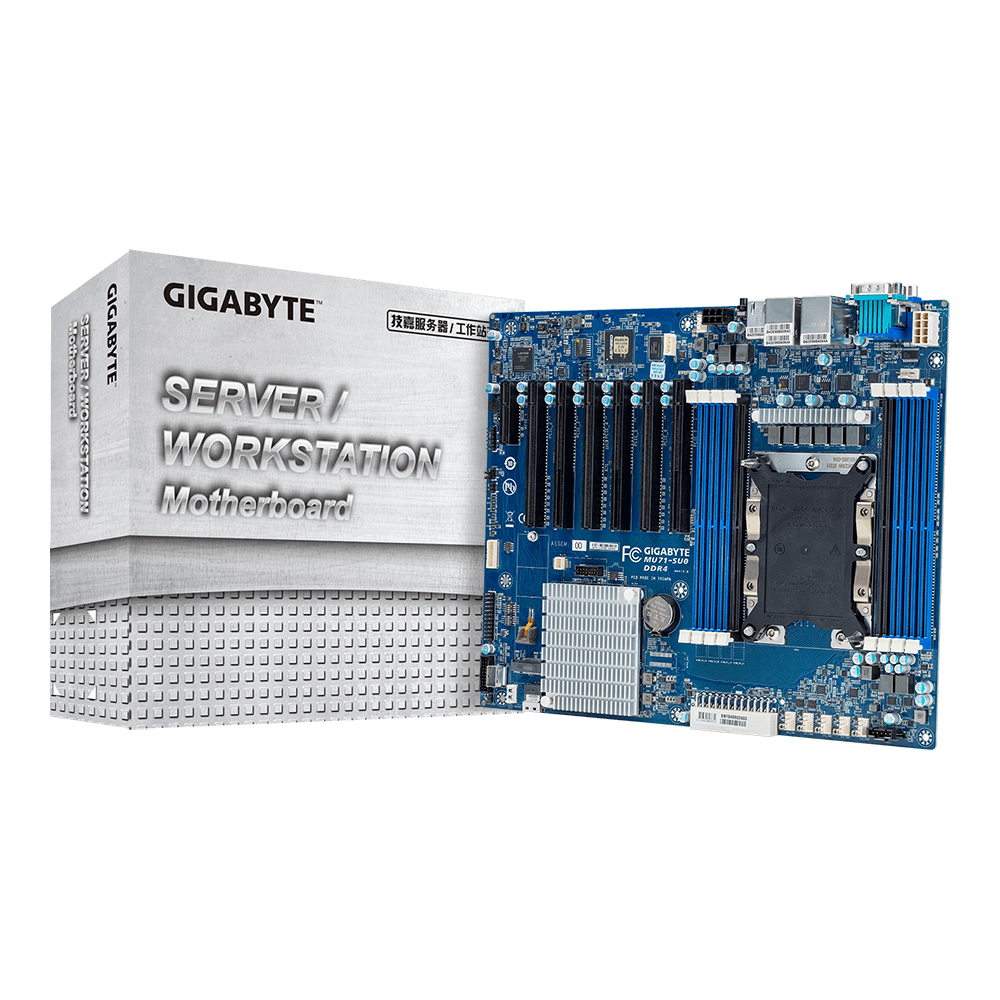

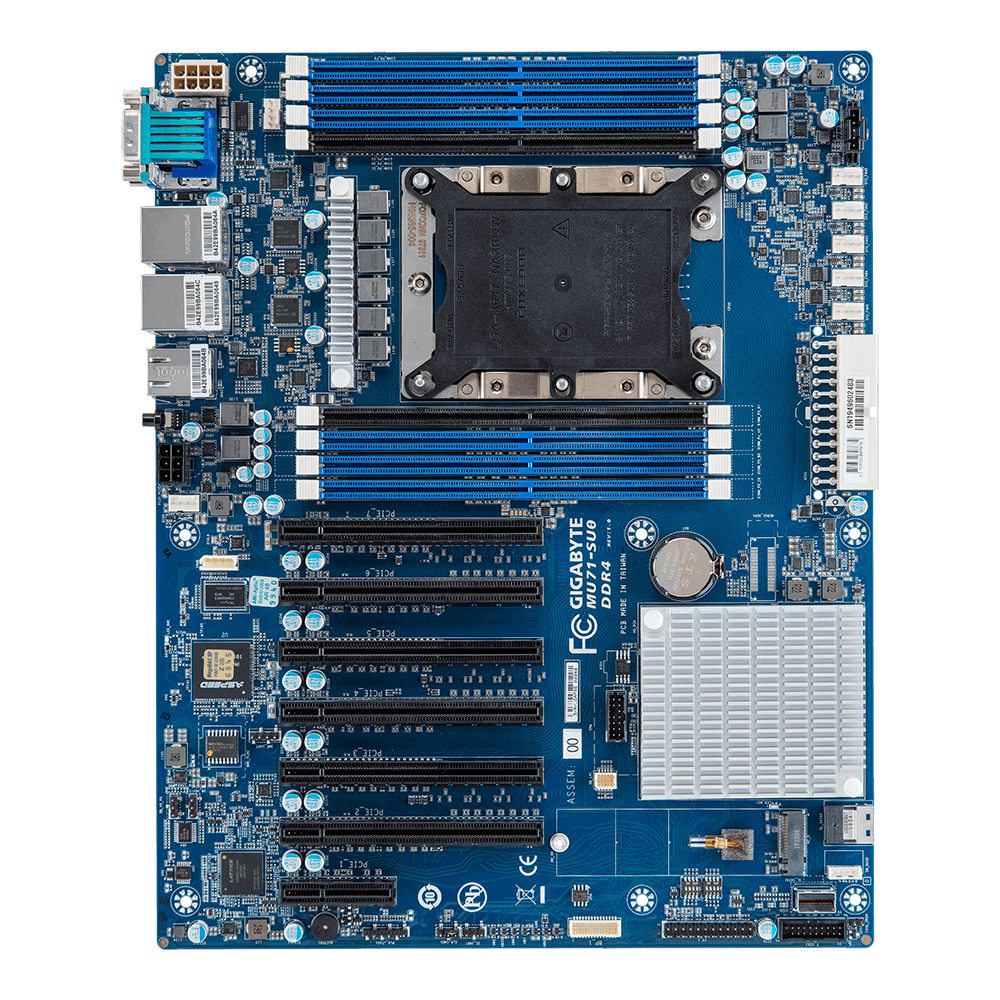

MU71-SU0 Intel® C621 LGA 3647 (Socket P) ATX
Model MU71-SU0Part no. 9MU71SU0MR-00EAN 4719331807672
55 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM, FBDIMM
- Supported storage drive interfacesSATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors0
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM, FBDIMM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 0
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MU71-SU0
- Part number
- 9MU71SU0MR-00
- EAN / UPC
- 4719331807672
- Also known as
- GIGABYTE MU71-SU0 Intel® C621 LGA 3647 (Socket P) ATX
Specifications
55 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | 3200 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM, FBDIMM |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Integrated SAS ports | 2 |
| TPM connector | Yes |

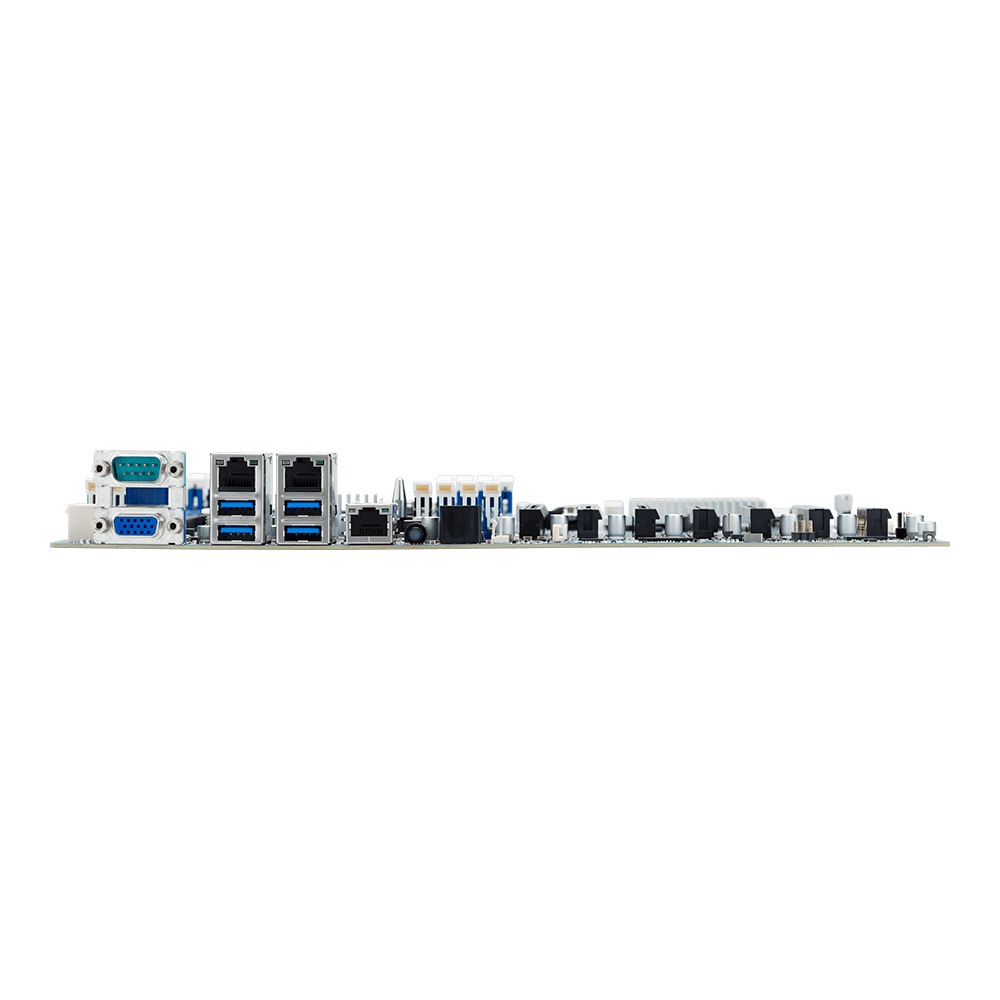

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® C621 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 360 mm |
| Height | 80 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Serial |
Other features
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 dual x8/x8 mode | Yes |
| Audio channels | 0 |
| Number of DIMM slots | 8 |
| Number of processors supported | 1 |
| Quick installation guide | Yes |
| Thermal Design Power (TDP) | 205 W |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
