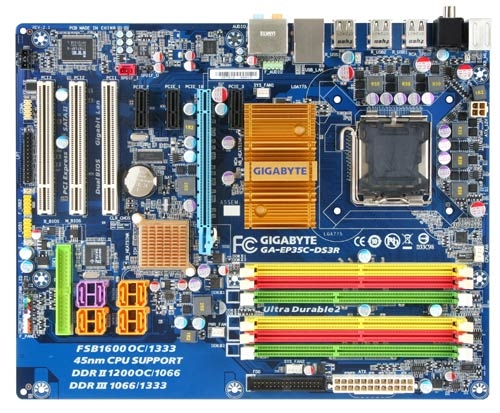

GIGABYTE Motherboard GA-EP35C-DS3R
Model Motherboard GA-EP35C-DS3RPart no. GA-EP35C-DS3REAN 4719331831103
28 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
- BIOS memory size16 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- BIOS memory size
- 16 Mbit
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- Motherboard GA-EP35C-DS3R
- Part number
- GA-EP35C-DS3R
- EAN / UPC
- 4719331831103, 4719331850166
- Also known as
- GIGABYTE Motherboard GA-EP35C-DS3R LGA 775 (Socket T) ATX
Specifications
28 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | -@BIOS -Download Center -Q-Flash -EasyTune -Xpress Install -Xpress Recovery2 |
