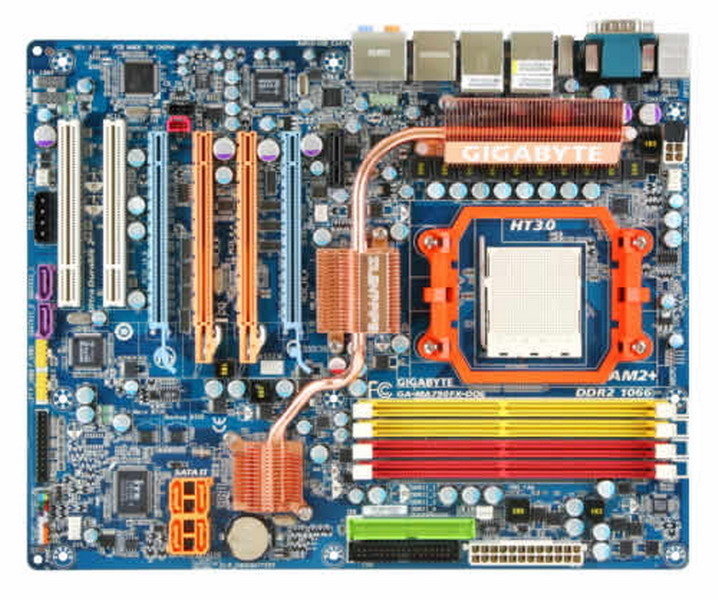

GIGABYTE Motherboard AMD790FX

GIGABYTE Motherboard AMD790FX

Model Motherboard AMD790FXPart no. GA-MA790FX-DQ6EAN 4719331834173

41 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
  • LAN controllerRealtek RTL8111B
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0
USB 2.0 connectors
2
USB 2.0 ports quantity
6
LAN controller
Realtek RTL8111B
Brand
GIGABYTE
Category
Motherboard
Model
Motherboard AMD790FX
Part number
GA-MA790FX-DQ6
EAN / UPC
4719331834173, 5051749358902
Also known as
GIGABYTE Motherboard AMD790FX Socket AM2 micro ATX

Specifications

41 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM2

Memory

Number of memory slots4
ECC сompatibilityECC
Maximum internal memory16 GB

Storage controllers

RAID levels0

Internal I/O

USB 2.0 connectors2
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of IEEE1394 connectors2

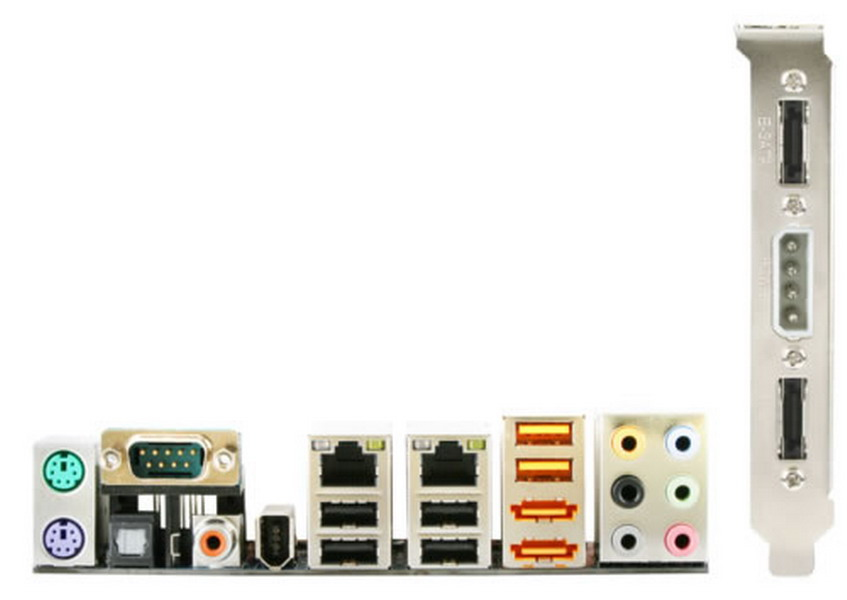

Rear panel I/O ports

USB 2.0 ports quantity6
Ethernet LAN (RJ-45) ports2
eSATA ports quantity2
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1
Serial ports quantity1

Network

LAN controllerRealtek RTL8111B
Networking features10/100/1000 Mbit

Features

Motherboard form factormicro ATX
Audio chipRealtek ALC889A
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows Vista/XP/2000

Expansion slots

Expansion slots-2 x PCI Express x16 -2 x PCI Express x8 -1 x PCI Express x1 -2 x PCI slots.

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Audio outputS/PDIF
Floppy disk drive connectorYes
Special features-@BIOS -Q-Flash -EasyTune -Xpress Install -Xpress Recovery2 -Virtual Dual BIOS.
