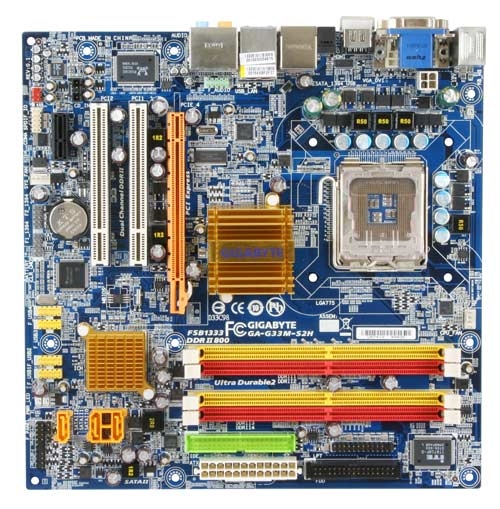

GIGABYTE Micro ATX motherboard, Intel® G33 + ICH9 Chipset
Model Micro ATX motherboard, Intel® G33 + ICH9 ChipsetPart no. GA-G33M-S2HEAN 4719331828141
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 ports quantity8
- Motherboard form factormicro ATX
- Width244 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 ports quantity
- 8
- Motherboard form factor
- micro ATX
- Width
- 244 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- Micro ATX motherboard, Intel® G33 + ICH9 Chipset
- Part number
- GA-G33M-S2H
- EAN / UPC
- 4719331828141
- Also known as
- GIGABYTE Micro ATX motherboard, Intel® G33 + ICH9 Chipset LGA 775 (Socket T)
Specifications
28 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 3 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| eSATA ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | North Bridge |
