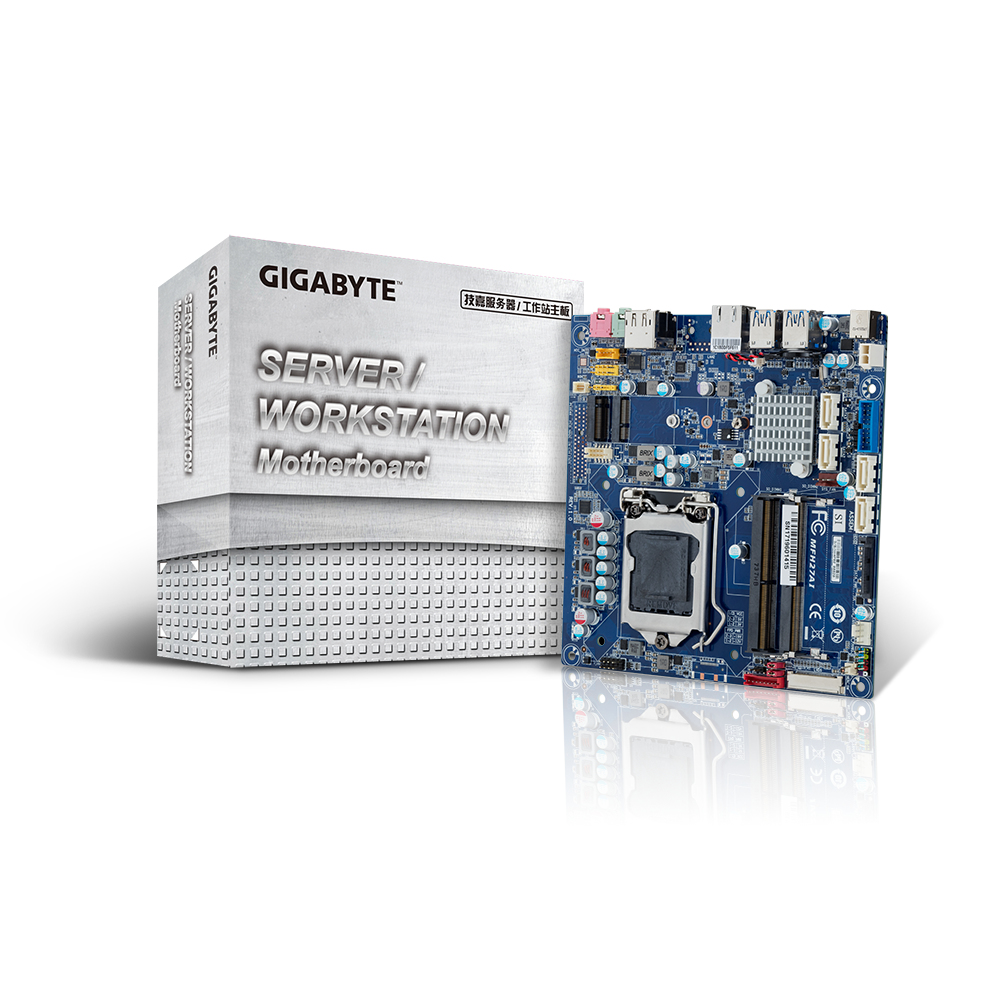

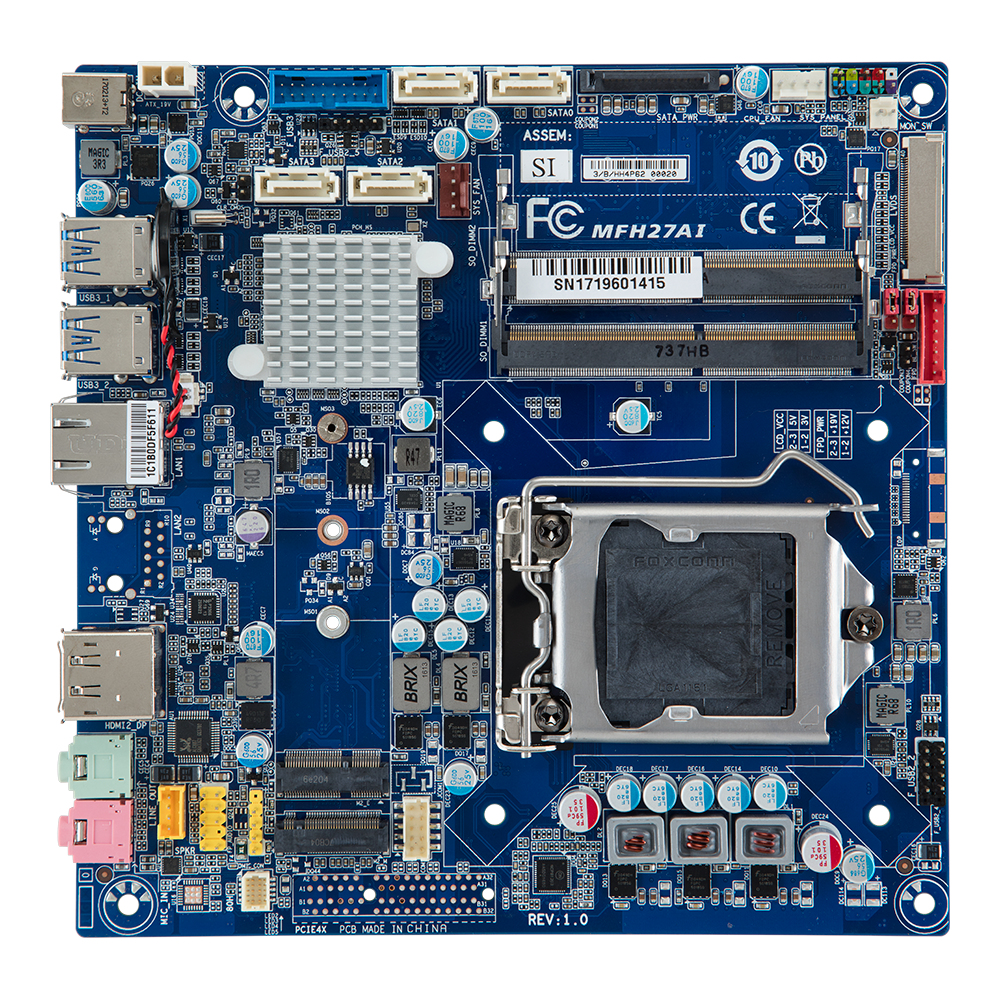

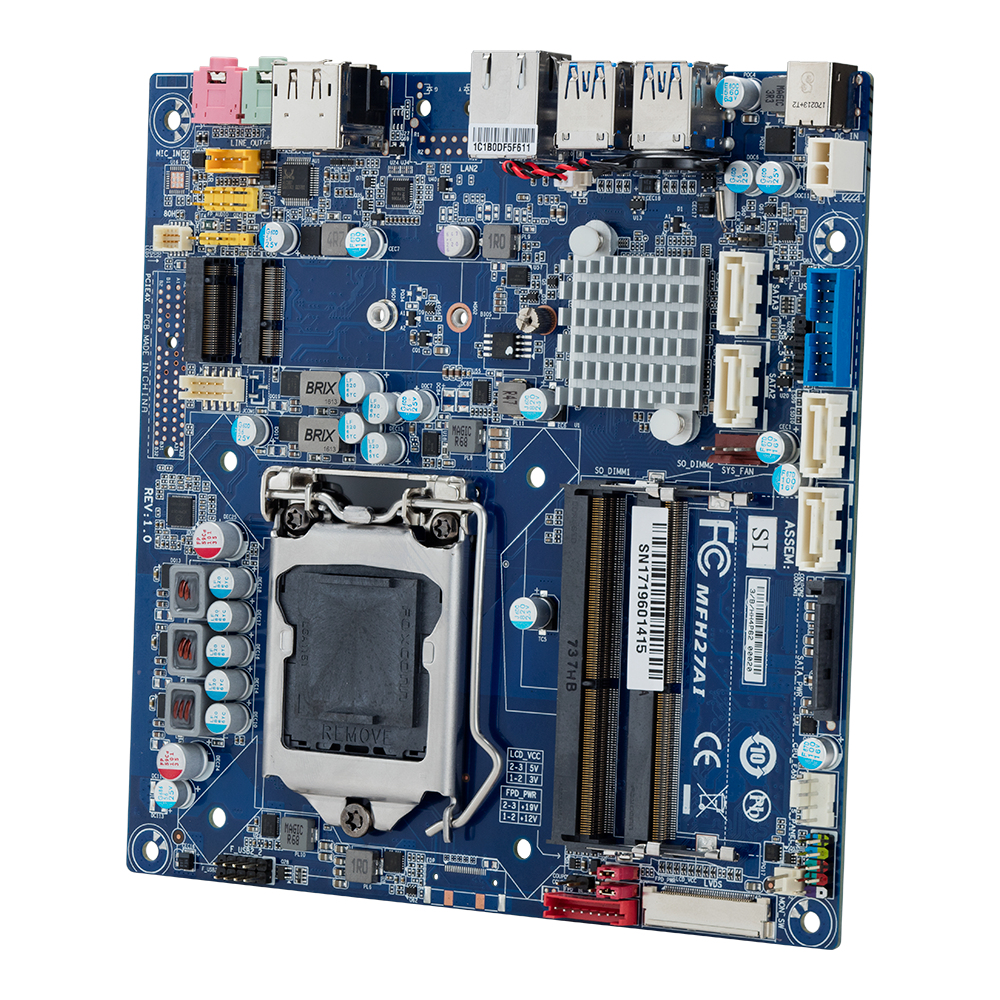

GIGABYTE MFH27AI Intel® H270 LGA 1151 (Socket H4) Thin Mini ITX

Model MFH27AIPart no. 9MFH27AINR-SI

104 specifications

Overview

Brand: GIGABYTE
Category: Motherboard
Model: MFH27AI
Part number: 9MFH27AINR-SI
Also known as: GIGABYTE MFH27AI Intel® H270 LGA 1151 (Socket H4) Thin Mini ITX

104 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel® Celeron®, Intel® Pentium®
Maximum number of SMP processors	1
Intel Core i3/i5/i7/i9 series	i3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400 MHz
Maximum internal memory	32 GB
Supported memory module capacities	2GB, 4GB, 8GB, 16GB, 32GB
Maximum RDIMM memory	3 GB

Specification	Value
Supported storage drive interfaces	SATA III
Number of HDDs supported	4

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
Graphics card	HD Graphics
Maximum resolution	4096 x 2304 pixels
Number of displays supported	3

Specification	Value
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	6
Number of Parallel ATA connectors	0
S/PDIF out connector	No
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	No
CPU fan connector	Yes
Number of chassis fan connectors	1
Peripheral (Molex) power connectors (4-pin)	0
12V power connector	Yes
Number of COM connectors	1
Number of IEEE1394 connectors	0
Parallel connector	No
Serial port headers	0
TPM connector	No
Thunderbolt headers	0

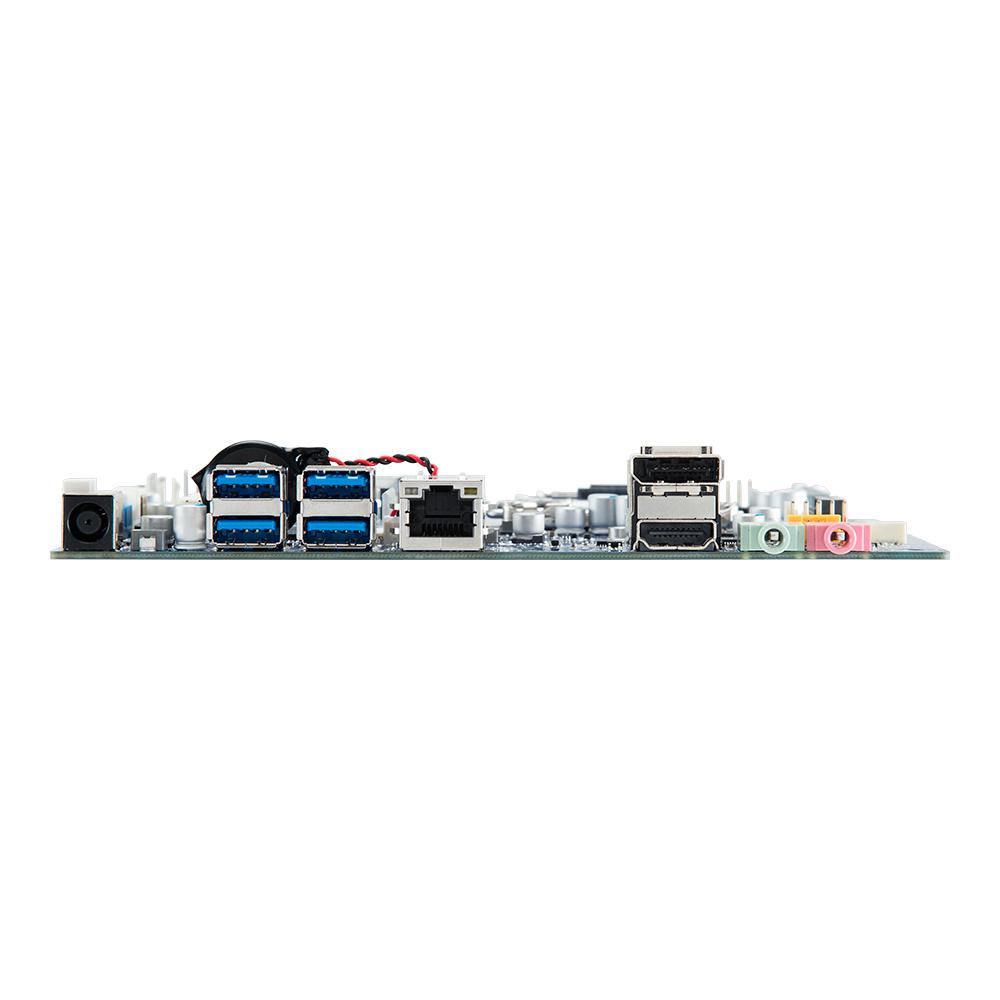

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	1.4b
DVI-D ports quantity	0
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone outputs	1
Microphone in	Yes
Thunderbolt ports quantity	0
COM ports quantity	0
Parallel ports quantity	0
Modem (RJ-11) ports	0
USB connector type	USB Type-A

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111HS
Wi-Fi	No
Wi-Fi standards	Not supported
Bluetooth	No
Near Field Communication (NFC)	No

Specification	Value
Component for	Mini PC
Motherboard form factor	Thin Mini ITX
Motherboard chipset family	Intel
Motherboard chipset	Intel® H270
Audio chip	Realtek ALC887
Cooling type	Passive
Power source type	ATX, DC
DC input voltage	12 - 19 V
Windows operating systems supported	Windows 10, Windows 8.1

Specification	Value
Intel® Optane™ Memory Ready	Yes

Specification	Value
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%

Specification	Value
Width	170 mm
Depth	170 mm

Specification	Value
Cables included	SATA
