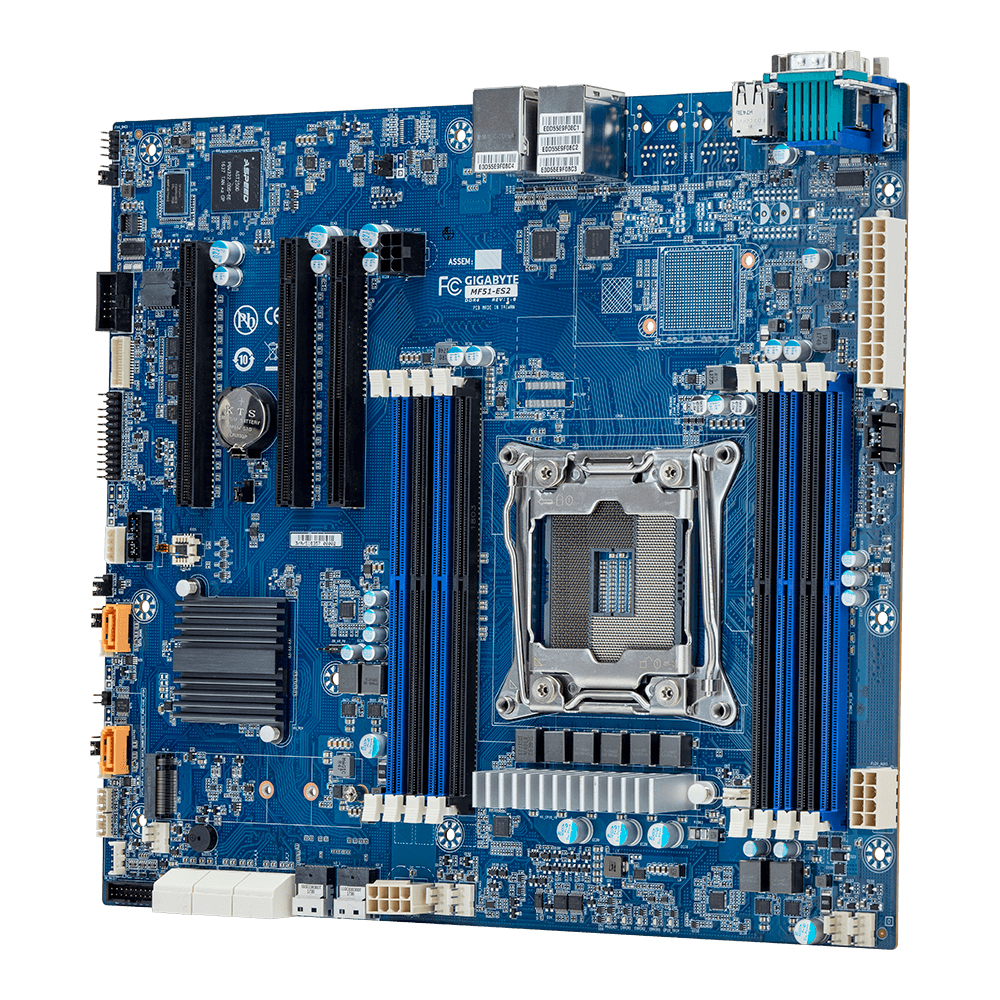

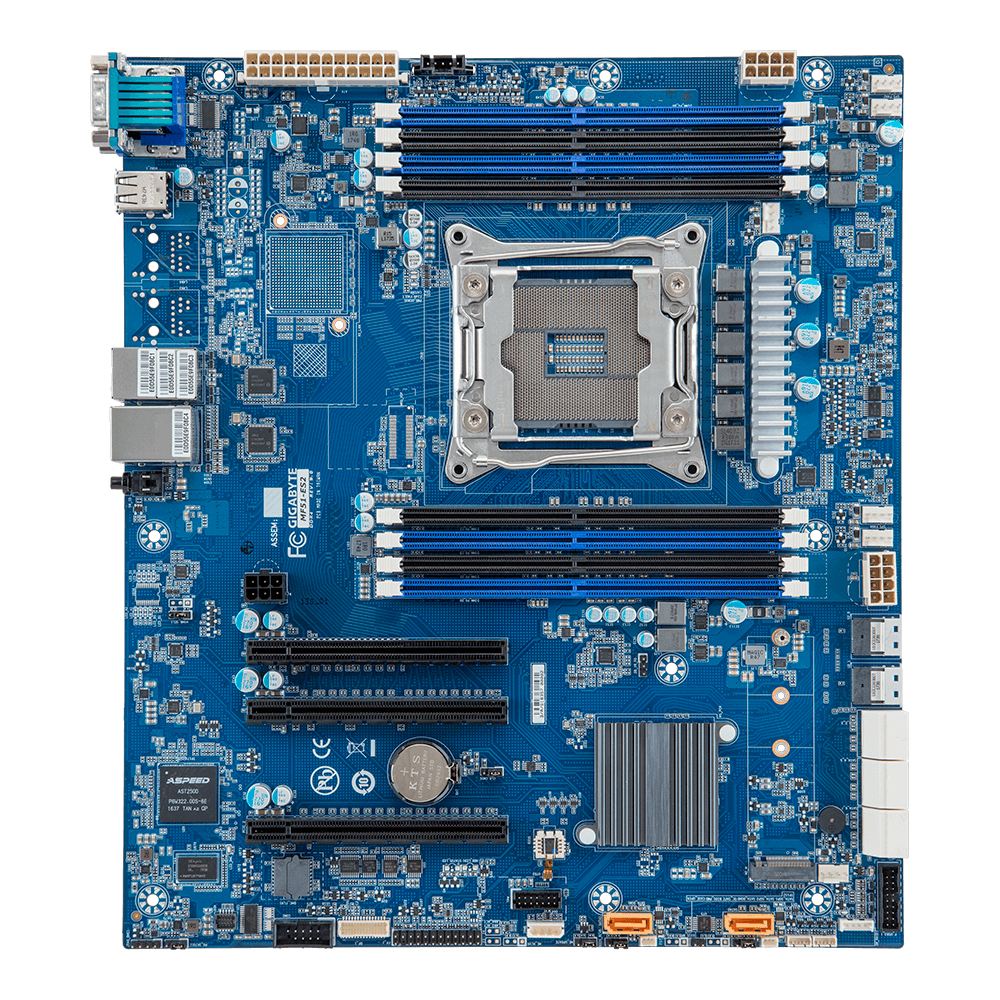

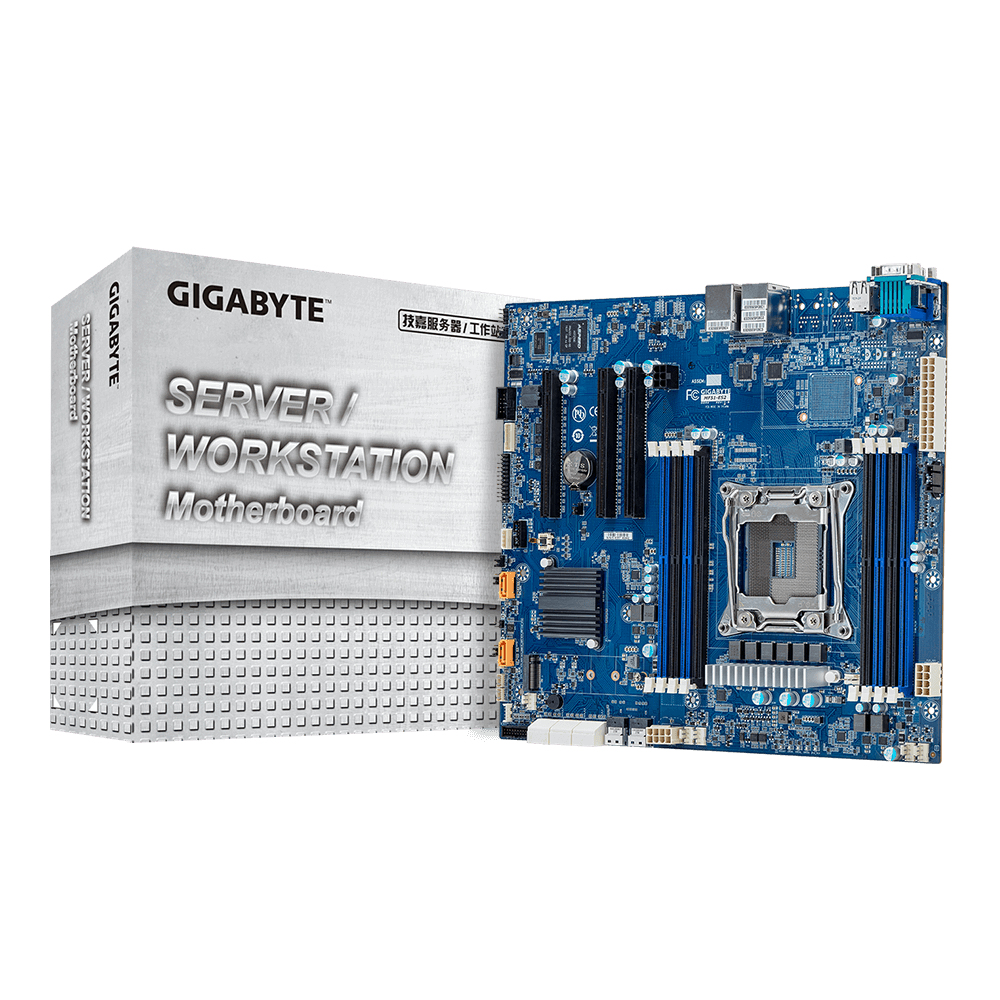

MF51-ES2 Intel® C422 LGA 2066 (Socket R4) CEB
Model MF51-ES2Part no. 9MF51ES2NR-00EAN 4719331804350
51 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- USB 2.0 connectors0
- USB 2.0 ports quantity2
- Ethernet LANYes
- Component forServer
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- USB 2.0 connectors
- 0
- USB 2.0 ports quantity
- 2
- Ethernet LAN
- Yes
- Component for
- Server
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MF51-ES2
- Part number
- 9MF51ES2NR-00
- EAN / UPC
- 4719331804350
- Also known as
- GIGABYTE MF51-ES2 Intel® C422 LGA 2066 (Socket R4) CEB
Specifications
51 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 (Socket R4) |
| Compatible processor series | Intel Xeon W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2400,2666 MHz |
| Maximum internal memory | 128 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| Serial port headers | 1 |

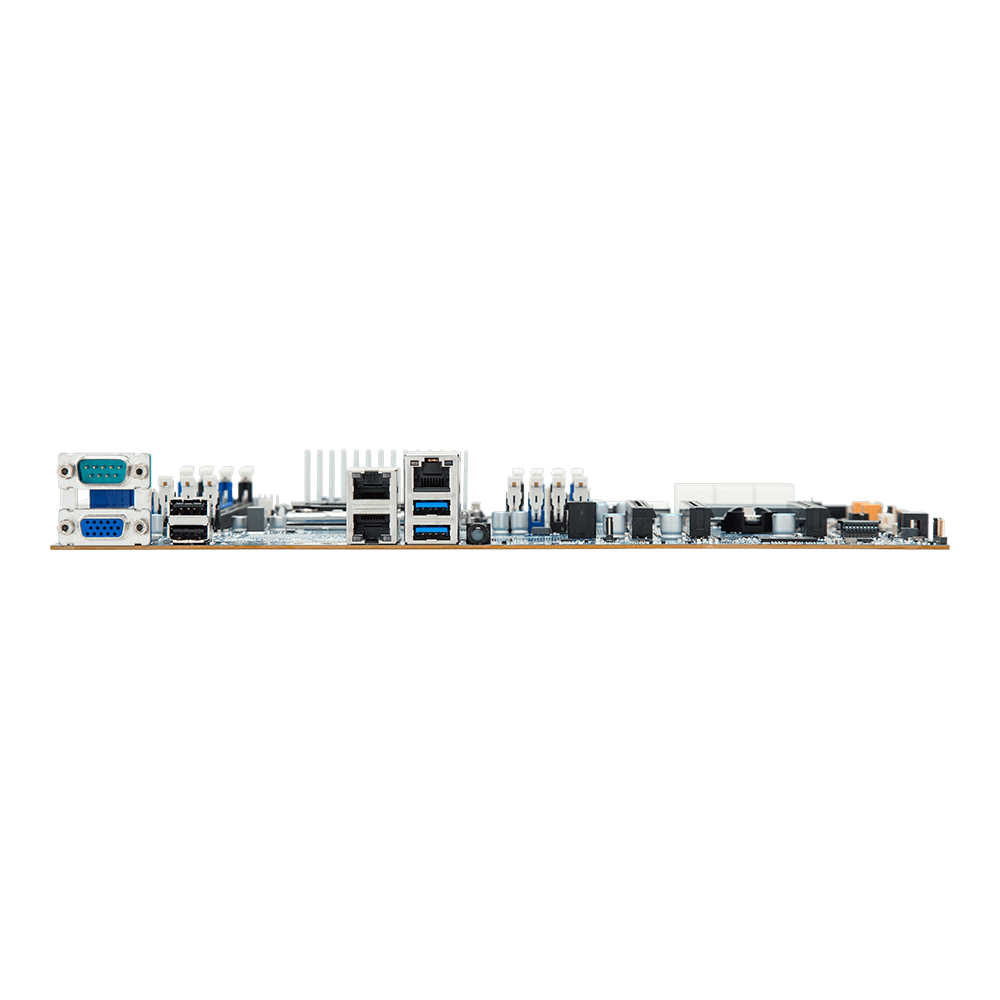

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | CEB |
| Motherboard chipset | Intel® C422 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 424 mm |
| Package depth | 674 mm |
| Package height | 385 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 360 mm |
| Height | 80 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express x16 dual x8/x8 mode | Yes |
| BIOS switch button | Yes |
| Number of DIMM slots | 8 |
| Number of processors supported | 1 |
| Thermal Design Power (TDP) | 140 W |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
