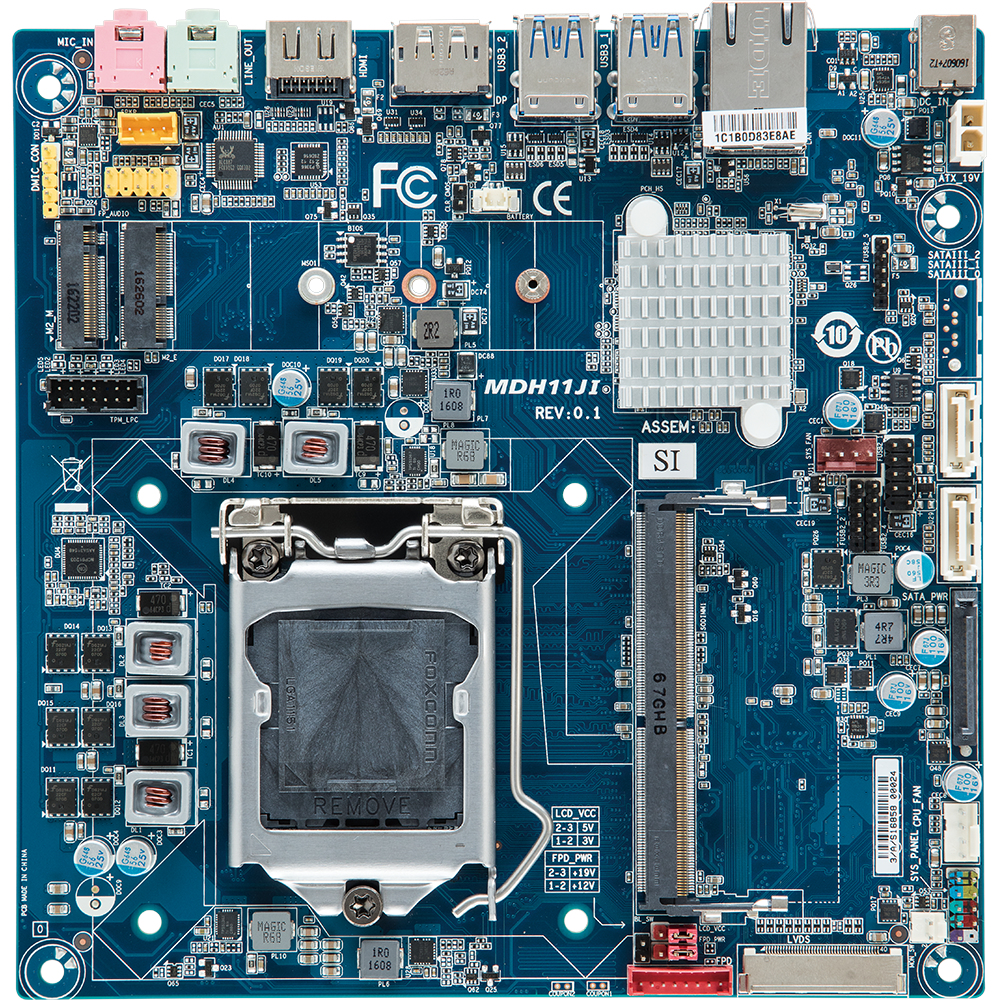

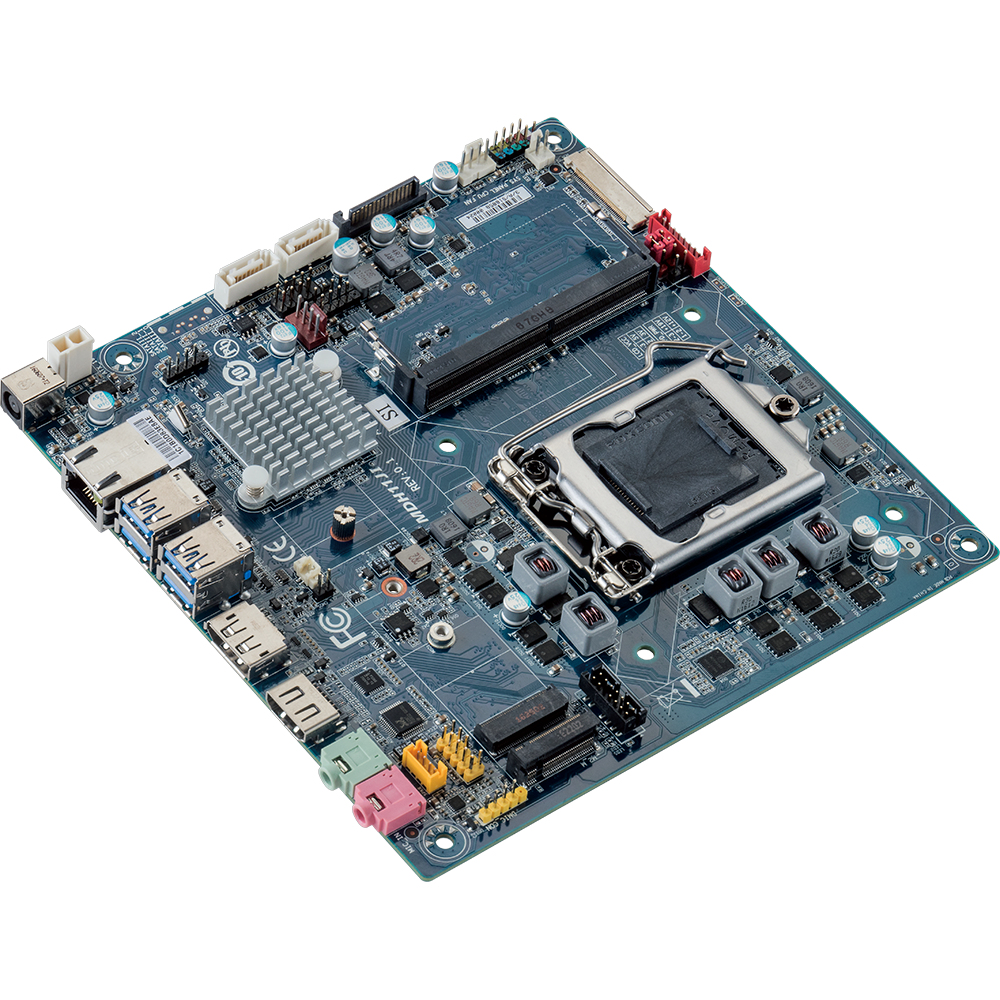

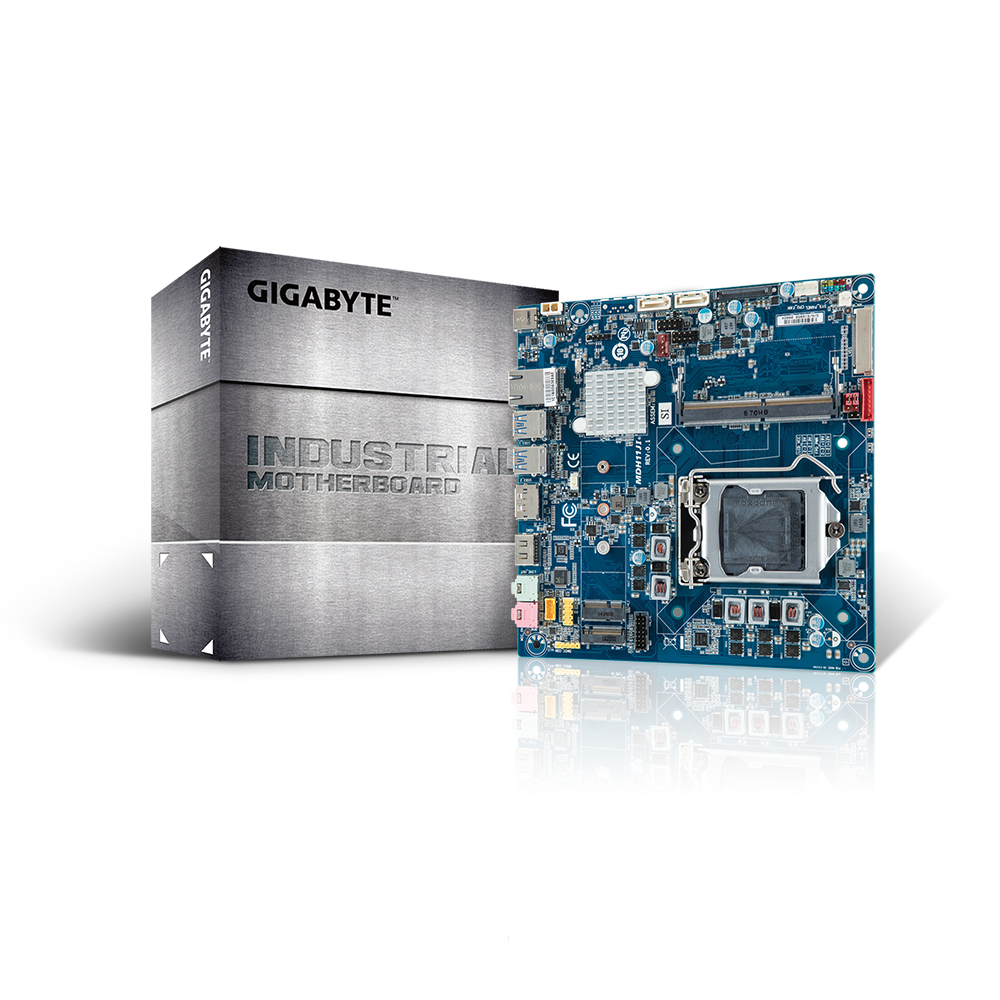

GIGABYTE MDH11JI H110 Express LGA 1151 (Socket H4) Thin Mini ITX
Model MDH11JIPart no. 9MDH11JINR-SI
98 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 0
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MDH11JI
- Part number
- 9MDH11JINR-SI
- Also known as
- GIGABYTE MDH11JI H110 Express LGA 1151 (Socket H4) Thin Mini ITX
Specifications
98 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Intel Core i3/i5/i7/i9 series | i3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | DIMM |
| Memory channels | Single-channel |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2304 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | No |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | No |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| 12V power connector | Yes |
| Number of IEEE1394 connectors | 0 |
| Parallel connector | No |
| Serial port headers | 0 |
| TPM connector | Yes |
| Thunderbolt headers | 0 |

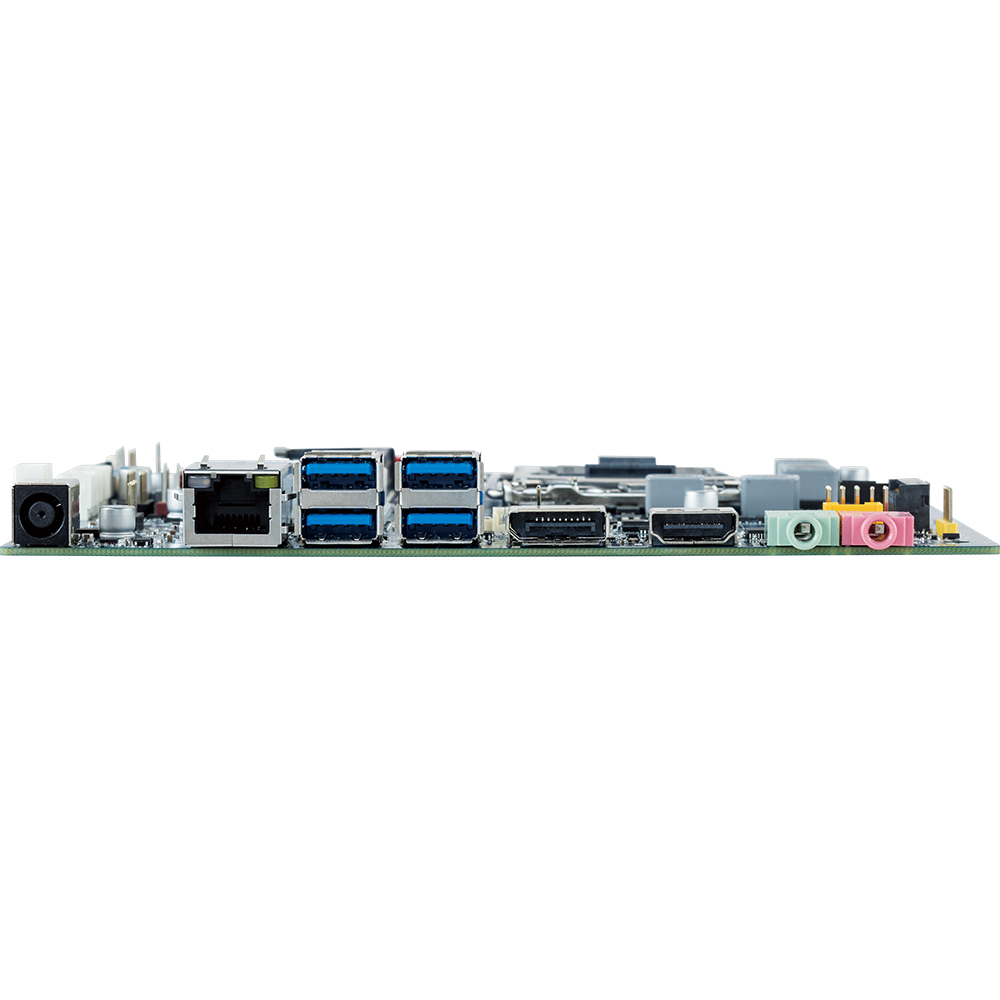

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Thunderbolt ports quantity | 0 |
| Serial ports quantity | 0 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111HS |
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
Features
| Specification | Value |
|---|---|
| Component for | Mini PC |
| Motherboard form factor | Thin Mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | H110 Express |
| Audio chip | Realtek ALC887 |
| Cooling type | Passive |
| Power source type | ATX, DC |
| DC input voltage | 12 - 19 V |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x16 slots | 0 |
| Mini PCI Express slots | 0 |
| PCI slots | 0 |
| PCI-X slots | 0 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 0 - 50 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 550 mm |
| Package depth | 451 mm |
| Package height | 330 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 0 |
| Combo headphone/mic port | No |
| S/PDIF in port | No |
| Thunderbolt 2 ports quantity | 0 |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| LVDS connector | Yes |
