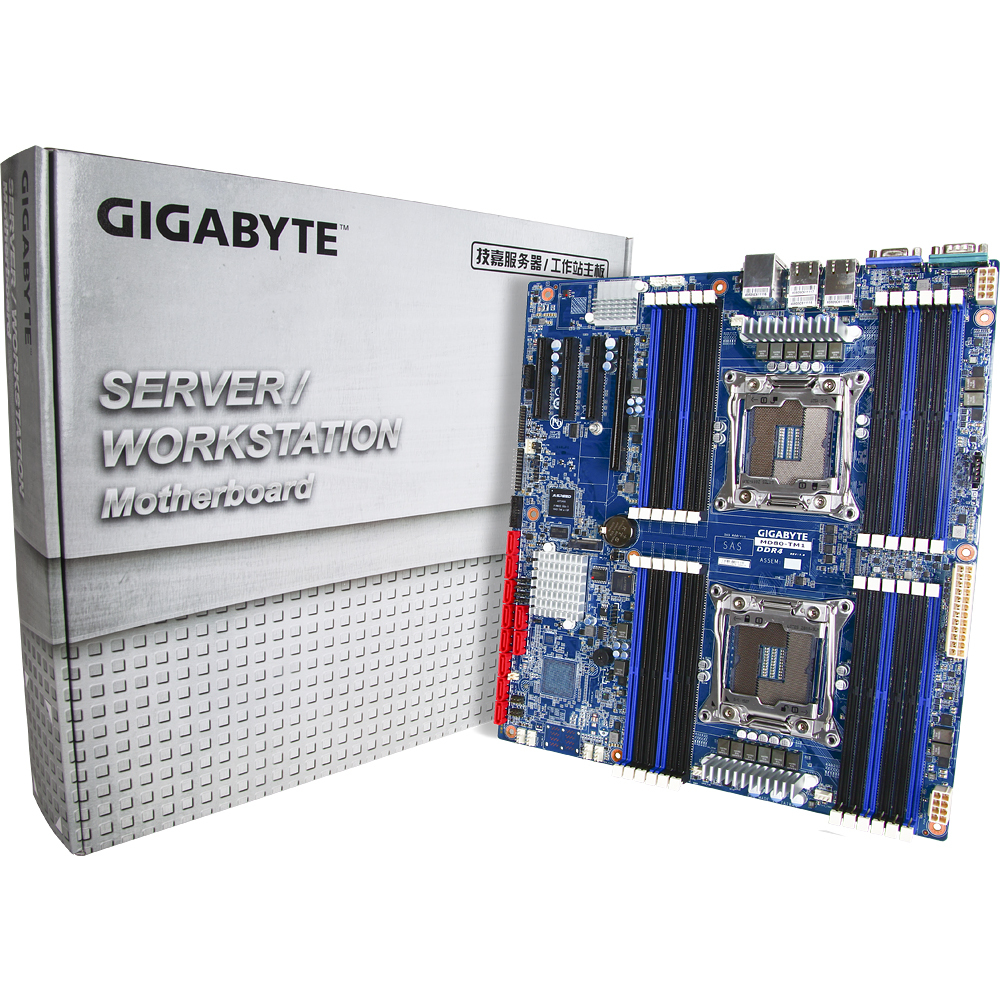

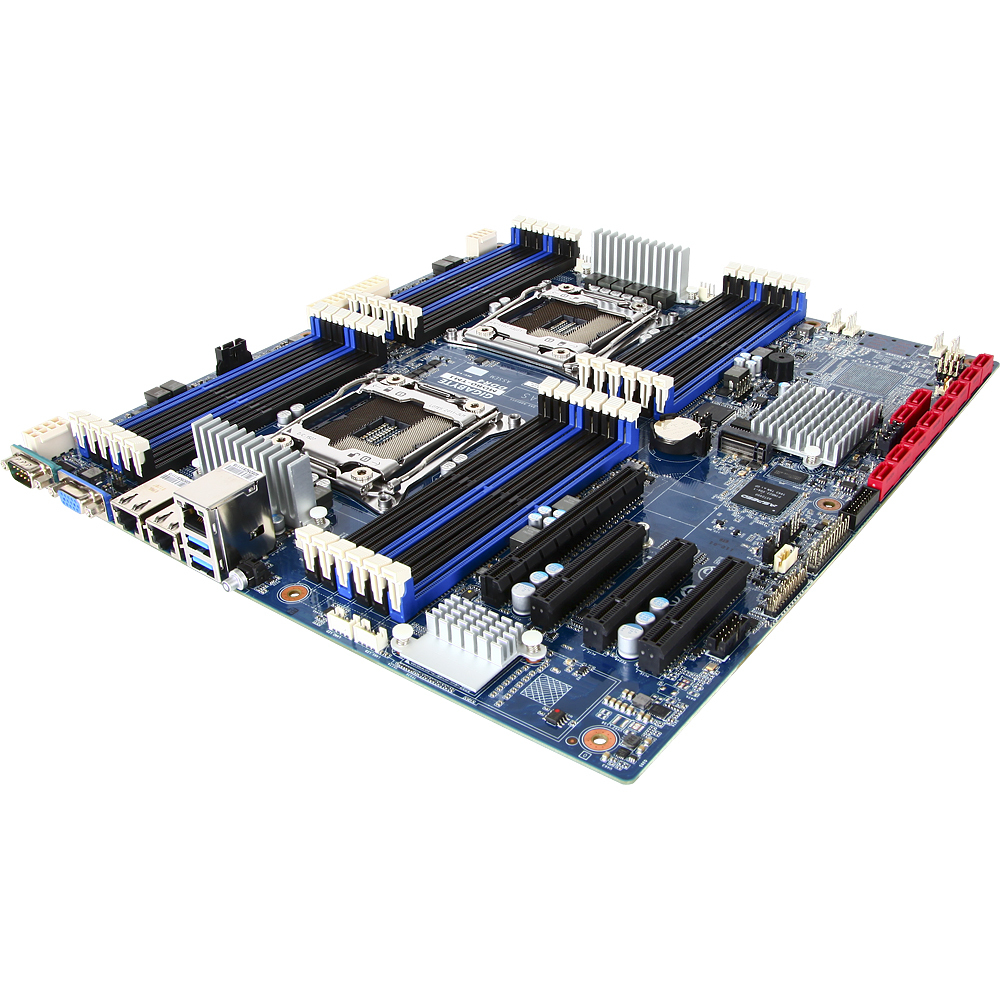

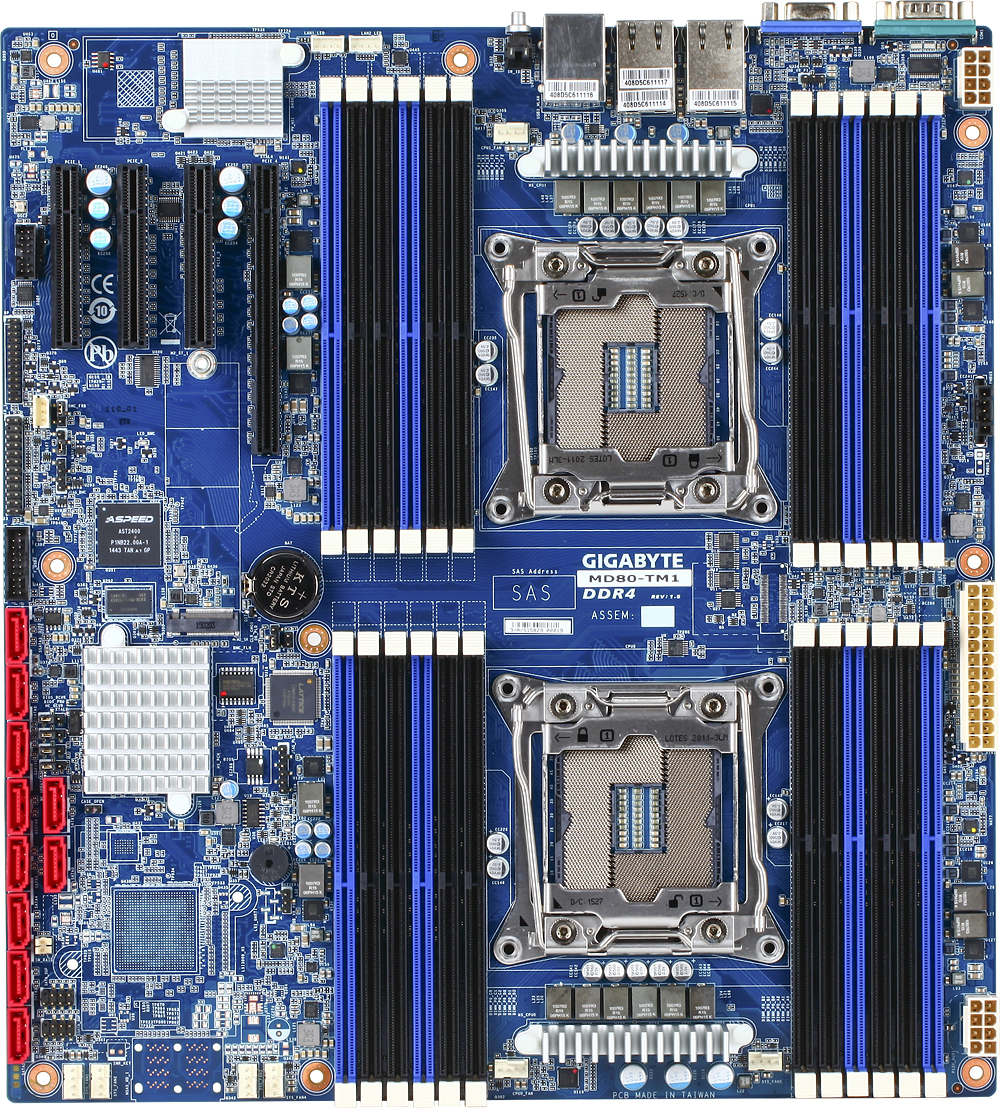

GIGABYTE MD80-TM1 Intel® C612 LGA 2011-v3 Extended ATX

Model MD80-TM1Part no. 9MD80TM1MR-00EAN 4719331844233

82 specifications

Processor manufacturerIntel
Supported memory typesDDR4-SDRAM
Supported storage drive interfacesSATA III
On-board graphics card modelAspeed AST2400
USB 2.0 connectors0
Ethernet LANYes

See all specifications

Overview

Processor manufacturer: Intel
Supported memory types: DDR4-SDRAM
Supported storage drive interfaces: SATA III
On-board graphics card model: Aspeed AST2400
USB 2.0 connectors: 0
Ethernet LAN: Yes

Brand: GIGABYTE
Category: Motherboard
Model: MD80-TM1
Part number: 9MD80TM1MR-00
EAN / UPC: 4719331844233
Also known as: GIGABYTE MD80-TM1 Intel® C612 LGA 2011-v3 Extended ATX

Specifications

82 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 2011-v3
Compatible processor series	Intel® Xeon®
Intel Xeon series	E5-2600

Memory

Specification	Value
Supported memory types	DDR4-SDRAM
Memory channels	Quad-channel
Memory voltage	1.2 V
ECC сompatibility	ECC
Supported memory clock speeds	1600,1866,2133,2400 MHz

Storage controllers

Specification	Value
Supported storage drive interfaces	SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card model	Aspeed AST2400

Internal I/O

Specification	Value
USB 2.0 connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	10
Number of Parallel ATA connectors	0
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	5
Chassis intrusion connector	Yes
Integrated SAS ports	0
Number of IEEE1394 connectors	0
Serial port headers	0
TPM connector	Yes

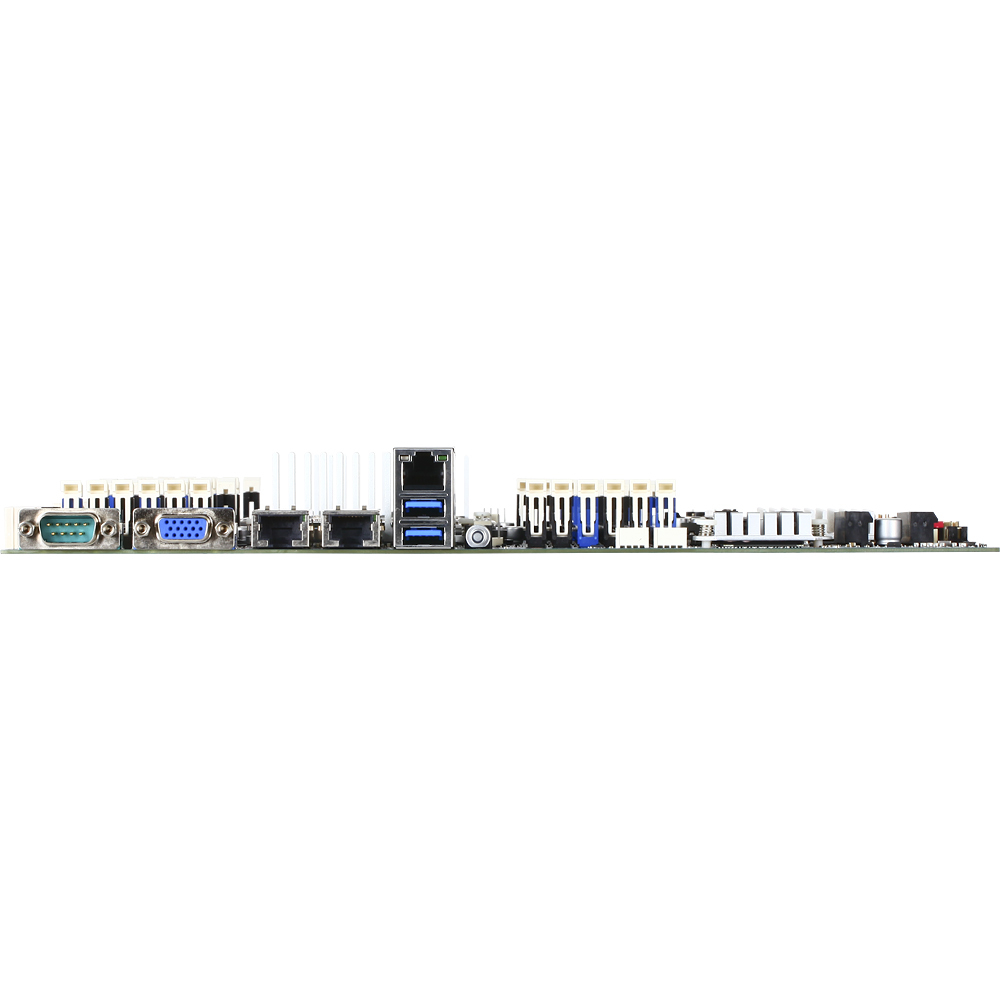

Rear panel I/O ports

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	3
PS/2 ports quantity	0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	0
Headphone outputs	0
Thunderbolt ports quantity	0
Serial ports quantity	1
Modem (RJ-11) ports	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel® I350
Wi-Fi	No
Wi-Fi standards	Not supported

Features

Specification	Value
Component for	Server
Motherboard form factor	Extended ATX
Motherboard chipset	Intel® C612
PC health monitoring	Fan, Temperature, Voltage

Expansion slots

Specification	Value
PCI Express x4 slots	0
PCI Express x8 (Gen 2.x) slots	0
PCI Express x8 (Gen 3.x) slots	3
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 (Gen 3.x) slots	1
PCI slots	0
PCI-X slots	0
Number of M.2 (M) slots	1

BIOS

Specification	Value
Clear CMOS button	Yes

Processor special features

Specification	Value
Integrated BMC with IPMI	Yes
Intelligent Platform Management Interface (IPMI) support	Yes
Trusted Platform Module (TPM)	Yes

Operational conditions

Specification	Value
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	20 - 95%

Packaging data

Specification	Value
Package width	473 mm
Package depth	600 mm
Package height	495 mm

Logistics data

Specification	Value
Harmonized System (HS) code	84733020

Weight & dimensions

Specification	Value
Width	305 mm
Depth	330 mm

Other features

Specification	Value
DVI port	No
Supported DIMM module capacities	1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB
Supported LRDIMM module capacity	8GB, 16GB, 32GB, 64GB
Supported LRDIMM clock speeds	1600,1866,2133,2400 MHz
Supported RDIMM clock speeds	1600,1866,2133,2400 MHz
Supported RDIMM module capacity	1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Number of DIMM slots	24
Number of processors supported	2

Technical details

Specification	Value
USB version	3.2 Gen 1 (3.1 Gen 1)
