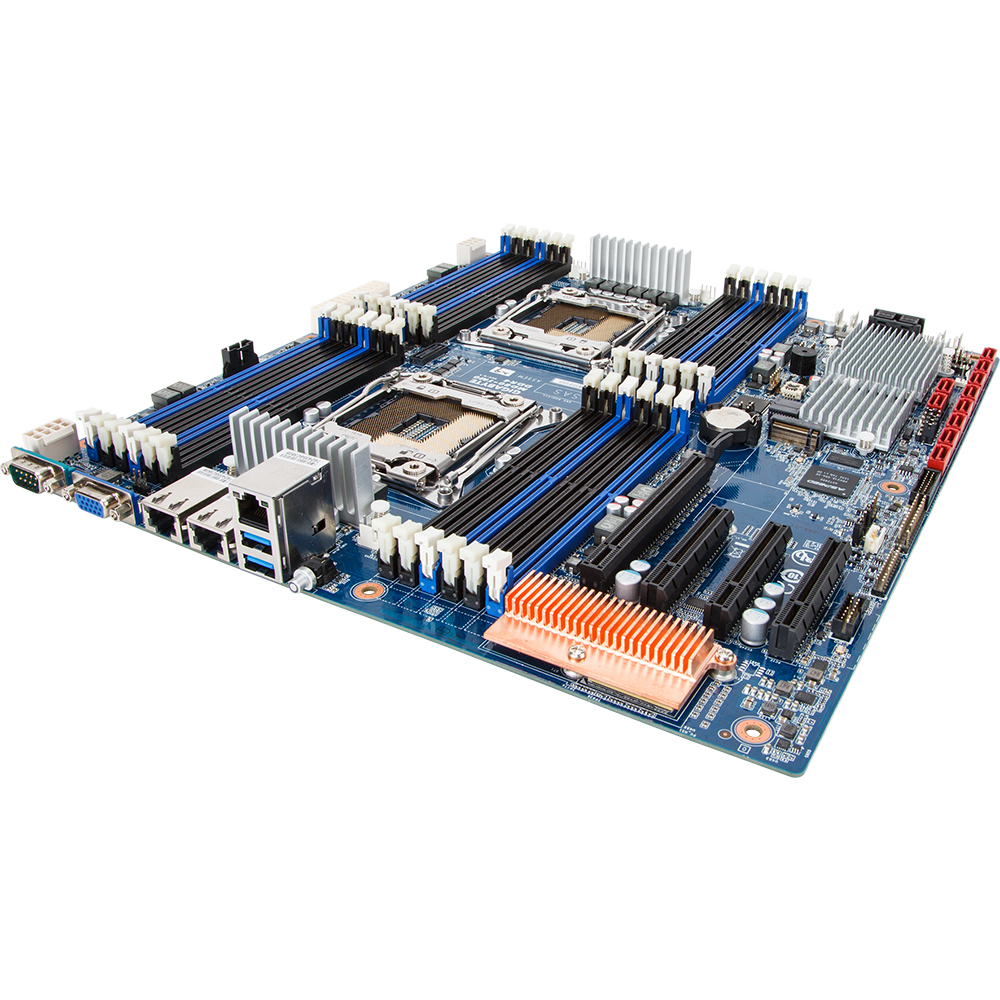

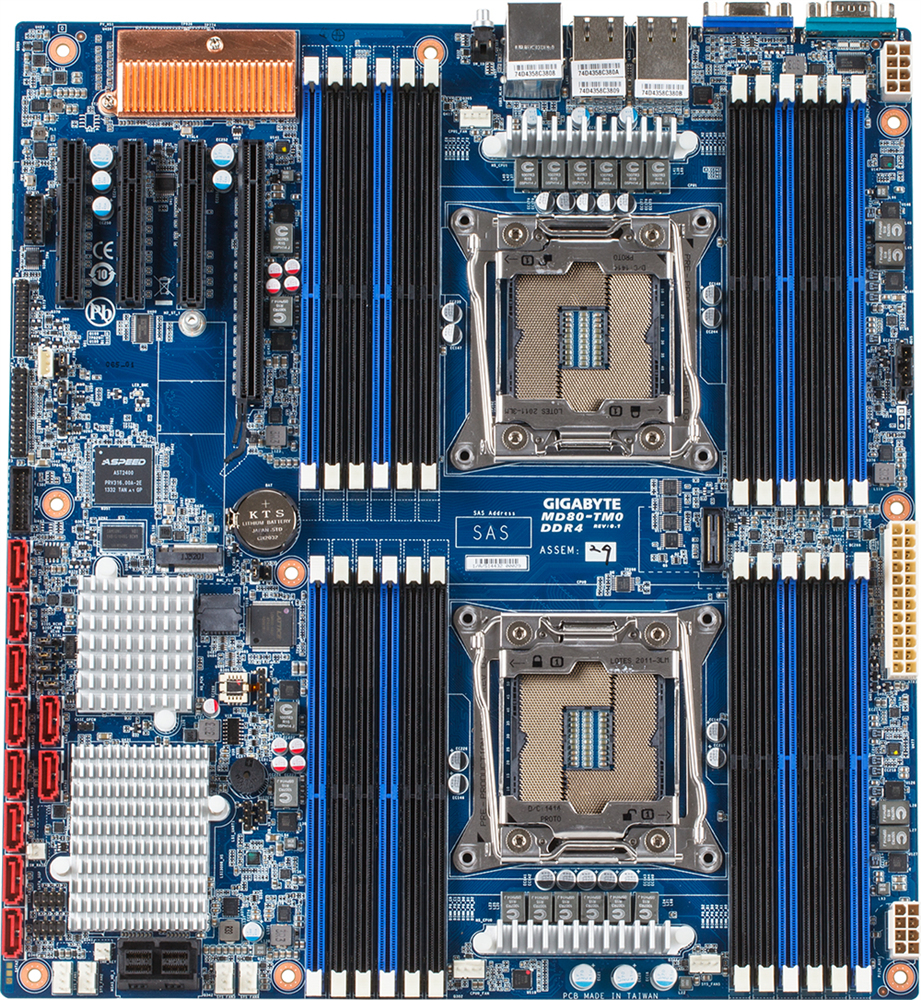

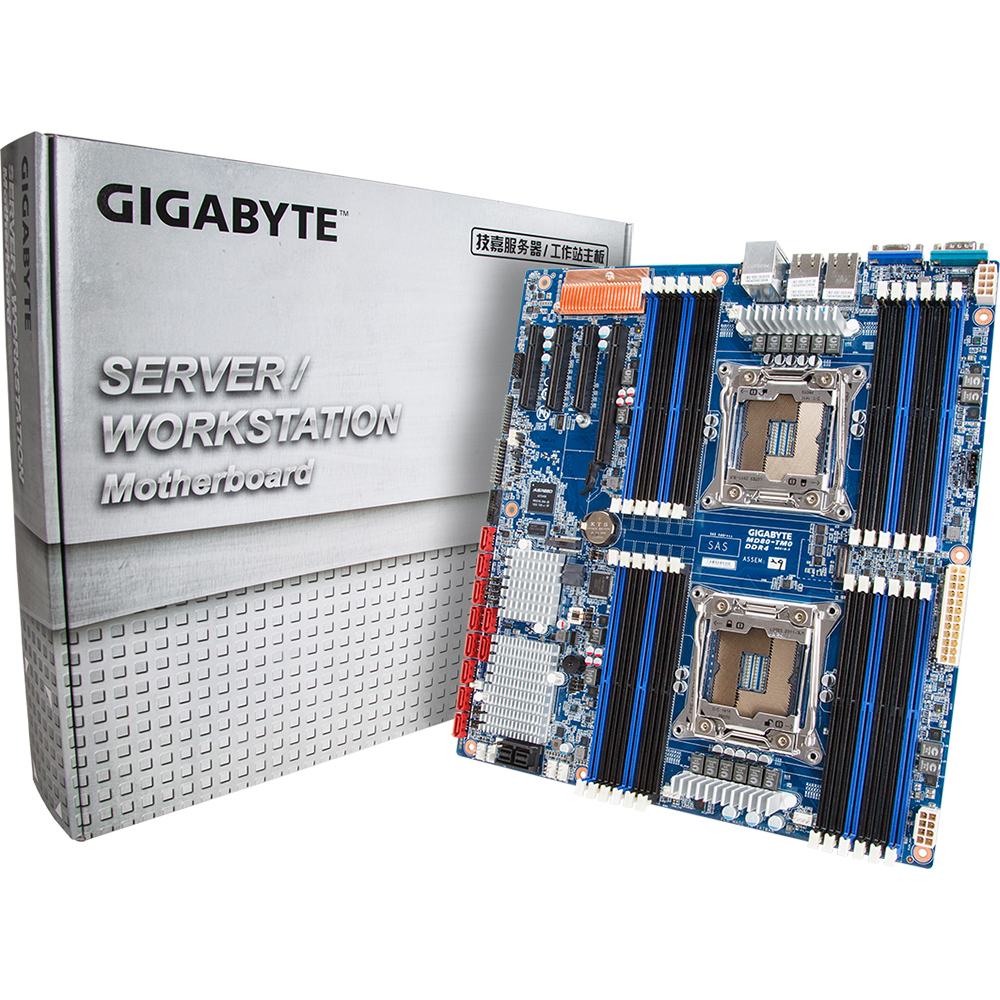

GIGABYTE MD80-TM0 (rev. 1.0)
Model MD80-TM0 (rev. 1.0)Part no. MD80-TM0EAN 813567021636
44 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics card modelAspeed AST2400
- USB 2.0 connectors0
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card model
- Aspeed AST2400
- USB 2.0 connectors
- 0
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MD80-TM0 (rev. 1.0)
- Part numbers
- MD80-TM0, 9MD80TM0MR-00
- EAN / UPC
- 813567021636, 4719331841331
- Also known as
- GIGABYTE MD80-TM0 (rev. 1.0) Intel® C612 LGA 2011-v3 Extended ATX
Specifications
44 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Intel Xeon series | E5-2600 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 1600,1866,2133,2400 MHz |
| Maximum RDIMM memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 1E, 5, 10 |
Graphics
| Specification | Value |
|---|---|

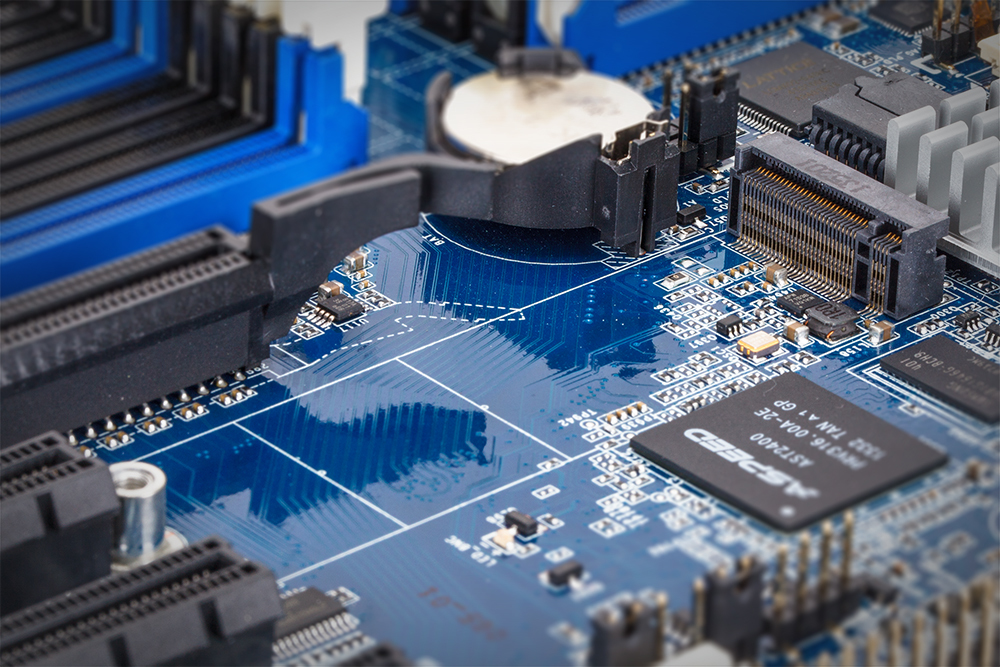

| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Integrated SAS ports | 2 |
| TPM connector | Yes |

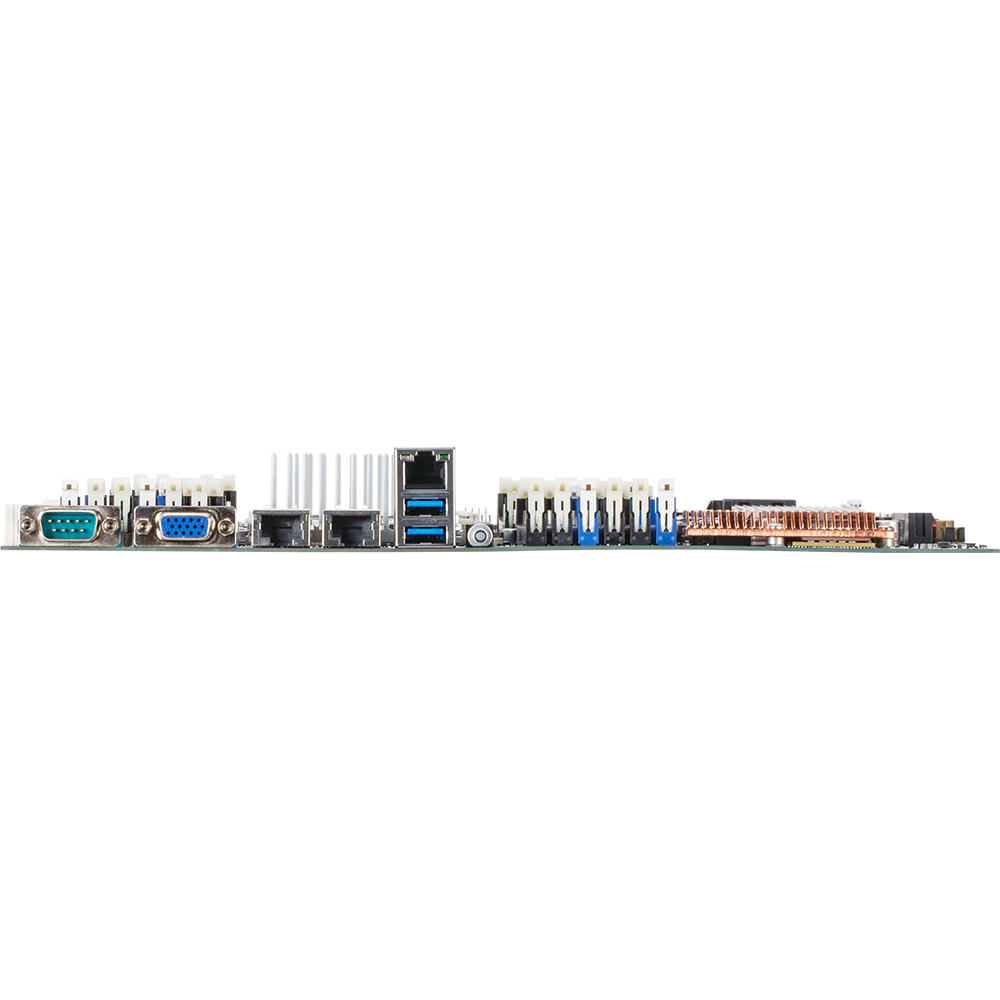

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset | Intel® C612 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| Maximum LRDIMM memory | 128 GB |
| Number of DIMM slots | 24 |
| Number of processors supported | 2 |
