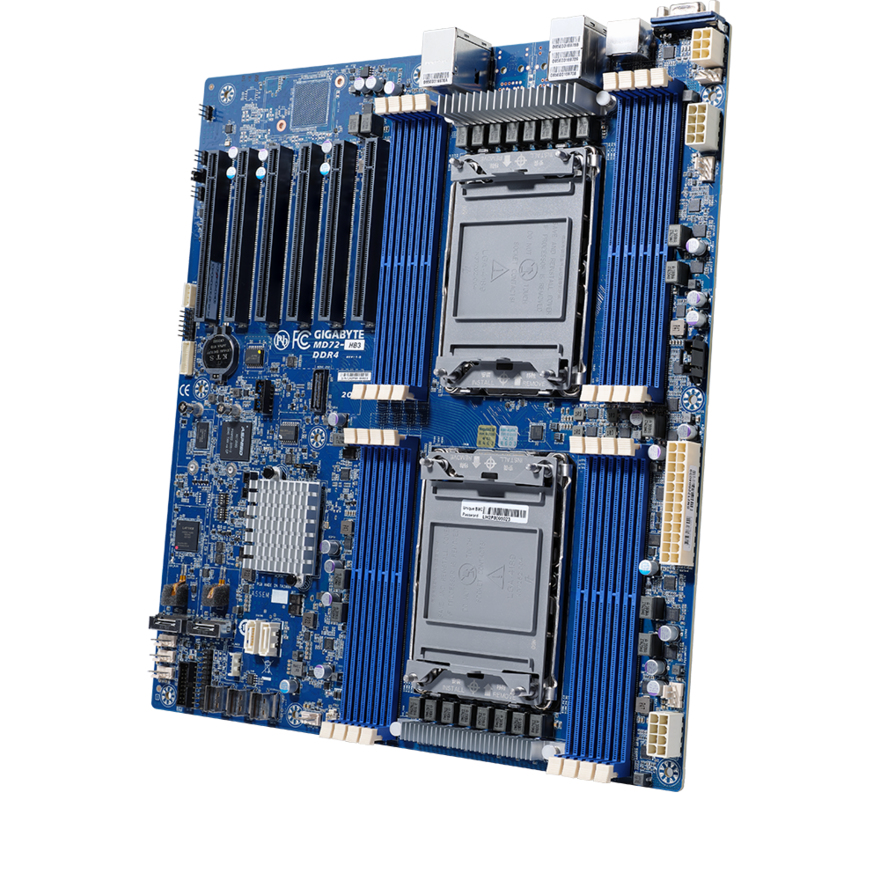

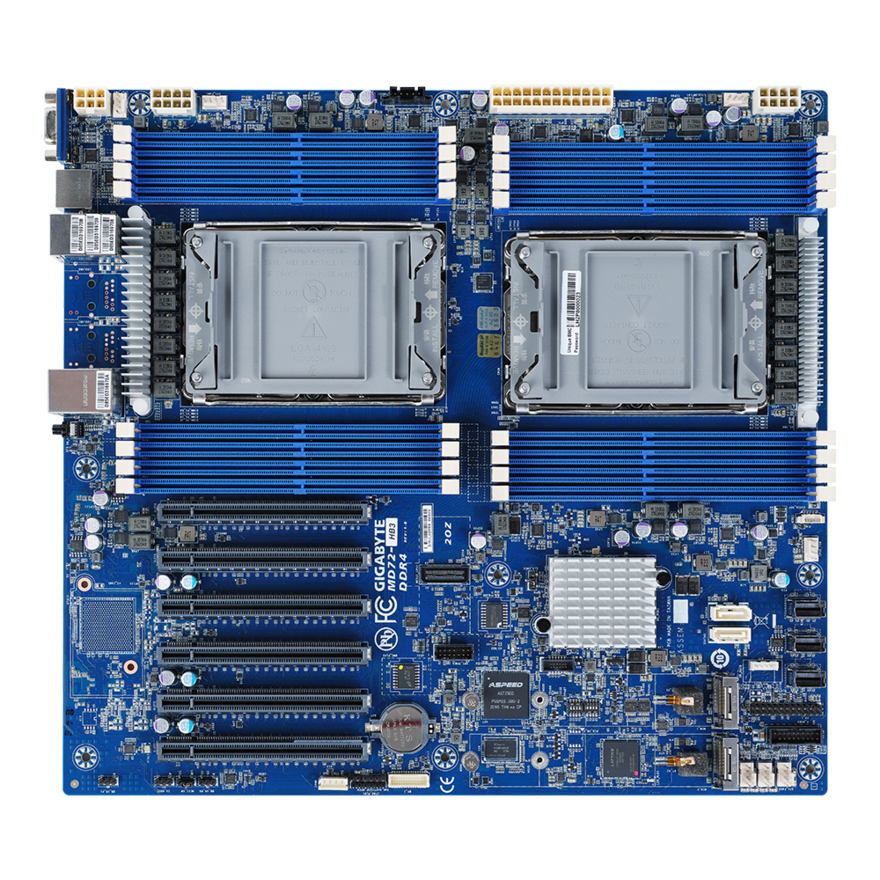

MD72-HB3 Intel C621A LGA 4189 Extended ATX
Model MD72-HB3Part no. 9MD72HB3MR-00EAN 4719331827939
46 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2
- On-board graphics cardYes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Component forServer
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2
- On-board graphics card
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Component for
- Server
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MD72-HB3
- Part numbers
- 9MD72HB3MR-00, MD72-HB3
- EAN / UPC
- 4719331827939
- Also known as
- GIGABYTE MD72-HB3 Intel C621A LGA 4189 Extended ATX
Specifications
46 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4189 |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 12 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Maximum internal memory | 256 GB |
| Maximum RDIMM memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

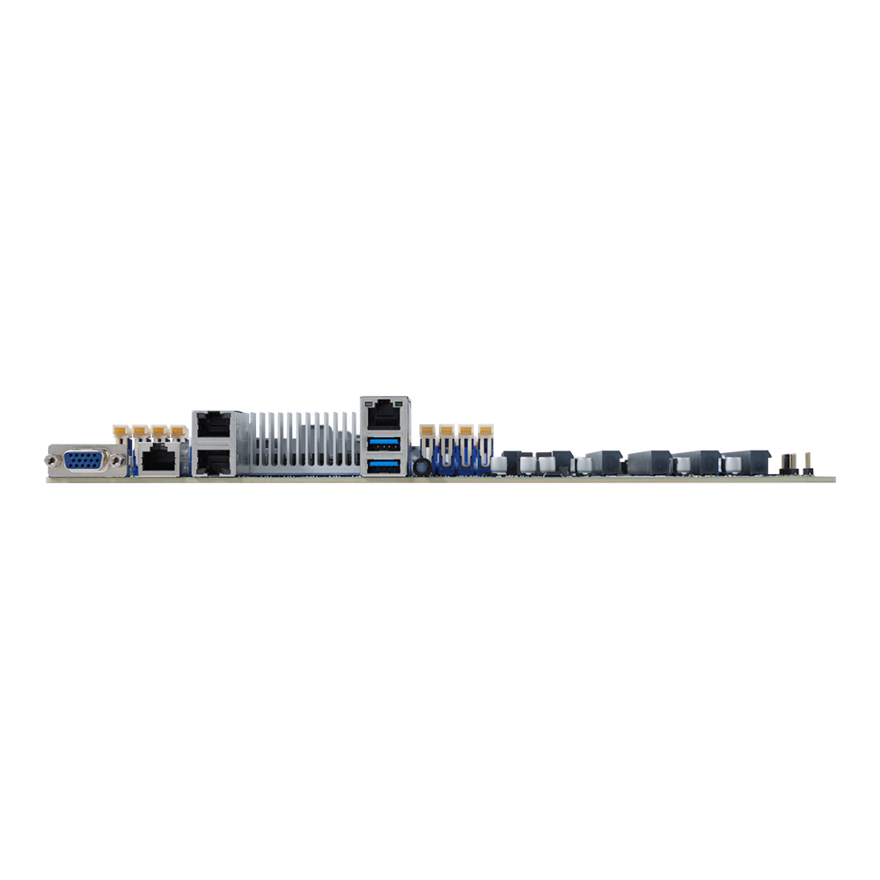

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| Linux operating systems supported | Red Hat Enterprise Linux 7.9, Ubuntu 20.04 LTS, Ubuntu 22.04 |
| Compatible operating systems | Windows Server 2016 Windows Server 2019 Windows Server 2022 SUSE Linux Enterprise Server 12 SP5 (x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update2 or later VMware ESXi 8.0 or later Citrix Hypervisor 8.2.0 or later |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 6 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
