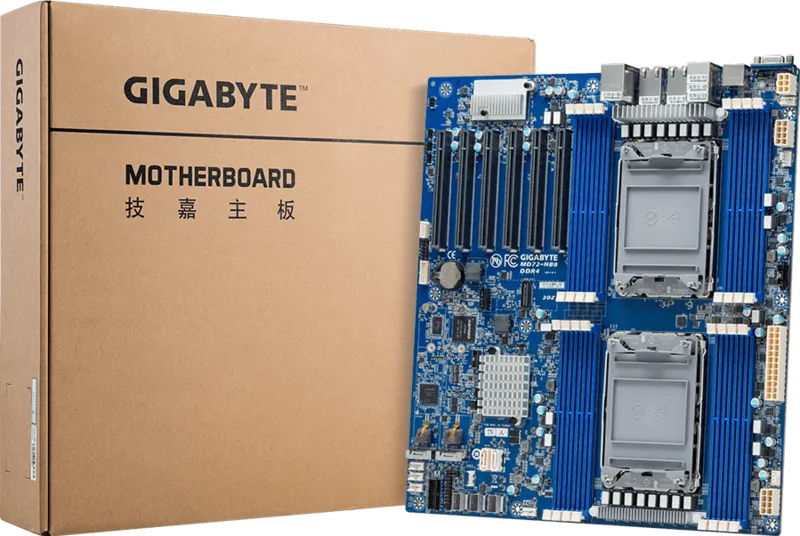

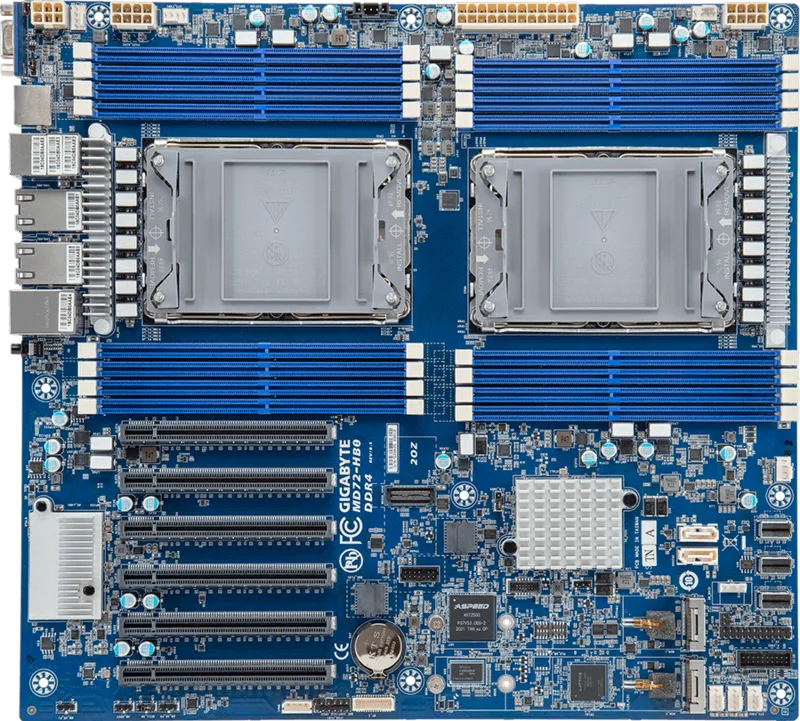

MD72-HB0 Intel C621A LGA 4189 Extended ATX
Model MD72-HB0Part no. 9MD72HB0MR-00EAN 4719331817435
68 specifications
- ColourBlue
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
- USB 2.0 connectors0
Overview
- Colour
- Blue
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 0
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MD72-HB0
- Part number
- 9MD72HB0MR-00
- EAN / UPC
- 4719331817435
- Also known as
- GIGABYTE MD72-HB0 Intel C621A LGA 4189 Extended ATX
Specifications
68 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4189 |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 2 |
| Supported processor sockets | LGA 4189 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 16 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA, SlimSAS |
| Number of HDDs supported | 14 |
| Number of storage drives supported | 16 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA connectors | 2 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| TPM connector | Yes |

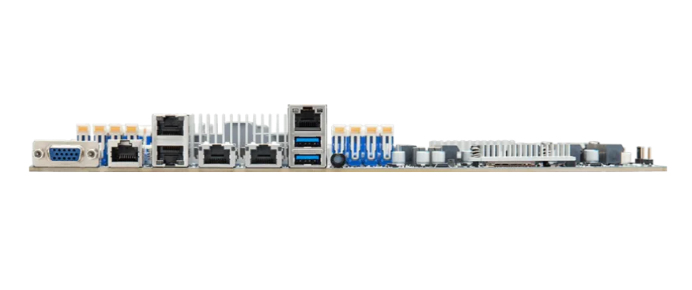

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel X710-AT2, Intel® I210-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| Product colour | Blue |
| Cooling type | Passive |
| Power source type | ATX |
| Certification | Windows Server 2016; Windows Server 2019; Windows Server 2022; Red Hat Enterprise Linux 7.9 or later; Red Hat Enterprise Linux 8.2 or later; Red Hat Enterprise Linux 9.0 or later; SUSE Linux Enterprise Server 12 SP5 or later; SUSE Linux Enterprise Server 15 SP2 or later; Ubuntu 20.04 LTS or later; U |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 6 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
