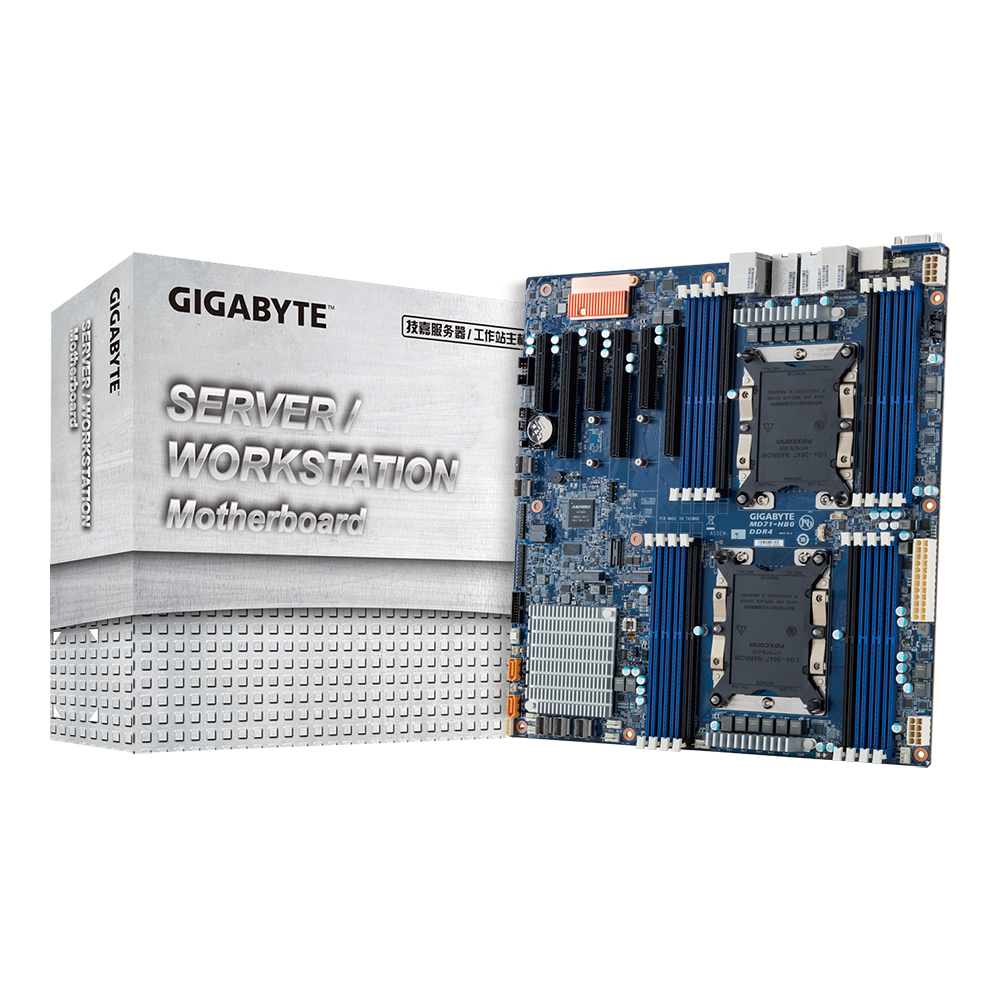

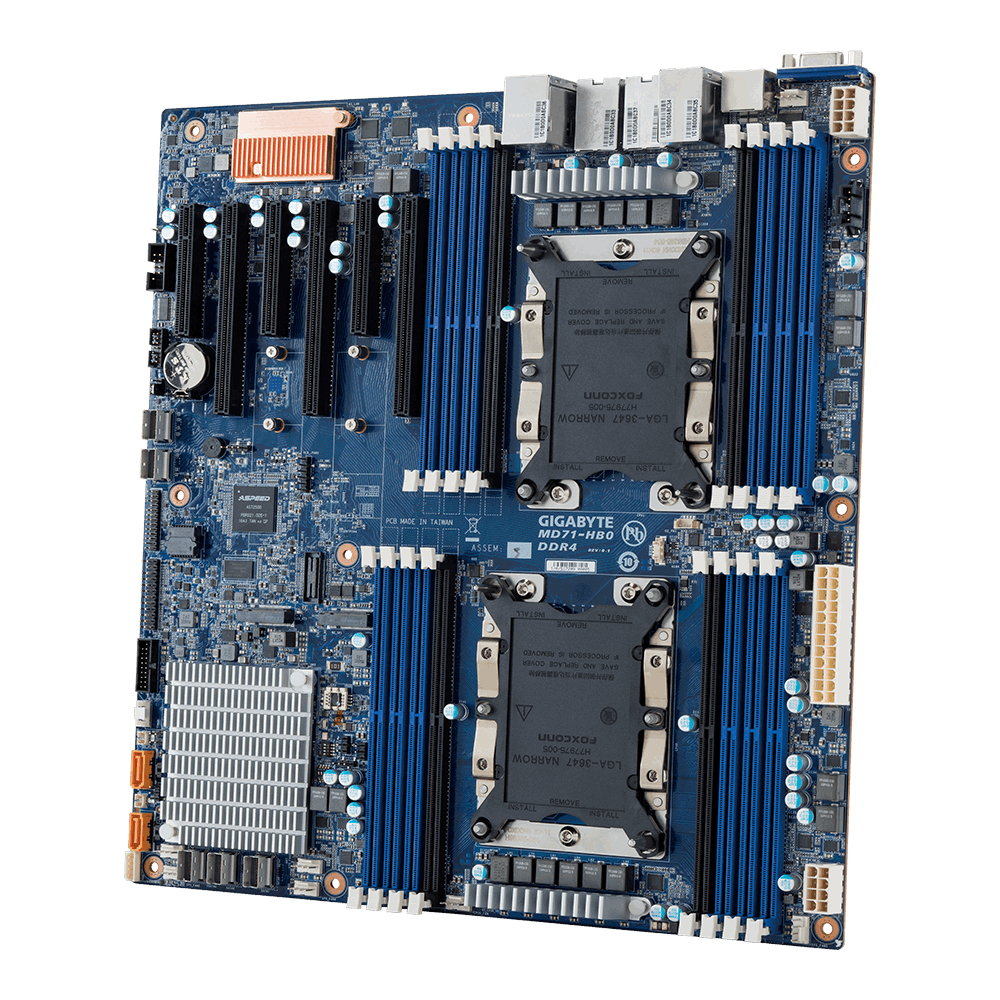

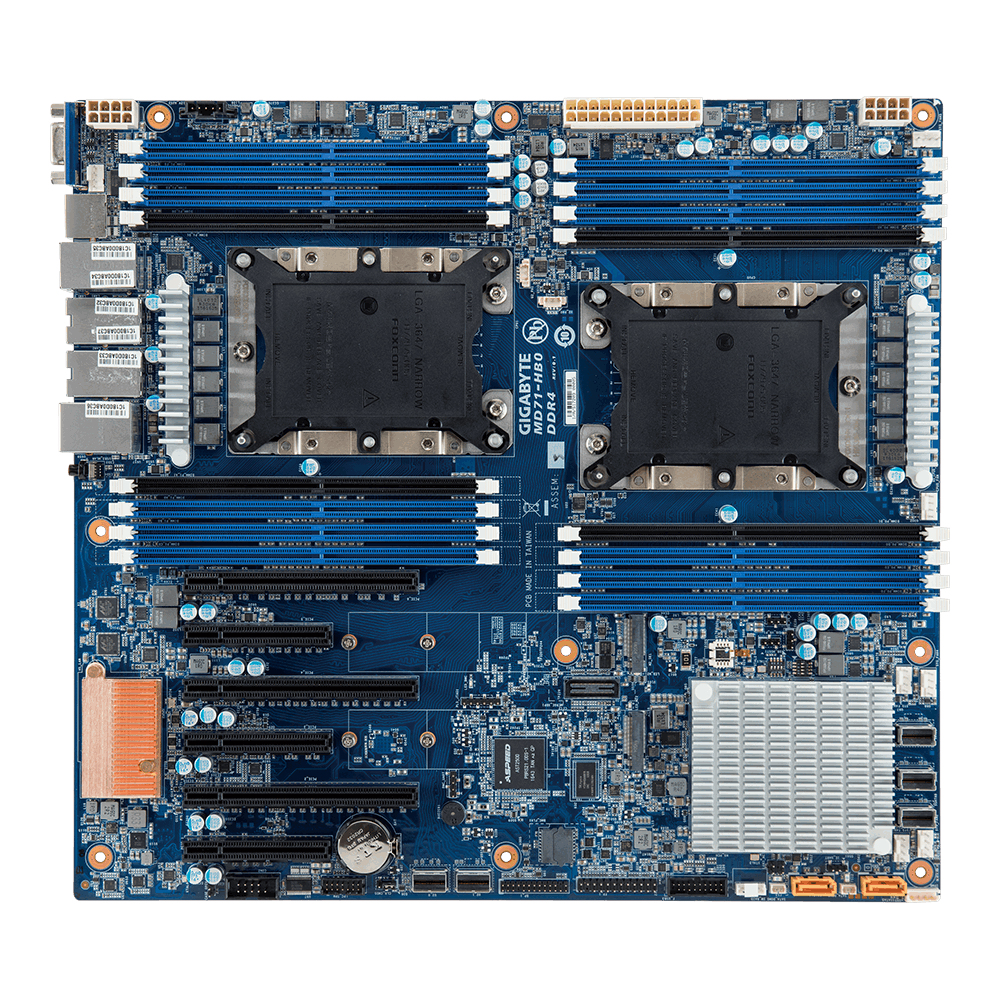

GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX
Model MD71-HB0Part no. 9MD71HB0MR-00EAN 889523011584
71 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics card modelAspeed AST2500
- USB 2.0 connectors0
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card model
- Aspeed AST2500
- USB 2.0 connectors
- 0
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MD71-HB0
- Part numbers
- 9MD71HB0MR-00, MD71-HB0
- EAN / UPC
- 889523011584, 4719331802431
- Also known as
- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX
Specifications
71 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| Compatible processor series | Intel® Xeon® |
| AMD Opteron series | 6200 |
| Processor thermal power (max) | 205 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Hexa-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 64 GB |
| Maximum RDIMM memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| Integrated SAS ports | 5 |
| Number of COM connectors | 1 |
| Serial port headers | 0 |
| TPM connector | Yes |

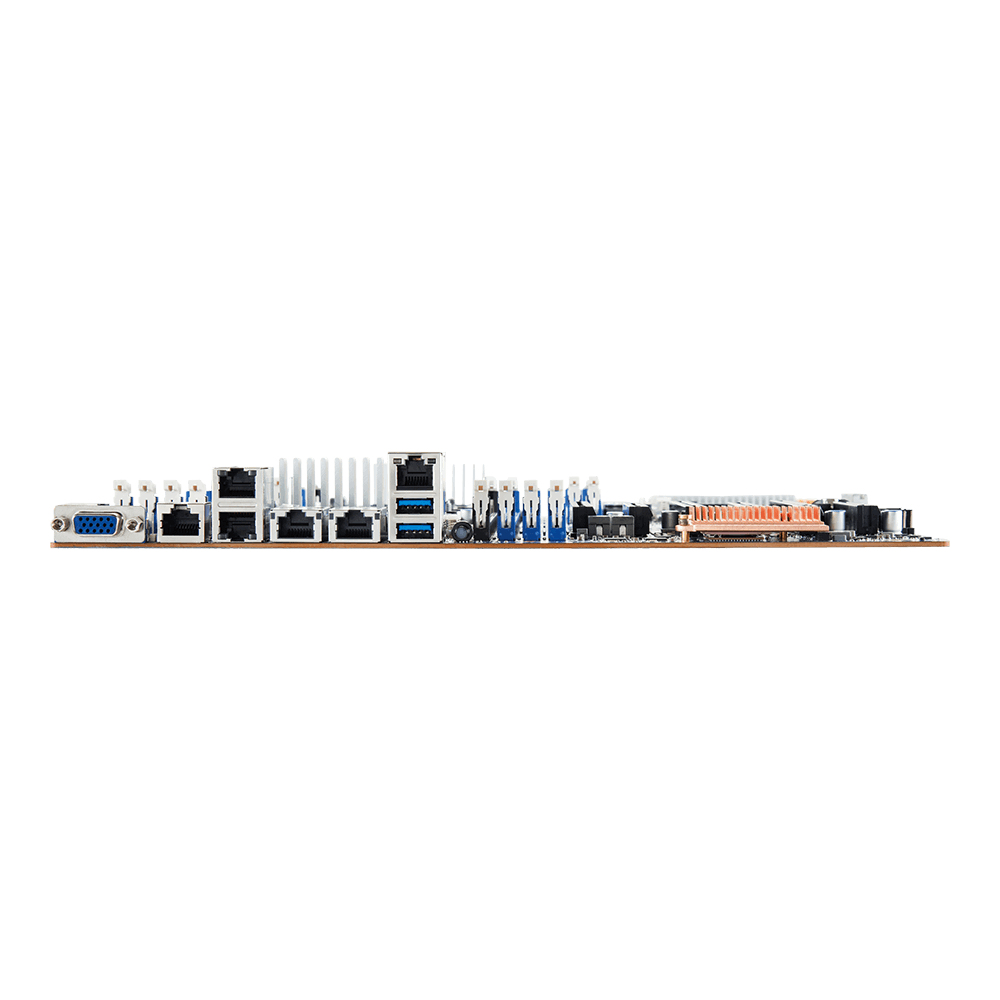

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset | Intel C622 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI slots | 0 |
| PCI-X slots | 0 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Maximum LRDIMM memory | 64 GB |
| Disk on Module (DOM) power connector | Yes |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
| PCI Express slots quantity | 0 |
| Quick installation guide | Yes |
What people say
Reviews & ratings
GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX
No reviews yet
Be the first to tell others how GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX
All motherboard comparisons- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX vsGIGABYTE MW51-HP0 (rev. 1.0)Compare specs

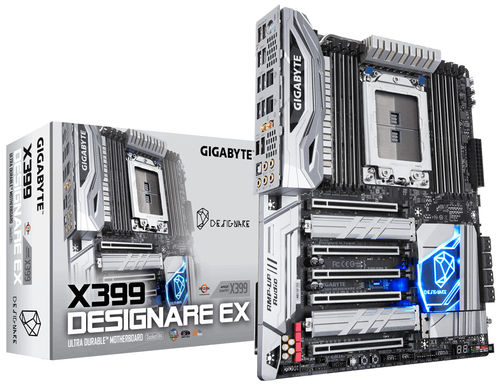

- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX vsGIGABYTE X399 DESIGNARE EXCompare specs

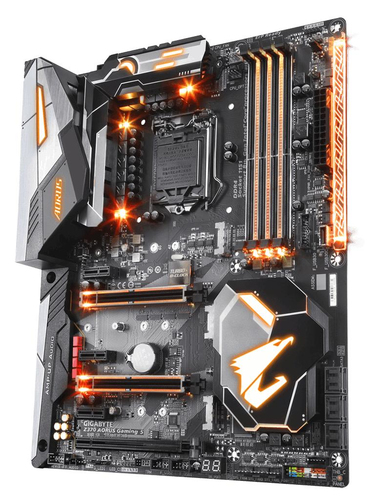

- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX vsGIGABYTE Z370 AORUS Gaming 5Compare specs

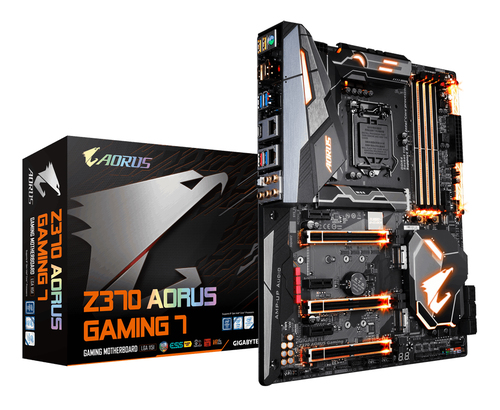

- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX vsGIGABYTE Z370 AORUS Gaming 7Compare specs

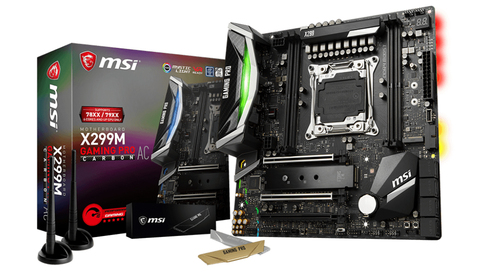

- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX vsMSI X299M GAMING PRO CARBON ACCompare specs

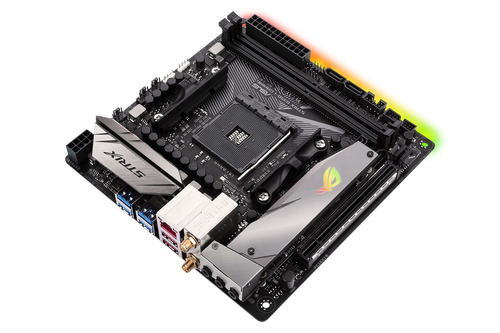

- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX vsASUS ROG STRIX B350-I GAMINGCompare specs

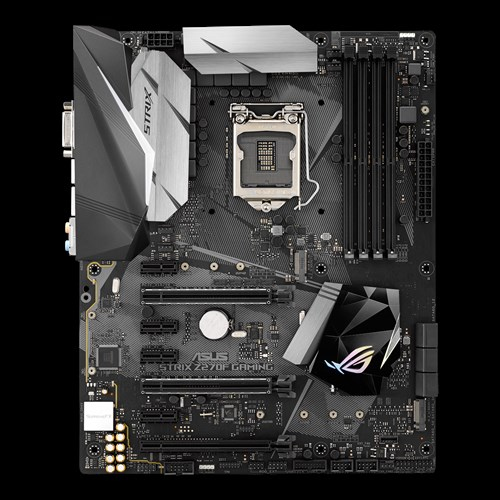

- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX vsASUS Rog Strix Z270F GamingCompare specs

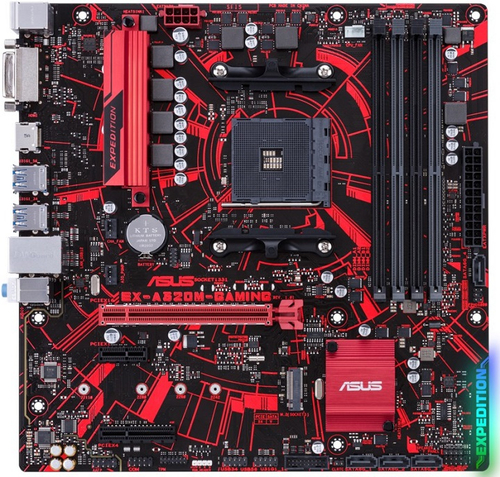

- GIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATX vsASUS EX-A320M-GAMING AMD A320 Socket AM4 micro ATXCompare specs
