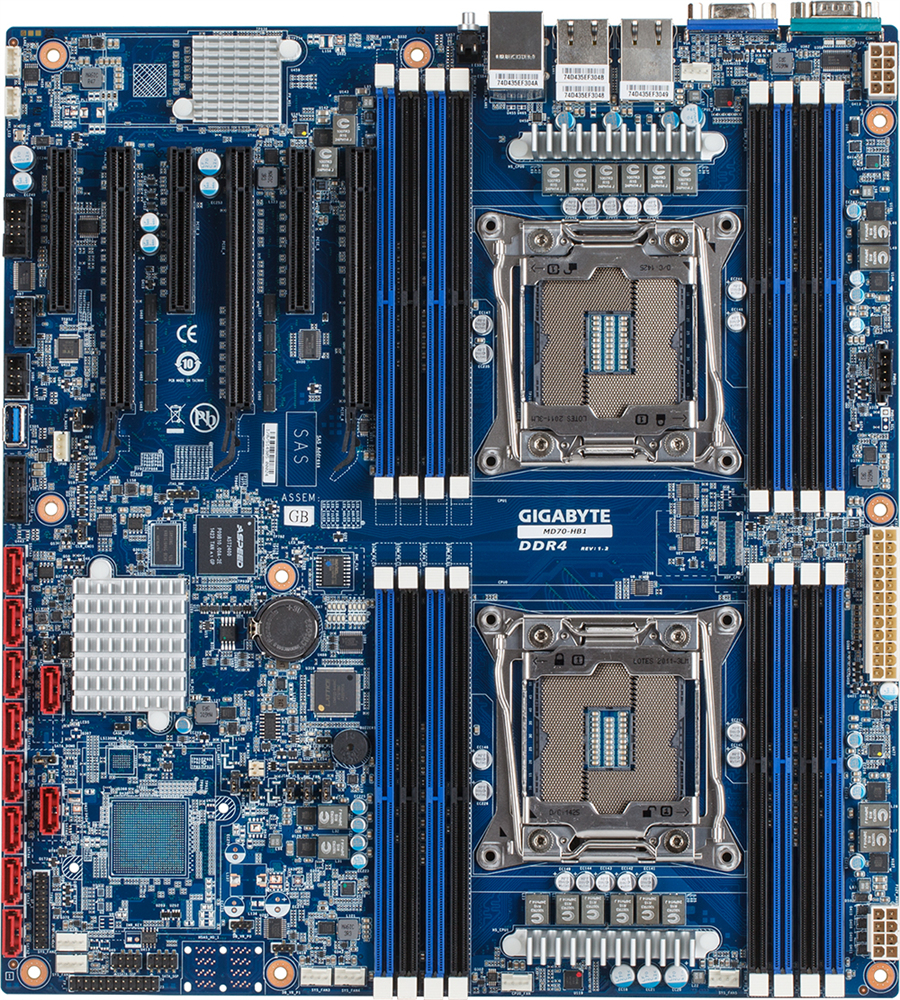

GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX
Model MD70-HB1EAN 813567020875
30 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics card modelAspeed AST2400
- USB 2.0 connectors1
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card model
- Aspeed AST2400
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 0
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MD70-HB1
- Part number
- MD70-HB1
- EAN / UPC
- 813567020875, 4719331841348
- Also known as
- GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX
Specifications
30 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| Supported memory clock speeds | 1600,1866,2133,2400 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset | Intel® C612 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 5 |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
What people say
Reviews & ratings
GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX
No reviews yet
Be the first to tell others how GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX
All motherboard comparisons- GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsGIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATXCompare specs
- GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsGIGABYTE MD80-TM0 (rev. 1.0)Compare specs
- GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsGIGABYTE GA-6QPCV-RH motherboard Intel GM45 LGA 3647 (Socket P) mini ATXCompare specs
- GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsGIGABYTE GA-J1800N-D2PH (rev. 1.1)Compare specs

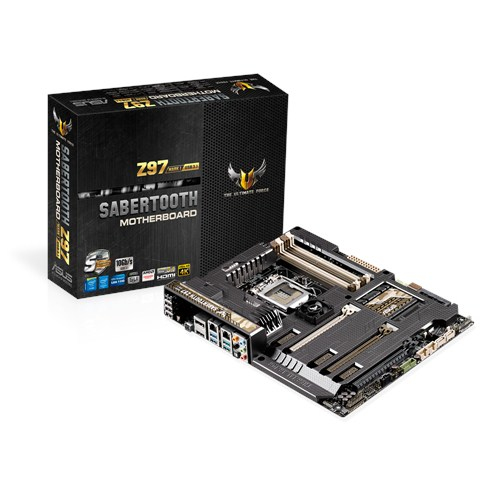

- GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsASUS SABERTOOTH Z97 MARK 1/USB 3.1Compare specs

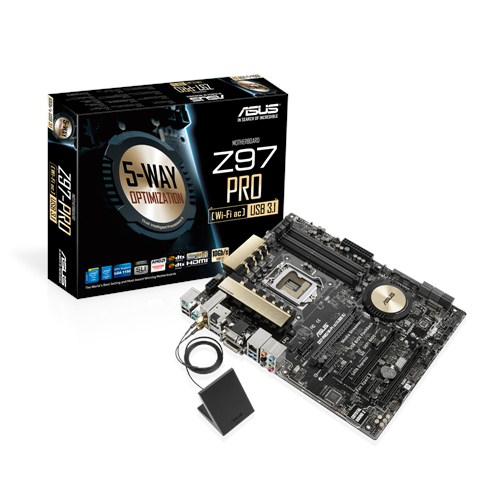

- GIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsASUS Z97-PRO(WI-FI AC)/USB 3.1Compare specs
