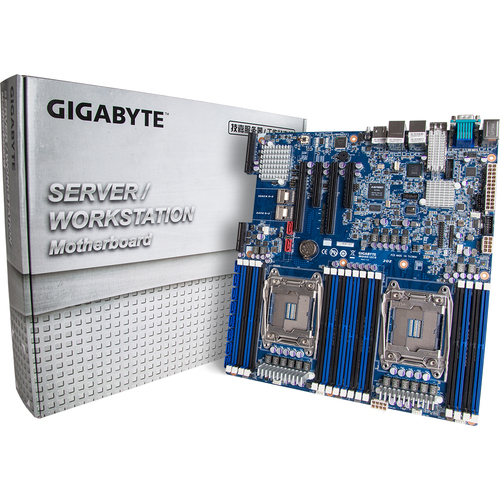

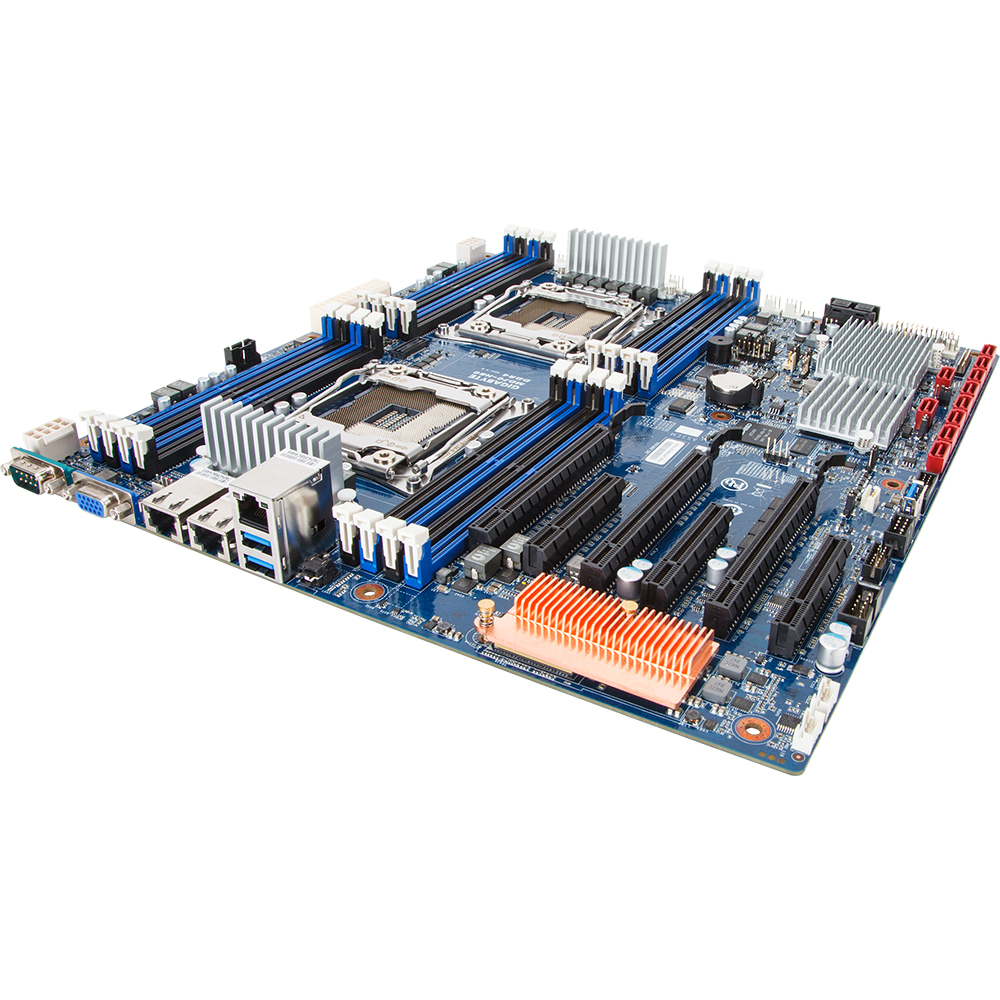

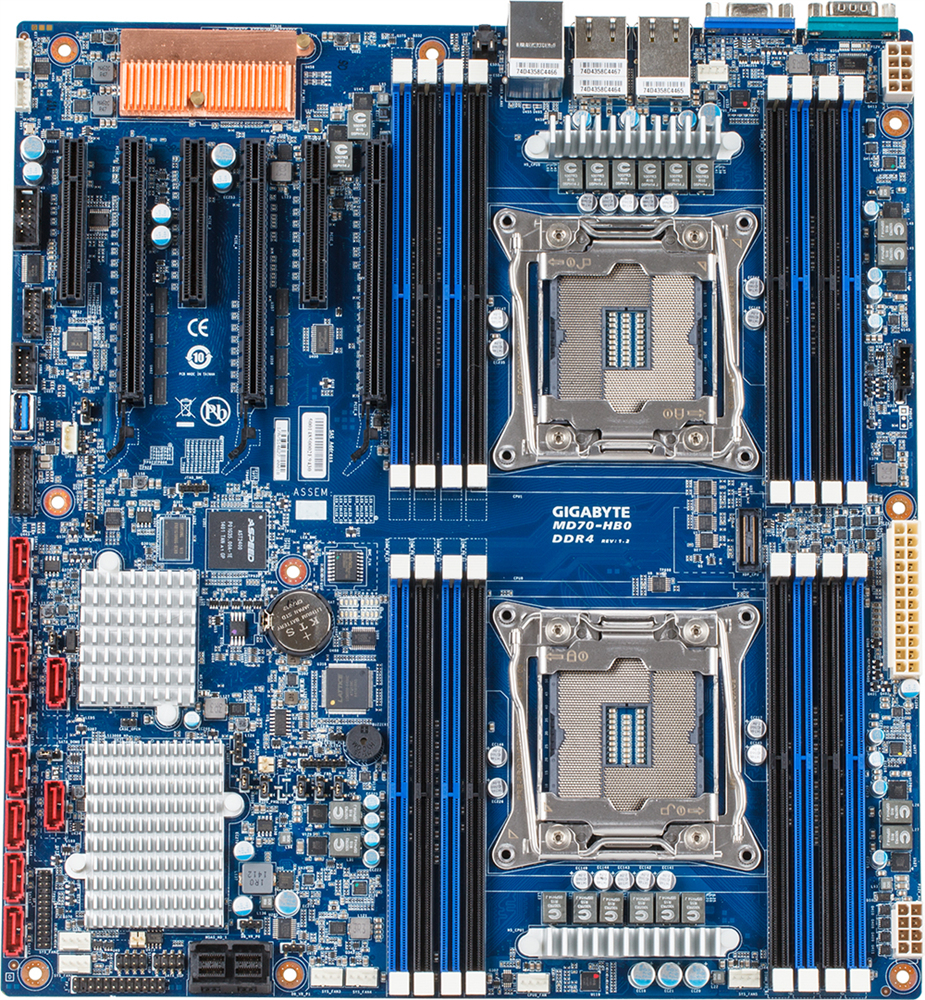

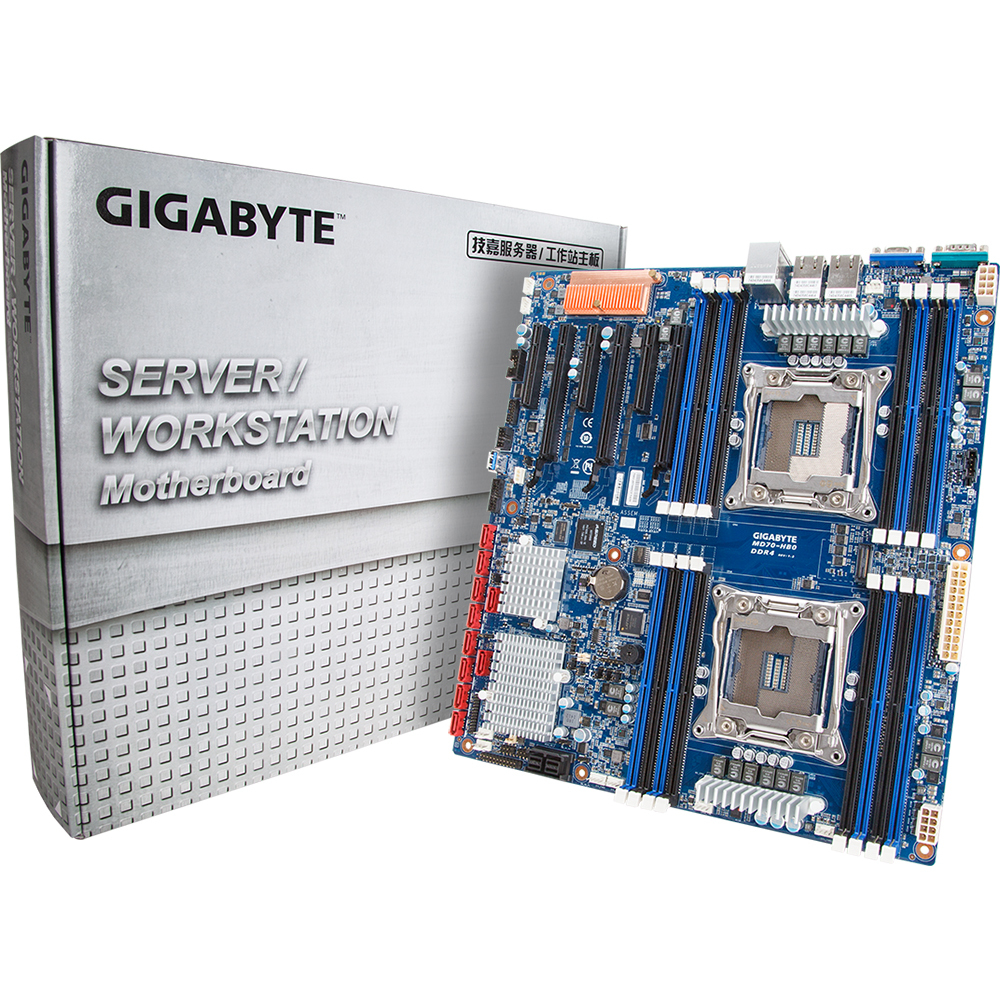

GIGABYTE MD70-HB0 Intel® C612 LGA 2011-v3 Extended ATX

GIGABYTE MD70-HB0 Intel® C612 LGA 2011-v3 Extended ATX

Model MD70-HB0Part no. 9MD70HB0MR-00

83 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSerial Attached SCSI (SAS)
  • On-board graphics card modelAspeed AST2400
  • USB 2.0 connectors1
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
Serial Attached SCSI (SAS)
On-board graphics card model
Aspeed AST2400
USB 2.0 connectors
1
USB 2.0 ports quantity
0
Brand
GIGABYTE
Category
Motherboard
Model
MD70-HB0
Part number
9MD70HB0MR-00
Also known as
GIGABYTE MD70-HB0 Intel® C612 LGA 2011-v3 Extended ATX

Specifications

83 specifications in 17 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Xeon®
Intel Xeon seriesE5-2600

Memory

Supported memory typesDDR4-SDRAM
Memory channelsQuad-channel
Memory voltage1.2 V
ECC сompatibilityECC
Supported memory clock speeds1600,1866,2133,2400 MHz

Storage controllers

Supported storage drive interfacesSerial Attached SCSI (SAS)
RAID supportYes
RAID levels0, 1, 1E, 5, 10

Graphics

On-board graphics card modelAspeed AST2400

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors10
Number of SATA II connectors0
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors5
Chassis intrusion connectorYes
Integrated SAS ports2
Number of IEEE1394 connectors0
Serial port headers1
TPM connectorYes

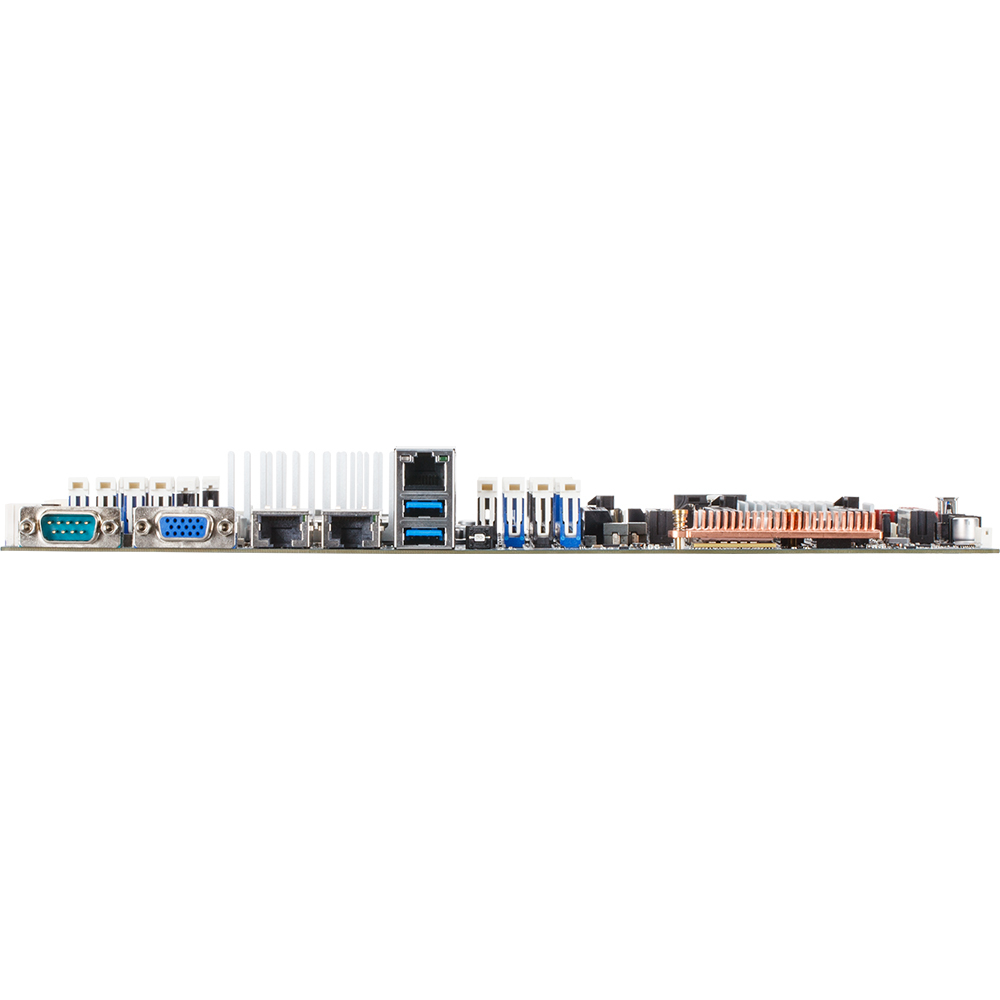

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports3
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
DVI-I ports quantity0
DisplayPorts quantity0
Parallel ports quantity0
Serial ports quantity1
Modem (RJ-11) ports0

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
LAN controllerIntel® X540
Wi-FiNo
Wi-Fi standardsNot supported

Features

Component forServer
Motherboard form factorExtended ATX
Motherboard chipsetIntel® C612
PC health monitoringFan, Temperature, Voltage

Expansion slots

PCI Express x1 slots0
PCI Express x4 slots0
PCI Express x8 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots0
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots3
PCI slots0
PCI-X slots0
Number of M.2 (M) slots0

BIOS

Clear CMOS buttonYes

Processor special features

Integrated BMC with IPMIYes
Intelligent Platform Management Interface (IPMI) supportYes
Trusted Platform Module (TPM)Yes

Operational conditions

Storage temperature (T-T)-40 - 60 °C
Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)8 - 80%
Storage relative humidity (H-H)20 - 95%

Packaging data

Package width473 mm
Package depth600 mm
Package height495 mm

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth330 mm

Other features

DVI portNo
Supported DIMM module capacities1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB
Supported LRDIMM clock speeds1600,1866,2133,2400 MHz
Disk on Module (DOM) power connectorYes
Supported RDIMM clock speeds1600,1866,2133,2400 MHz
Supported RDIMM module capacity1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Number of DIMM slots16
Number of processors supported2

Technical details

USB version3.2 Gen 1 (3.1 Gen 1)
