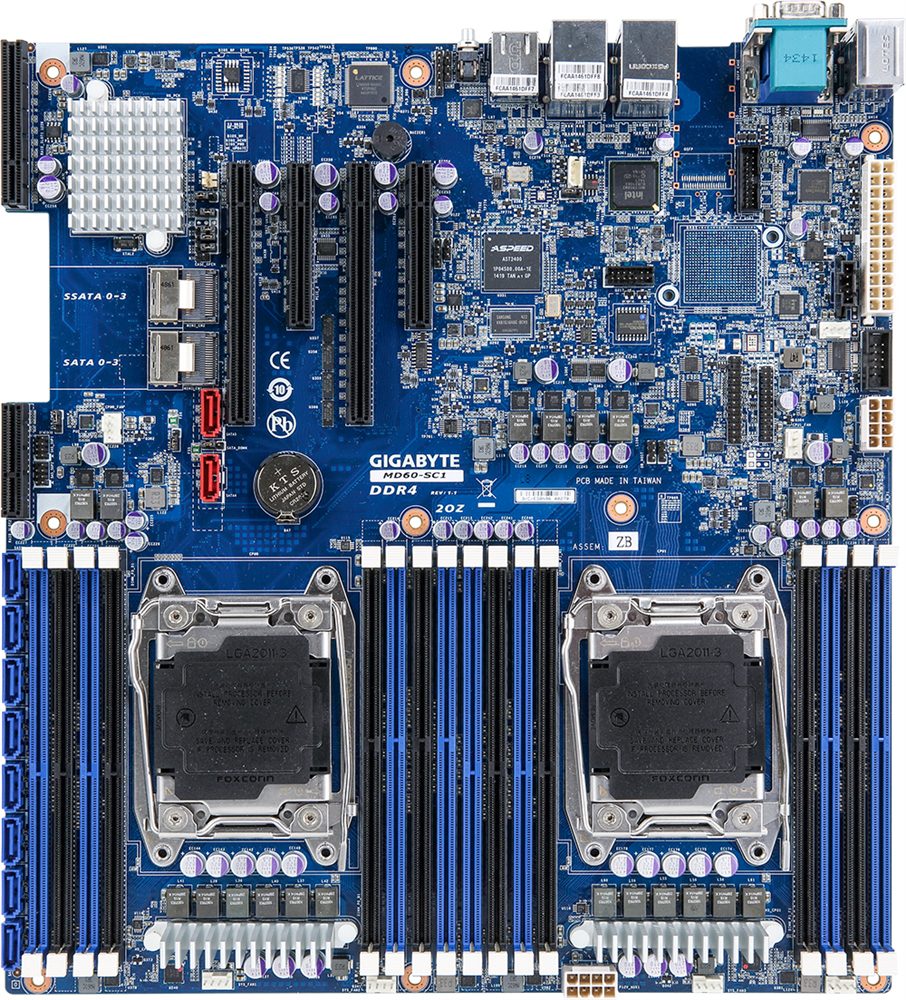

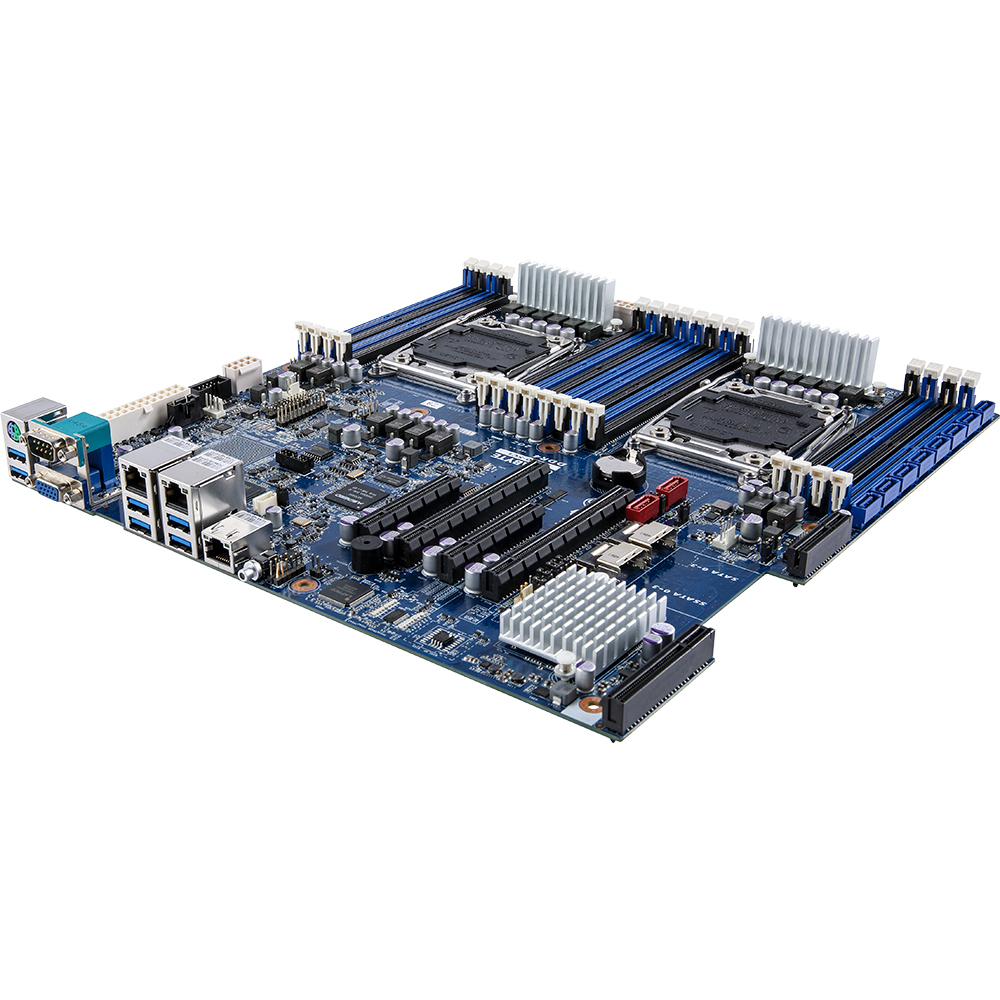

GIGABYTE MD60-SC1 Intel® C612 LGA 2011-v3 Extended ATX

Model MD60-SC1Part no. 9MD60SC1MR-00EAN 4719331810375

73 specifications

Processor manufacturerIntel
Supported memory typesDDR4-SDRAM
Supported storage drive interfacesSerial Attached SCSI (SAS)
On-board graphics card modelAspeed AST2400
USB 2.0 connectors0
Ethernet LANYes

See all specifications

Overview

Processor manufacturer: Intel
Supported memory types: DDR4-SDRAM
Supported storage drive interfaces: Serial Attached SCSI (SAS)
On-board graphics card model: Aspeed AST2400
USB 2.0 connectors: 0
Ethernet LAN: Yes

Brand: GIGABYTE
Category: Motherboard
Model: MD60-SC1
Part number: 9MD60SC1MR-00
EAN / UPC: 4719331810375
Also known as: GIGABYTE MD60-SC1 Intel® C612 LGA 2011-v3 Extended ATX

Specifications

73 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 2011-v3
Compatible processor series	Intel® Xeon®
Intel Xeon series	E5-2600

Memory

Specification	Value
Supported memory types	DDR4-SDRAM
Memory channels	Quad-channel
Memory voltage	1.2 V
Supported memory clock speeds	1600,1866,2133,2400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Maximum RDIMM memory	32 GB

Storage controllers

Specification	Value
Supported storage drive interfaces	Serial Attached SCSI (SAS)
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card model	Aspeed AST2400

Internal I/O

Specification	Value
USB 2.0 connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	2
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	5
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Integrated SAS ports	8
Parallel connector	No
Serial port headers	1
TPM connector	Yes

Rear panel I/O ports

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	3
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	0
Thunderbolt ports quantity	0
Serial ports quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel® I350-AM2

Features

Specification	Value
Component for	Server
Motherboard form factor	Extended ATX
Motherboard chipset	Intel® C612

Expansion slots

Specification	Value
PCI Express x8 (Gen 2.x) slots	0
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 (Gen 3.x) slots	2
PCI slots	0
PCI-X slots	0
Number of M.2 (M) slots	0

BIOS

Specification	Value
Clear CMOS button	Yes

Processor special features

Specification	Value
Trusted Platform Module (TPM)	Yes

Operational conditions

Specification	Value
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	20 - 95%

Packaging data

Specification	Value
Package width	409 mm
Package depth	355 mm
Package height	78 mm

Logistics data

Specification	Value
Harmonized System (HS) code	84733020

Weight & dimensions

Specification	Value
Width	305 mm
Depth	330 mm

Packaging content

Specification	Value
Cables included	SATA
User guide	Yes

Other features

Specification	Value
DVI port	No
Supported DIMM module capacities	32GB
Maximum LRDIMM memory	64 GB
Disk on Module (DOM) power connector	Yes
Number of DIMM slots	16
Number of processors supported	2
PCI Express slots quantity	0
