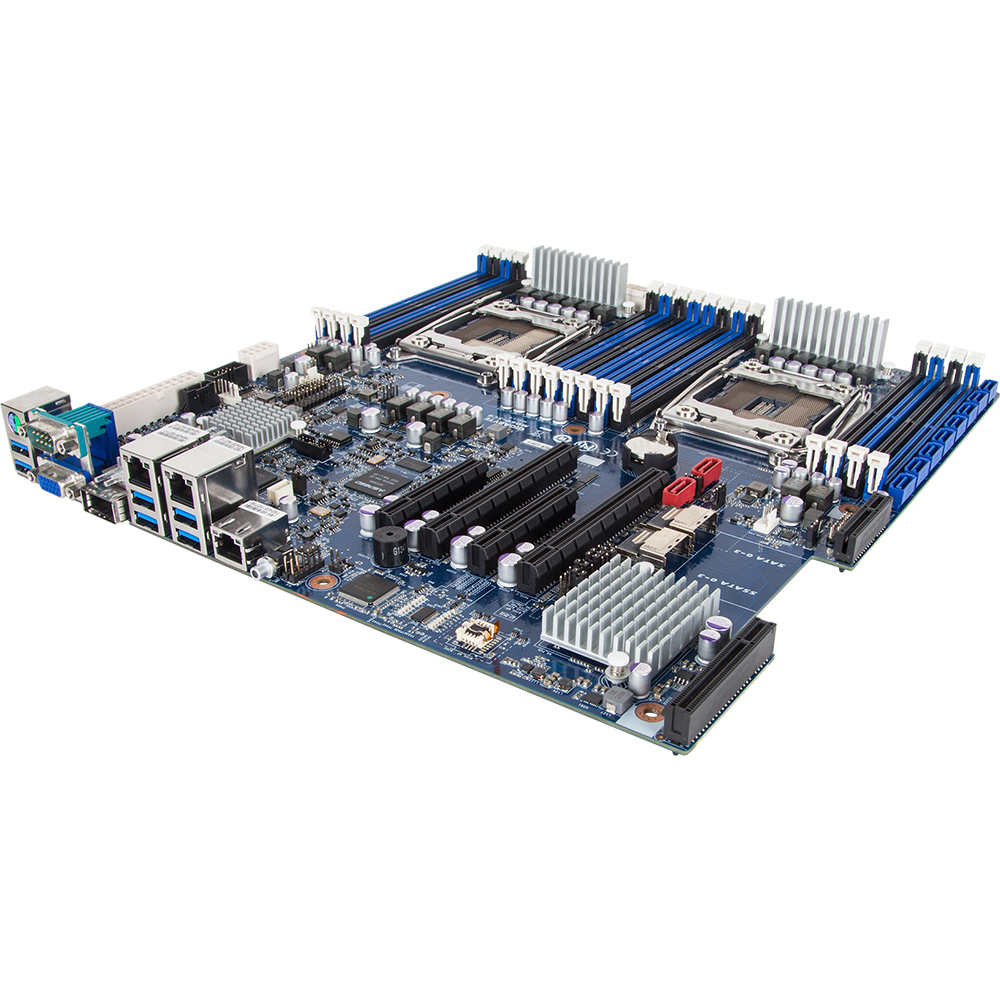

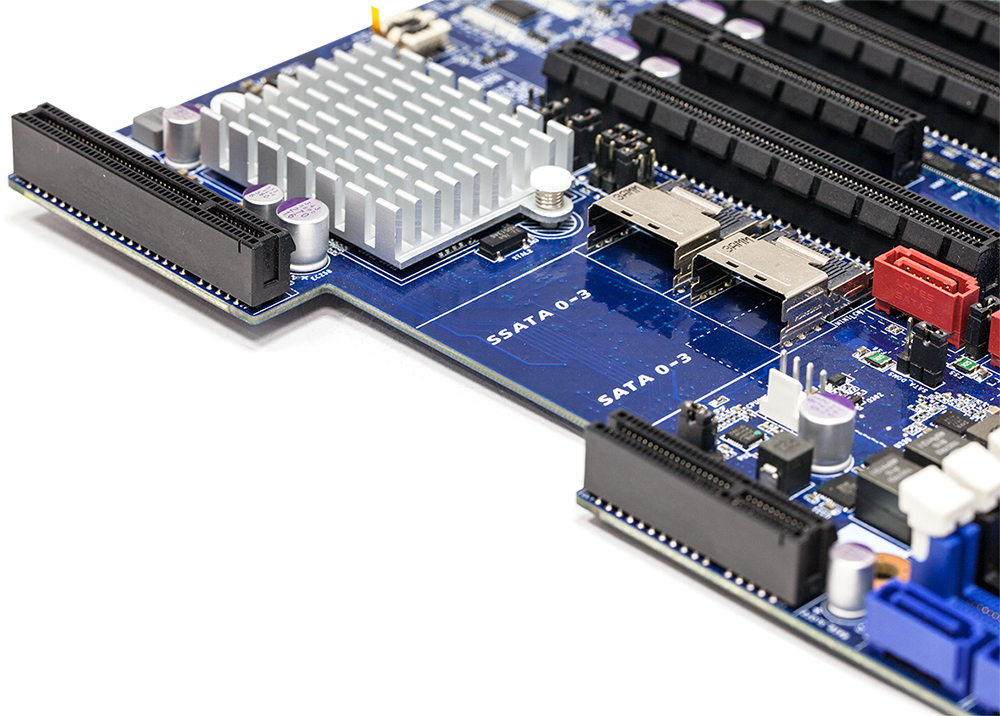

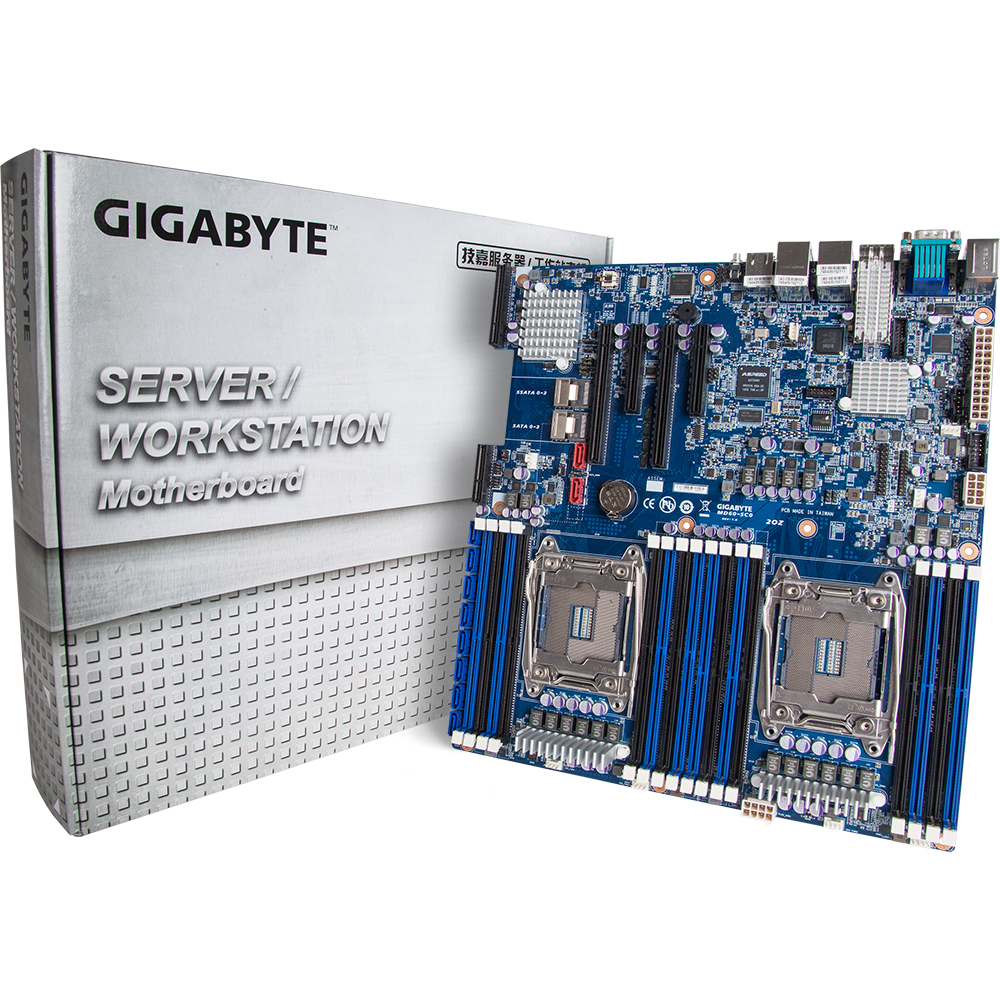

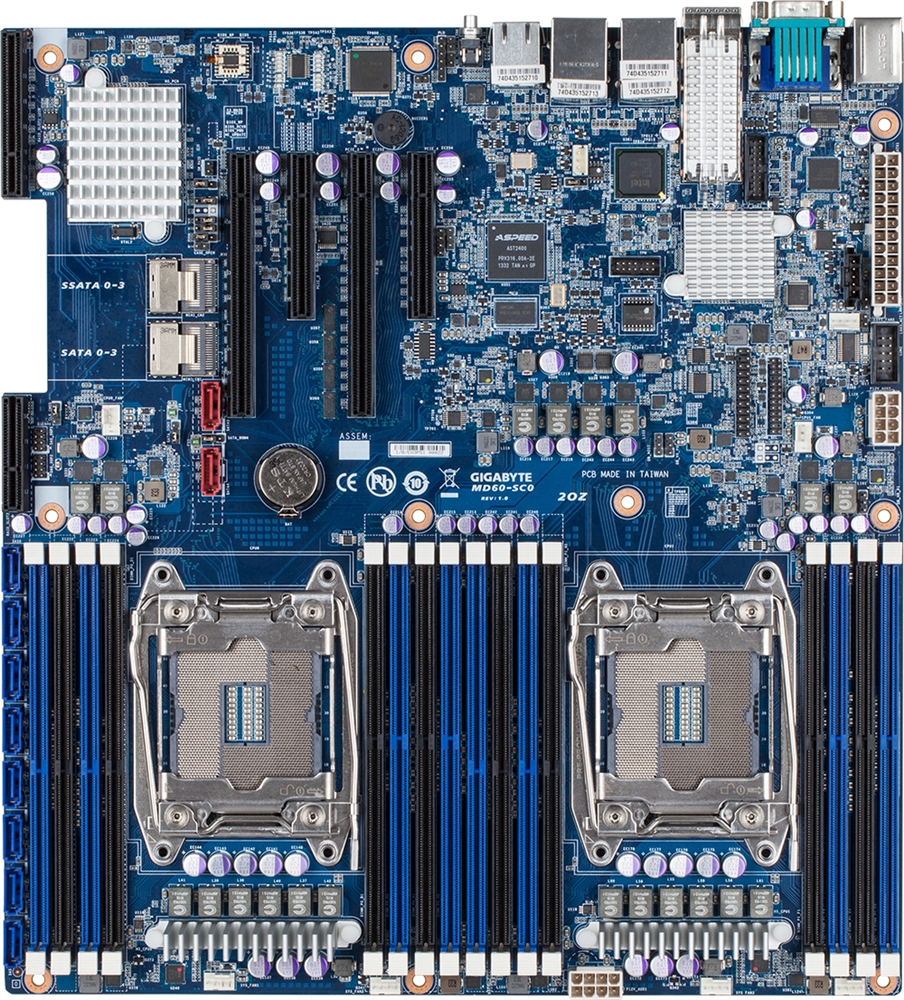

GIGABYTE MD60-SC0 Intel® C612 LGA 2011-v3 Extended ATX
Model MD60-SC0Part no. 9MD60SC0MR-00EAN 818313022127
85 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- On-board graphics card modelAspeed AST2400
- USB 2.0 connectors0
- Ethernet LANYes
- Component forServer
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- On-board graphics card model
- Aspeed AST2400
- USB 2.0 connectors
- 0
- Ethernet LAN
- Yes
- Component for
- Server
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MD60-SC0
- Part number
- 9MD60SC0MR-00
- EAN / UPC
- 818313022127, 4719331811228
- Also known as
- GIGABYTE MD60-SC0 Intel® C612 LGA 2011-v3 Extended ATX
Specifications
85 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | E5-2600 |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 16 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 1600,1666,2133,2400 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA III, Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 10 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Integrated SAS ports | 8 |
| Number of IEEE1394 connectors | 0 |
| Serial port headers | 1 |
| TPM connector | Yes |

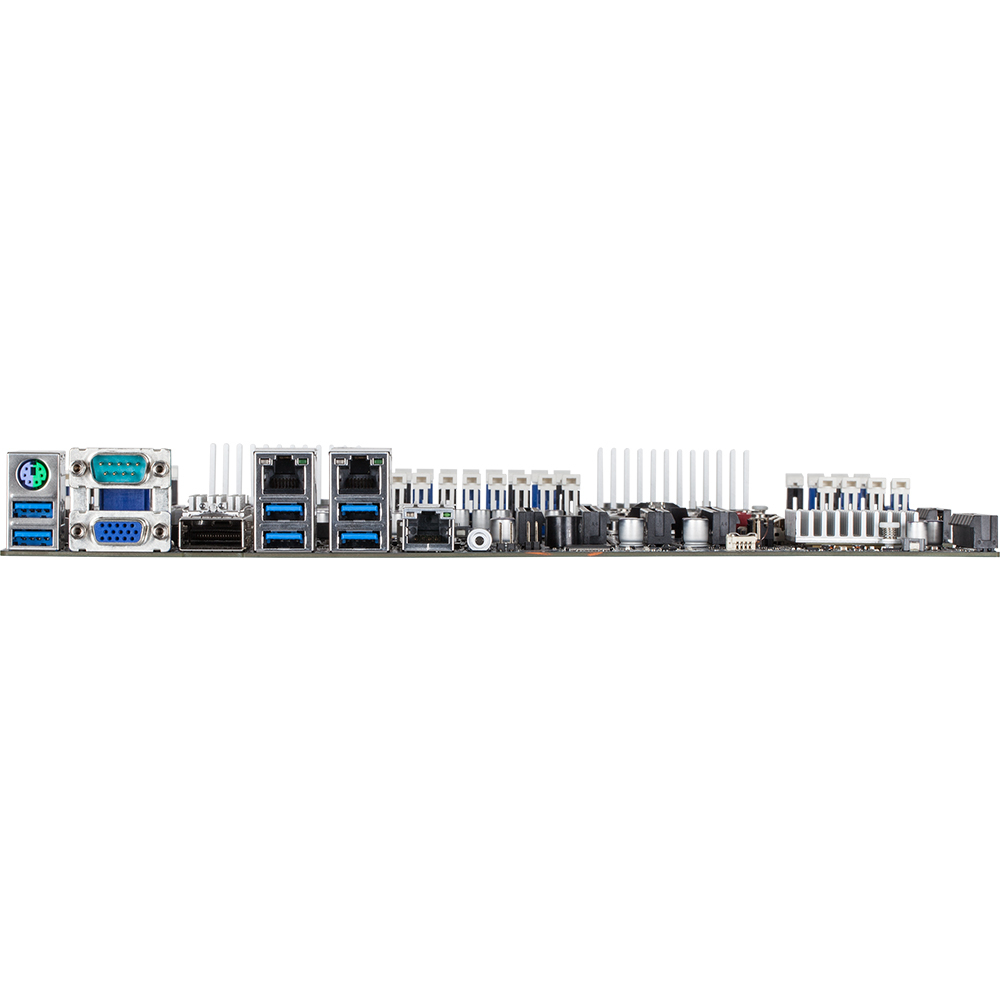

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel® 82599ES, Intel® I350-AM2 |
| Wi-Fi | No |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset | Intel® C612 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Processor special features
| Specification | Value |
|---|---|
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Trusted Platform Module (TPM) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 473 mm |
| Package depth | 600 mm |
| Package height | 495 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| Supported DIMM module capacities | 1GB, 2GB, 3GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB |
| Thunderbolt 2 ports quantity | 0 |
| Supported RDIMM clock speeds | 1600,2133,2400 MHz |
| Supported RDIMM module capacity | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Ethernet LAN connectors | 2 |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
| Serial port via internal header | Yes |
Technical details
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
