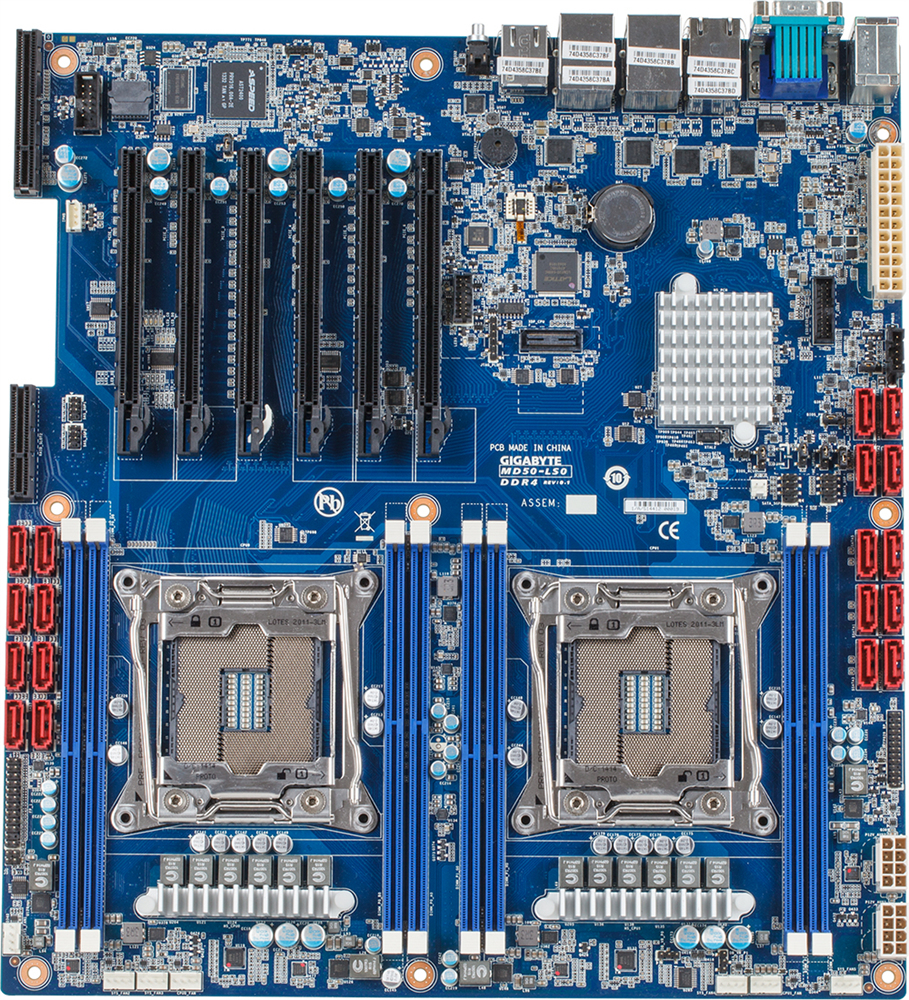

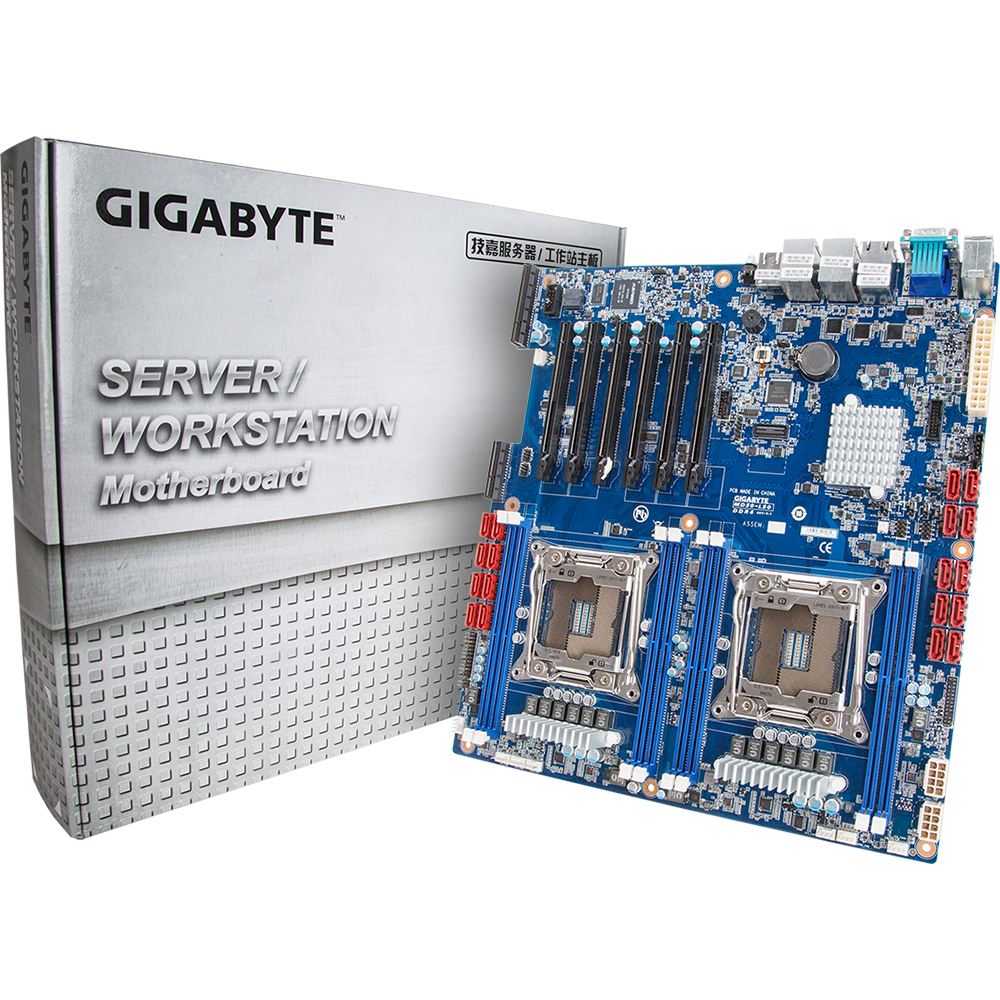

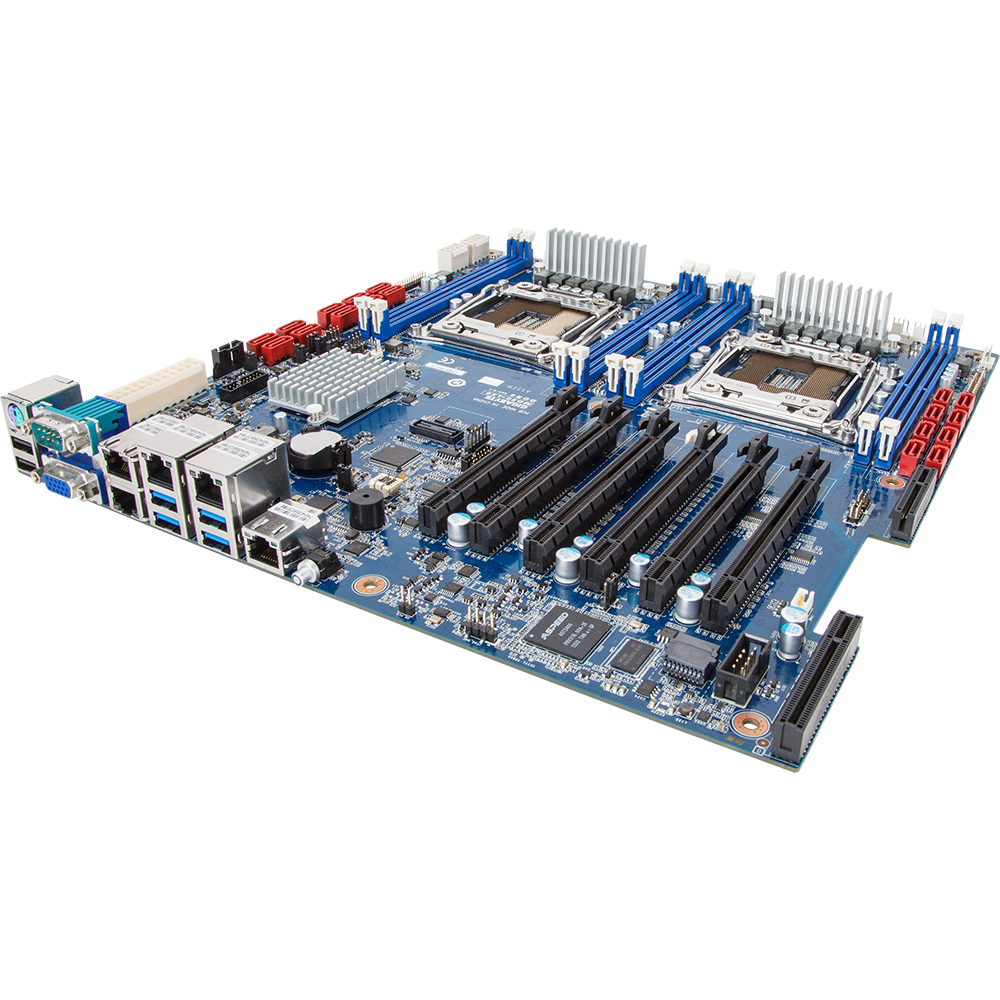

GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX
Model MD50-LS0EAN 4719331837273
40 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- RAID levels0, 1, 5, 10
- On-board graphics card modelAspeed AST2400
- USB 2.0 connectors0
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- RAID levels
- 0, 1, 5, 10
- On-board graphics card model
- Aspeed AST2400
- USB 2.0 connectors
- 0
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MD50-LS0
- Part number
- MD50-LS0
- EAN / UPC
- 4719331837273
- Also known as
- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX
Specifications
40 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 1600,1866,2133,2400 MHz |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 5 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset | Intel® C612 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 6 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 473 mm |
| Package depth | 495 mm |
| Package height | 600 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Other features
| Specification | Value |
|---|---|
| Supported DIMM module capacities | 32GB |
| Number of DIMM slots | 8 |
| Number of processors supported | 2 |
What people say
Reviews & ratings
GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX
No reviews yet
Be the first to tell others how GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX
All motherboard comparisons- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsGIGABYTE MD80-TM0 (rev. 1.0)Compare specs

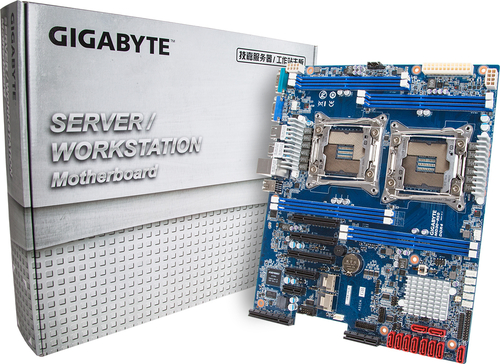

- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsGIGABYTE MD30-RS0 (rev. 1.0)Compare specs
- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsGIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATXCompare specs
- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsGIGABYTE GA-6QPCV-RH motherboard Intel GM45 LGA 3647 (Socket P) mini ATXCompare specs

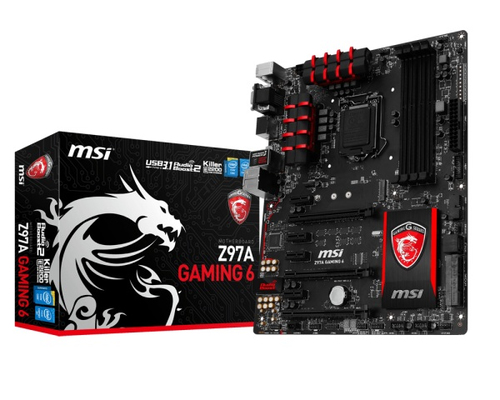

- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsMSI Z97A GAMING 6Compare specs

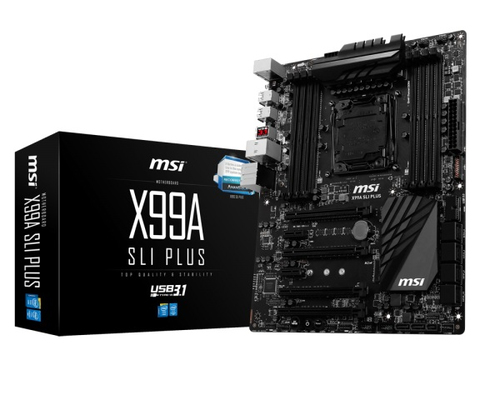

- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsMSI X99A SLI PLUSCompare specs

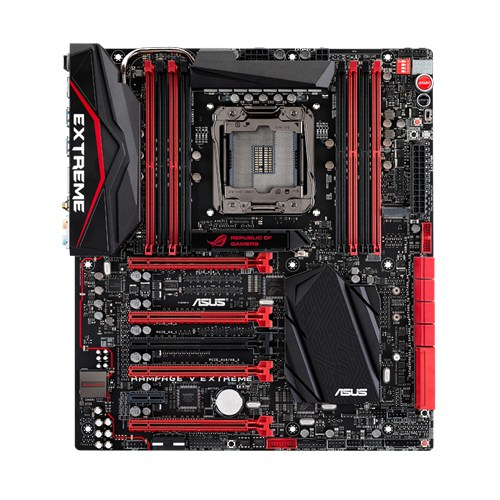

- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsASUS RAMPAGE V EXTREME/U3.1Compare specs

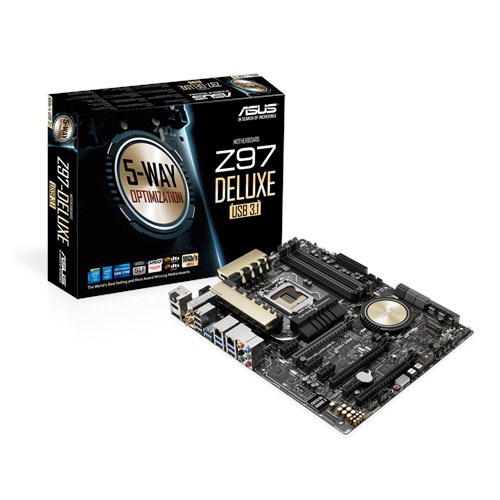

- GIGABYTE MD50-LS0 motherboard Intel® C612 LGA 2011-v3 Extended ATX vsASUS Z97-DELUXE/USB 3.1Compare specs
