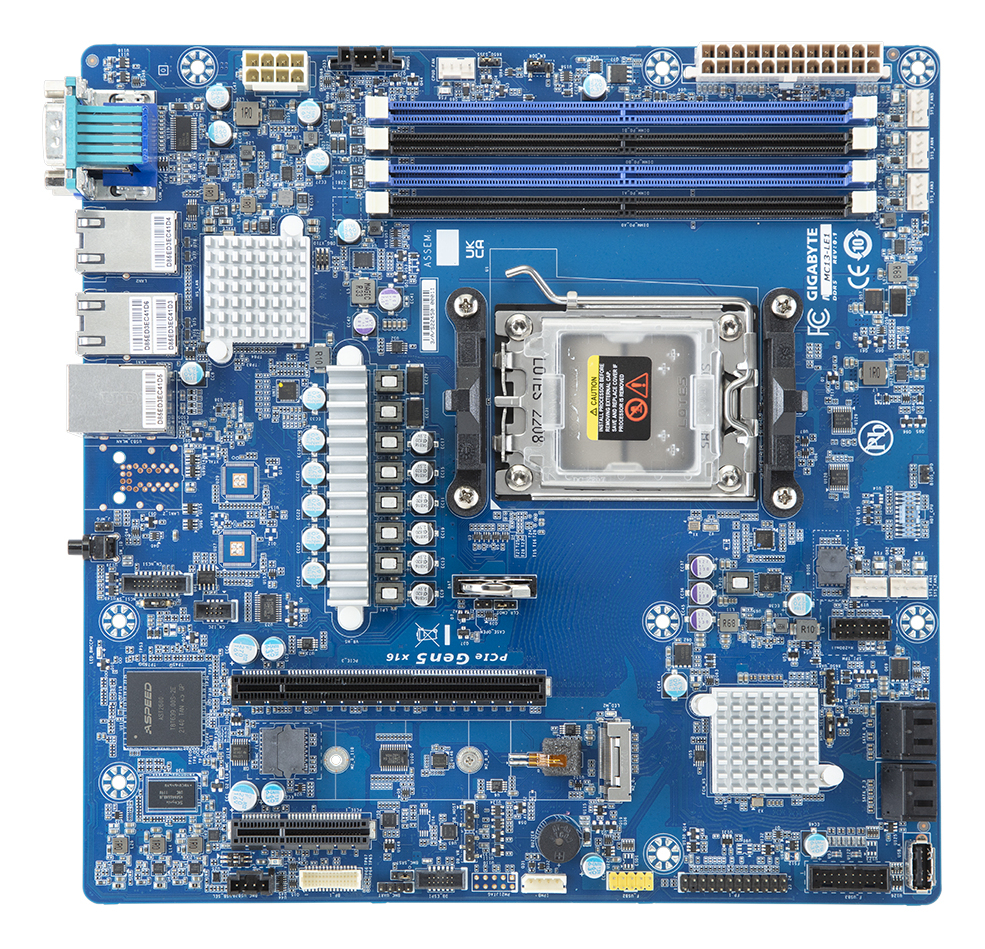

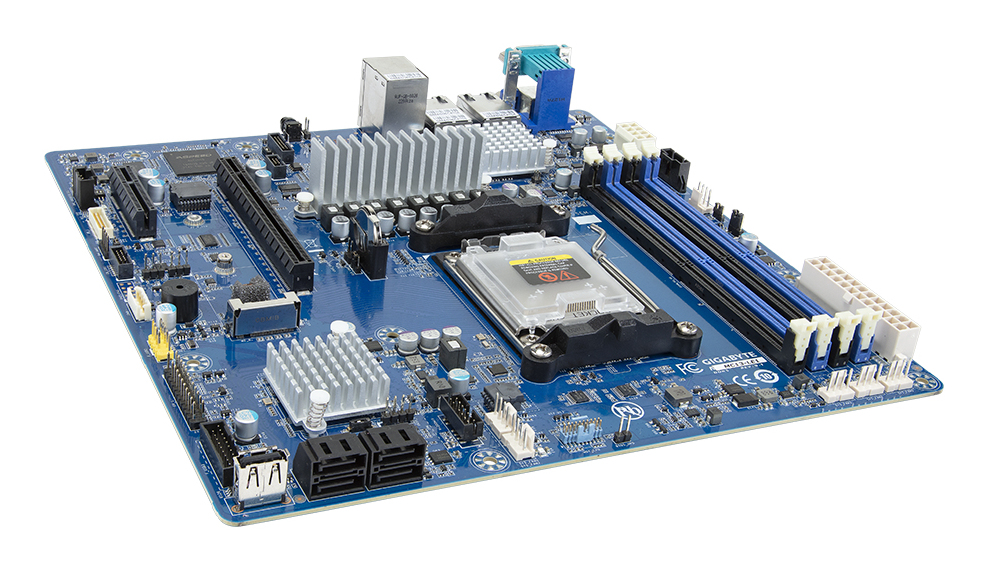

MC13-LE1 AMD B650 Socket AM5 micro ATX
Model MC13-LE1Part no. 9MC13LE1MR-000EAN 4719331849917
38 specifications
- Processor manufacturerAMD
- Supported memory typesDDR5-SDRAM
- Supported storage drive interfacesM.2
- On-board graphics card modelAspeed AST2600
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR5-SDRAM
- Supported storage drive interfaces
- M.2
- On-board graphics card model
- Aspeed AST2600
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MC13-LE1
- Part number
- 9MC13LE1MR-000
- EAN / UPC
- 4719331849917
- Also known as
- GIGABYTE MC13-LE1 AMD B650 Socket AM5 micro ATX
Specifications
38 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

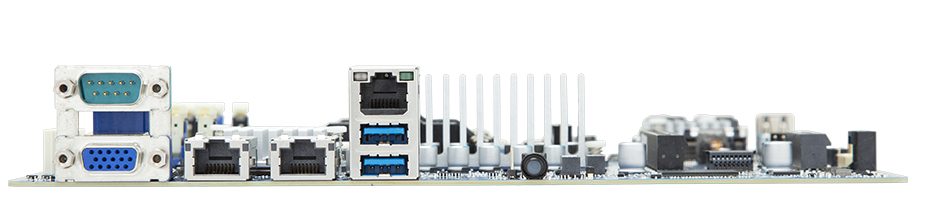

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Compatible operating systems | EPYC 4004 Series: Ubuntu 22.04 Ubuntu 24.04 Windows Server 2022 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |

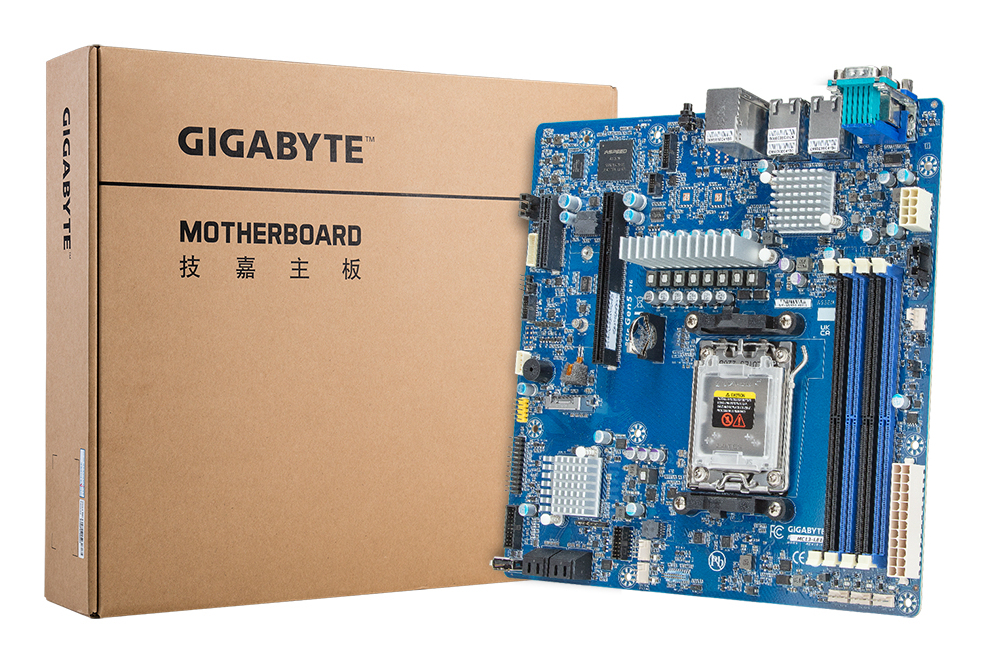

Packaging data
| Specification | Value |
|---|---|
| Package width | 321 mm |
| Package depth | 308.5 mm |
| Package height | 78.5 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
