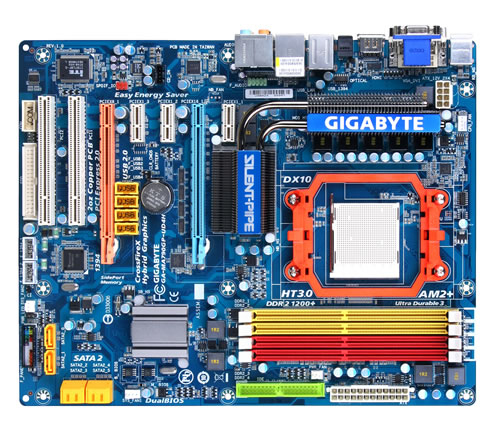

GIGABYTE MA790GP-UD4H Socket1333 ATX AM2+ DDR2
Model MA790GP-UD4H Socket1333 ATX AM2+ DDR2Part no. GA-MA790GP-UD4HEAN 818313007599
42 specifications
- Processor manufacturerAMD
- Number of memory slots4
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
- PCI Express x1 slots3
- BIOS typeAWARD
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 3
- BIOS type
- AWARD
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MA790GP-UD4H Socket1333 ATX AM2+ DDR2
- Part number
- GA-MA790GP-UD4H
- EAN / UPC
- 818313007599, 4719331852061
- Also known as
- GIGABYTE MA790GP-UD4H Socket1333 ATX AM2+ DDR2 AMD 790GX Socket AM2
Specifications
42 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |

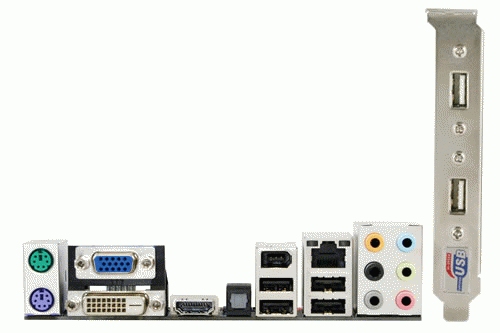

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 790GX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista/ XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
