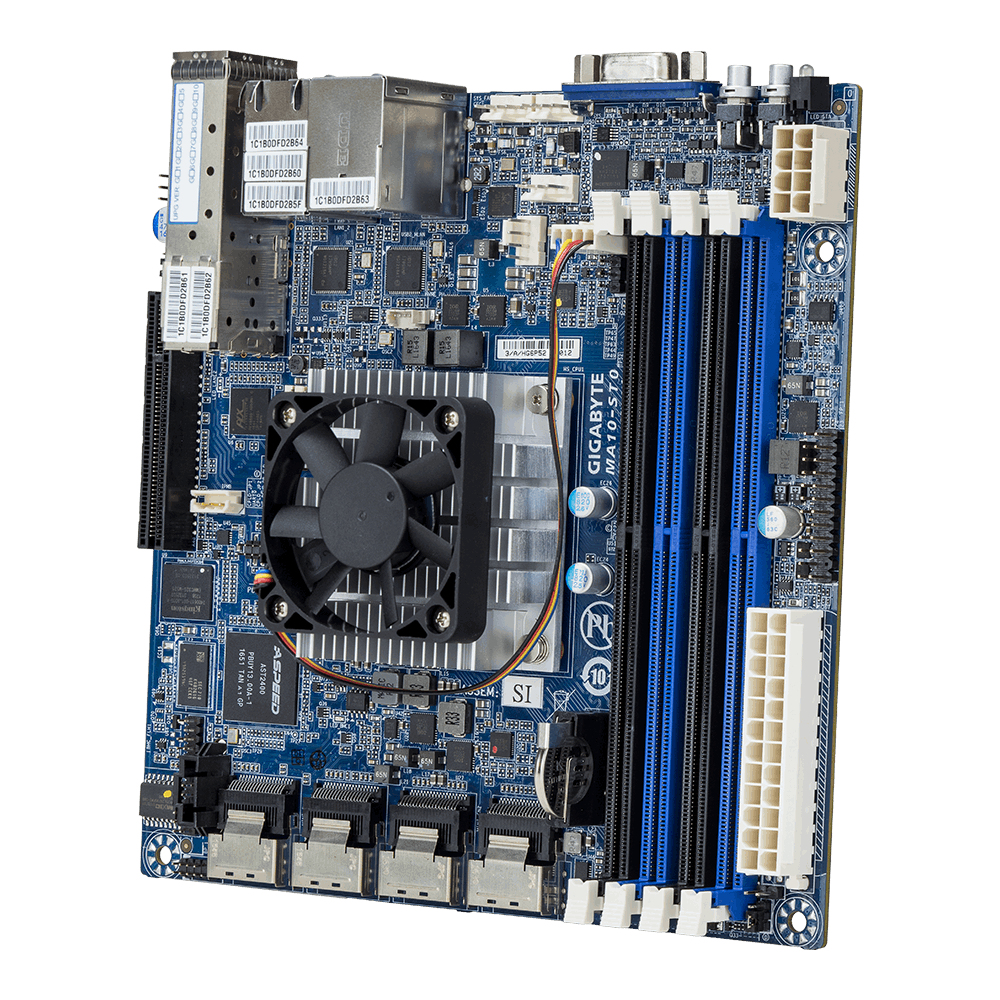

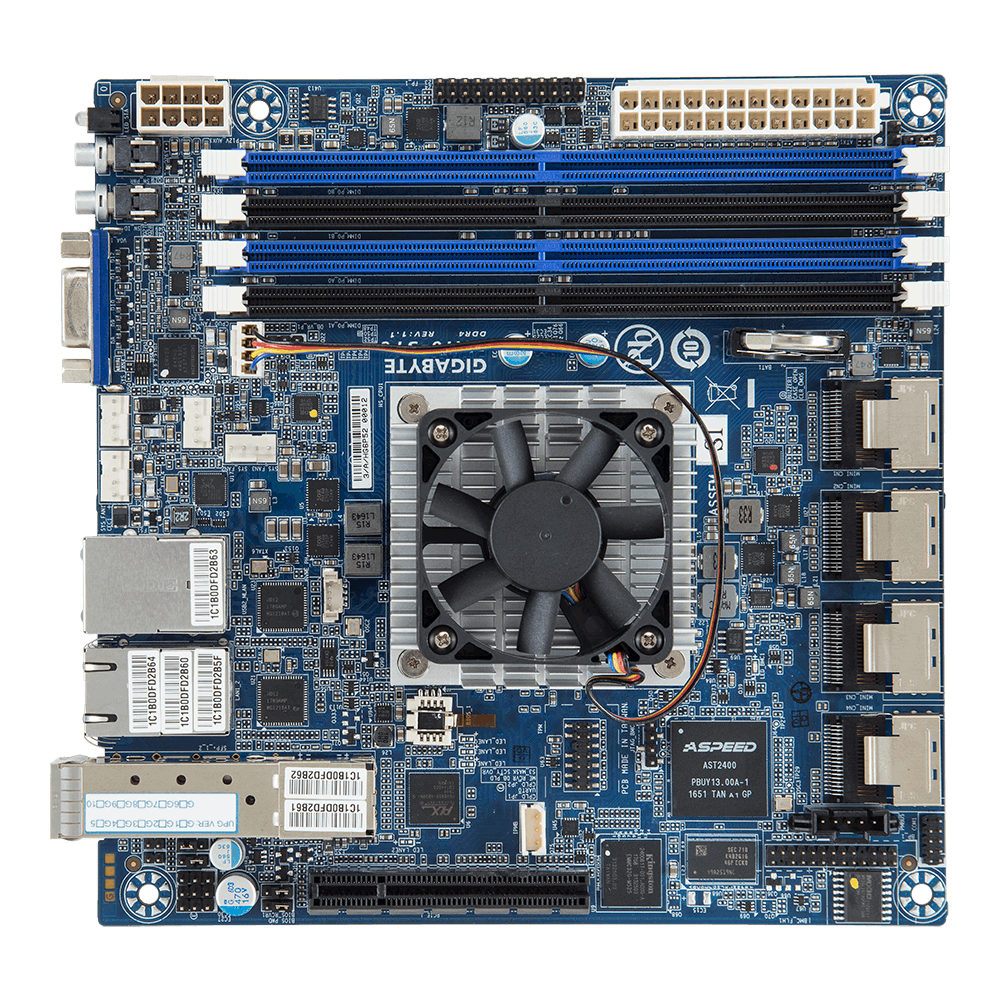

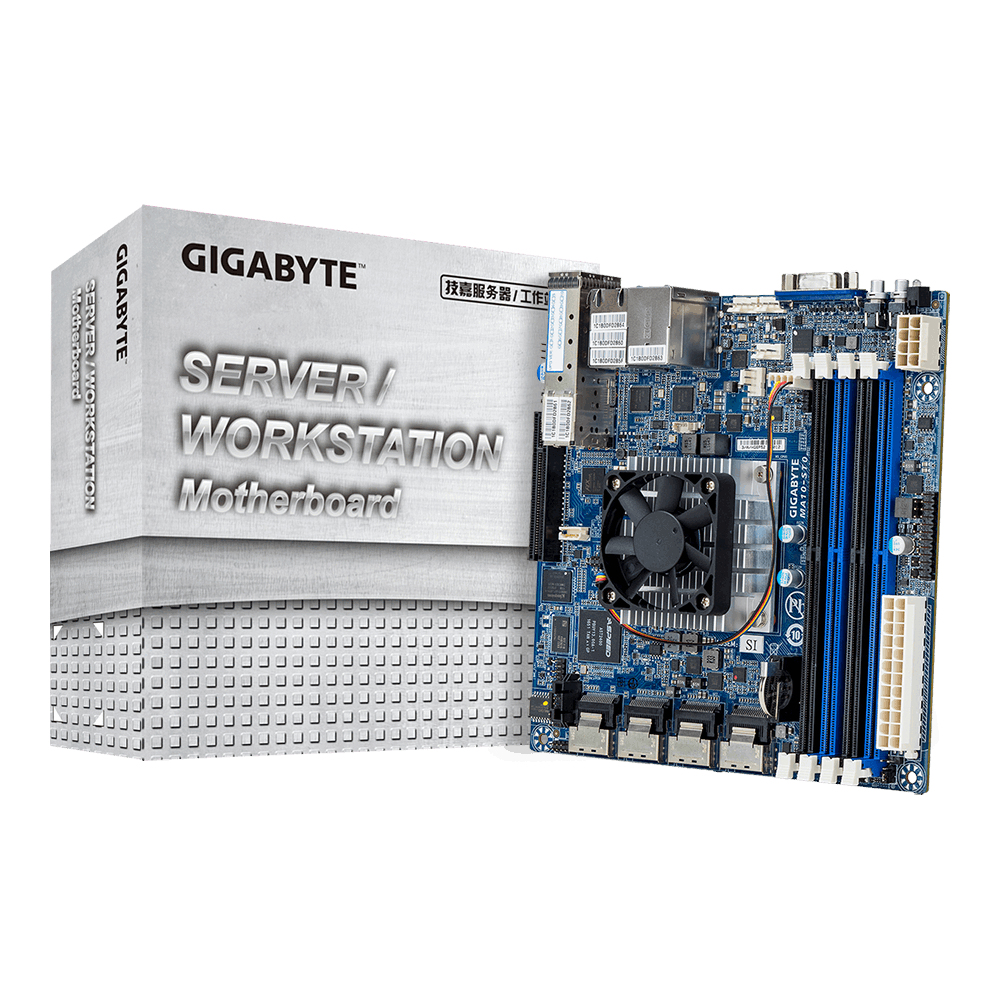

MA10-ST0 Mini-ITX
Model MA10-ST0Part no. 9MA10ST0MR-SI
39 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSerial Attached SCSI (SAS)
- On-board graphics card modelAspeed AST2400
- USB 2.0 connectors0
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- Serial Attached SCSI (SAS)
- On-board graphics card model
- Aspeed AST2400
- USB 2.0 connectors
- 0
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MA10-ST0
- Part number
- 9MA10ST0MR-SI
- Also known as
- GIGABYTE MA10-ST0 Mini-ITX
Specifications
39 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel Atom® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 1866,2133,2400 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Integrated SAS ports | 1 |
| Serial port headers | 1 |
| TPM connector | Yes |

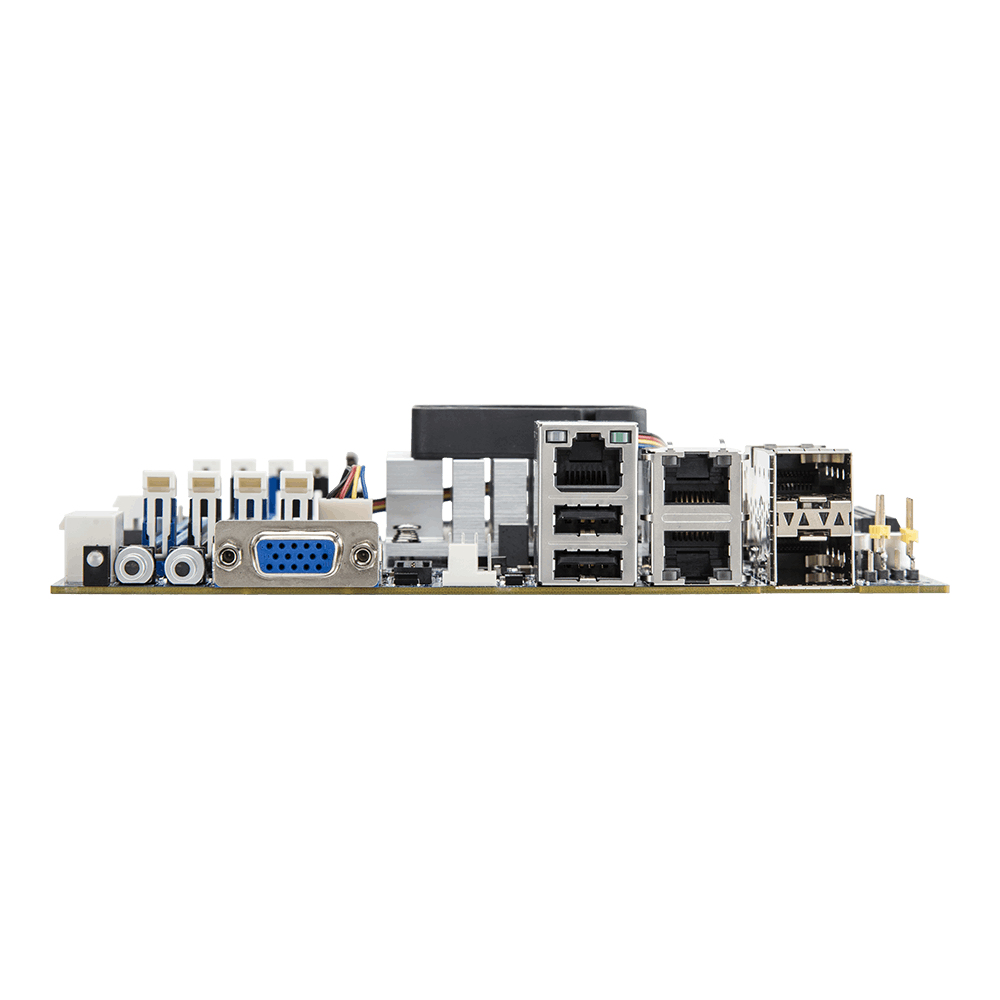

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Mini-ITX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 0 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Serial |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
