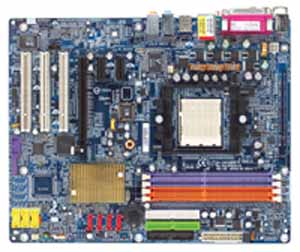

K8NF-9 Socket 939 ATX
Model K8NF-9Part no. GA-K8NF-9
11 specifications
- Processor manufacturerAMD
- Maximum internal memory4 GB
- Networking featuresCICADA 8201 phy
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 4 GB
- Networking features
- CICADA 8201 phy
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- K8NF-9
- Part number
- GA-K8NF-9
- Also known as
- GIGABYTE K8NF-9 Socket 939 ATX
Specifications
11 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
| Processor system buses supported | 1600 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Network
| Specification | Value |
|---|---|
| Networking features | CICADA 8201 phy |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-Express X 16 slot, supports PCI-Express interface Graphics card, 2 x PCI-Express X 1 slots,3 x PCI slots (PCI 2.3 compliant) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 244 |
| Audio output | ALC 850 |
| I/O ports | Internal I/O Connectors 1. 4 x Serial ATA connector 2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors 3. 1 x FDD connector 4. 3 x USB 2.0/1.1 connectors (supports 6 ports) 5. 2 x IEEE 1394b connectors (supports 3 ports) 6. 3 x cooling fan pin headers 7. CD in Rear Panel I/O 1. 4 x USB 2.0/1.1 por |
