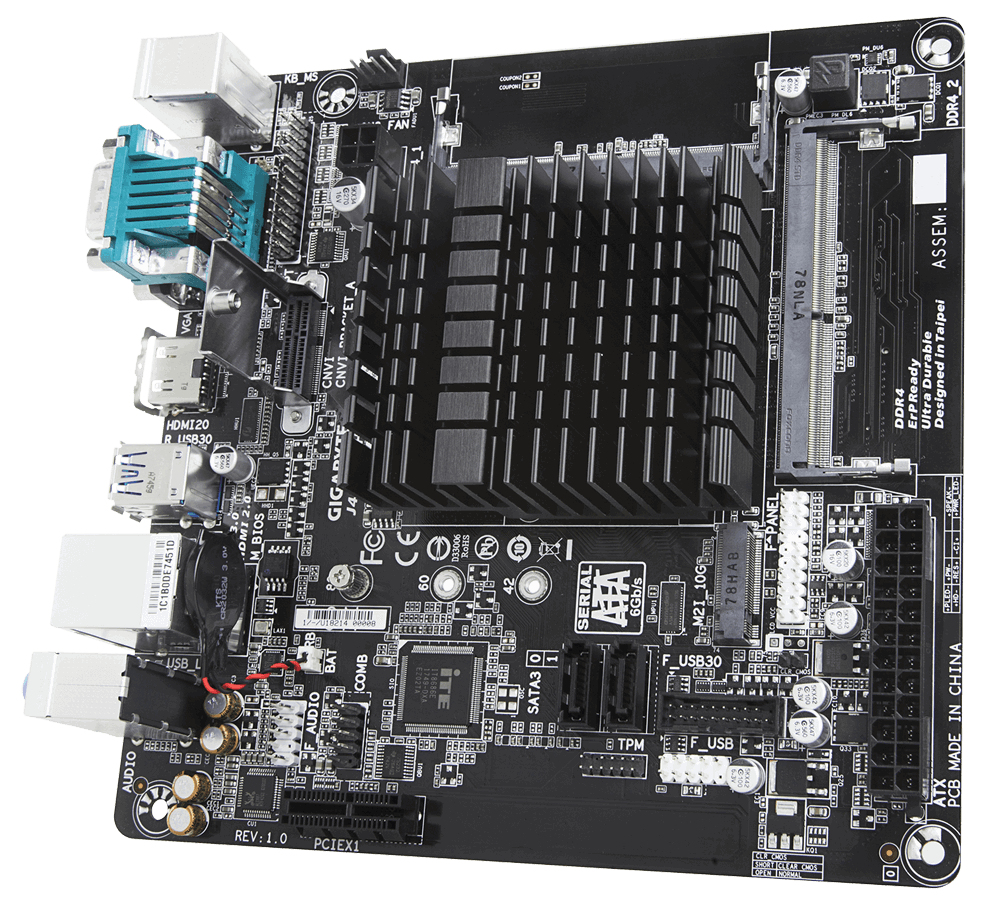

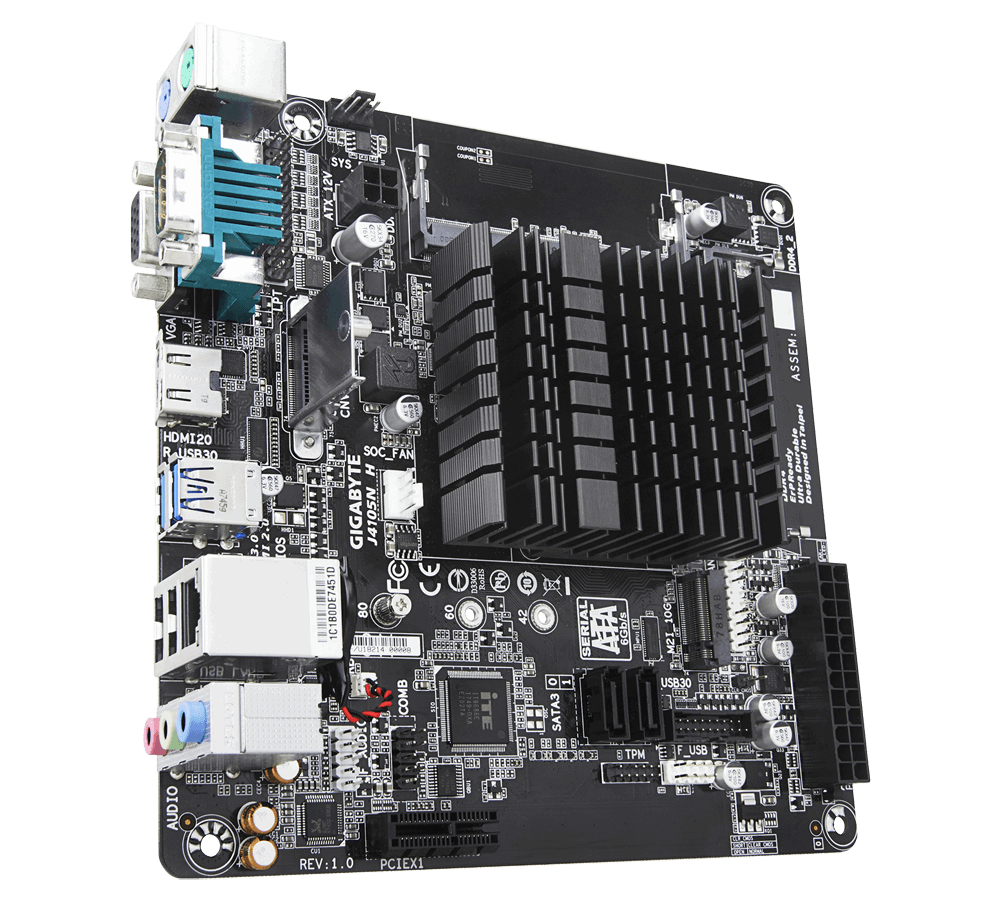

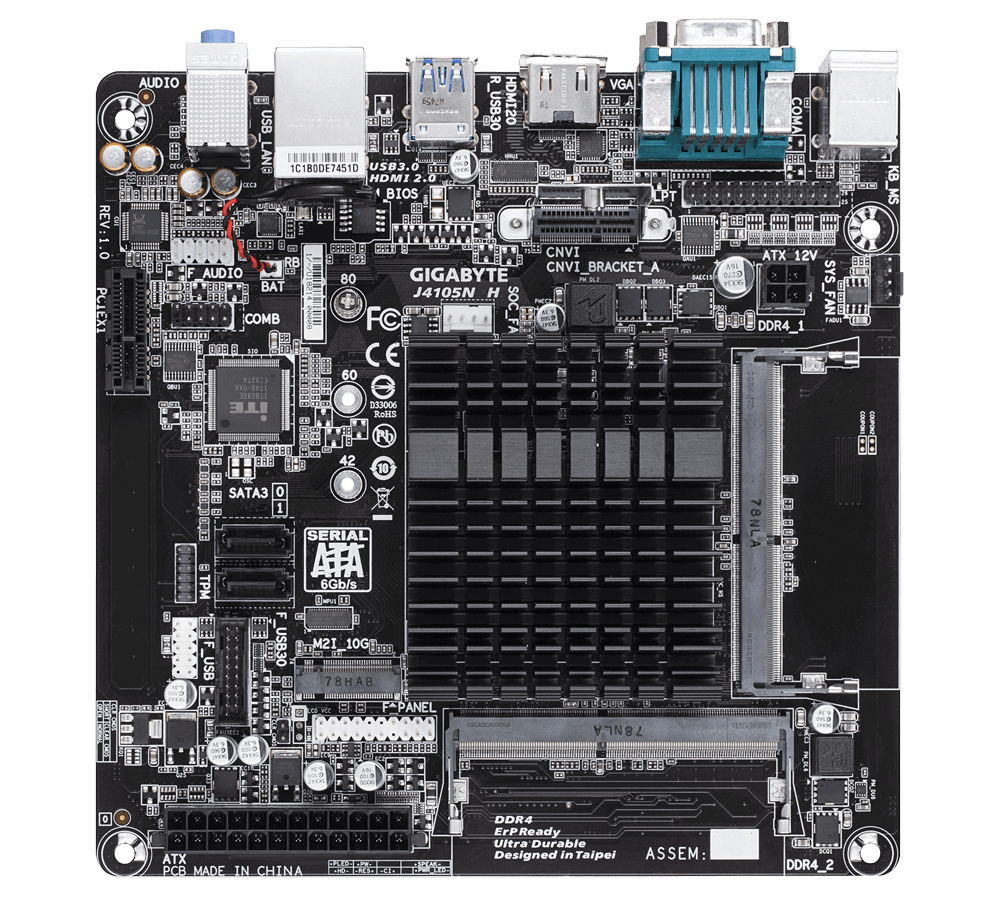

GIGABYTE J4105N H (rev. 1.0)
Model J4105N H (rev. 1.0)Part no. J4105N H (REV. 1.0)
78 specifications
- ProcessorJ4105
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Maximum graphics card memory8192 MB
- USB 2.0 connectors1
Overview
- Processor
- J4105
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Maximum graphics card memory
- 8192 MB
- USB 2.0 connectors
- 1
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- J4105N H (rev. 1.0)
- Part number
- J4105N H (REV. 1.0)
- Also known as
- GIGABYTE J4105N H (rev. 1.0) BGA 1090 mini ITX
Specifications
78 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1090 |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
| Processor model | J4105 |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA, SATA II, SATA III |
| Number of HDDs supported | 2 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8192 MB |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | UHD Graphics 600 |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Serial port headers | 1 |
| TPM connector | Yes |

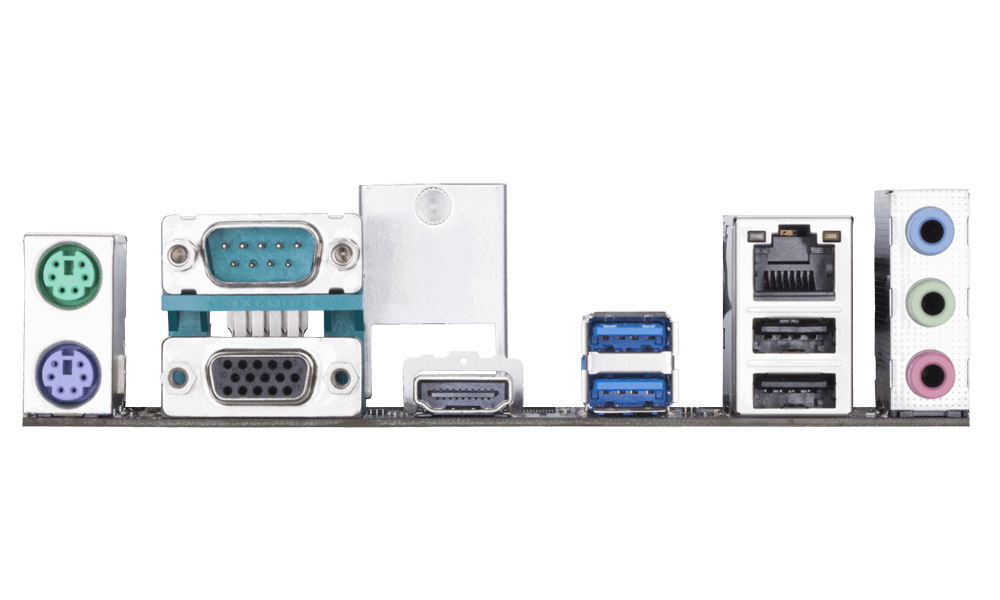

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | Mini PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Cooling type | Passive |
| Power source type | ATX |
| Number of mounting holes | 4 |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Bundled software | Norton Internet Security (OEM version) cFosSpeed |
Other features
| Specification | Value |
|---|---|
| HDD size | 2.5/3.5" |
| Processor family | Intel® Celeron® |
| Processor frequency | 1.5 GHz |
| Thermal Design Power (TDP) | 10 W |
What people say
Reviews & ratings
GIGABYTE J4105N H (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE J4105N H (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE J4105N H (rev. 1.0)
All motherboard comparisons- GIGABYTE J4105N H (rev. 1.0) vsGIGABYTE GA-B250-FinTech (rev. 1.0)Compare specs

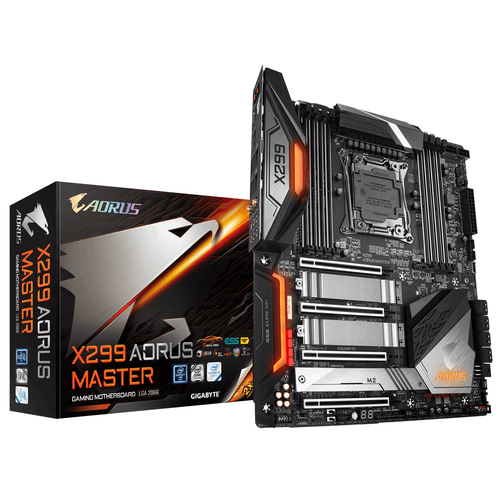

- GIGABYTE J4105N H (rev. 1.0) vsGIGABYTE X299 MASTER (rev 1.0)Compare specs
- GIGABYTE J4105N H (rev. 1.0) vsGIGABYTE B360 M AORUS PROCompare specs
- GIGABYTE J4105N H (rev. 1.0) vsGIGABYTE X299-WU8 motherboard Intel® X299 LGA 2066 (Socket R4) SSI CEBCompare specs

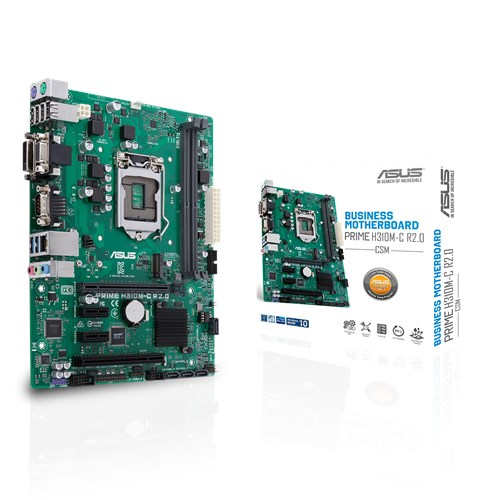

- GIGABYTE J4105N H (rev. 1.0) vsASUS PRIME H310M-C R2.0/CSMCompare specs

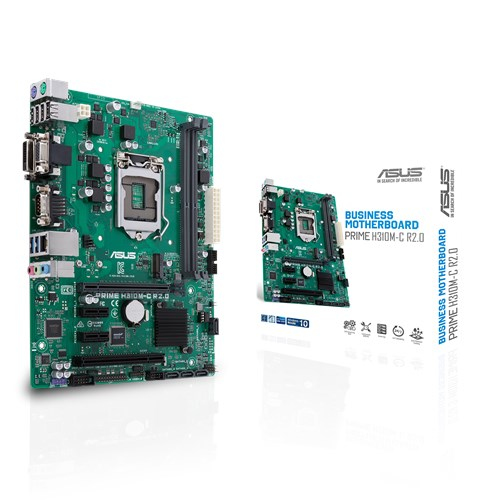

- GIGABYTE J4105N H (rev. 1.0) vsASUS PRIME H310M-C R2.0Compare specs
- GIGABYTE J4105N H (rev. 1.0) vsASUS Prime X299-Deluxe IICompare specs

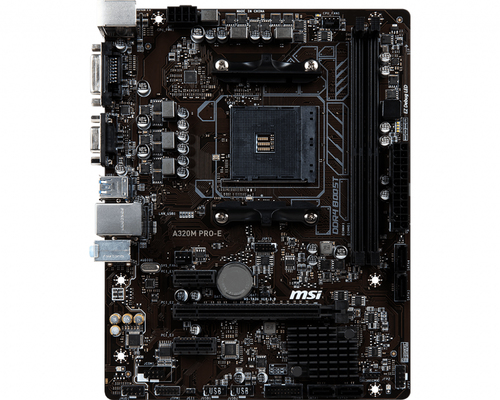

- GIGABYTE J4105N H (rev. 1.0) vsMSI A320M PRO-ECompare specs
