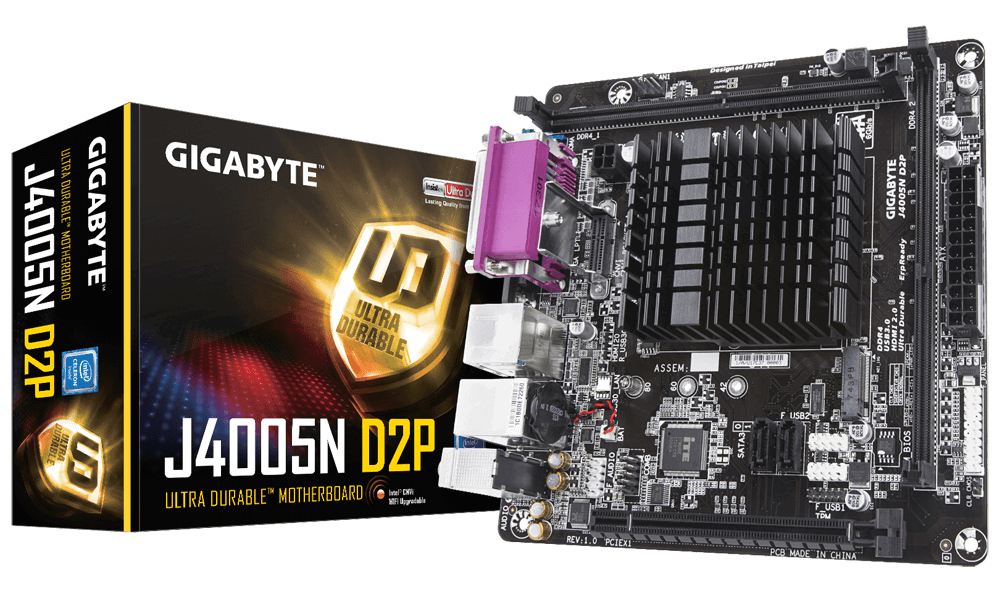

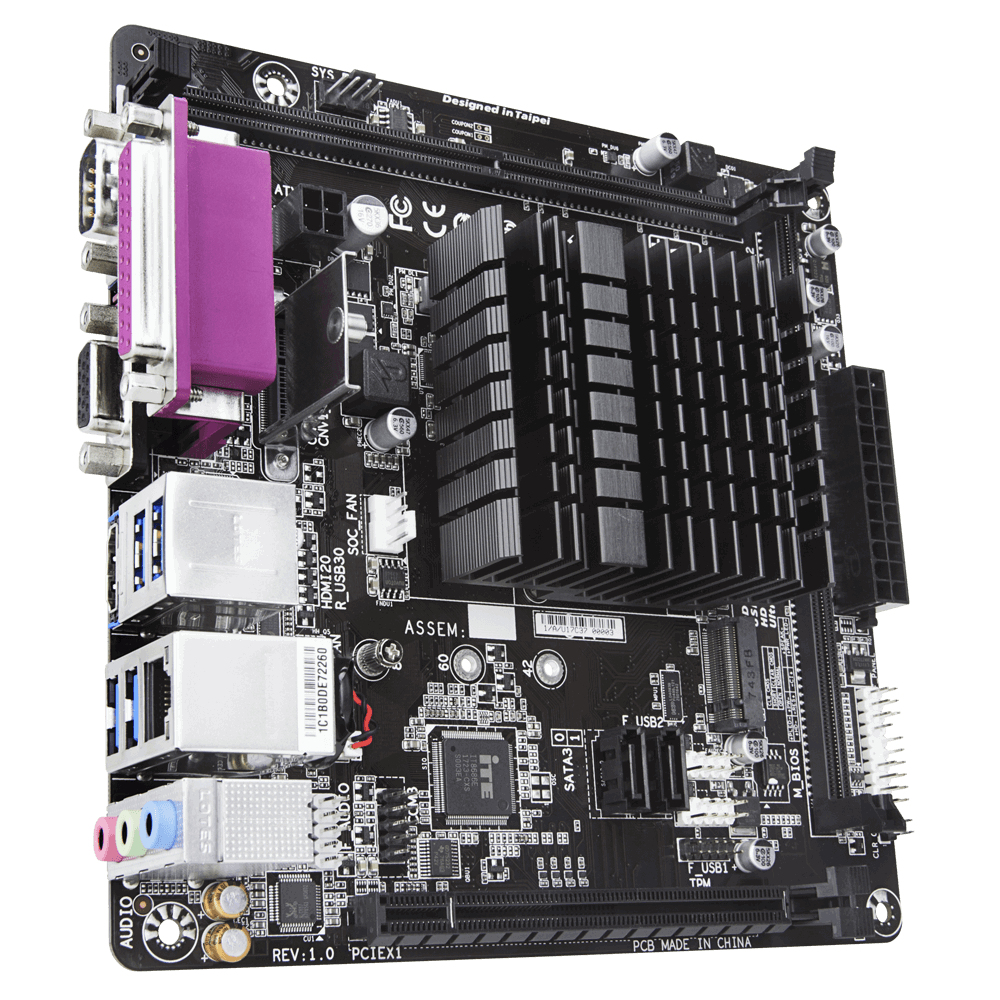

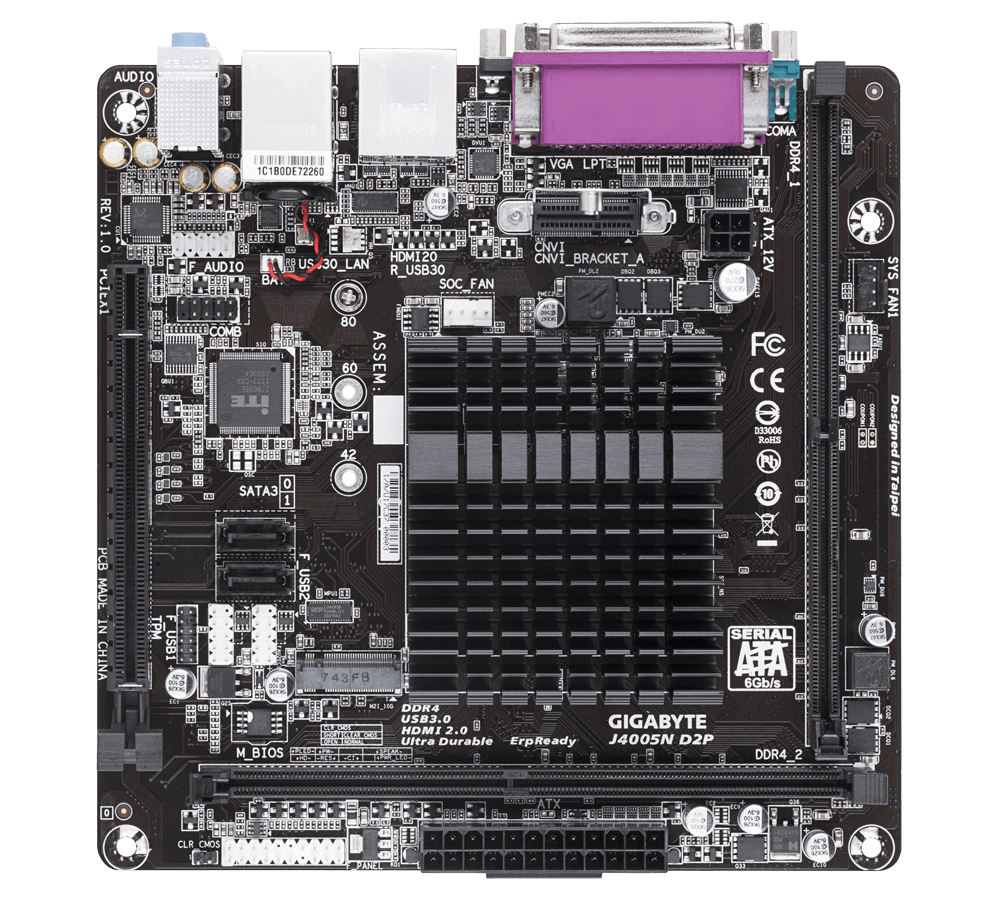

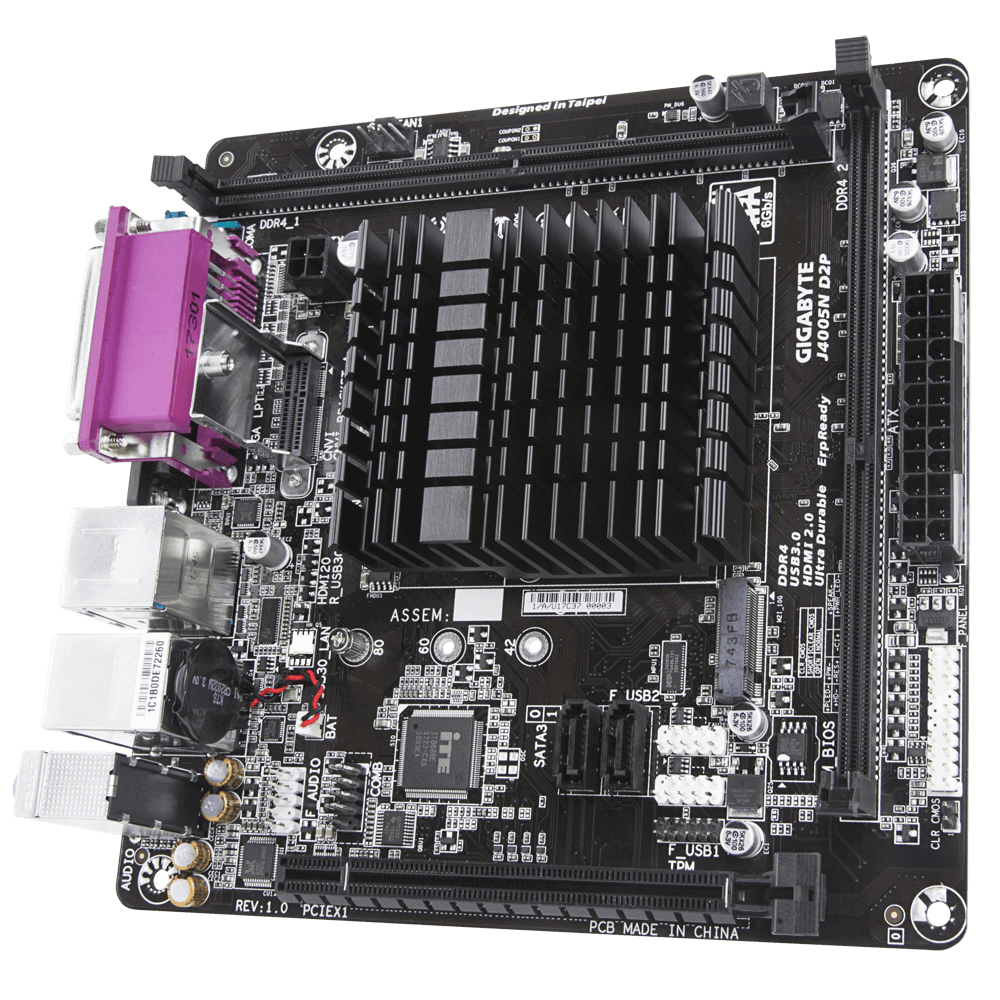

GIGABYTE J4005N D2P

GIGABYTE J4005N D2P

Model J4005N D2PEAN 4719331802509

70 specifications
  • ProcessorJ4005
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • On-board graphics cardYes
  • USB 2.0 connectors2
See all specifications

Overview

Processor
J4005
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
On-board graphics card
Yes
USB 2.0 connectors
2
Brand
GIGABYTE
Category
Motherboard
Model
J4005N D2P
Part number
J4005N D2P
EAN / UPC
4719331802509
Also known as
GIGABYTE J4005N D2P motherboard NA (integrated CPU) mini ITX

Specifications

70 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketNA (integrated CPU)
Compatible processor seriesNot supported
Processor modelJ4005
Processor cores2

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesSATA
Number of HDDs supported3

Graphics

On-board graphics cardYes
Graphics card familyIntel
Maximum resolution4096 x 2160 pixels
HDCPYes
Number of displays supported2

Internal I/O

USB 2.0 connectors2
Number of SATA connectors2
Total number of SATA connectors2
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
12V power connectorYes
Serial port headers1
TPM connectorYes

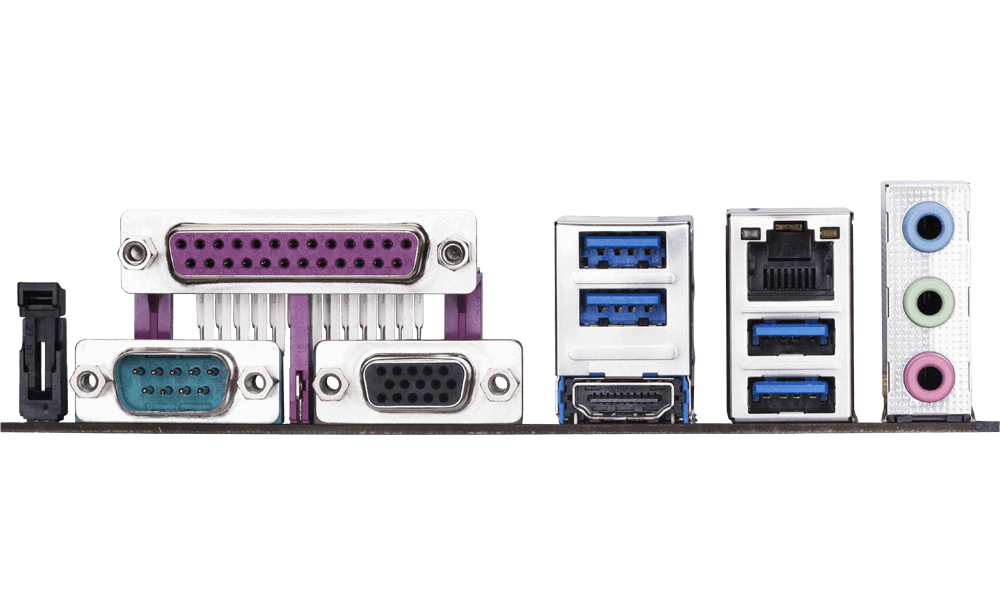

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version2.0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forMini PC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Cooling typeActive
Power source typeATX
Number of mounting holes4

Expansion slots

PCI Express x16 slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Desktop Management Interface (DMI) version2.7
Plug and PlayYes
System Management BIOS (SMBIOS) version2.7

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width170 mm
Depth170 mm

Other features

HDD size2.5/3.5"
Analog audio output1
Serial port via internal headerYes
Processor familyIntel® Celeron® Dual-Core
Processor frequency2.7 GHz
