H610M H V2 DDR4
Model H610M H V2 DDR4EAN 4719331851743
87 specifications
- ColourBrown
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Colour
- Brown
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- H610M H V2 DDR4
- Part number
- H610M H V2 DDR4
- EAN / UPC
- 4719331851743
- Also known as
- GIGABYTE H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Specifications
87 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

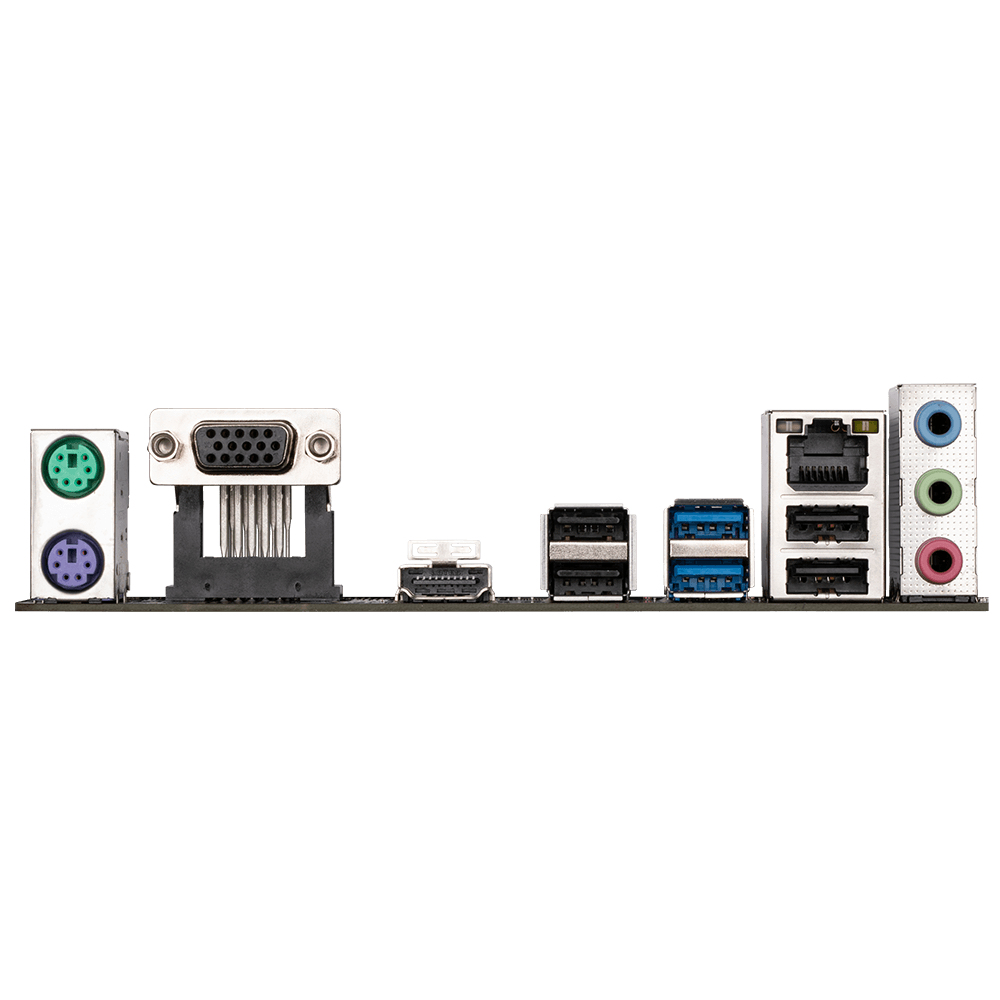

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Battery
| Specification | Value |
|---|---|
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
| Specification | Value |
|---|---|
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 818 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 215 mm |
| Height | 35 mm |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Bundled software | Norton Internet Security LAN bandwidth management software |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
