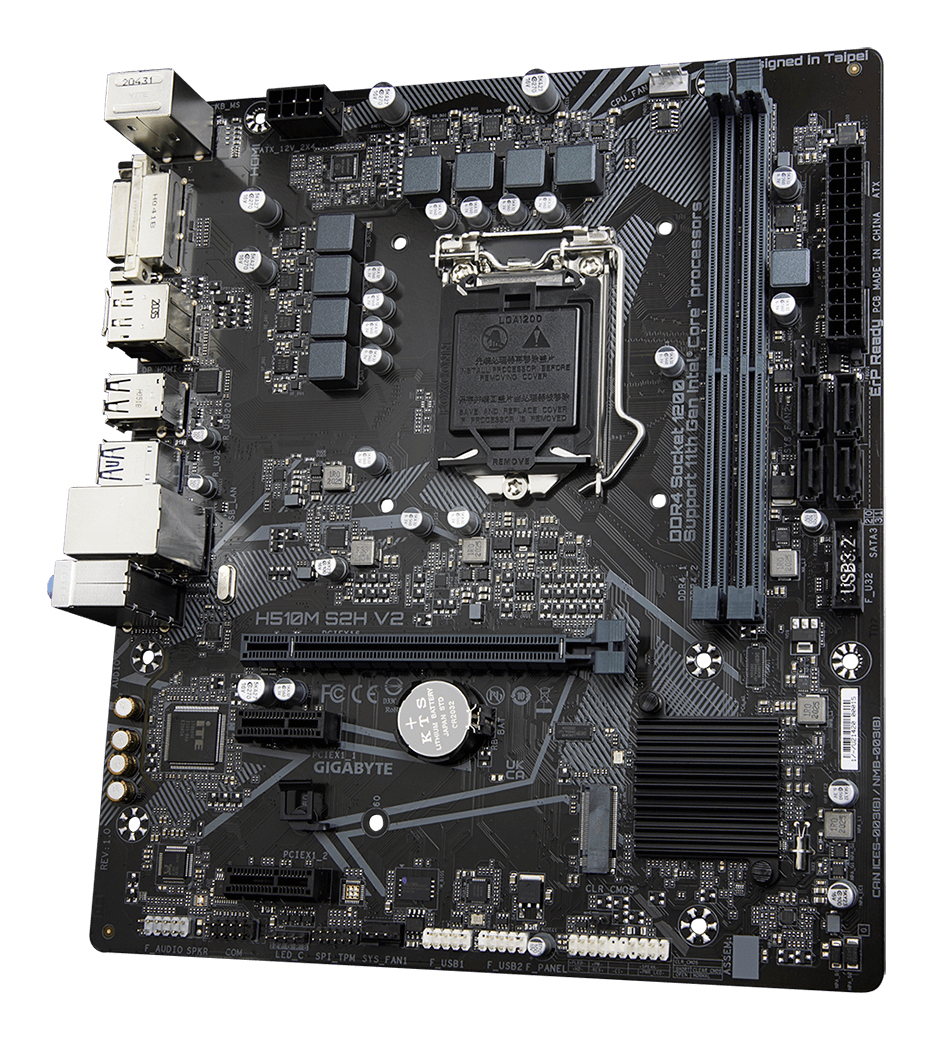

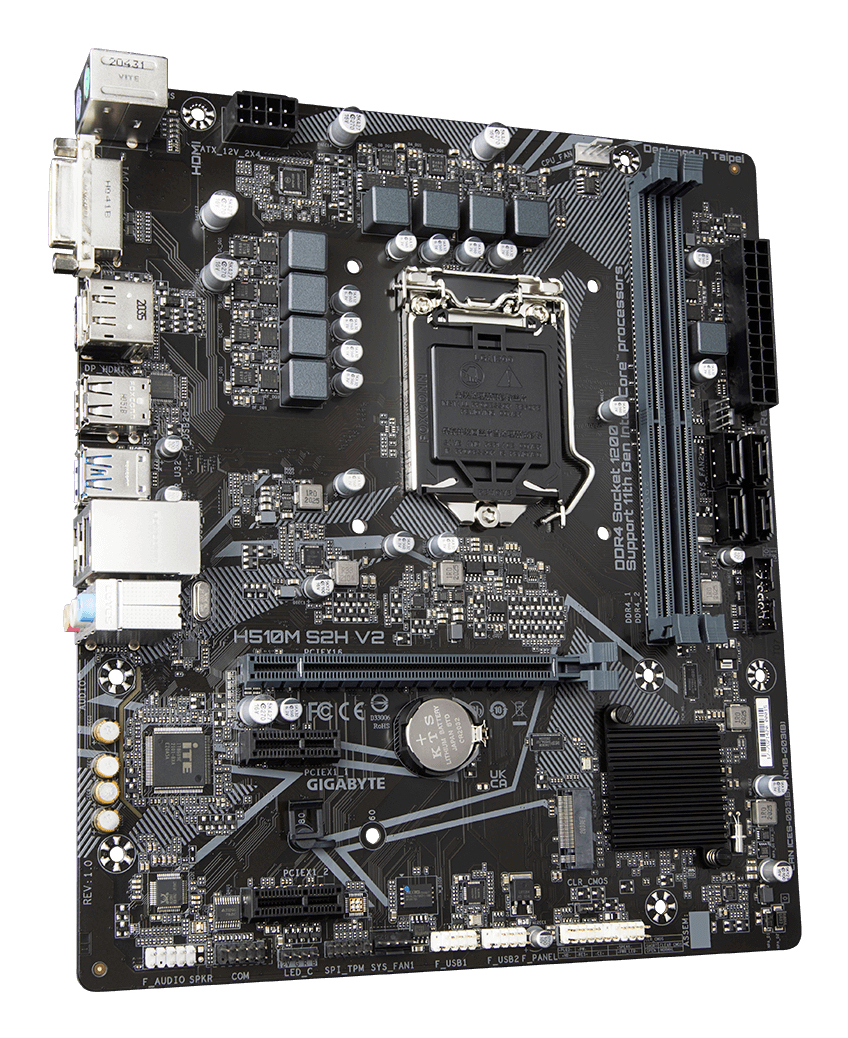

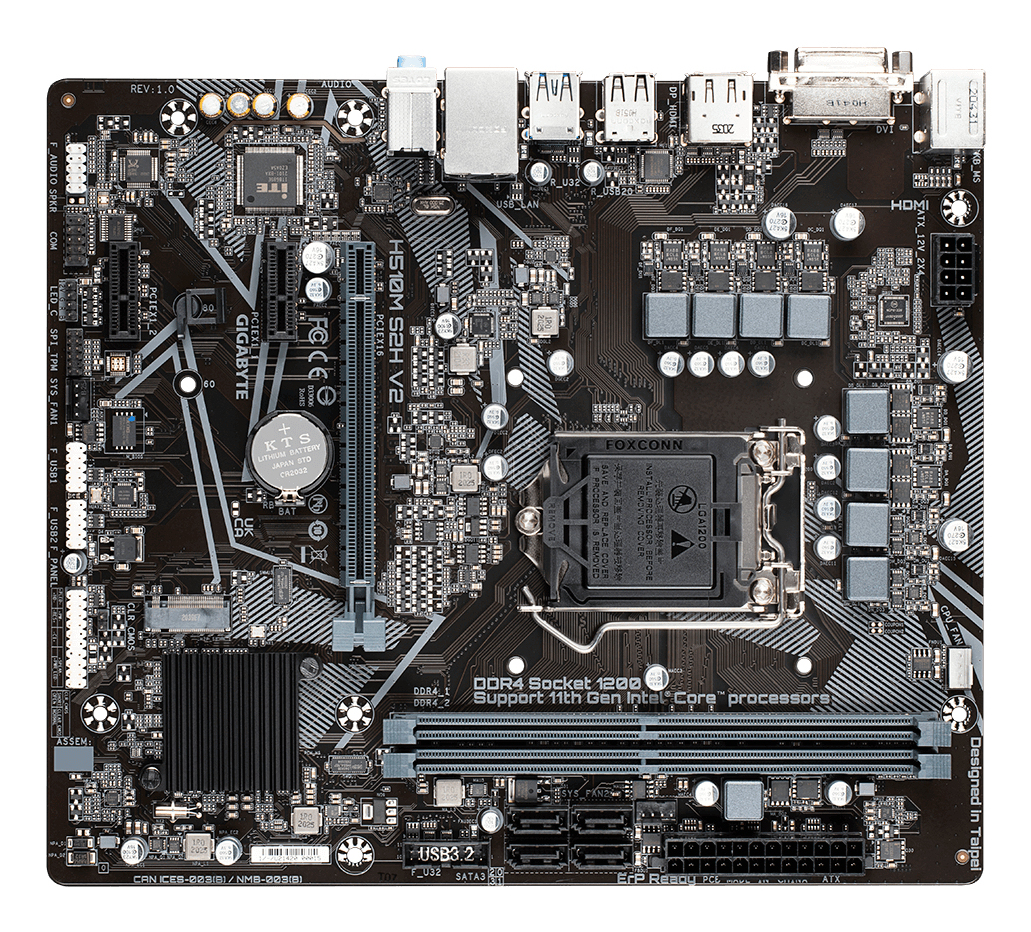

H510M S2H V2
Model H510M S2H V2EAN 4719331823757
76 specifications
- Weight385 g
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Weight
- 385 g
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- H510M S2H V2
- Part number
- H510M S2H V2
- EAN / UPC
- 4719331823757
- Also known as
- GIGABYTE H510M S2H V2 motherboard Intel H510 Express LGA 1200 (Socket H5) micro ATX
Specifications
76 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1200 (Socket H5) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of storage drives supported | 5 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Number of displays supported | 2 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

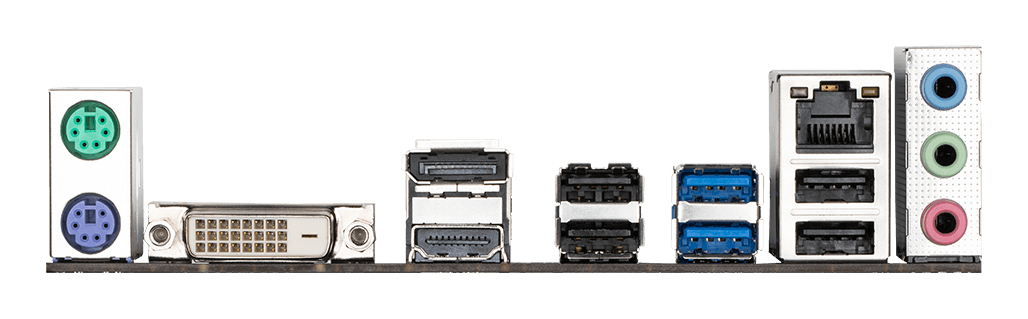

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H510 Express |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 210 mm |
| Height | 52 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Bundled software | Norton Internet Security, Realtek 8118 Gaming LAN Bandwidth Control Utility |
Other features
| Specification | Value |
|---|---|
| Weight | 385 g |
