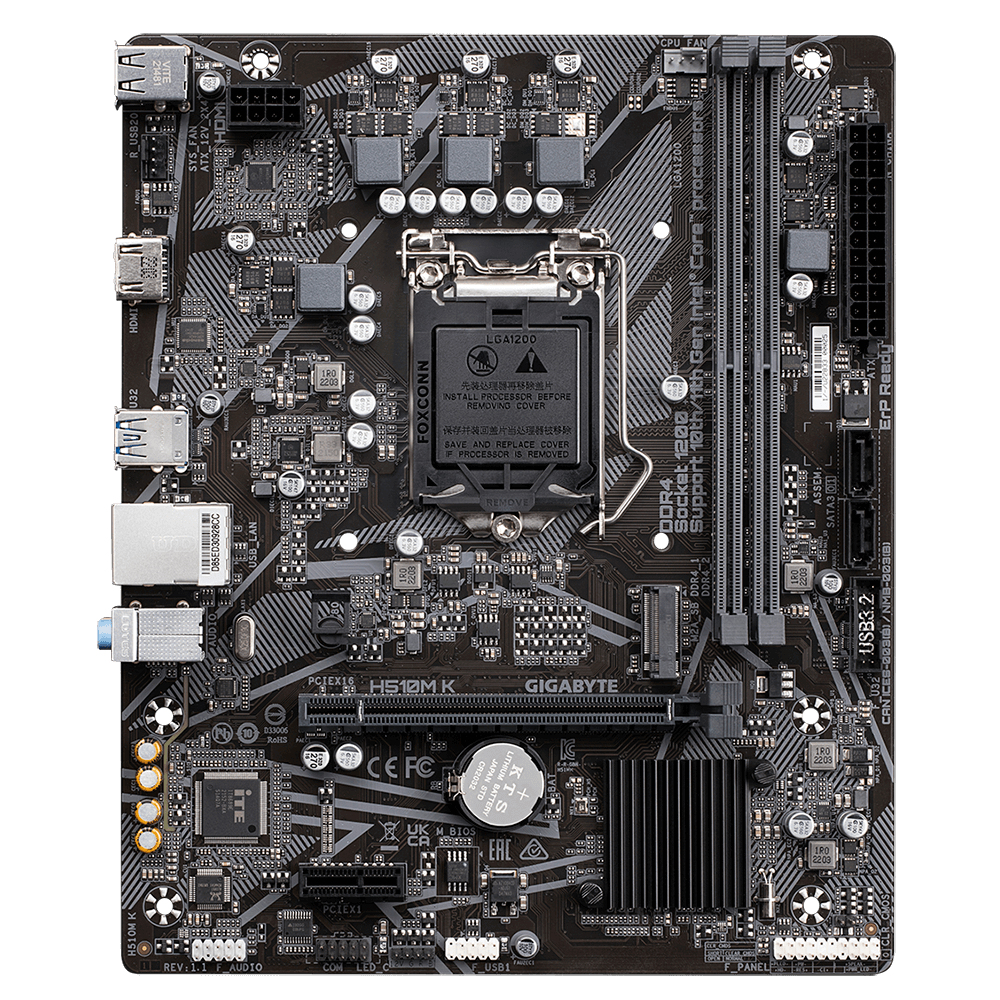

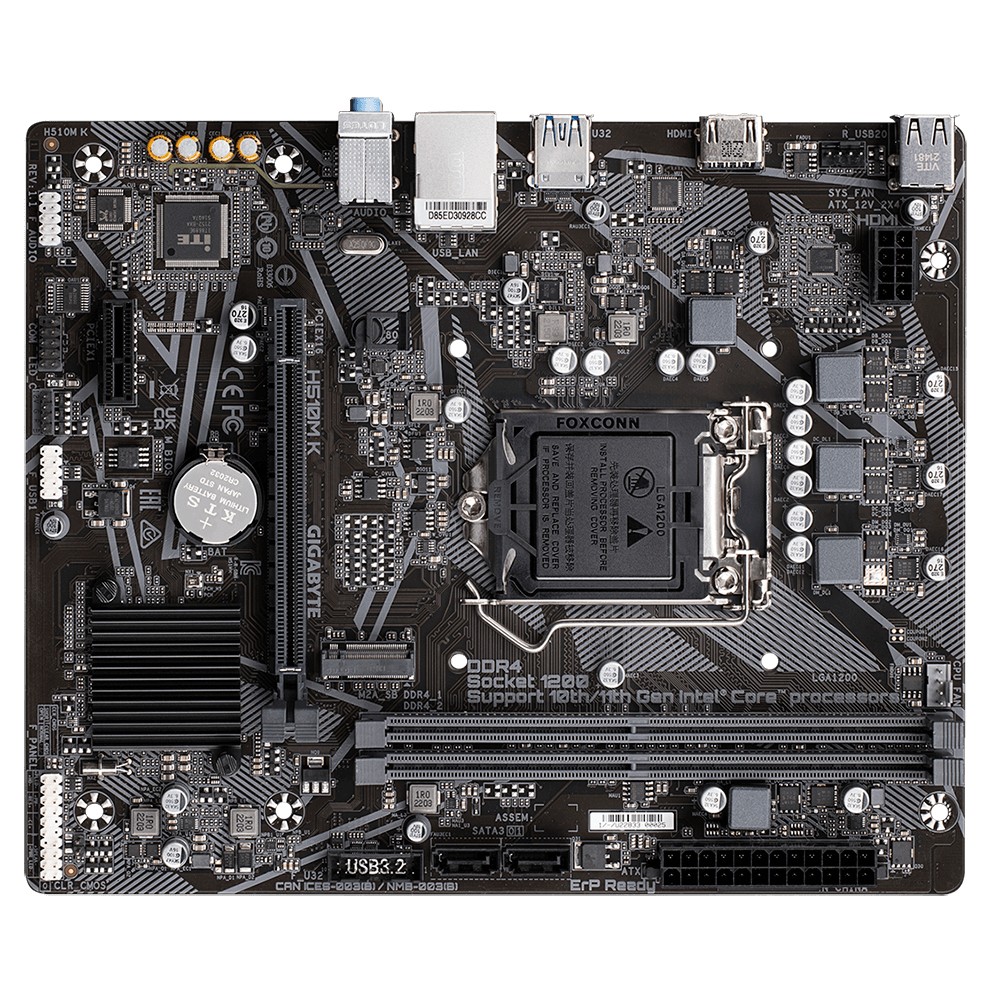

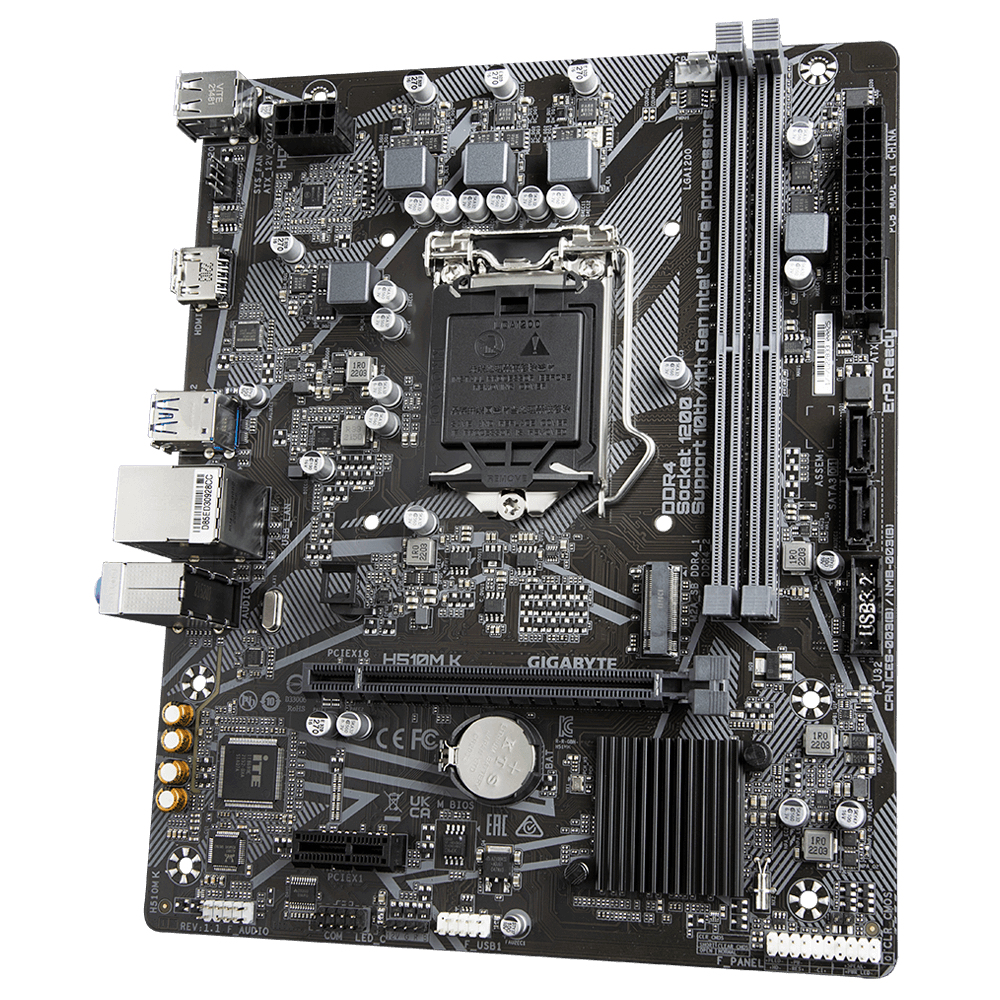

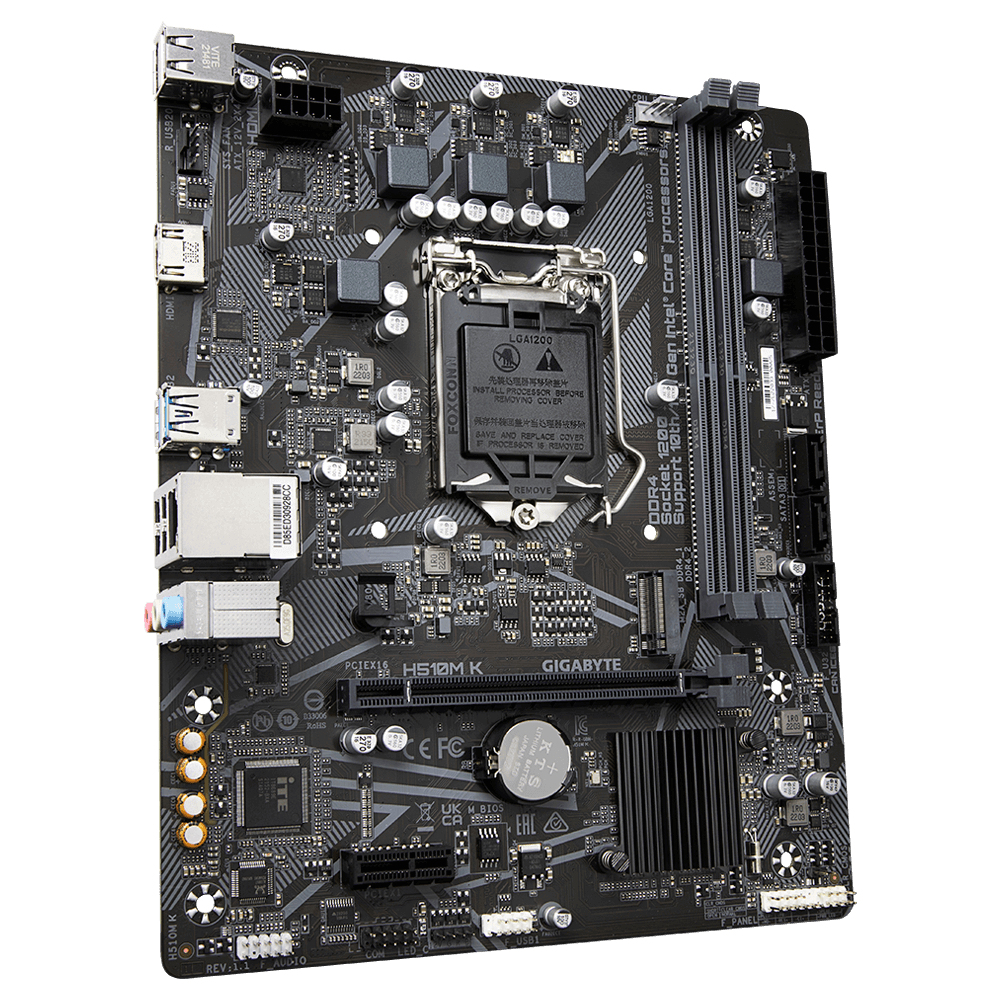

H510M K 1.0
Model H510M K 1.0EAN 4719331850371
66 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesSSD
- On-board graphics cardYes
- USB 2.0 connectors1
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- SSD
- On-board graphics card
- Yes
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- H510M K 1.0
- Part number
- H510M K 1.0
- EAN / UPC
- 4719331850371
- Also known as
- GIGABYTE H510M K 1.0 motherboard Intel B560 Express LGA 1200 (Socket H5) micro ATX
Specifications
66 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1200 (Socket H5) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 32GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| RGB LED pin header | Yes |

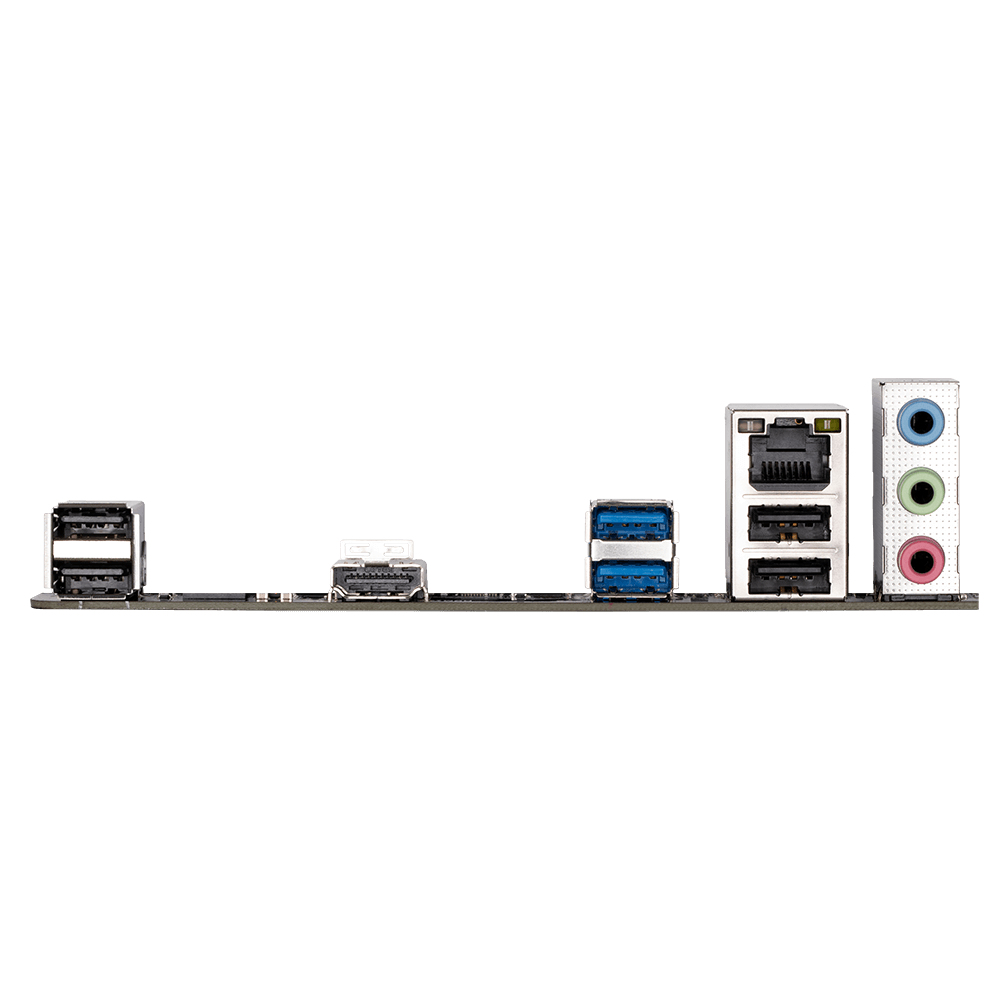

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 Express |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 185 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
