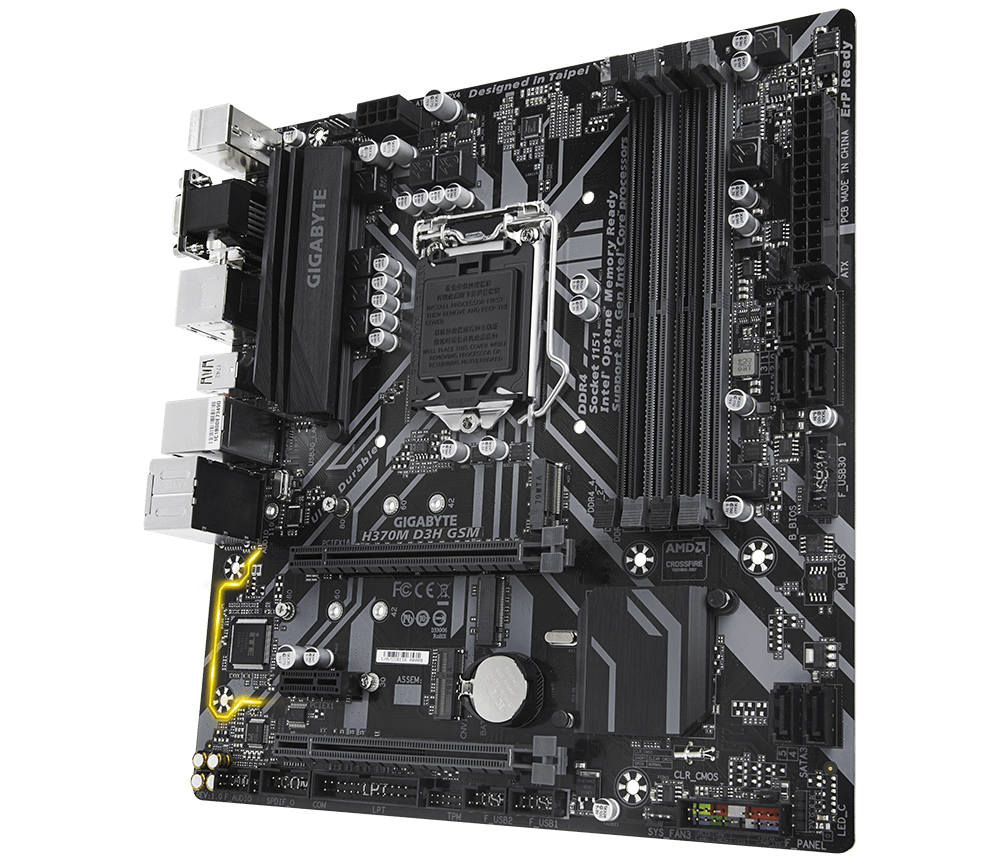

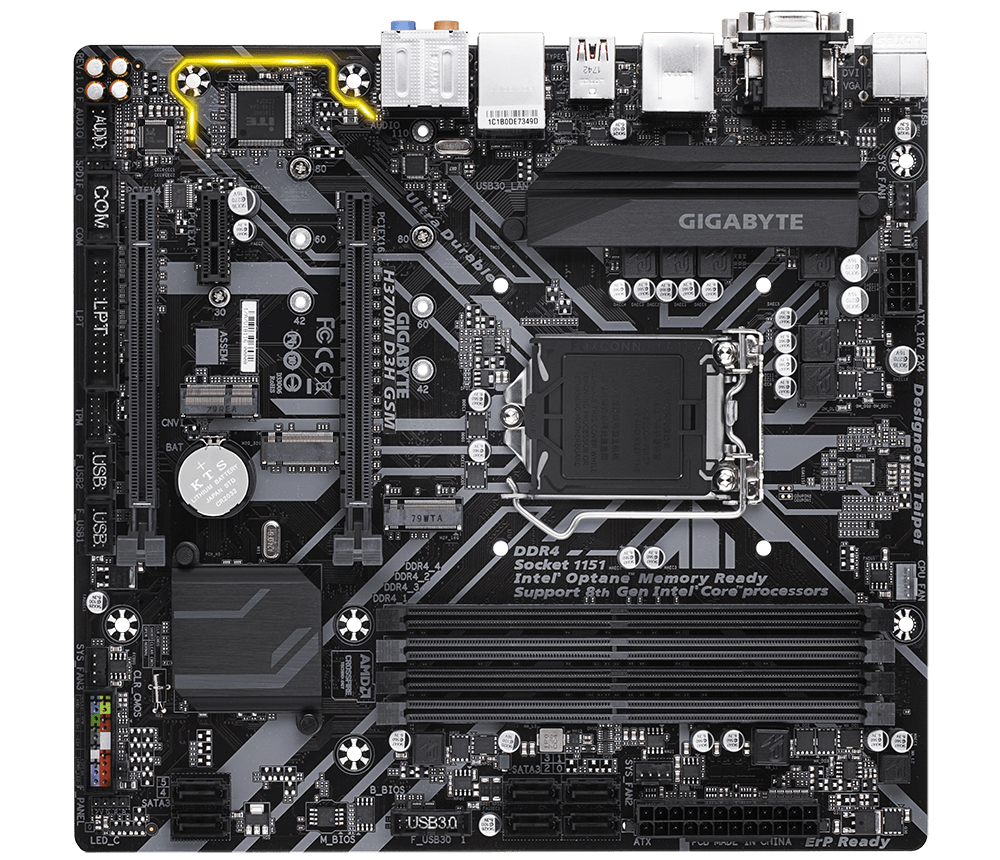

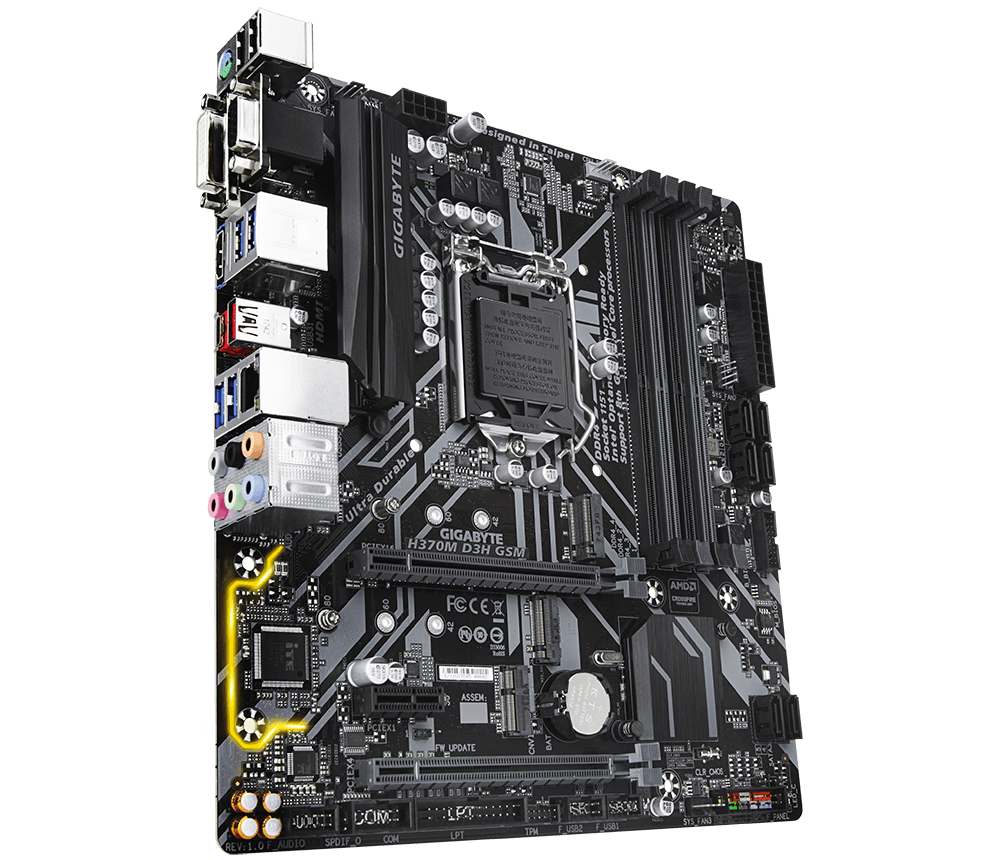

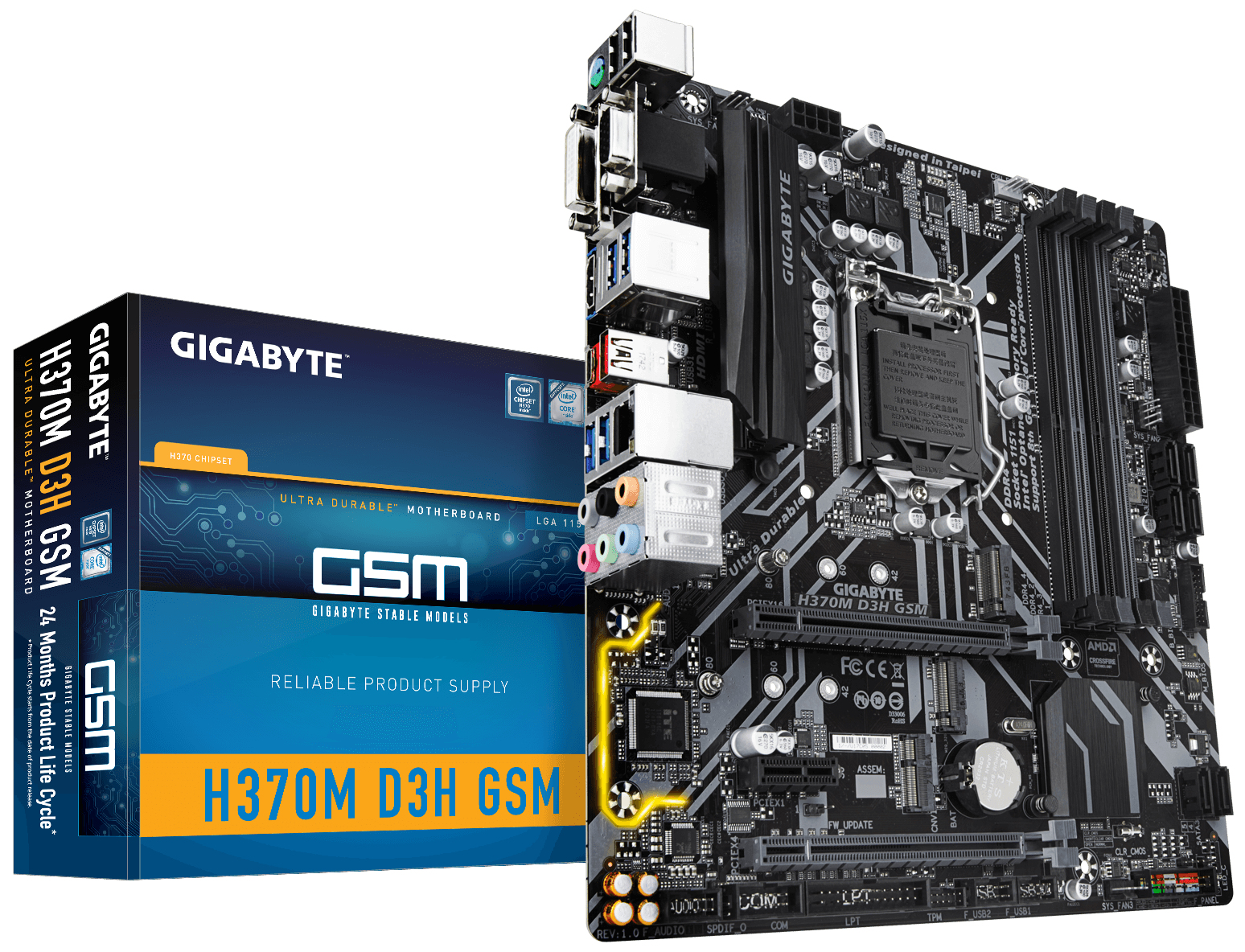

GIGABYTE H370M D3H GSM

GIGABYTE H370M D3H GSM

Model H370M D3H GSMEAN 889523013779

53 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors3
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
3
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
H370M D3H GSM
Part number
H370M D3H GSM
EAN / UPC
889523013779, 4719331803551
Also known as
GIGABYTE H370M D3H GSM motherboard Intel® H370 LGA 1151 (Socket H4) micro ATX

Specifications

53 specifications in 9 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-8xxx, i5-8xxx, i7-8xxx
Supported processor socketsLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2666,2400,2133 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors1
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
TPM connectorYes

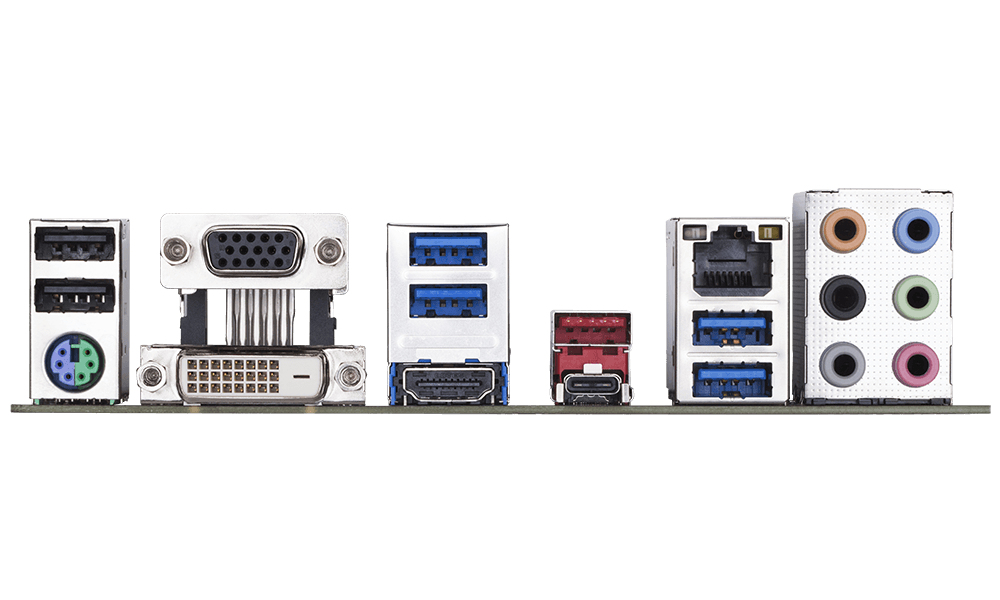

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H370
Audio chipRealtek ALC892
Audio output channels7.1 channels

BIOS

BIOS typeUEFI AMI
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Weight & dimensions

Width244 mm
Depth230 mm
