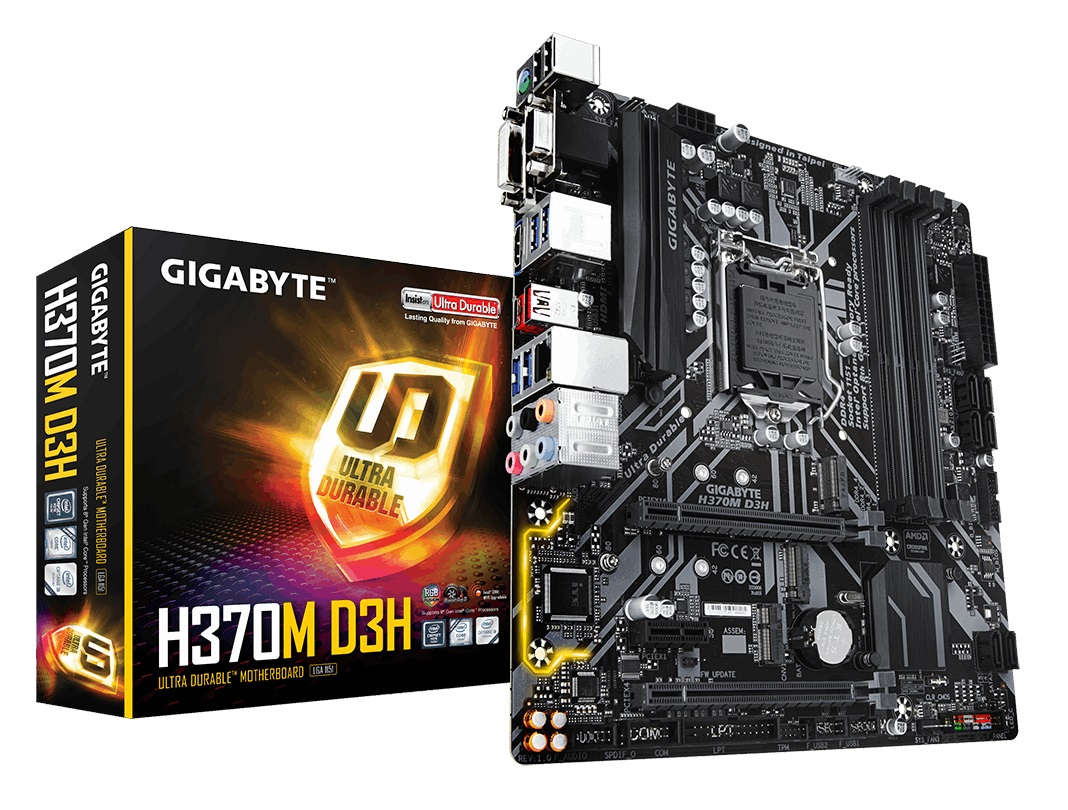

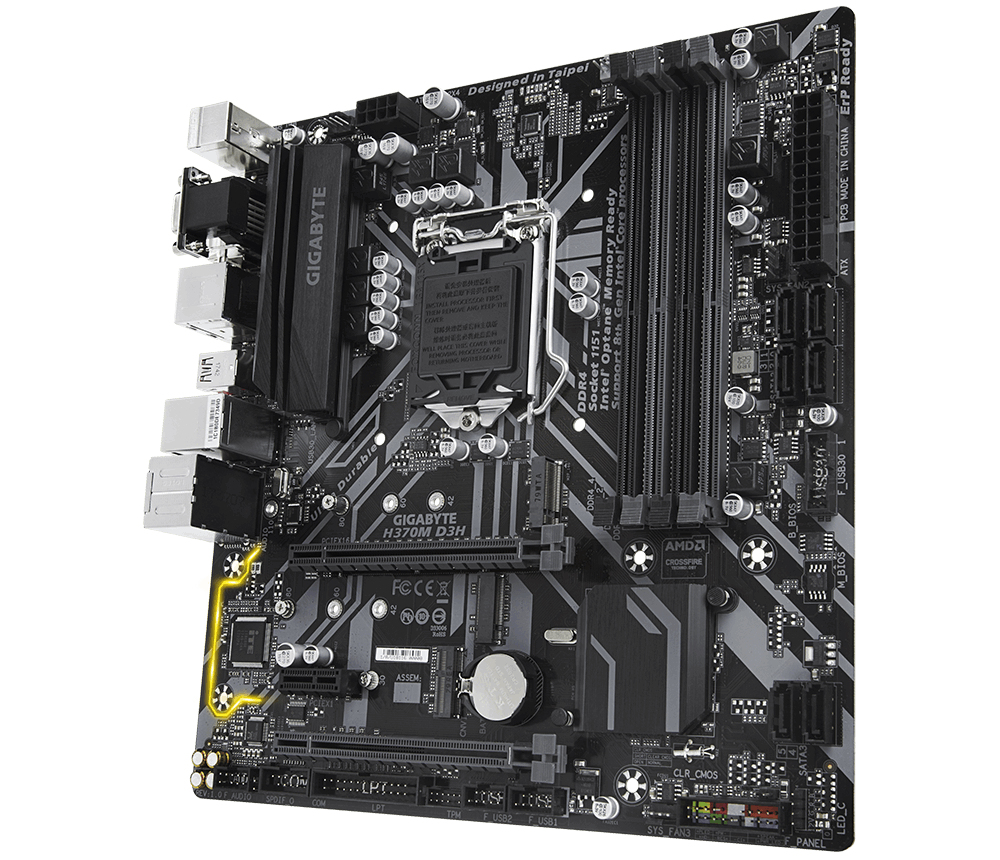

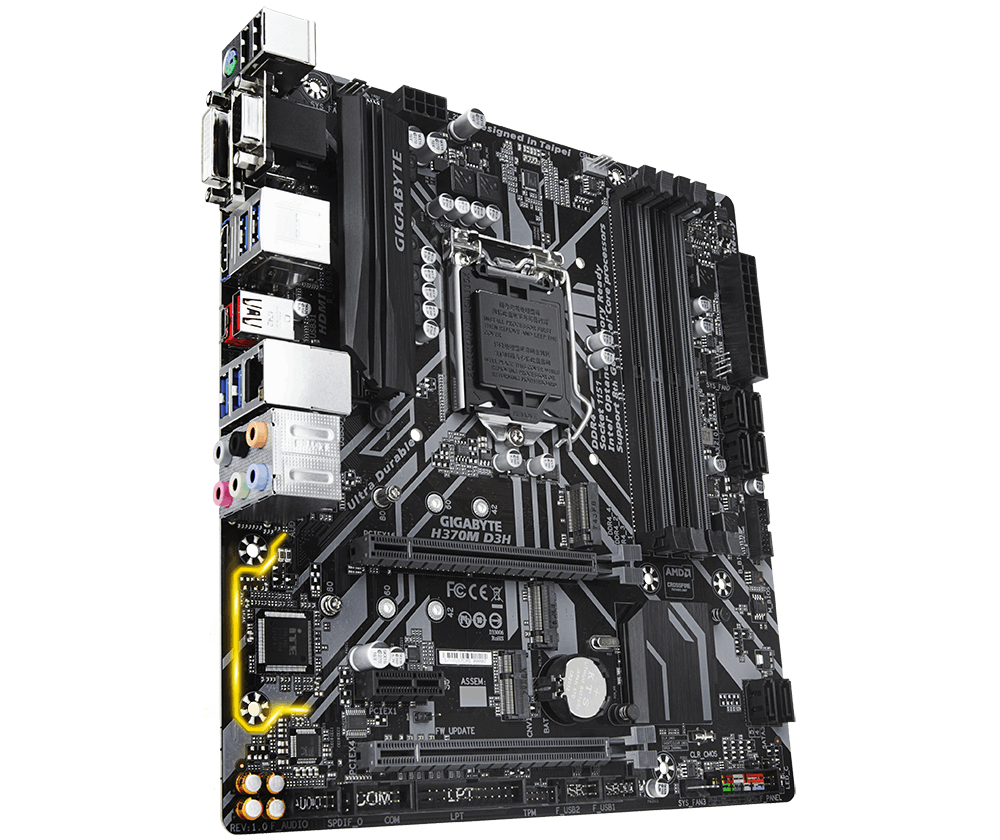

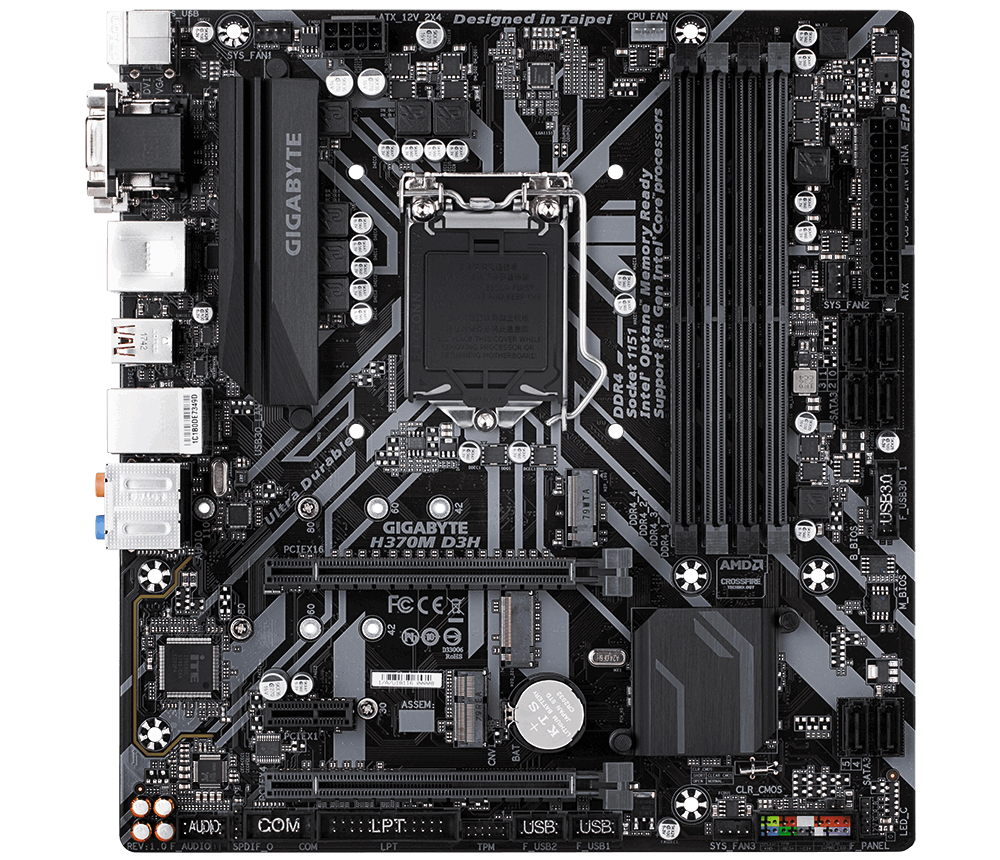

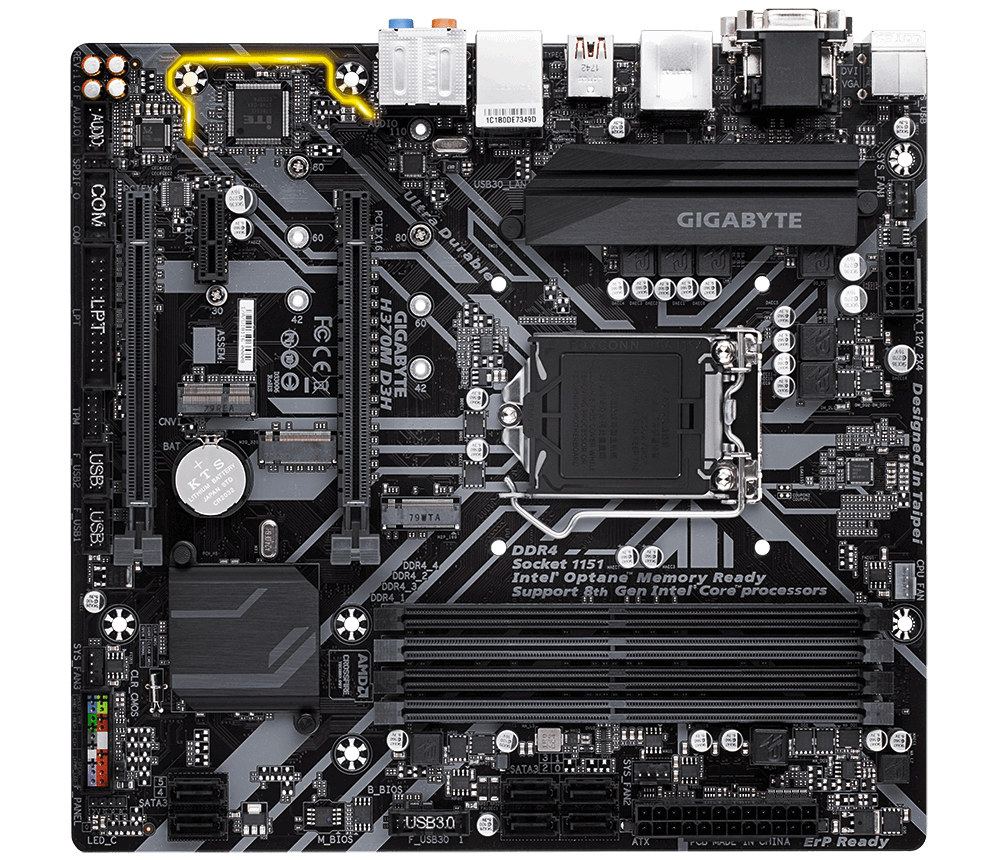

GIGABYTE H370M D3H

GIGABYTE H370M D3H

Model H370M D3HEAN 889523012765

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
GIGABYTE
Category
Motherboard
Model
H370M D3H
Part numbers
H370M D3H, GAH37MD3H-00-G
EAN / UPC
889523012765, 4719331802844
Also known as
GIGABYTE H370M D3H motherboard Intel® H370 LGA 1151 (Socket H4) mini ATX

Specifications

63 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory64 GB
Supported memory module capacities16GB

Storage controllers

Supported storage drive typesHDD & SSD

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

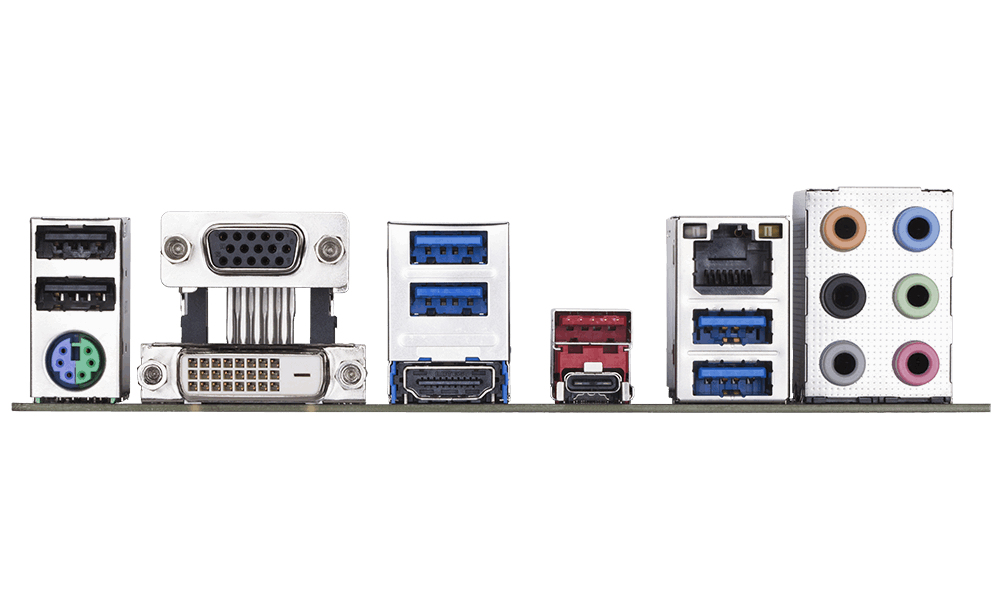

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormini ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H370
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width230 mm
Depth244 mm

Other features

Parallel port via internal headerYes
Serial port via internal headerYes
Number of M.2 (E) slots2
