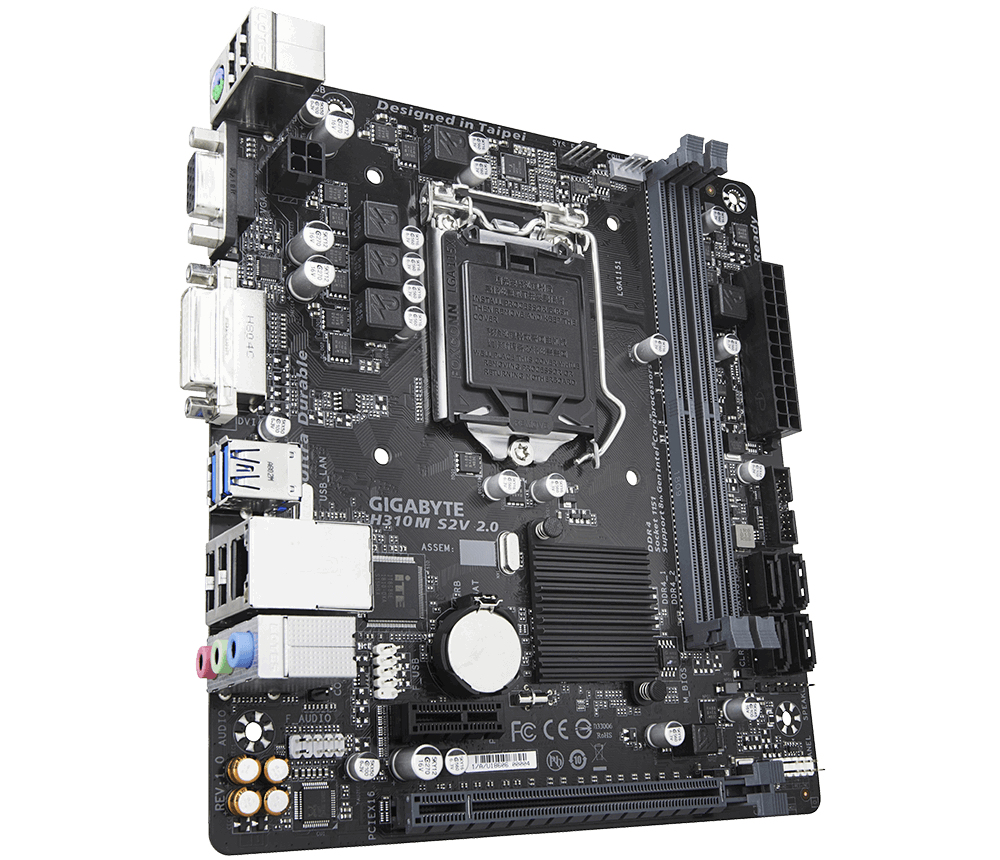

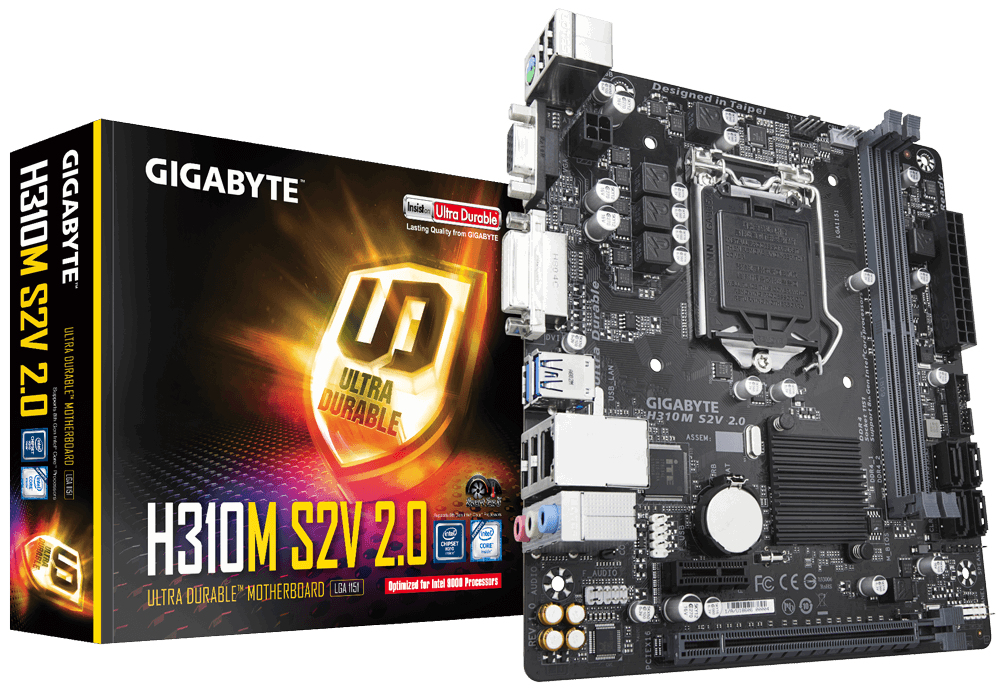

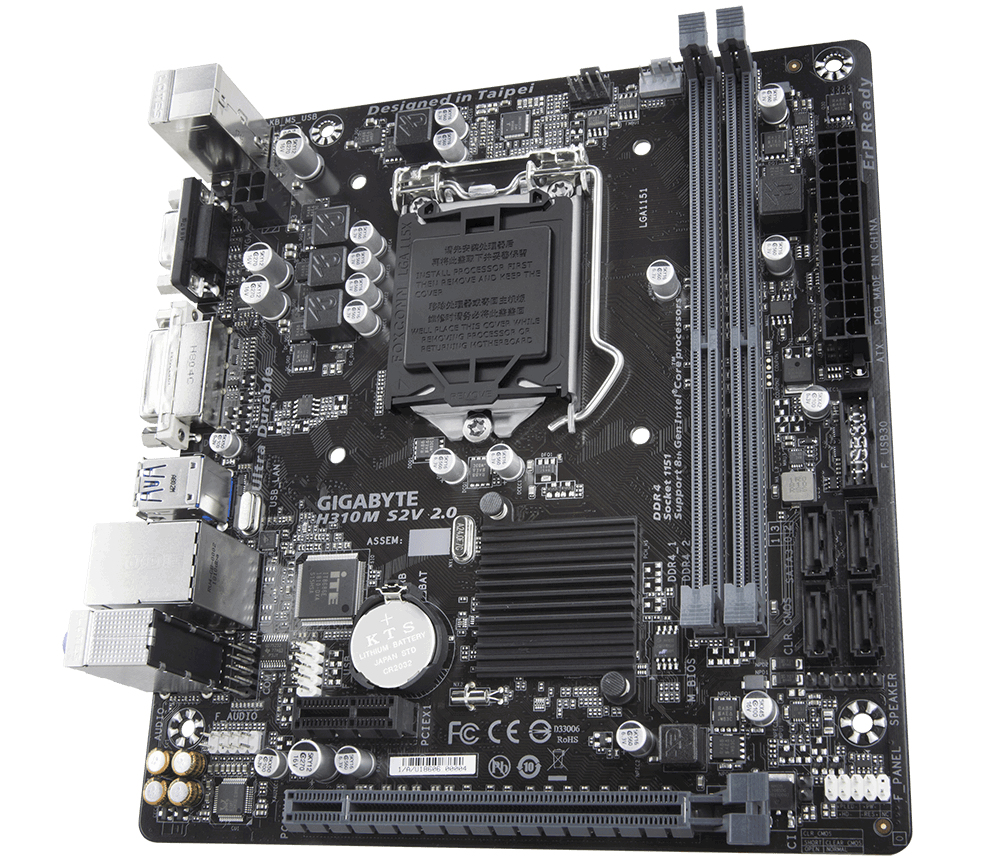

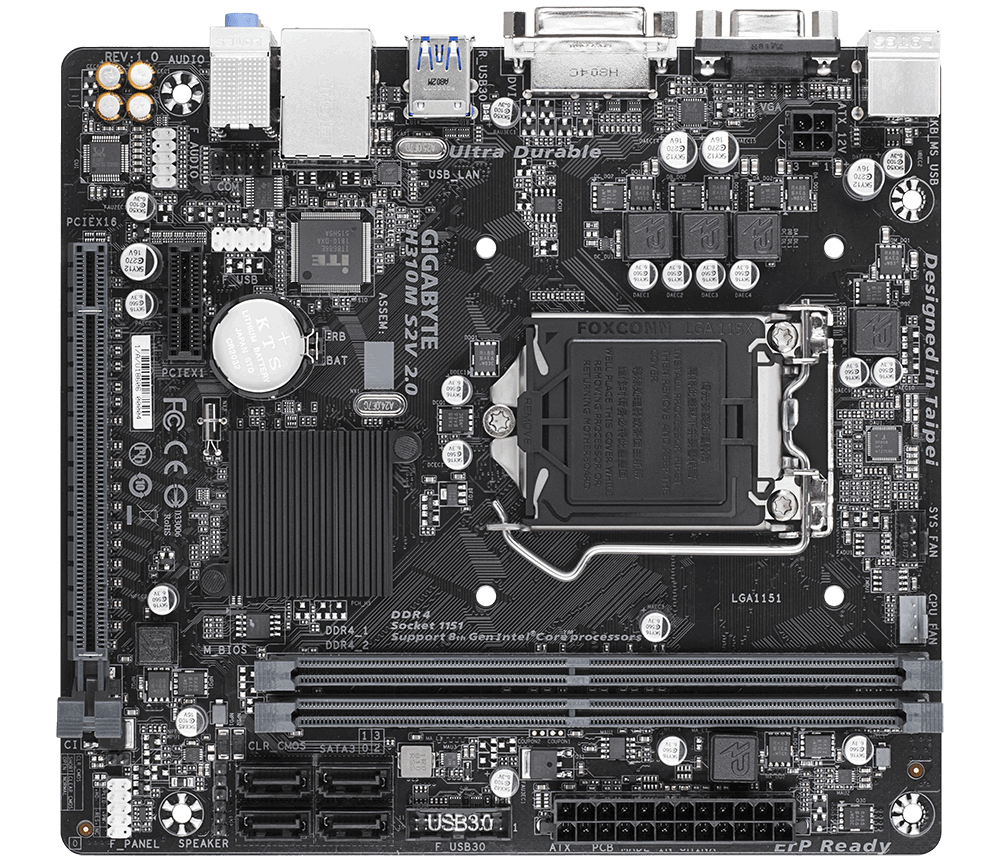

GIGABYTE H310M S2V 2.0

GIGABYTE H310M S2V 2.0

Model H310M S2V 2.0Part no. GA310M2V2-00-GEAN 4719331804404

60 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
H310M S2V 2.0
Part number
GA310M2V2-00-G
EAN / UPC
4719331804404
Also known as
GIGABYTE H310M S2V 2.0 Intel® H310 LGA 1151 (Socket H4) micro ATX

Specifications

60 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive typesHDD & SSD

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
12V power connectorYes
Serial port headers1

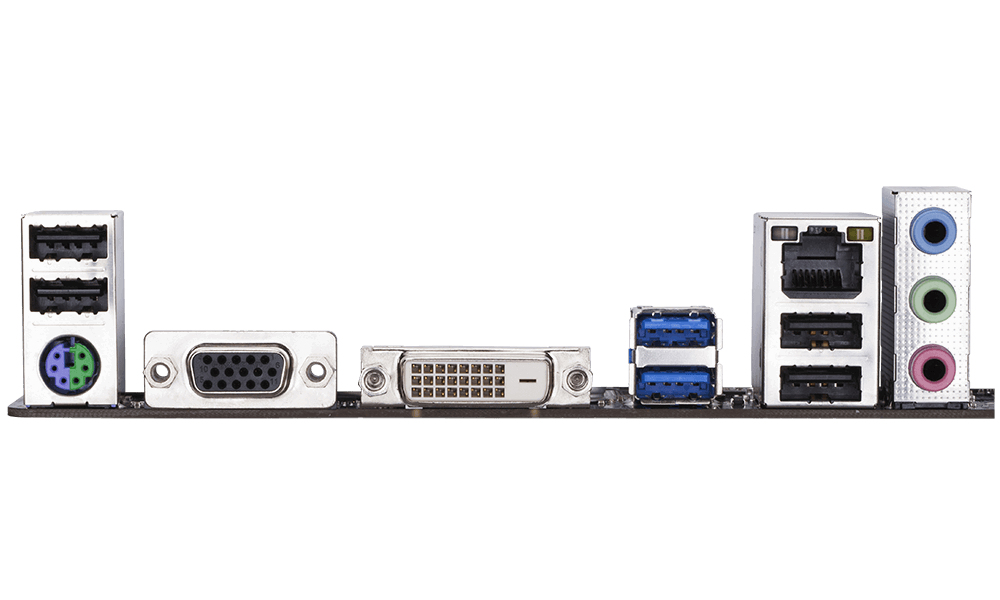

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Weight & dimensions

Width190 mm
Depth174 mm

Other features

Serial port via internal headerYes
