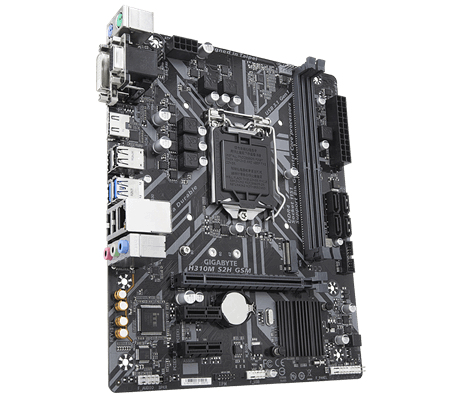

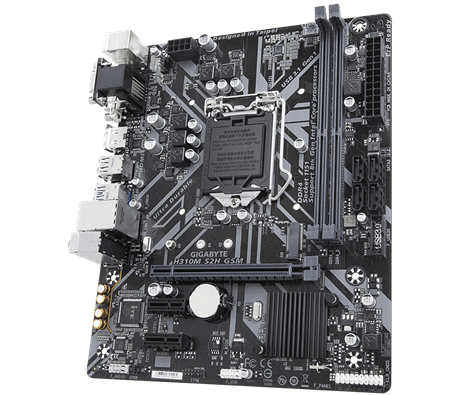

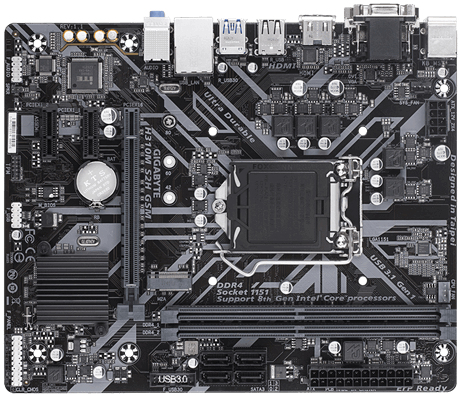

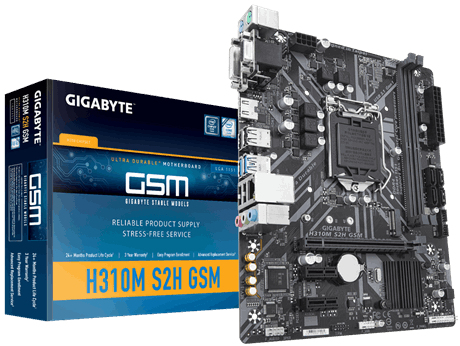

GIGABYTE H310M S2H GSM

GIGABYTE H310M S2H GSM

Model H310M S2H GSMEAN 889523013755

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Discrete graphics supportYes
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Discrete graphics support
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
H310M S2H GSM
Part number
H310M S2H GSM
EAN / UPC
889523013755
Also known as
GIGABYTE H310M S2H GSM motherboard Intel H310 Express LGA 1151 (Socket H4) micro ATX

Specifications

63 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB
Supported memory module capacities4GB, 8GB, 16GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4

Graphics

Discrete graphics supportYes

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
12V power connectorYes

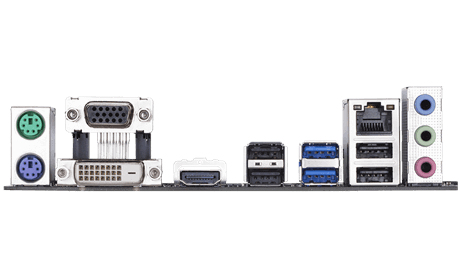

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs3
USB connector typeUSB Type-A

Network

Ethernet LANYes
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel H310 Express
Audio chipRealtek ALC887
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10
Compatible operating systemsWindows 10 64-bit

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Weight & dimensions

Width185 mm
Depth226 mm
