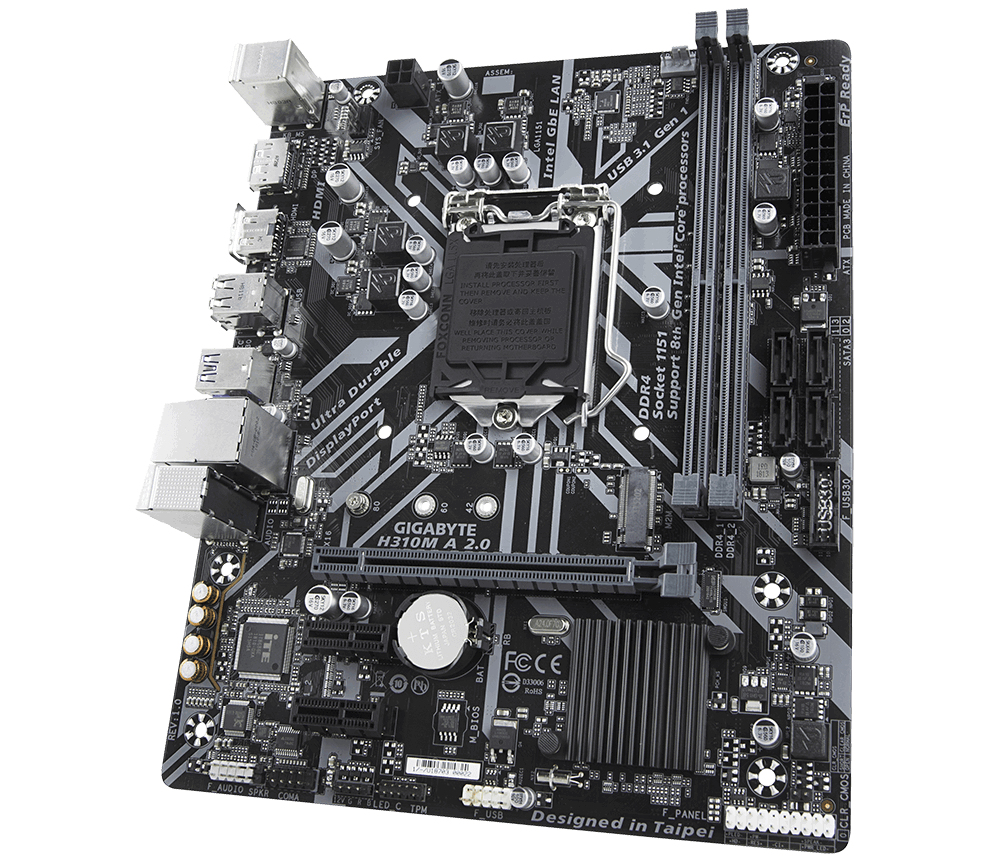

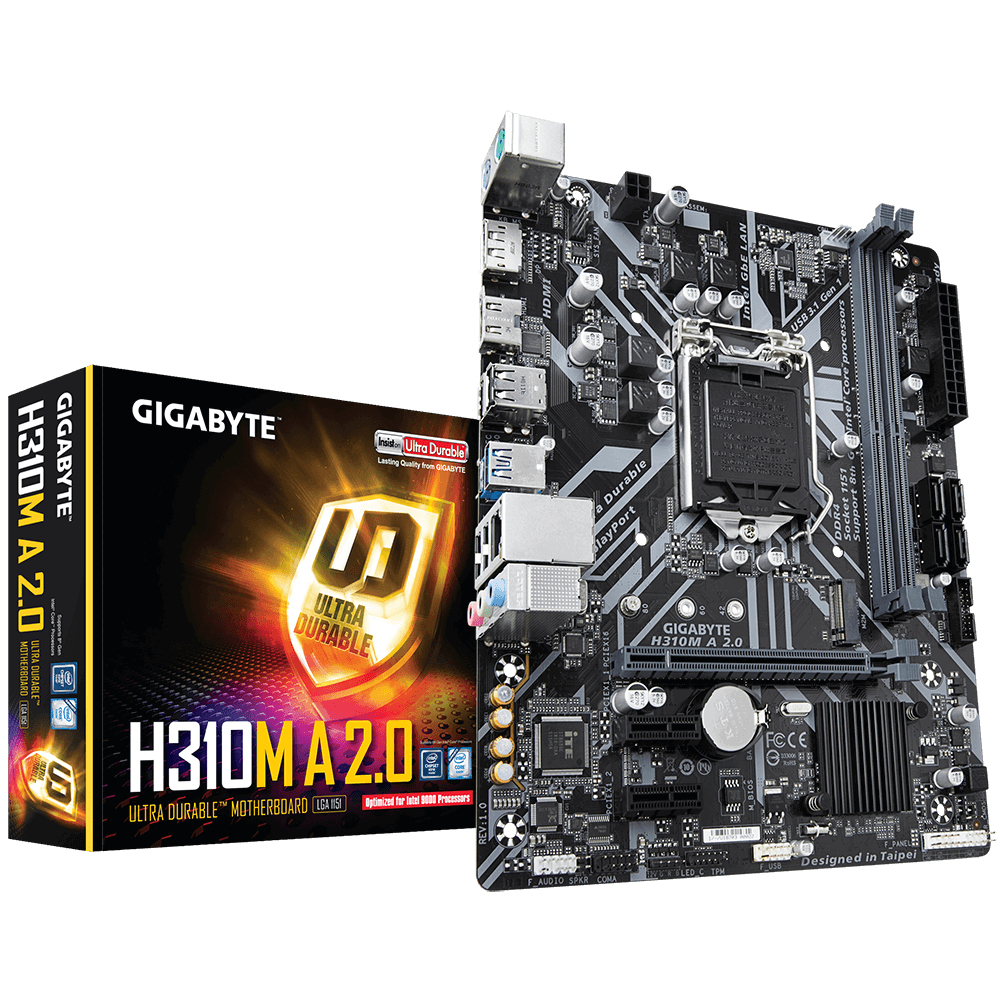

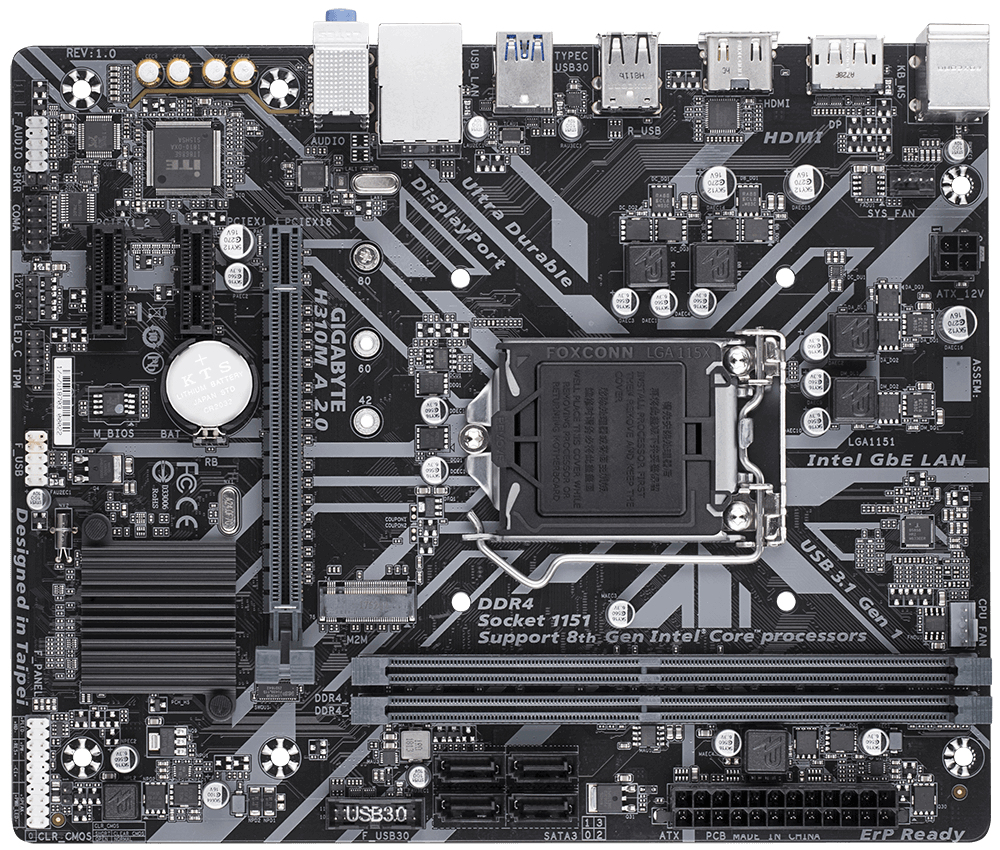

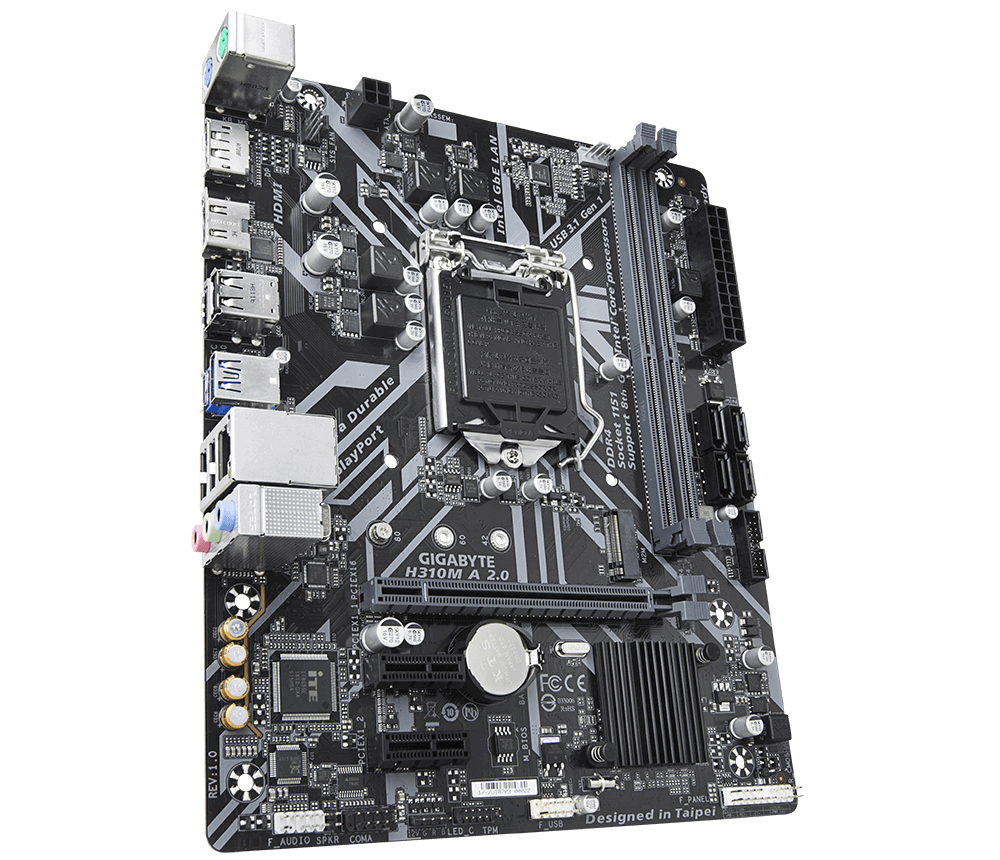

GIGABYTE H310M A 2.0

GIGABYTE H310M A 2.0

Model H310M A 2.0EAN 889523016954

59 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • On-board graphics cardYes
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
On-board graphics card
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
H310M A 2.0
Part numbers
H310M A 2.0, GA-H310M-A 2.0
EAN / UPC
889523016954, 4719331805463
Also known as
GIGABYTE H310M A 2.0 motherboard Intel H310 Express LGA 1151 (Socket H4) micro ATX

Specifications

59 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2600 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4

Graphics

On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution4096 x 2304 pixels
HDCPYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Peripheral (Molex) power connectors (4-pin)1
Serial port headers1
TPM connectorYes
RGB LED pin headerYes

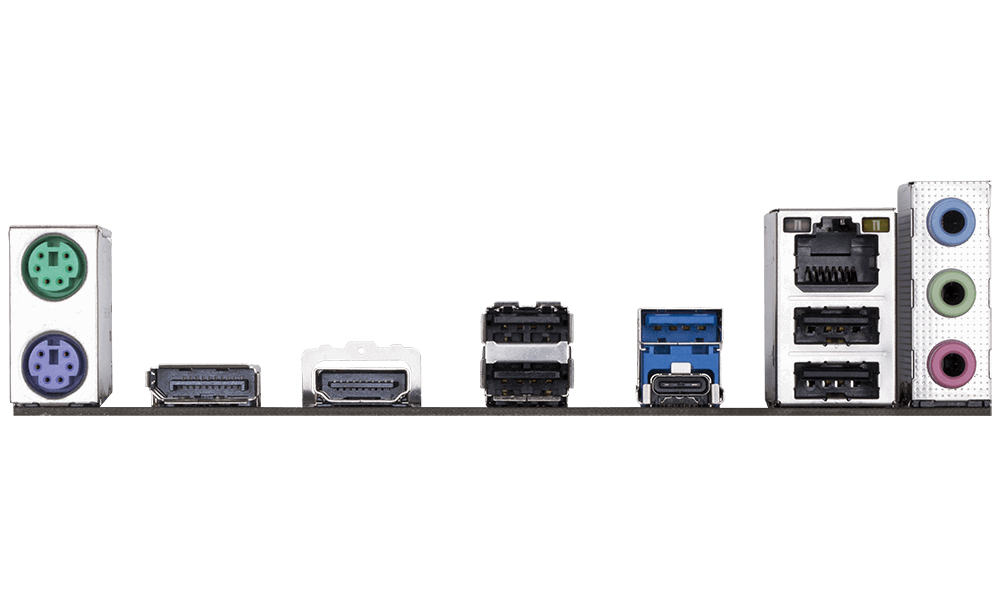

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
HDMI ports quantity1
DisplayPorts quantity1
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel H310 Express
Audio chipRealtek ALC887
Audio output channels7.1 channels
Compatible operating systemsWindows 10 64-bit

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width226 mm
Depth185 mm

Packaging content

Bundled softwareNorton® Internet Security cFosSpeed
