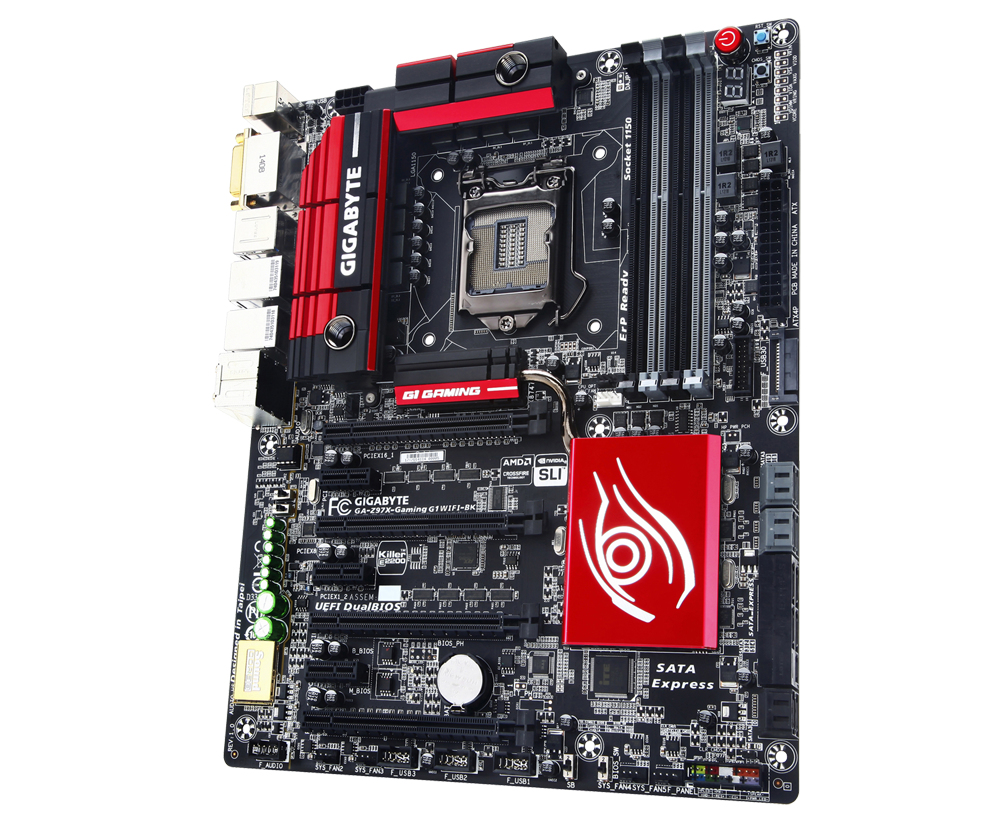

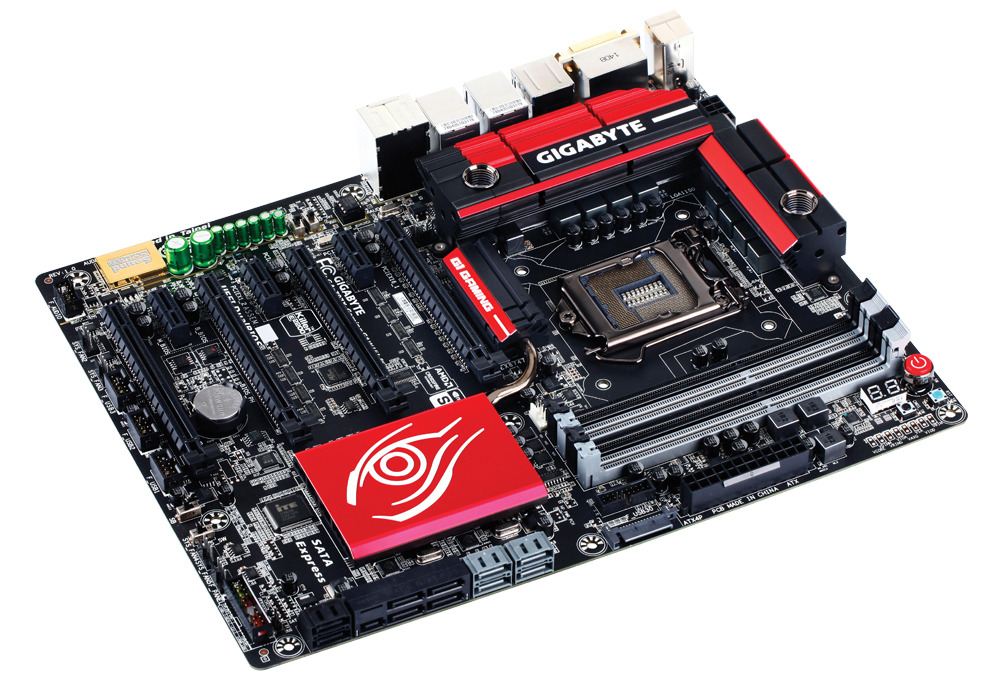

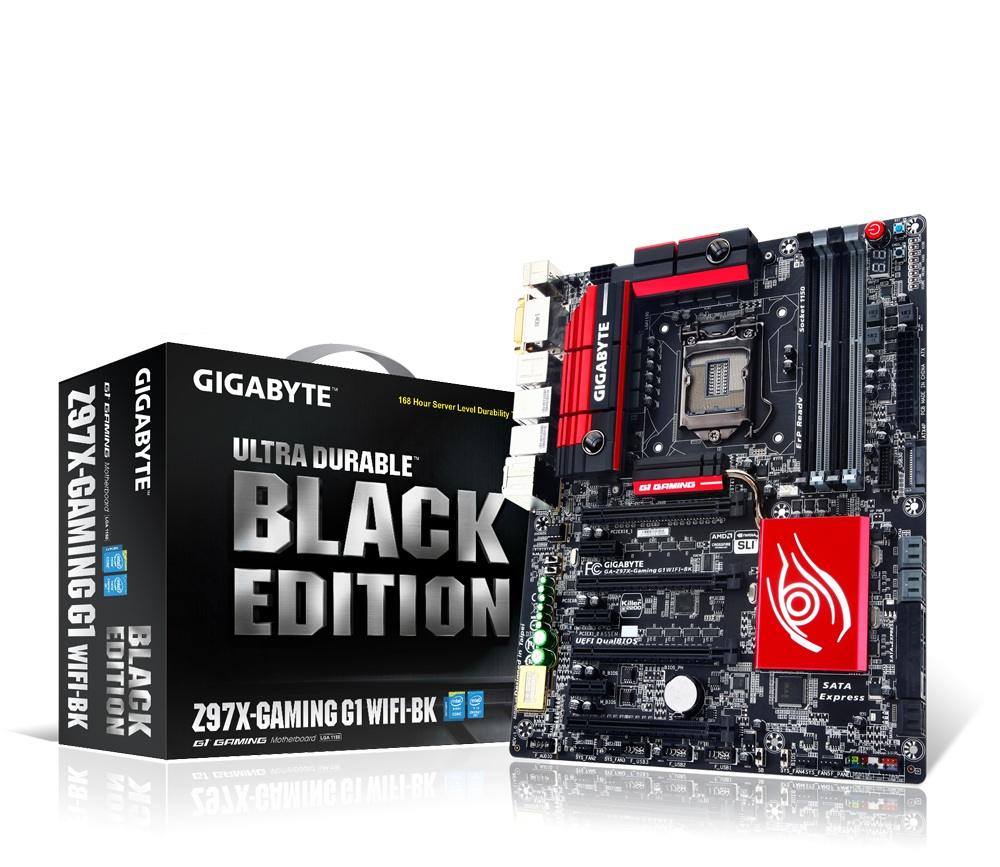

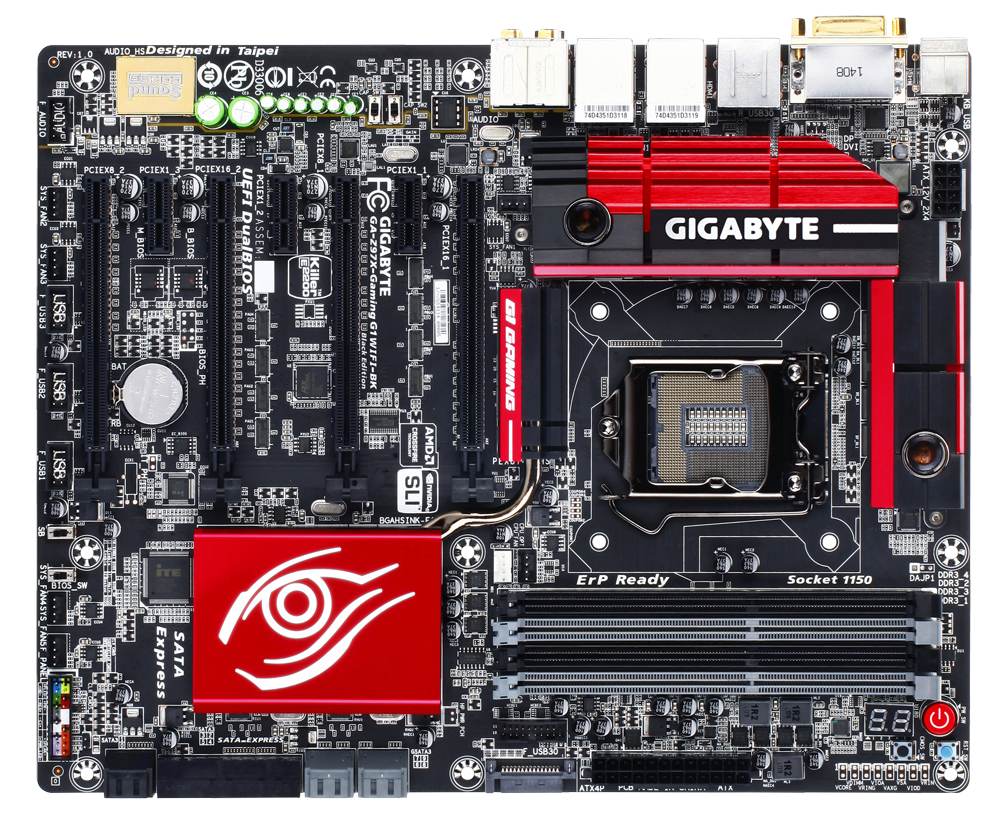

GIGABYTE GA-Z97X-GAMINGG1WIFI motherboard Intel® Z97 LGA 1150 (Socket H3) ATX
Model GA-Z97X-GAMINGG1WIFI
62 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory512 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Z97X-GAMINGG1WIFI
- Part number
- GA-Z97X-GAMINGG1WIFI
- Also known as
- GIGABYTE GA-Z97X-GAMINGG1WIFI motherboard Intel® Z97 LGA 1150 (Socket H3) ATX
Specifications
62 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600,1800,1866,2000,2133,2200,2400,2600,2666,2800,2933,3000,3100,3200 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 10 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Serial port headers | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth version | 4.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z97 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Intel Smart Response Technology Intel Smart Connect Technology Intel Rapid Start Technology Norton Internet Security (OEM version) |
