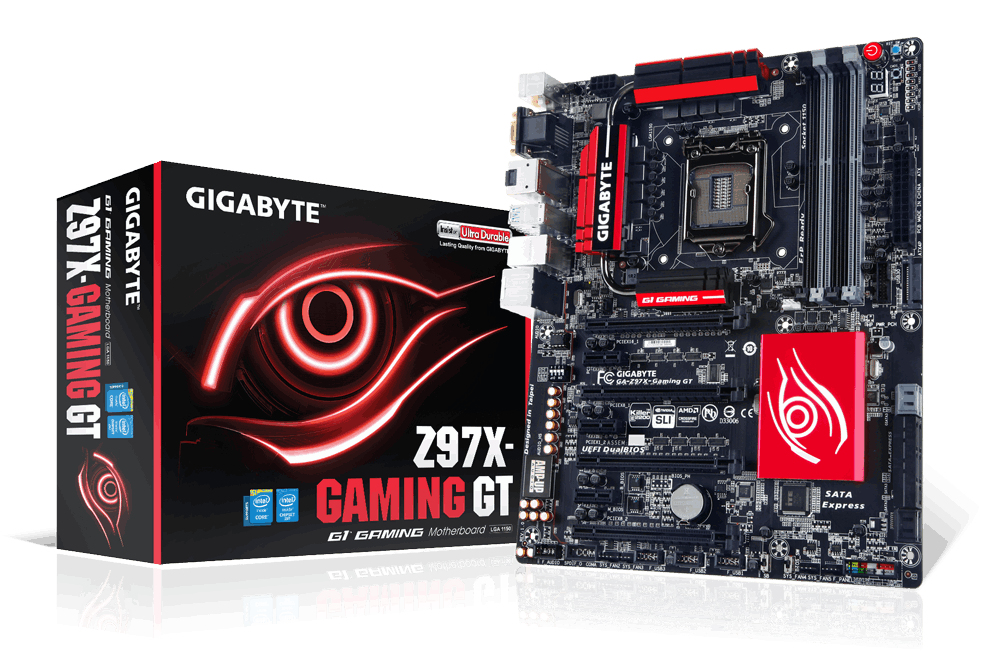

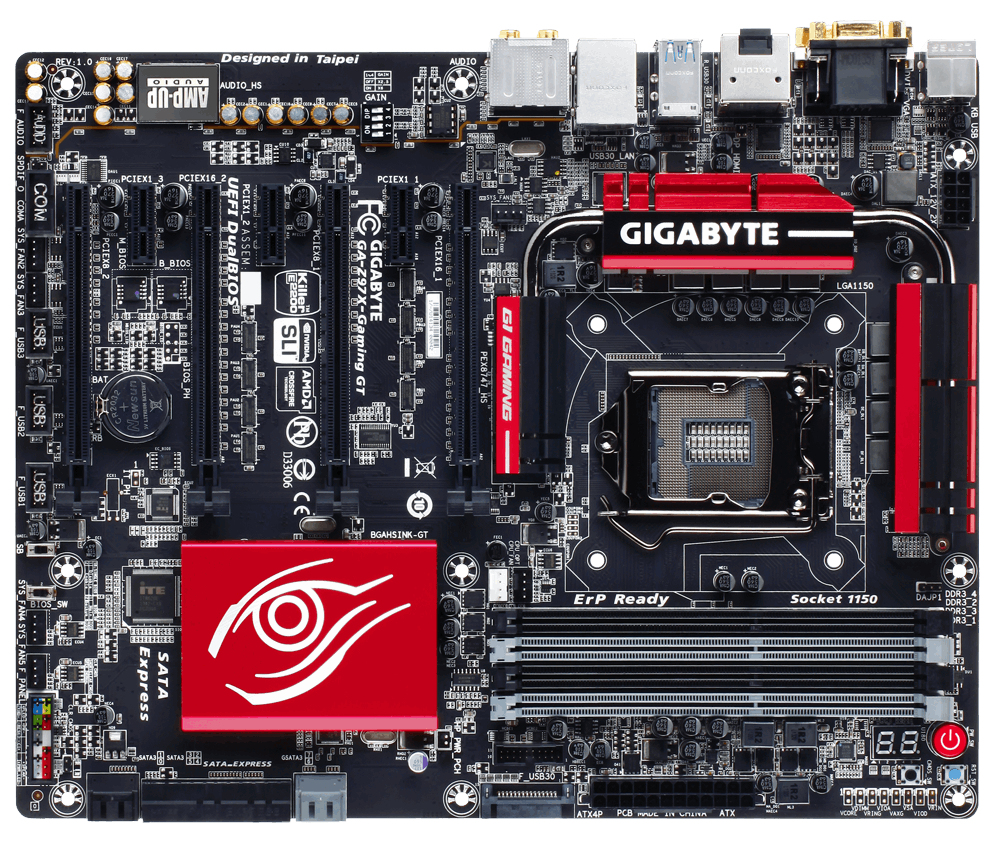

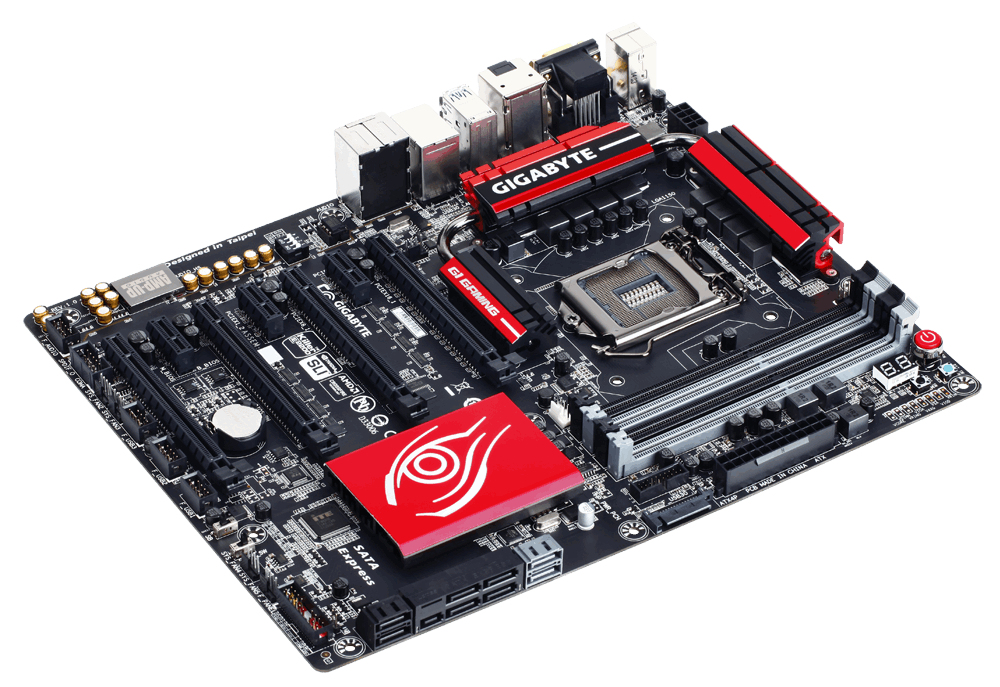

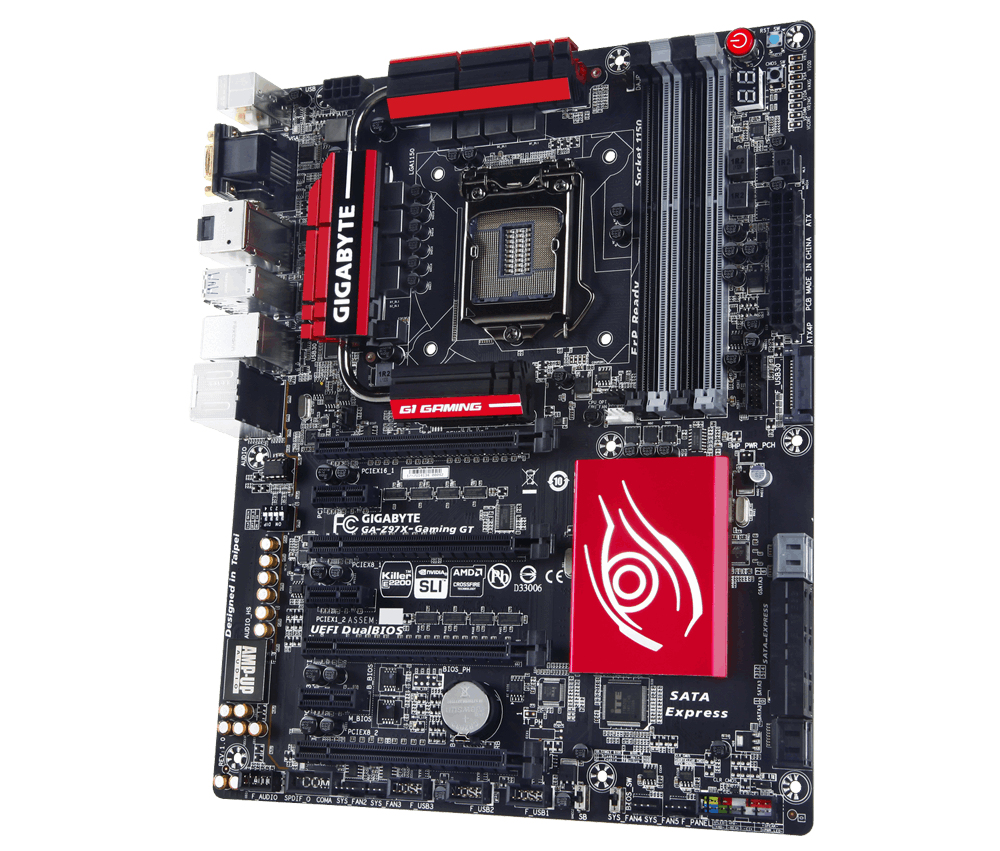

GIGABYTE GA-Z97X-Gaming GT (rev. 1.0)
Model GA-Z97X-Gaming GT (rev. 1.0)Part no. GA-Z97X-GAMING GT (REV. 1.0)EAN 4719331816568
75 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory512 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Z97X-Gaming GT (rev. 1.0)
- Part number
- GA-Z97X-GAMING GT (REV. 1.0)
- EAN / UPC
- 4719331816568
- Also known as
- GIGABYTE GA-Z97X-Gaming GT (rev. 1.0) Intel® Z97 LGA 1150 (Socket H3) ATX
Specifications
75 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-4xxx, i3-5xxx, i5-4xxx, i5-5xxx, i7-4xxx, i7-5xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600,1800,1866,2000,2133,2200,2400,2600,2666,2800,2933,3000,3100,3200 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI |
| On-board graphics card | Yes |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| Discrete graphics support | Yes |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of SATA Express connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |

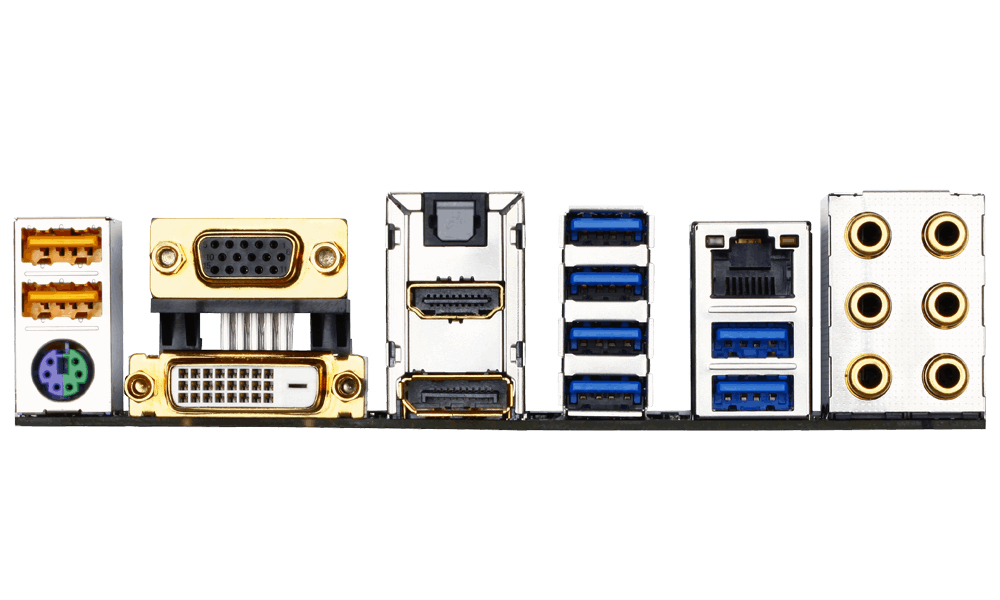

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Atheros Killer E2201 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z97 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) Intel Rapid Start Technology Intel Smart Connect Technology Intel Smart Response Technology |
Other features
| Specification | Value |
|---|---|
| BIOS switch button | Yes |
What people say
Reviews & ratings
GIGABYTE GA-Z97X-Gaming GT (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-Z97X-Gaming GT (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-Z97X-Gaming GT (rev. 1.0)

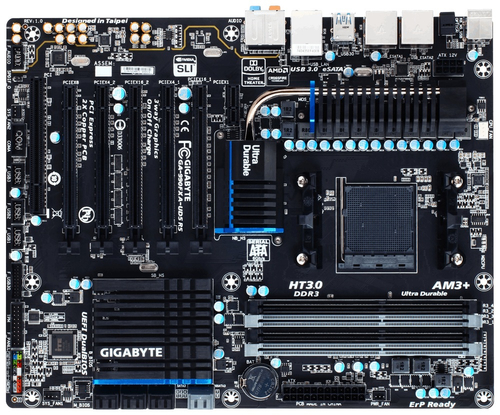

All motherboard comparisons- GIGABYTE GA-Z97X-Gaming GT (rev. 1.0) vsGIGABYTE GA-990FXA-UD5 R5Compare specs

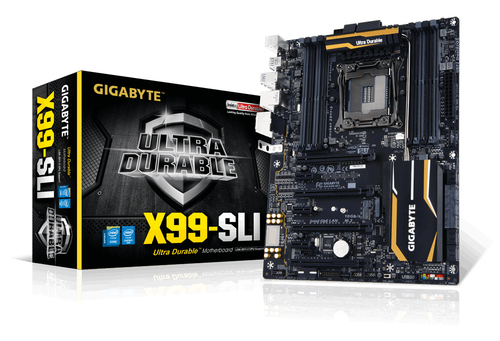

- GIGABYTE GA-Z97X-Gaming GT (rev. 1.0) vsGIGABYTE GA-X99-SLI motherboard Intel® X99 LGA 2011-v3 ATXCompare specs
- GIGABYTE GA-Z97X-Gaming GT (rev. 1.0) vsGIGABYTE GA-Z97X-Gaming 3 (rev. 1.0)Compare specs

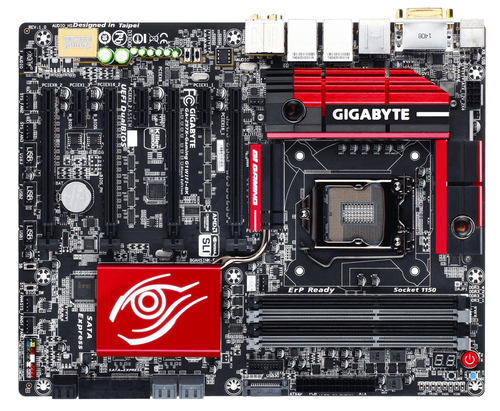

- GIGABYTE GA-Z97X-Gaming GT (rev. 1.0) vsGIGABYTE GA-Z97X-Gaming G1 WIFI-BK (rev. 1.0)Compare specs
