GIGABYTE GA-Z97X-Gaming G1

GIGABYTE GA-Z97X-Gaming G1

Model GA-Z97X-Gaming G1Part no. GA-Z97X-GAMING G1EAN 818313020734

57 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory1000 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
1000 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
2
Brand
GIGABYTE
Category
Motherboard
Model
GA-Z97X-Gaming G1
Part numbers
GA-Z97X-GAMING G1, GA-Z97X-Gaming G1-R1
EAN / UPC
818313020734, 4719331818265, 8183130207340
Also known as
GIGABYTE GA-Z97X-Gaming G1 Intel® Z97 LGA 1150 (Socket H3) ATX

Specifications

57 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1800,1866,2000,2133,2200,2400,2600,2666,2800,2933,3000 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1000 MB
Parallel processing technology support2-Way CrossFireX, 3-Way CrossFireX, 4-Way CrossFireX
Maximum resolution4096 x 2160 pixels
Number of displays supported3

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors10
Number of SATA II connectors0
Number of SATA connectors10
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes

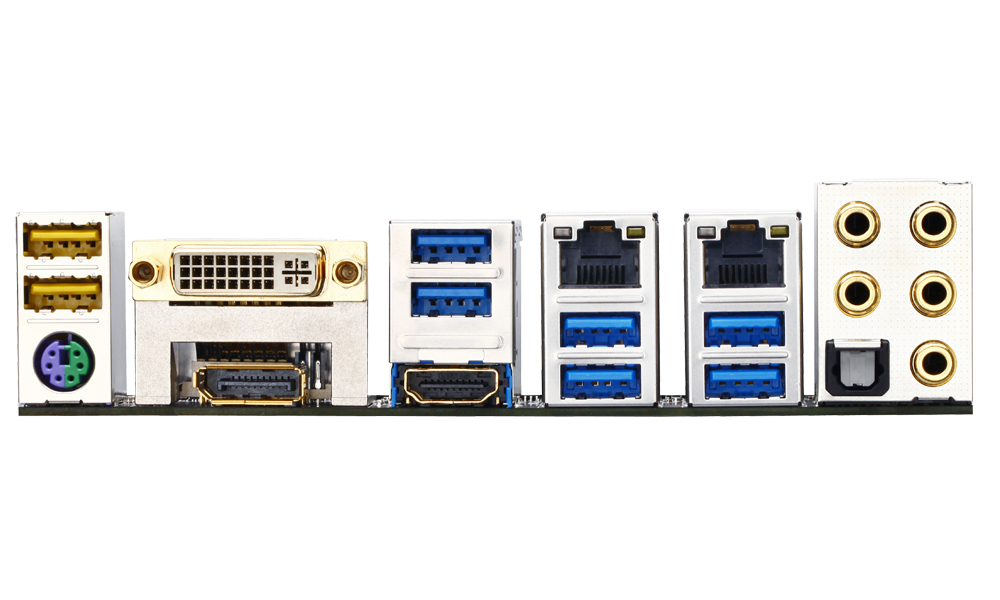

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity0
DVI-I ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z97
Audio output channels5.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 (Gen 3.x) slots4

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm
