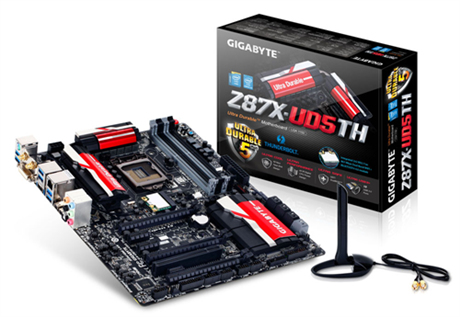

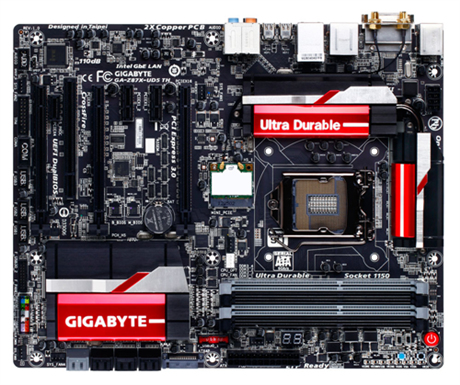

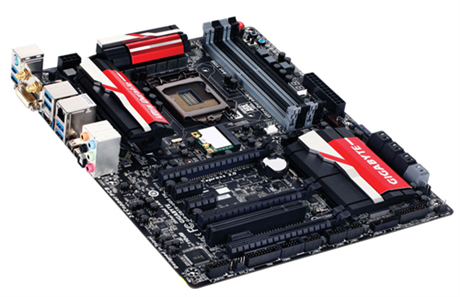

GIGABYTE GA-Z87X-UD5 TH (rev. 1.x)
Model GA-Z87X-UD5 TH (rev. 1.x)Part no. GA-Z87X-UD5-TH
67 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 0
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Z87X-UD5 TH (rev. 1.x)
- Part number
- GA-Z87X-UD5-TH
- Also known as
- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) Intel® Z87 LGA 1150 (Socket H3) ATX
Specifications
67 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600,1800,1866,2000,2133,2200,2400,2600,2666,2800,2933,3000 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

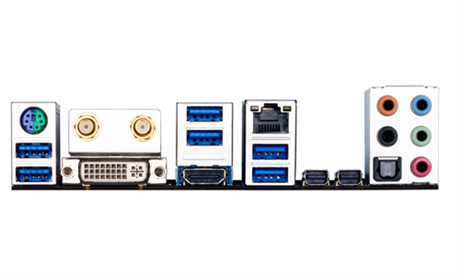

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z87 |
| Audio chip | Realtek ALC898 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 3 |
| Mini PCI Express slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM) Intel Rapid Start Technology Intel Smart Connect Technology Intel Smart Response Technology Intel Wireless Display cFosSpeed |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| PCI Express power connectors (6-pin) | 1 |
| BIOS switch button | Yes |
What people say
Reviews & ratings
GIGABYTE GA-Z87X-UD5 TH (rev. 1.x)
No reviews yet
Be the first to tell others how GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-Z87X-UD5 TH (rev. 1.x)
All motherboard comparisons- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) vsGIGABYTE GA-C1007UN-D motherboard Intel® NM70 Express BGA 1023 mini ITXCompare specs
- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) vsGIGABYTE GA-G1-SNIPER-5 motherboard Intel® Z87 LGA 1150 (Socket H3) Extended ATXCompare specs

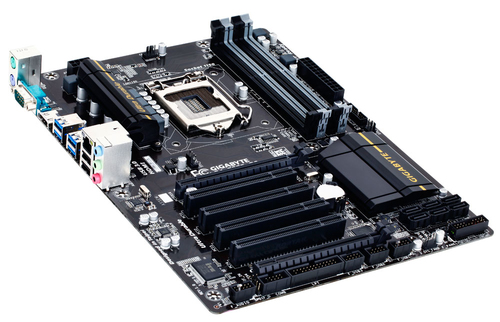

- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) vsGIGABYTE GA-P85-D3 motherboard Intel® B85 LGA 1150 (Socket H3) ATXCompare specs
- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) vsGIGABYTE GA-Z87P-D3 motherboard Intel® Z87 LGA 1150 (Socket H3) ATXCompare specs
- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) vsASUS Z87-WS motherboard Intel® Z87 LGA 1150 (Socket H3) ATXCompare specs
- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) vsASUS H87I-PLUS Intel® H87 LGA 1150 (Socket H3) mini ITXCompare specs
- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) vsASUS MAXIMUS VI GENECompare specs

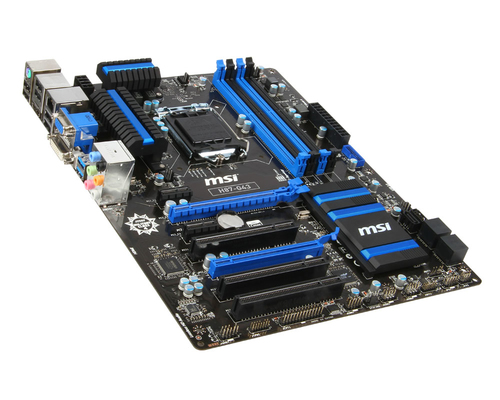

- GIGABYTE GA-Z87X-UD5 TH (rev. 1.x) vsMSI H87-G43 Intel® H87 LGA 1150 (Socket H3) ATXCompare specs
