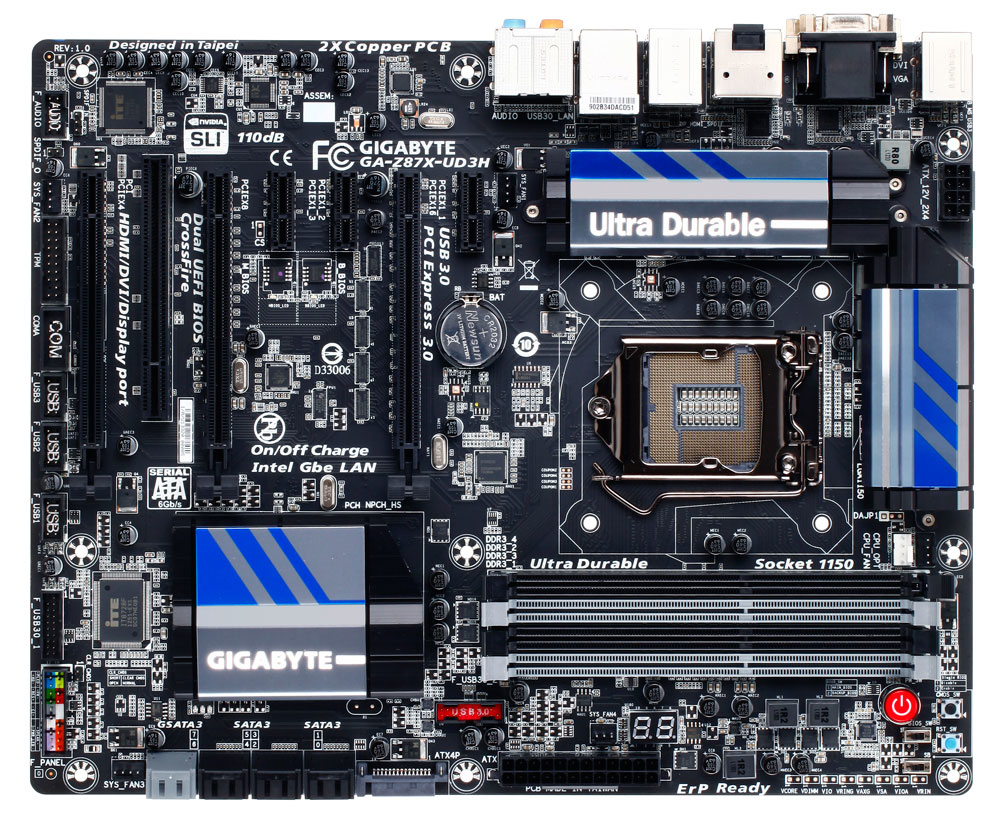

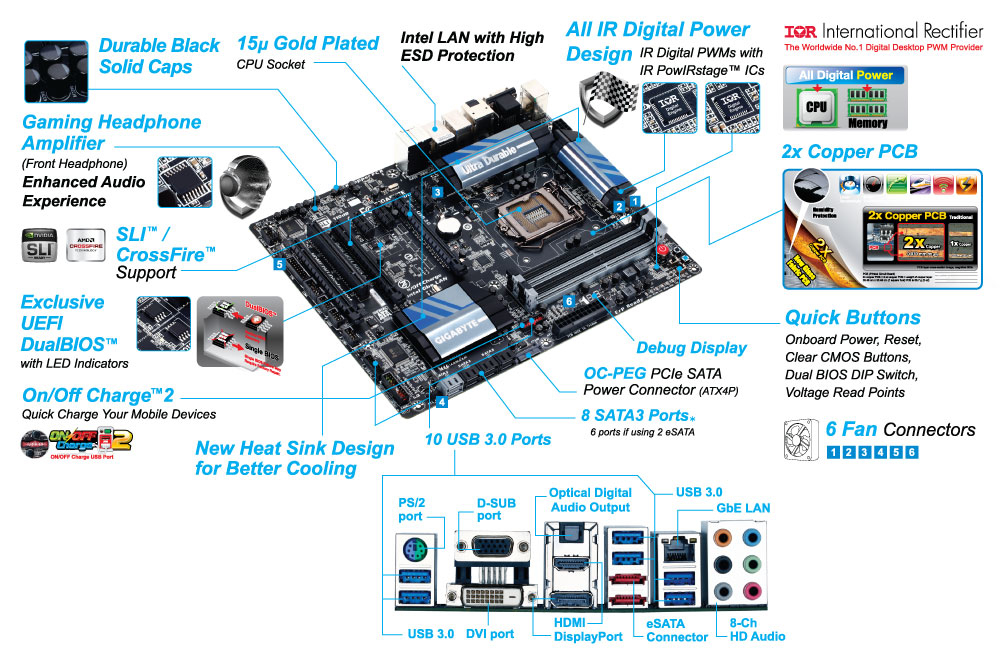

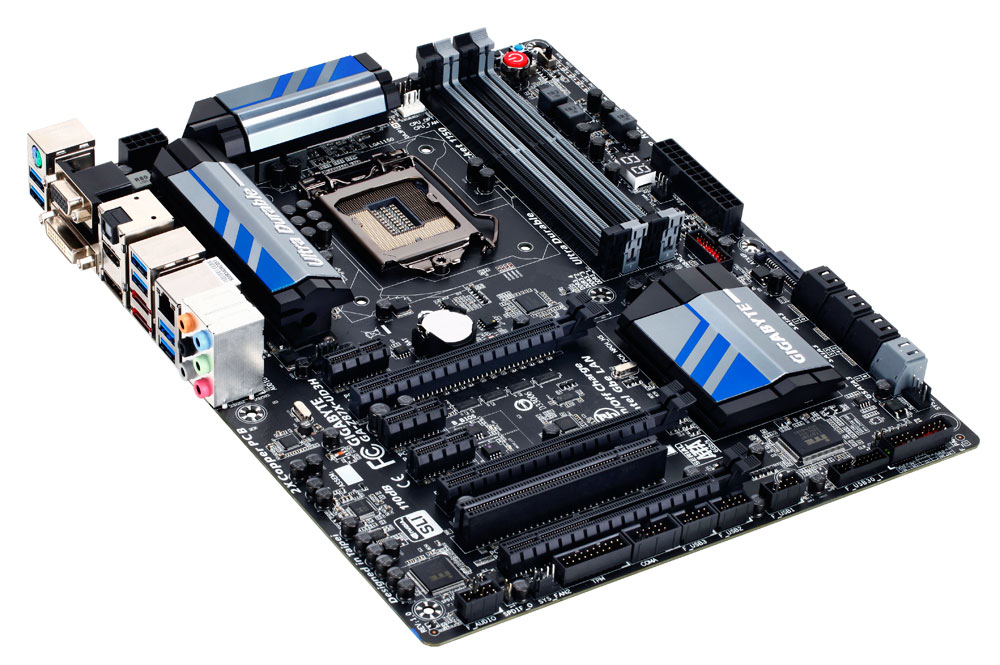

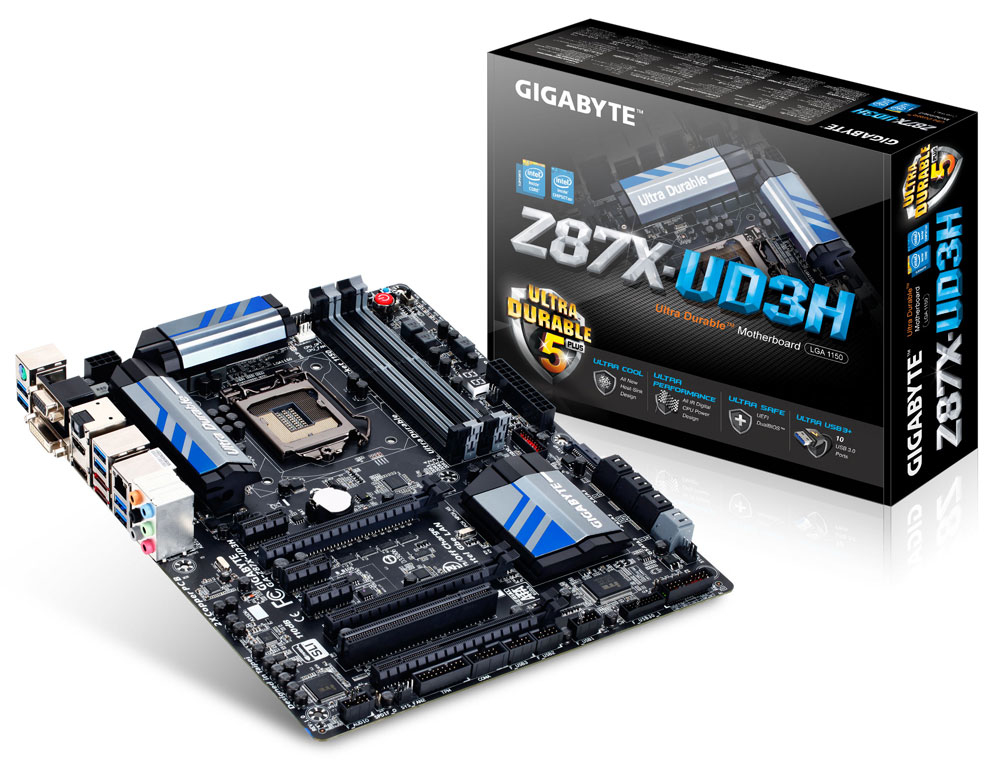

GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX
Model GA-Z87X-UD3HPart no. GA-Z87X-UD3H-R1.xEAN 8183130168290
84 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA II, SATA III
- Parallel processing technology support2-Way CrossFireX, 2-Way SLI
- USB 2.0 connectors3
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA II, SATA III
- Parallel processing technology support
- 2-Way CrossFireX, 2-Way SLI
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 0
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Z87X-UD3H
- Part numbers
- GA-Z87X-UD3H-R1.x, GA-Z87X-UD3H, GA-Z87X-UD3H-R1
- EAN / UPC
- 8183130168290, 818313016829, 4719331815288, 5053973538792
- Also known as
- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX
Specifications
84 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1150 (Socket H3) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600,3000 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |

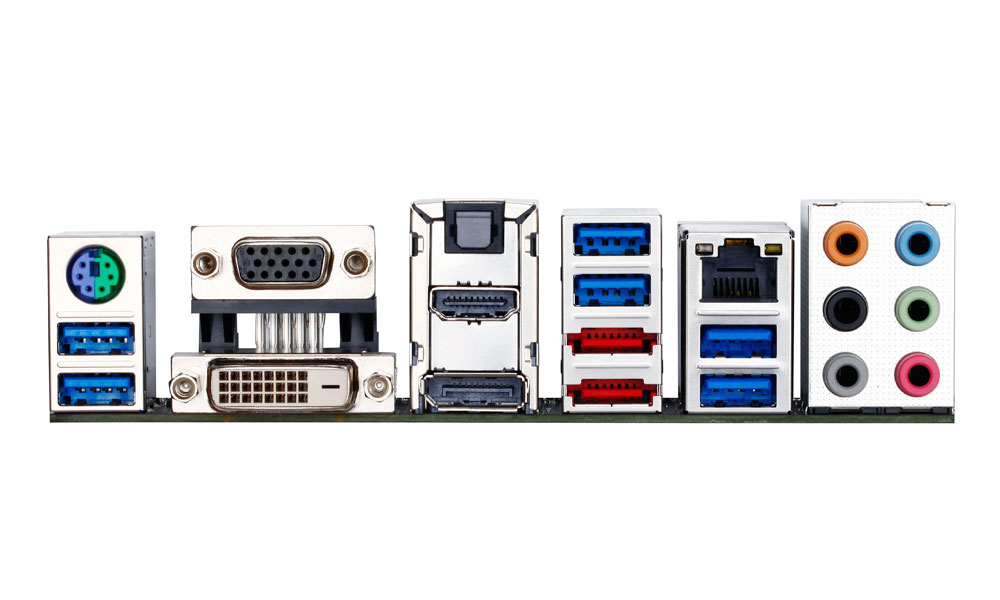

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z87 |
| Audio chip | Realtek ALC898 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 3 |
| PCI Express configurations | 1x4, 1x8, 1x16 |
| PCI Express slots version | 2.0, 3.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Processor with Intel Graphics Technology required | Yes |
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
| S/PDIF in connector | Yes |
| Quick installation guide | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX
All motherboard comparisons- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-970A-DS3P motherboard AMD 970 Socket AM3+ ATXCompare specs
- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-H77M-HD3 motherboard Intel H77 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-Z87-D3HP motherboard Intel® Z87 LGA 1150 (Socket H3) ATXCompare specs
- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-Z87M-D3H motherboard Intel® Z87 LGA 1150 (Socket H3) micro ATXCompare specs

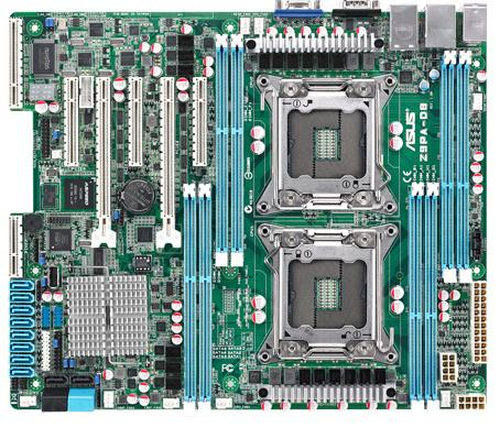

- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX vsASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATXCompare specs

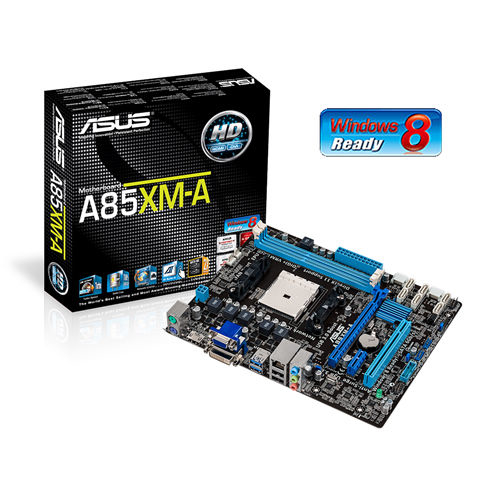

- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX vsASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATXCompare specs

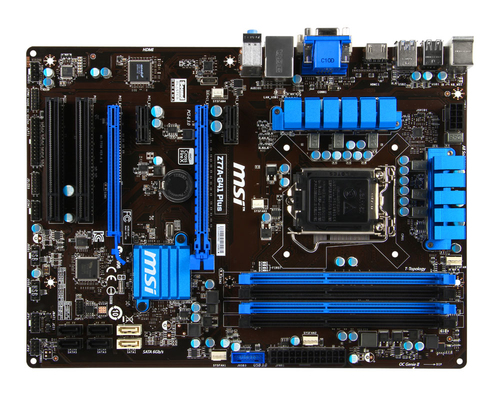

- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX vsMSI Z77A-G41 PlusCompare specs

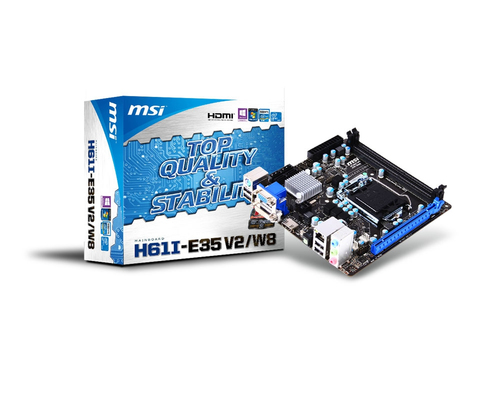

- GIGABYTE GA-Z87X-UD3H motherboard Intel® Z87 LGA 1150 (Socket H3) ATX vsMSI H61I-E35 V2/W8Compare specs
