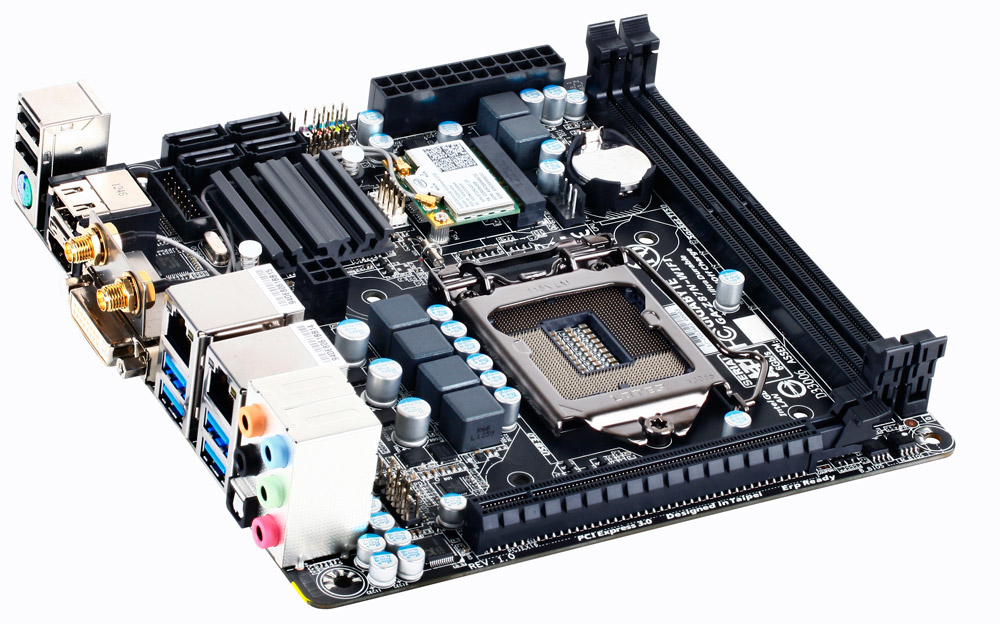

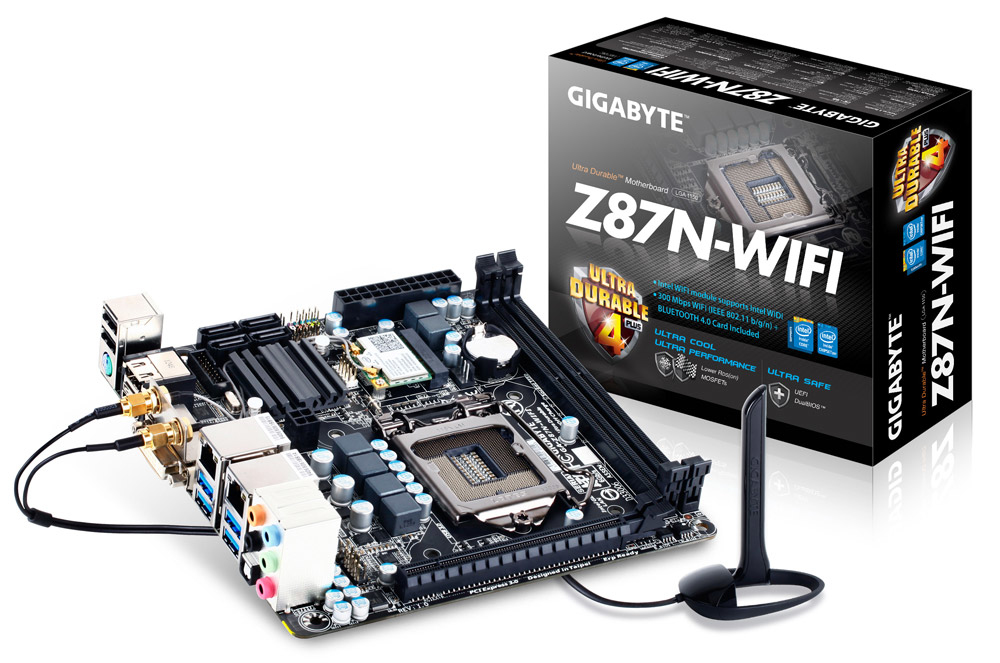

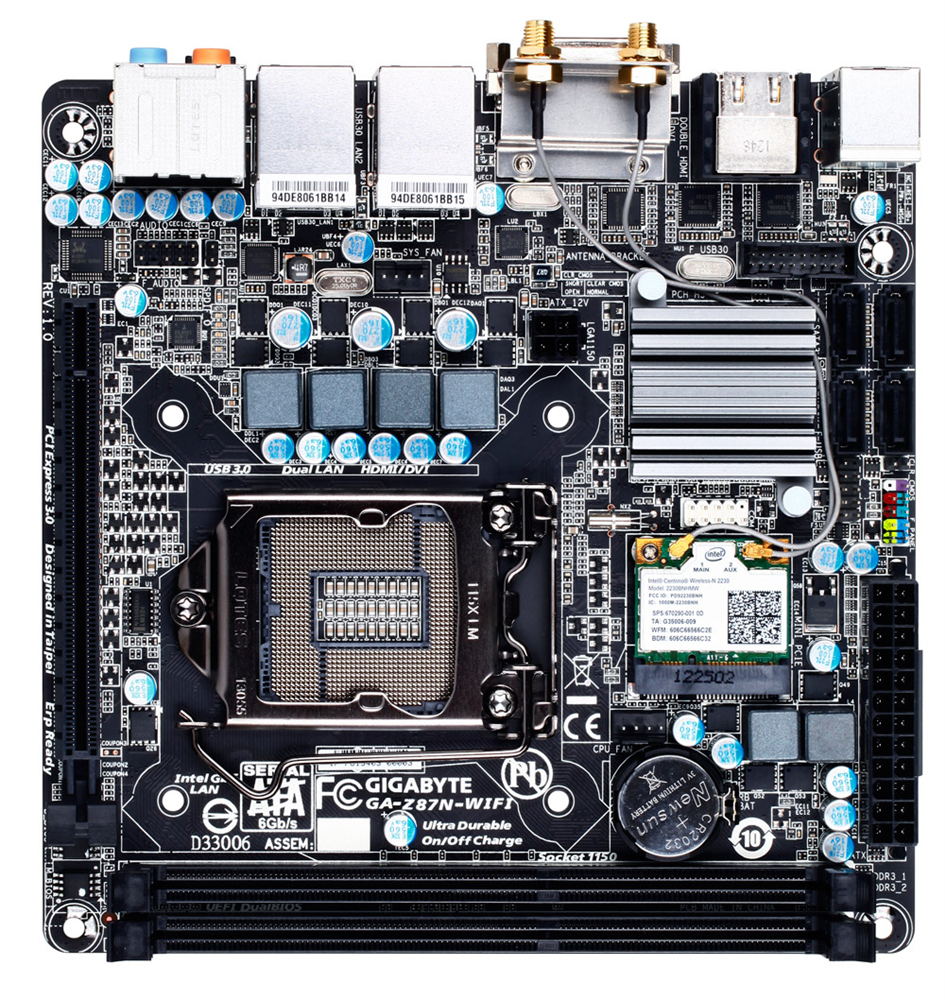

GIGABYTE GA-Z87N-WIFI motherboard Intel® Z87 LGA 1150 (Socket H3) mini ATX

Model GA-Z87N-WIFIPart no. GA-Z87N-WIFI-R1.xEAN 8183130176974

112 specifications

Overview

Brand: GIGABYTE
Category: Motherboard
Model: GA-Z87N-WIFI
Part numbers: GA-Z87N-WIFI-R1.x, GA-Z87N-WIFI, GA-Z87N-WIFI-R1
EAN / UPC: 8183130176974, 132017758602, 818313017697, 4719331820336
Also known as: GIGABYTE GA-Z87N-WIFI motherboard Intel® Z87 LGA 1150 (Socket H3) mini ATX

112 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1150 (Socket H3)
Compatible processor series	Intel® Celeron®, Intel® Pentium®
Maximum number of SMP processors	1
Supported processor sockets	LGA 1150 (Socket H3)

Specification	Value
Supported memory types	DDR3-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
Memory voltage	1.5 V
ECC сompatibility	Non-ECC
Supported memory clock speeds	1333,1600 MHz
Maximum internal memory	16 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive interfaces	SATA, SATA II, SATA III
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	Not supported
On-board graphics card	Yes
Graphics card family	Intel
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Discrete graphics support	Yes

Specification	Value
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	4
Number of Parallel ATA connectors	0
S/PDIF out connector	Yes
Front panel audio connector	Yes
CD/AUX audio in	No
ATX Power connector (24-pin)	Yes
Number of EATX power connectors	1
Power fan connector	No
CPU fan connector	Yes
Number of chassis fan connectors	1
Chassis intrusion connector	Yes
EPS power connector (8-pin)	No
Number of COM connectors	No
Number of IEEE1394 connectors	0
Parallel connector	No
Serial port headers	1
TPM connector	No

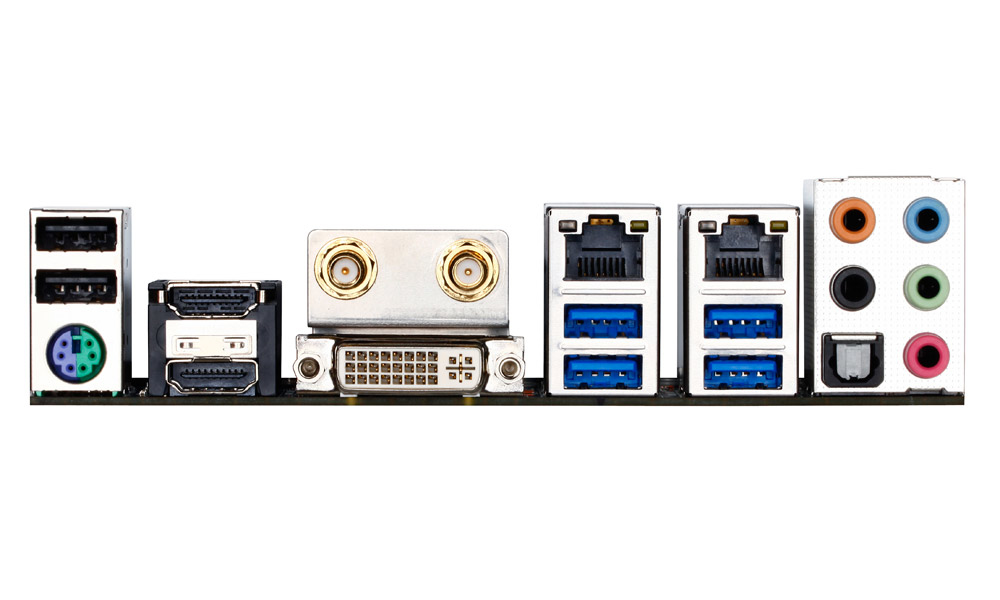

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	2
eSATA ports quantity	0
PS/2 ports quantity	1
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	2
HDMI version	1.4a
DVI-D ports quantity	0
DVI-I ports quantity	1
DisplayPorts quantity	0
Headphone outputs	5
Microphone in	Yes
S/PDIF out port	Yes
Digital audio optical out	0
Thunderbolt ports quantity	0
COM ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
WiFi-AP antenna jack	2
Modem (RJ-11) ports	0

Specification	Value
Component for	PC
Motherboard form factor	mini ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel® Z87
Audio chip	Realtek ALC892
Audio output channels	7.1 channels
PC health monitoring	CPU, Fan, Temperature
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Yes

Specification	Value
Intel® High Definition Audio (Intel® HD Audio)	Yes
Processor with Intel Graphics Technology required	Yes
Trusted Platform Module (TPM)	No

Specification	Value
Width	170 mm
Depth	170 mm

Specification	Value
Cables included	SATA
Drivers included	Yes

Specification	Value
mSATA ports quantity	0
Dual Link DVI	Yes
S/PDIF in connector	No
S/PDIF in port	No
Audio Modem Rise (AMR) slot	No
CF card connector	No
CNR slot	No
Dual Power System (DPS) slot	No
EZ plug connector	No
Floppy disk drive connector	No
GAME/MIDI connector	No
IPMI 2.0 slot	No
Quick installation guide	Yes
Serial port via internal header	Yes
eSATA/USB 2.0 ports quantity	0
