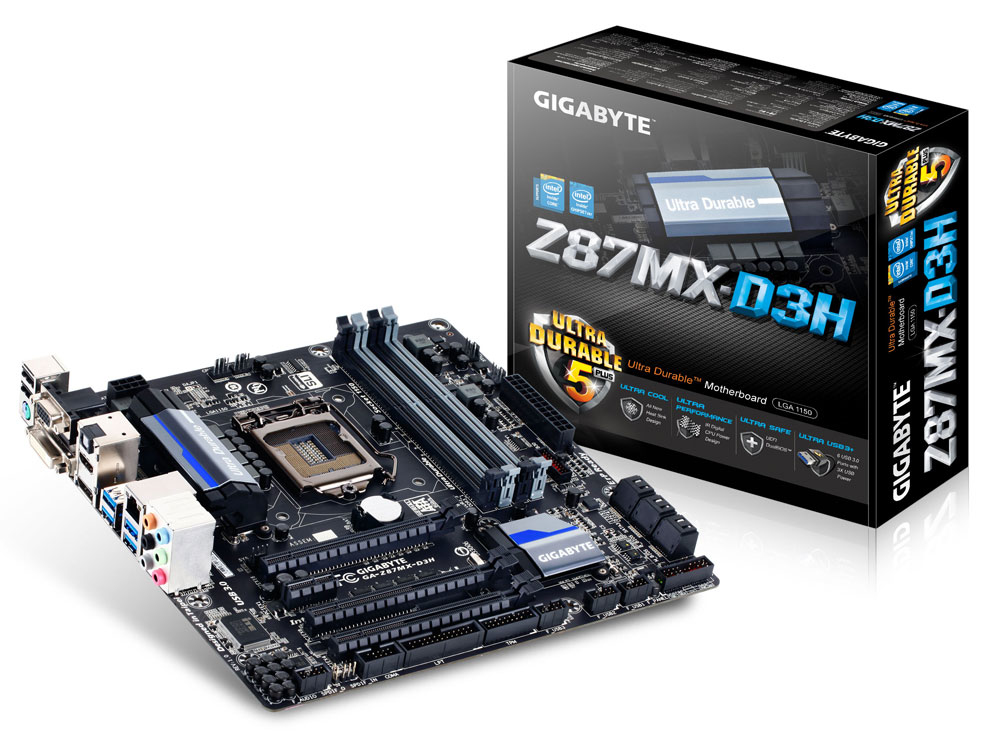

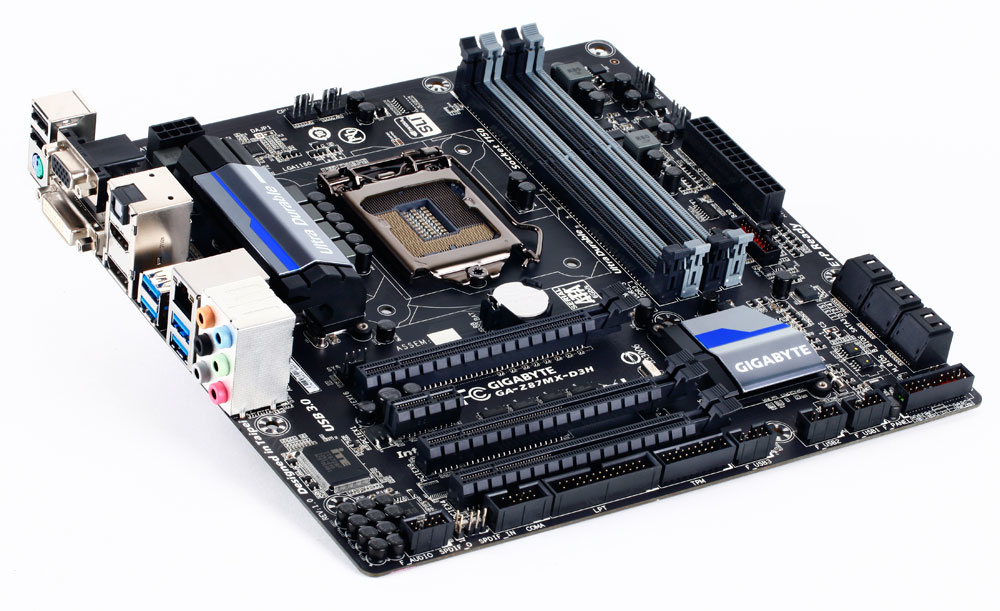

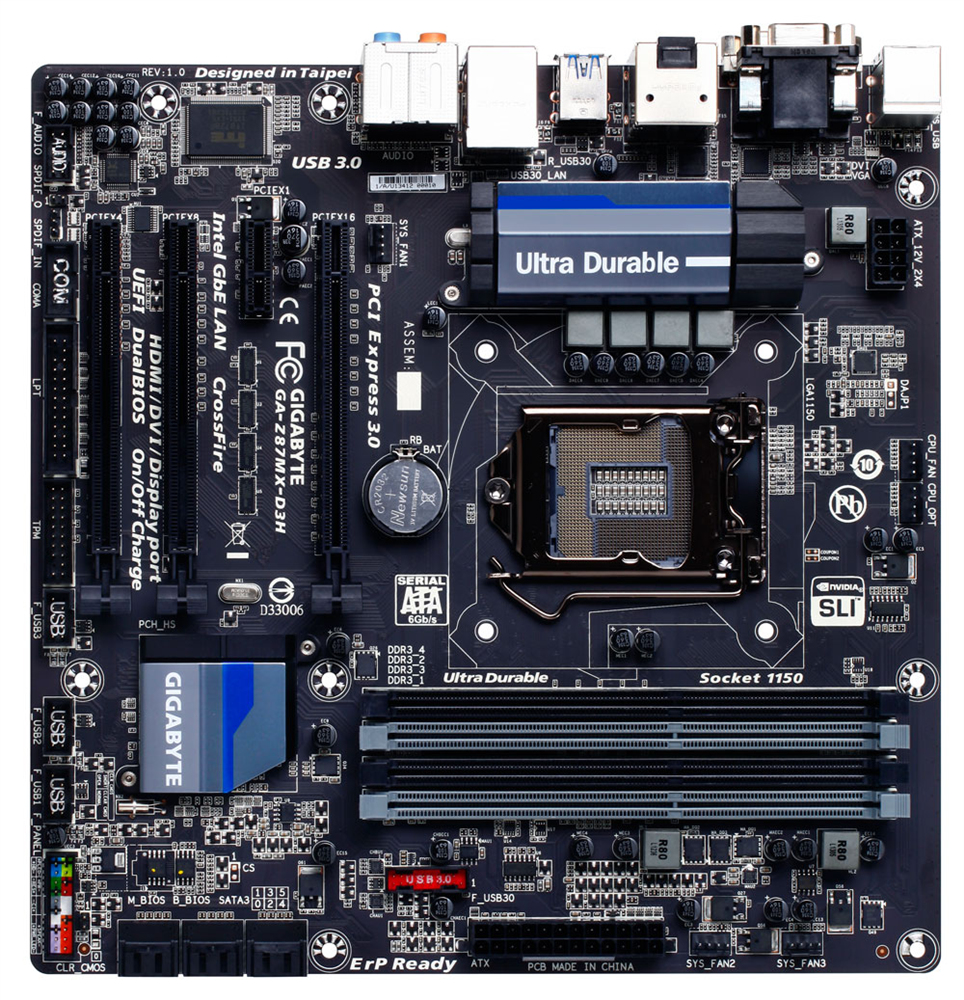

GIGABYTE GA-Z87MX-D3H motherboard Intel® Z87 LGA 1150 (Socket H3) micro ATX

Model GA-Z87MX-D3HPart no. GA-Z87MX-D3H-R1.xEAN 8183130170798

83 specifications

Overview

Brand: GIGABYTE
Category: Motherboard
Model: GA-Z87MX-D3H
Part numbers: GA-Z87MX-D3H-R1.x, GA-Z87MX-D3H, GA-Z87MX-D3H-R1
EAN / UPC: 8183130170798, 132017930671, 168141509506, 818313017079 +1 more
Also known as: GIGABYTE GA-Z87MX-D3H motherboard Intel® Z87 LGA 1150 (Socket H3) micro ATX

83 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1150 (Socket H3)
Compatible processor series	Intel® Celeron®, Intel® Pentium®
Maximum number of SMP processors	1
Supported processor sockets	LGA 1150 (Socket H3)

Specification	Value
Supported memory types	DDR3-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Memory voltage	1.5 V
ECC сompatibility	Non-ECC
Supported memory clock speeds	1333,1600 MHz
Maximum internal memory	32 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive interfaces	SATA, SATA II, SATA III
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI
On-board graphics card	Yes
Graphics card family	Intel
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Discrete graphics support	Yes

Specification	Value
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
Parallel connector	Yes
Serial port headers	1

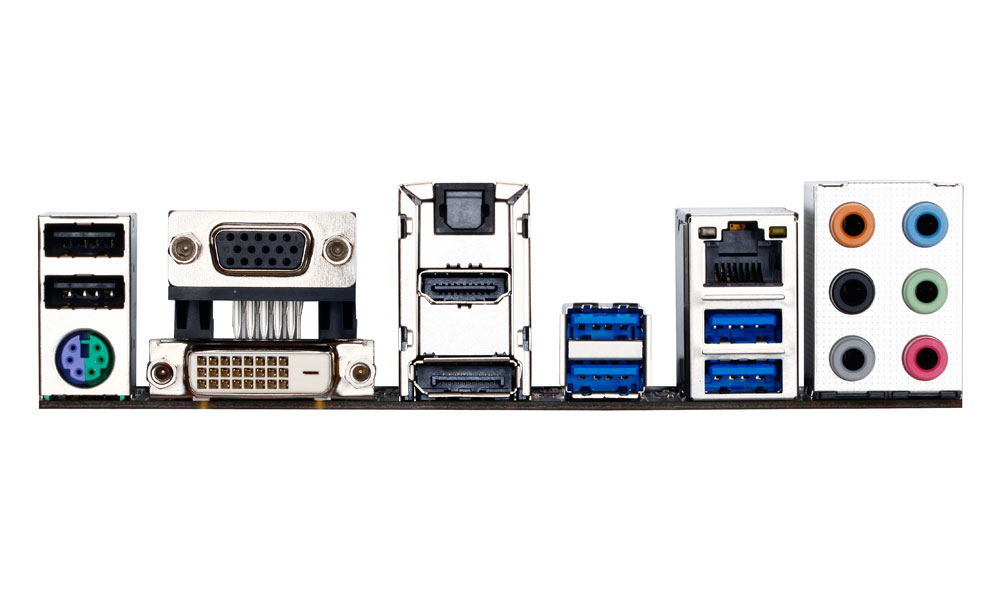

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	1
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4a
DVI-D ports quantity	1
DisplayPorts quantity	1
Headphone outputs	6
Microphone in	Yes
S/PDIF out port	Yes

Specification	Value
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel® Z87
Audio chip	Realtek ALC892
Audio output channels	7.1 channels
PC health monitoring	CPU, Fan, Temperature
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Yes

Specification	Value
Intel® High Definition Audio (Intel® HD Audio)	Yes
Processor with Intel Graphics Technology required	Yes
Trusted Platform Module (TPM)	Yes

Specification	Value
Width	244 mm
Depth	244 mm

Specification	Value
Cables included	SATA

Specification	Value
Dual Link DVI	Yes
S/PDIF in connector	Yes
Parallel port via internal header	Yes
Quick installation guide	Yes
Serial port via internal header	Yes
