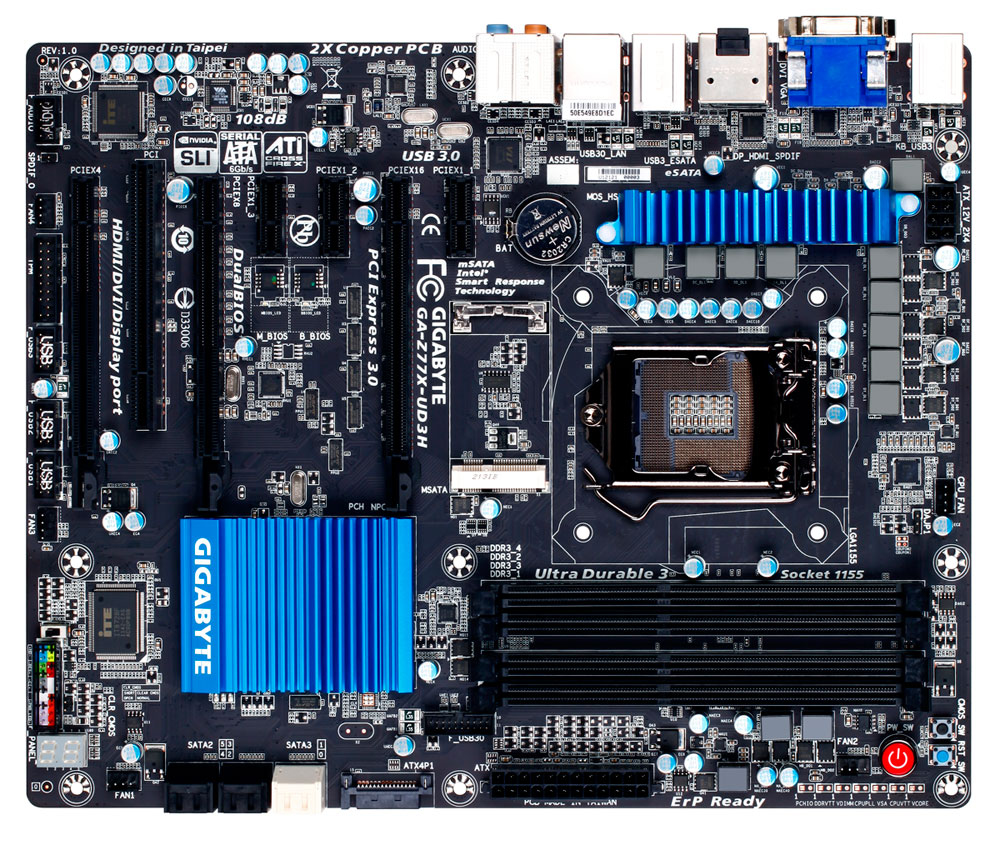

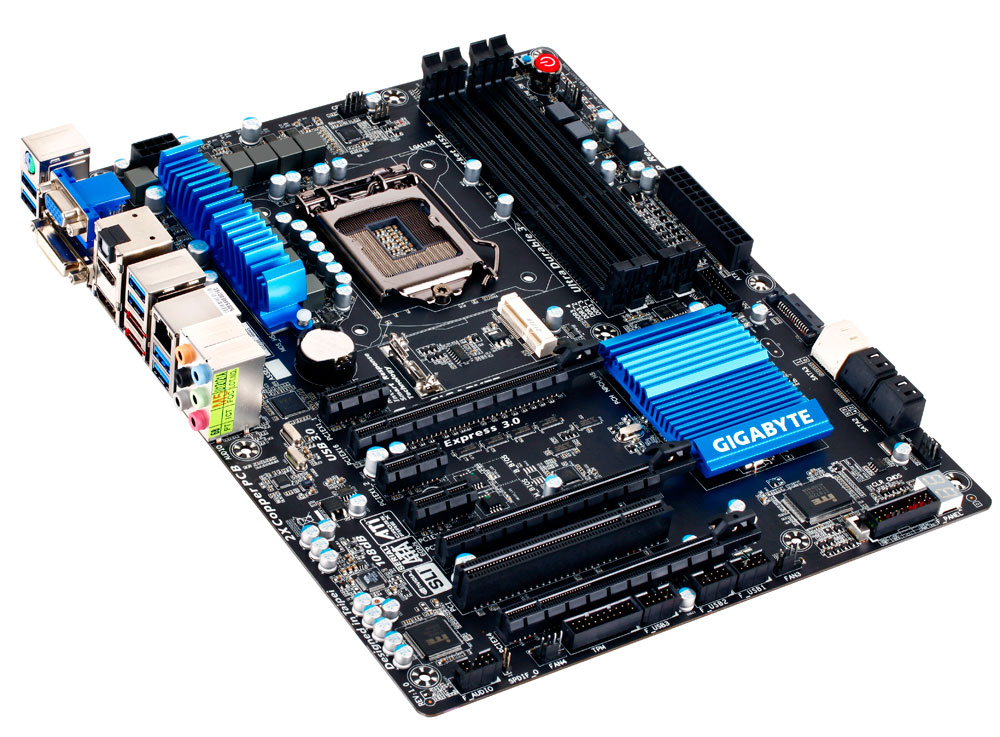

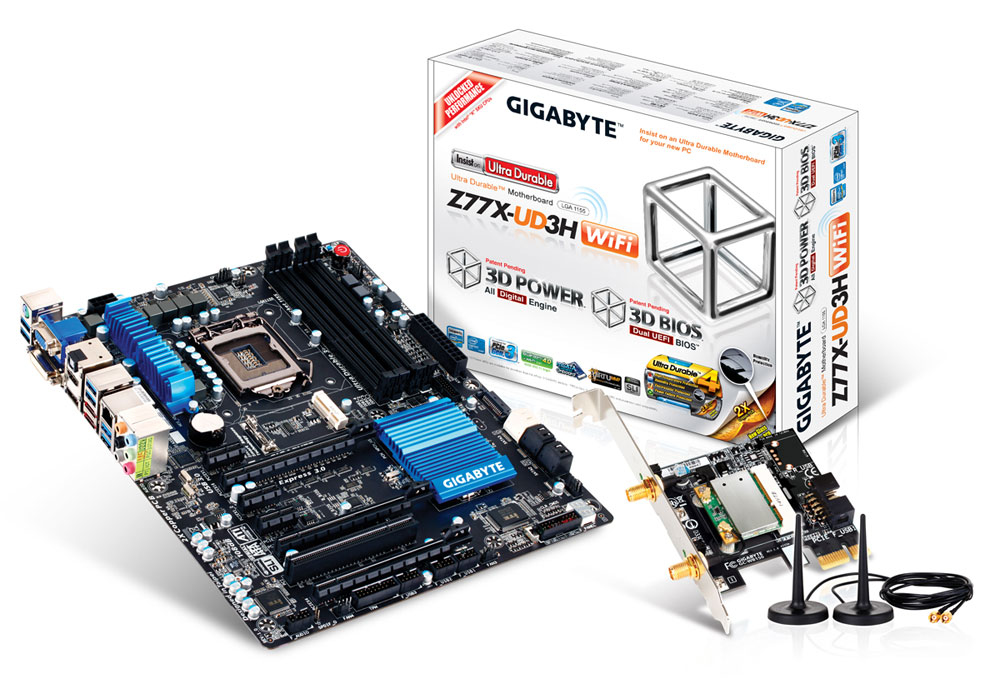

GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX
Model GA-Z77X-UD3H-WBEAN 4719331810306
70 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology support2-Way CrossFireX, 2-Way SLI
- USB 2.0 connectors3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- 2-Way CrossFireX, 2-Way SLI
- USB 2.0 connectors
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Z77X-UD3H-WB
- Part number
- GA-Z77X-UD3H-WB
- EAN / UPC
- 4719331810306
- Also known as
- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX
Specifications
70 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 4GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

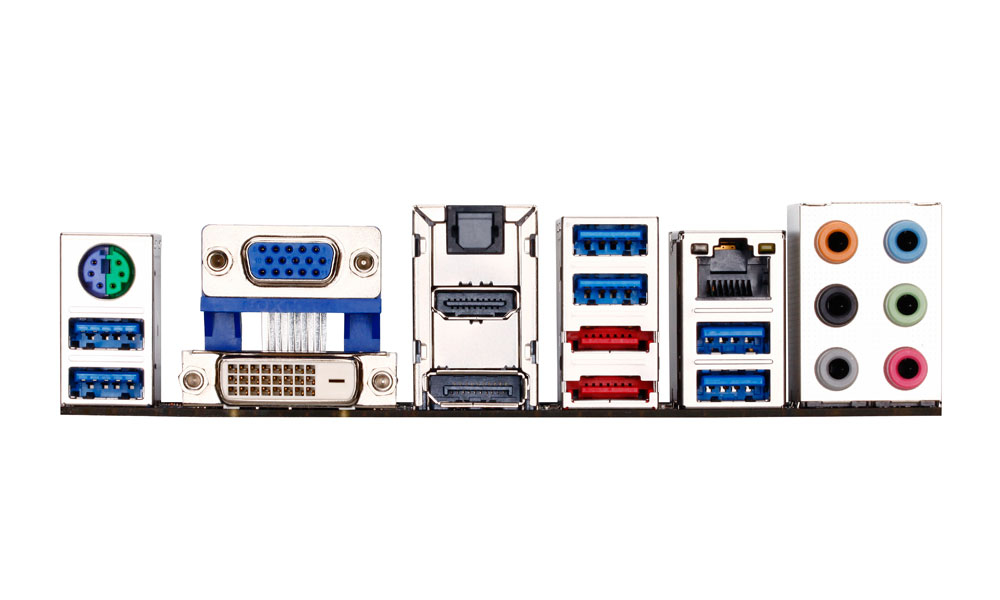

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 5 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | NVIDIA |
| Motherboard chipset | Intel® Z77 Express |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security Intel Rapid Start Technology Intel Smart Connect Technology Intel Smart Response Technology LucidLogix Virtu MVP |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 1 |
| PCI Express power connectors (6-pin) | 1 |
| Controller interface type | Marvell 88SE9172 |
| BIOS switch button | Yes |
What people say
Reviews & ratings
GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX
All motherboard comparisons- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX vsGIGABYTE GA-P75-D3 (rev. 1.0)Compare specs

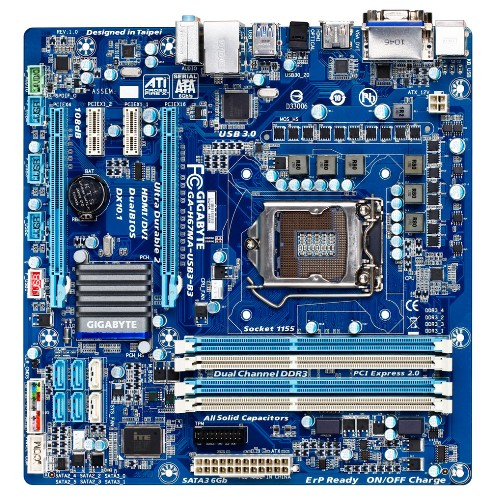

- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX vsGIGABYTE GA-H67MA-USB3 motherboard Intel® H67 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX vsGIGABYTE GA-Z77X-UD5H-WB WIFICompare specs
- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX vsGIGABYTE GA-B75-D3V motherboard LGA 1155 (Socket H2) ATXCompare specs

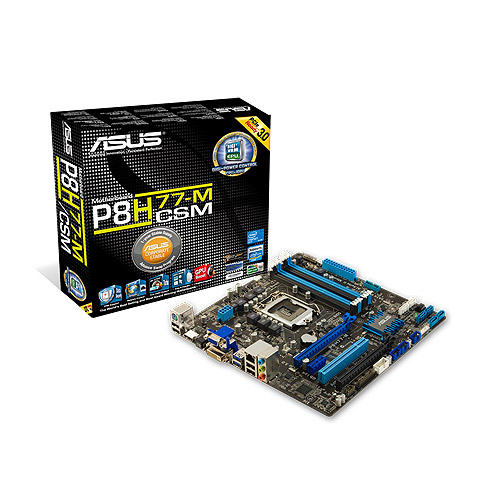

- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX vsASUS P8H77-M/CSM motherboard Intel H77 LGA 1155 (Socket H2) micro ATXCompare specs

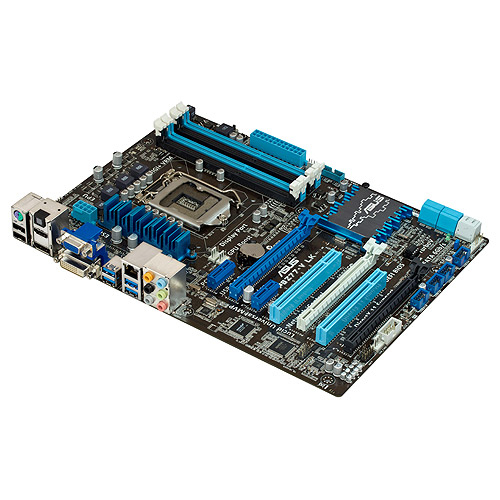

- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX vsASUS P8Z77-V LKCompare specs

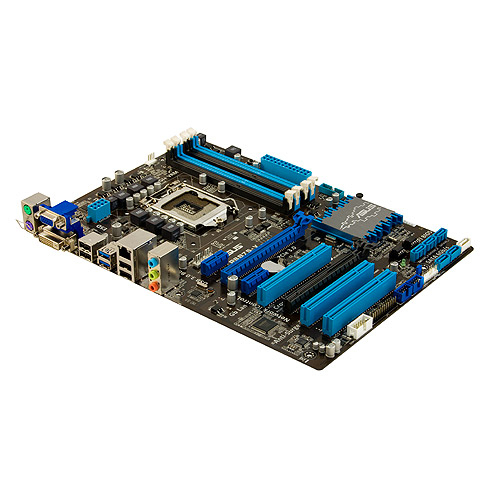

- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX vsASUS P8B75-V Intel B75 LGA 1155 (Socket H2) ATXCompare specs

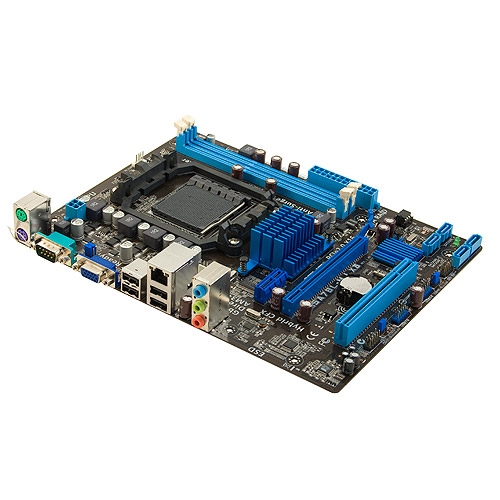

- GIGABYTE GA-Z77X-UD3H-WB motherboard Intel® Z77 Express LGA 1155 (Socket H2) ATX vsASUS M5A78L-M LX3Compare specs
